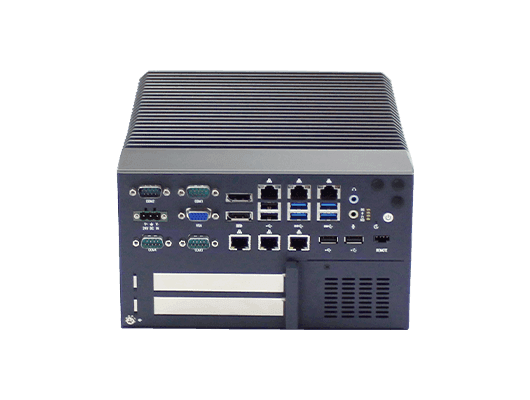

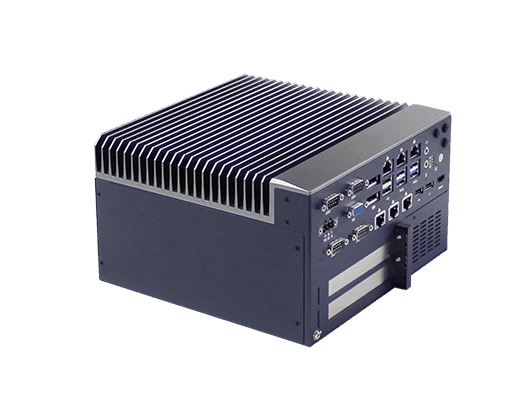

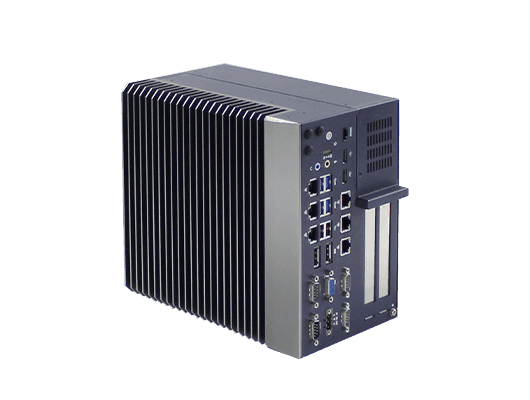

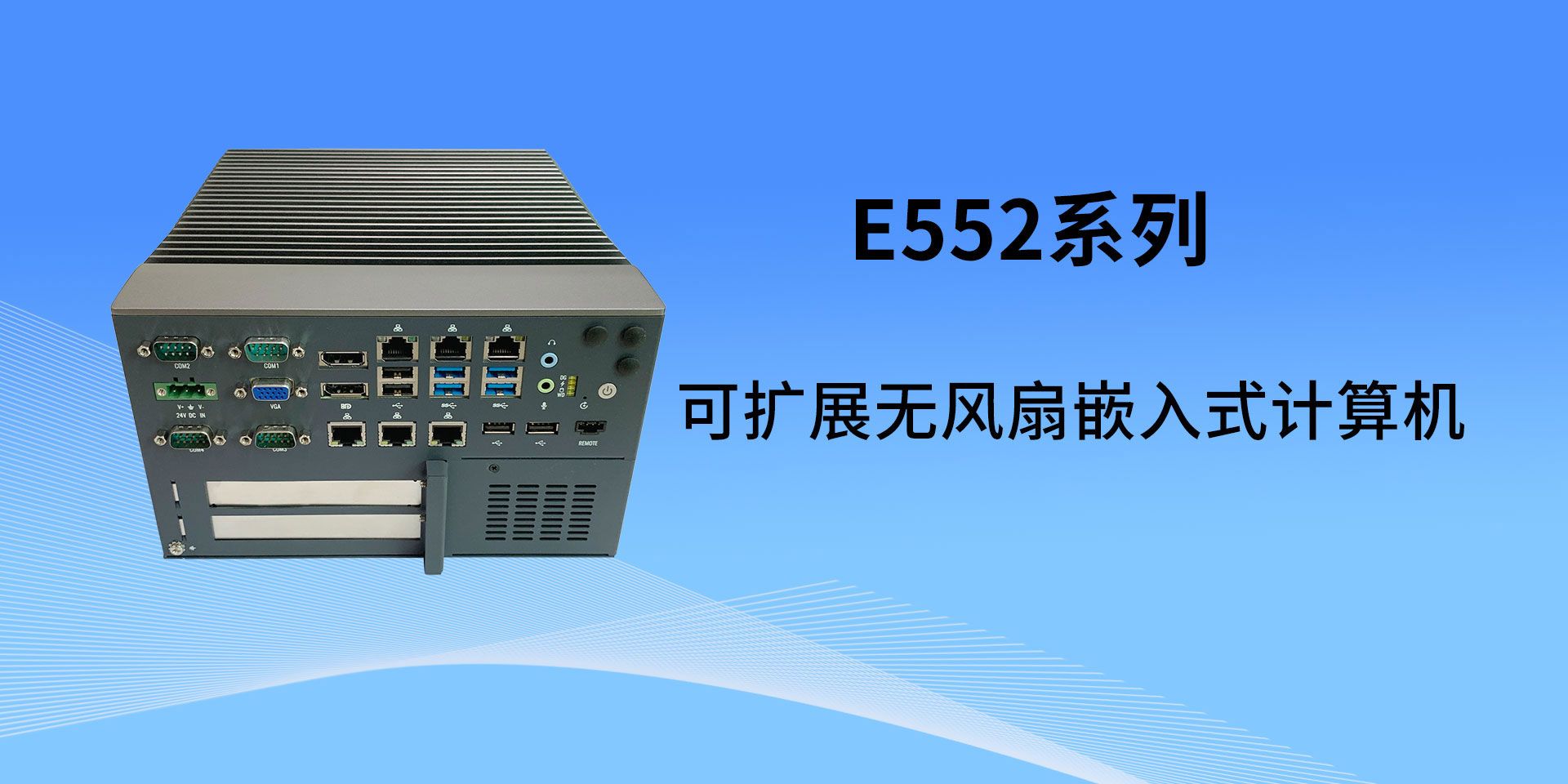

E552系列
搭载 Intel LGA1151 处理器平台，配置 千兆网口 VGA 与多路工业扩展，支持 24V供电 0℃~50℃宽温 工业级高可靠运行
型号: E552
系统核心规格

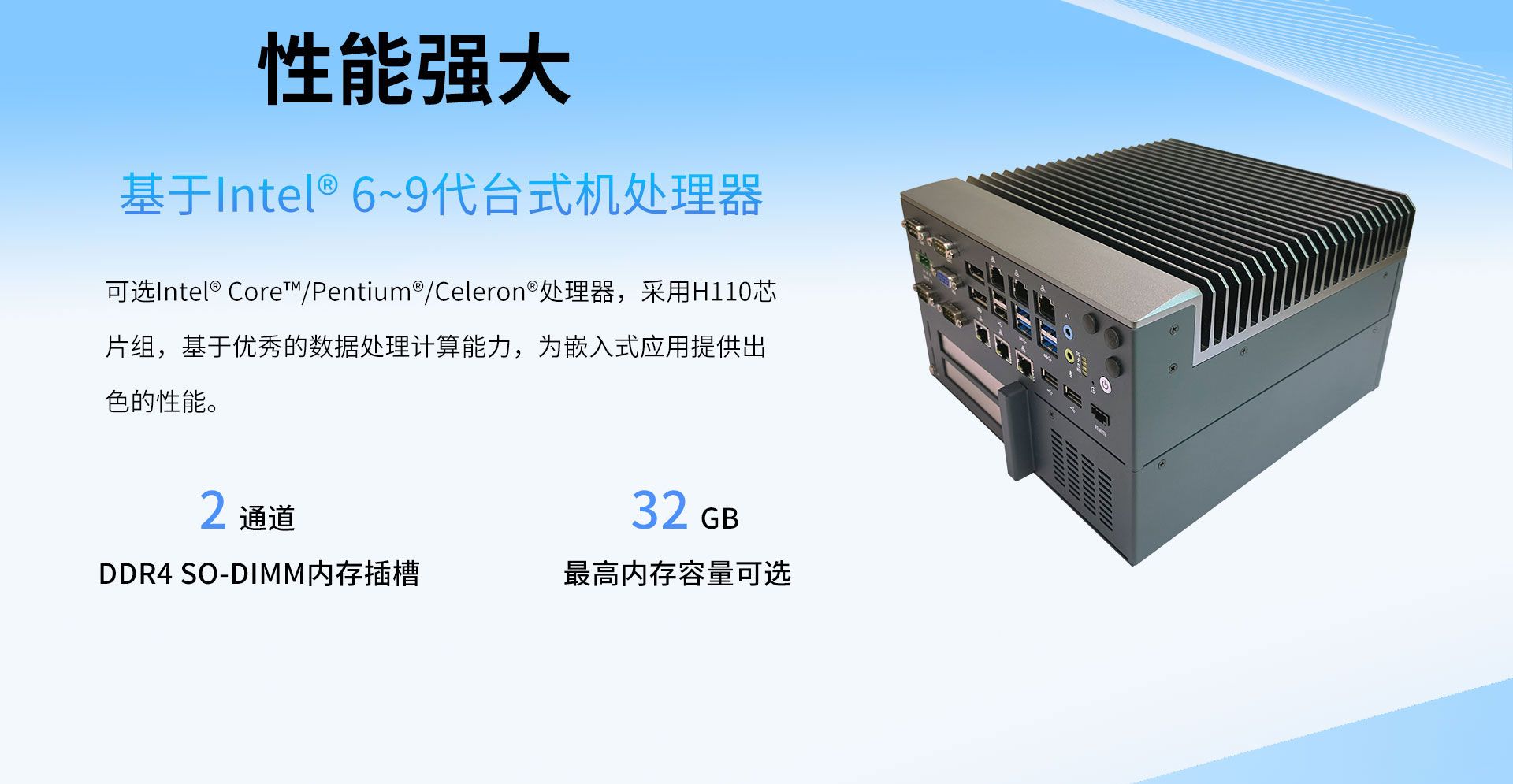

- 处理器: Intel 第六至九代平台Core 处理器（LGA1151）
- 内存: 2 x DDR4 SO-DIMM(Max.64GB)
- 网络接口: 6（5 x Intel i210, 1 x Intel i219）
- 显示接口: 2 DP、1 VGA, 支持双独立显示
- 供电输入: 24V DC；9–36V DC 选配
- 操作系统: Windows 7(仅第六代支持)，Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04
- 工作温度: 0–50°C，气流 0.7 m/s
产品概述
技术规格
| Specs | Item | E552 Series |
|---|---|---|
| Processor System | CPU | Intel® 6th/7th/8th/9th Gen Processors with LGA1151 |
| Chipset | H110 | |
| BIOS | AMI 8MB UEFI | |
| Memory | Sockets | Dual channel 260-PIN DDR4 SO-DIMM |
| Capacity | 最大 64GB | |
| Display | DP | 2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz |
| VGA | 1 x VGA, Max. 1920 x 1080@60Hz | |
| Dual Display | Yes, DP + DP or DP + VGA | |
| Audio | Controller | Realtek ALC662, High Definition Audio. Mic-in, Line-out |

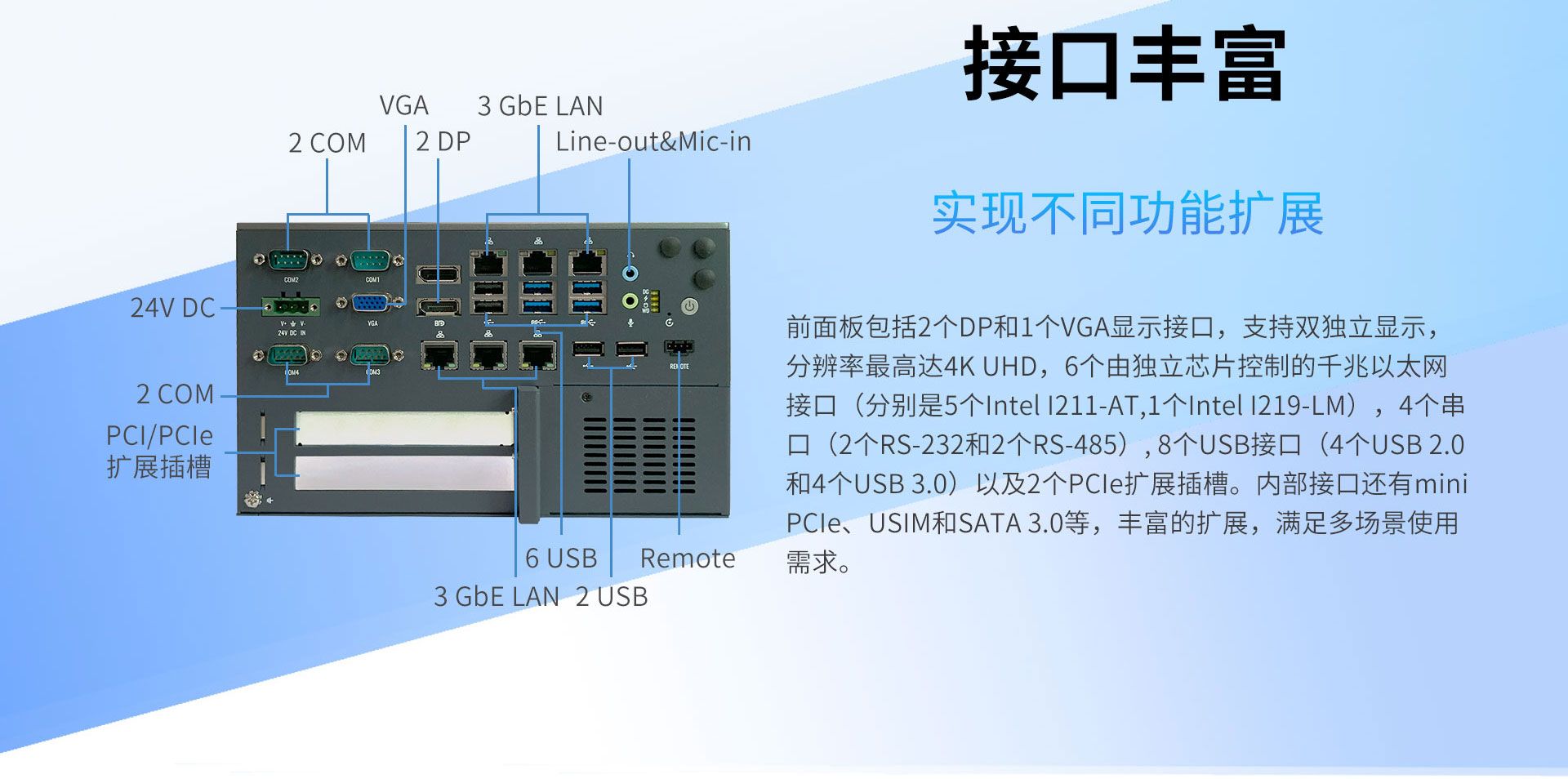

| Ethernet | LAN | 5 x Intel® i210, 1 x Intel® i219 GbE LAN |
| Peripheral Interface | USB | 4 x USB 2.0, 4 x USB 3.0 |
| COM | 1 × RS-232/422/485; 2 × RS-232/485; 1 × RS-232 | |
| LED | 4 x LED(SATA/待机/内存/Watchdog） | |
| Reset | 1 x Reset Button | |
| Power Button | 1 | |
| Storage | SATA3.0 | 3 x SATA 3.0 |
| M.2 | 1 x M.2 | |
| Expansion | Mini-PCIe | 1 x full-size mini-PCIe, Support WLAN/WWAN module |
| USIM | 1 x USIM, Support 3G/4G LTE | |
| Internal USB | 1 x USB 2.0 internal | |
| PCIe/PCI | 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x4 (x2 signal)/ PCI | |
| Watchdog | Output/Interval | Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec |
| Power Supply | DC Input | 24V DC；9–36V DC 选配 |
| OS | Microsoft Windows | Windows 7(Intel® 6th Gen CPU Only)，Windows 10 |
| Linux | centos 8, ubuntu 18.04/ 20.04/ 22.04 | |

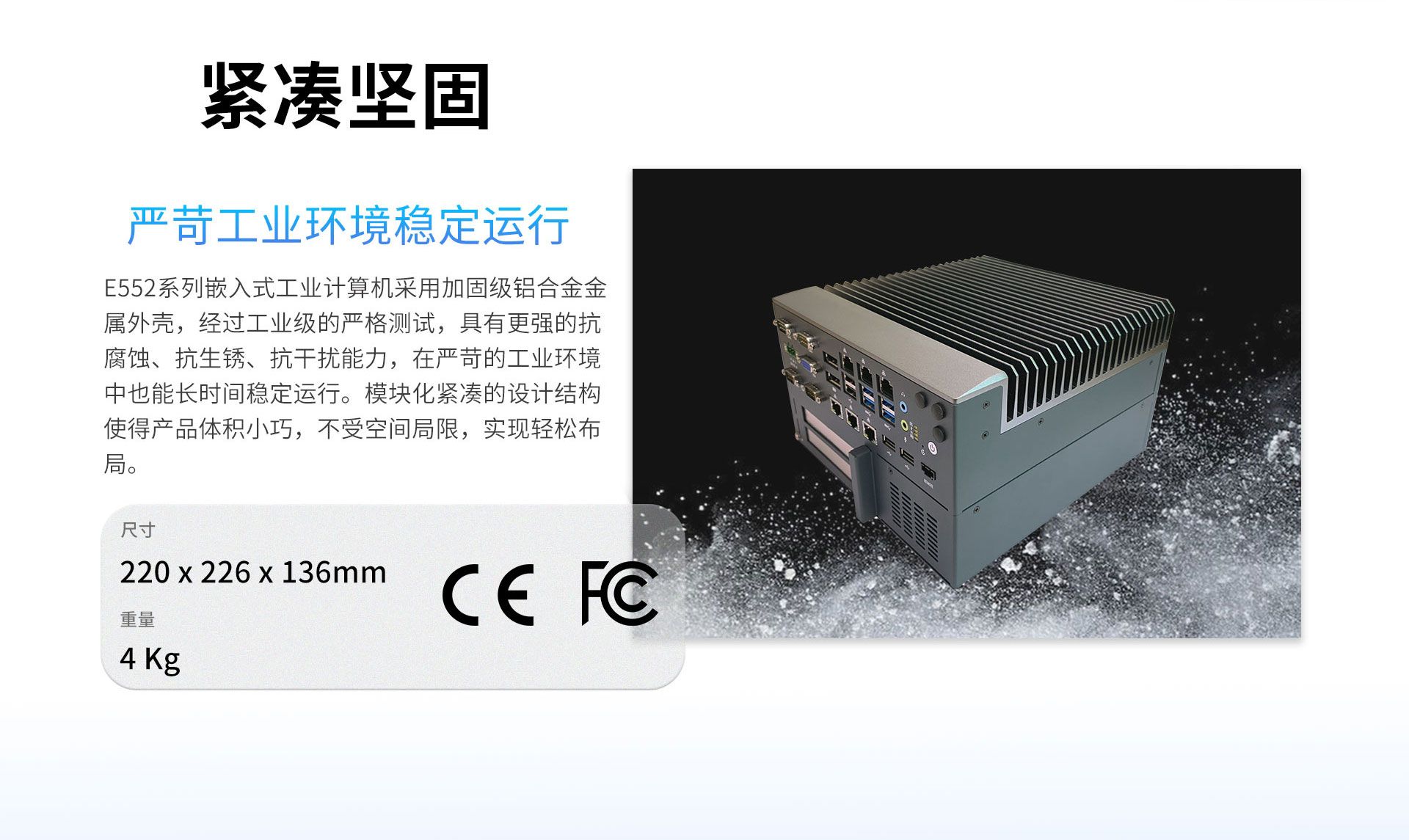

| Physical Characteristics | Construction | Aluminium Alloy |
| Mounting | Desktop/Wall Mounting | |

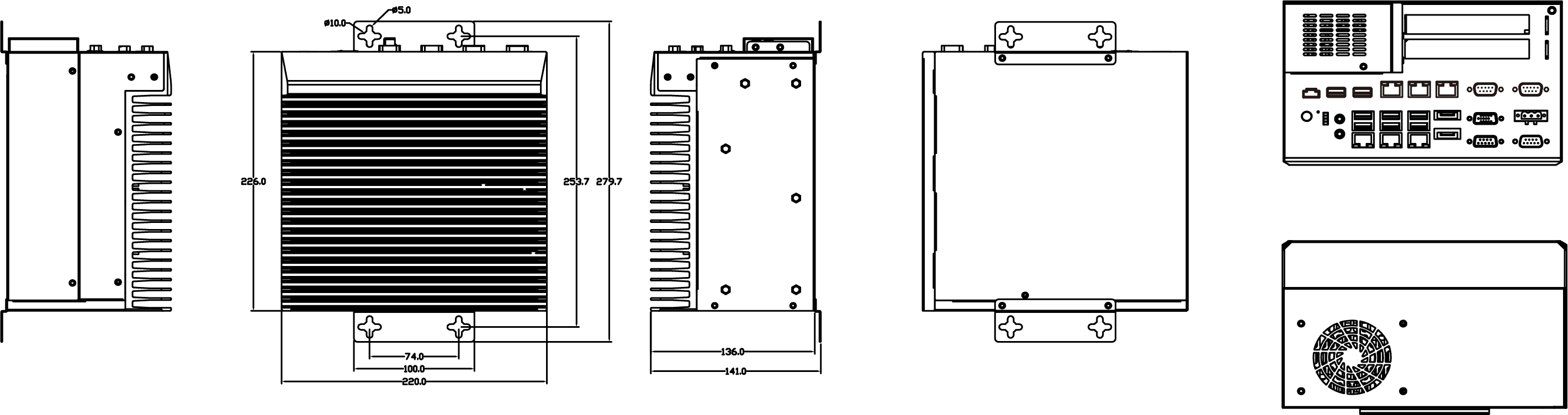

| Dimensions | 220 x 226 x 136mm (LxWxH) | |
| Weight | 4.0 Kg | |
| Environment | Operating Temperature | 0°C~50°C, airflow 0.7m / s |
| Storage Temperature | −40–85°C (−40–185°F) | |
| Relative Humidity | 10~95% @ 40°C ( Non-Condensing ) | |
| Vibration During Operation | With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis | |
| Shock During Operation | With SSD:30 G, IEC 60068-2-27, half sine, 11m duration | |
| ESD | Contact +/-4 KV, Air +/-8 KV | |
| EMC | CE/FCC Class B |
资料下载
该产品暂无下载附件，可向工程师索取资料。
常见技术与选型问题
针对该型号的硬件规格、系统兼容性与部署支持
E552 的处理器与内存规格是什么？
处理器: Intel 第六至九代平台Core 处理器（LGA1151）; 内存: 2 x DDR4 SO-DIMM(Max.64GB)
E552 提供哪些网络与显示接口？
网络接口: 6（5 x Intel i210, 1 x Intel i219）; 显示接口: 2 DP、1 VGA, 支持双独立显示
E552 的供电、工作温度与操作系统要求是什么？
供电输入: 24V DC；9–36V DC 选配; 工作温度: 0–50°C，气流 0.7 m/s; 操作系统: Windows 7(仅第六代支持)，Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04
