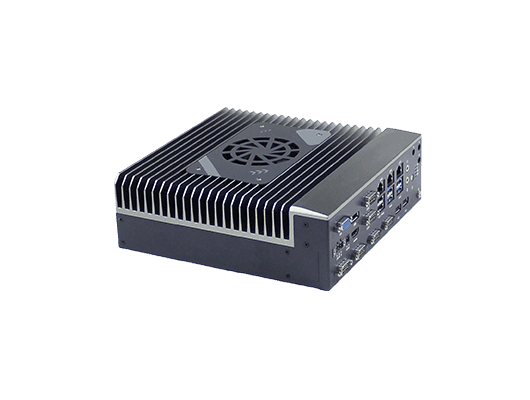

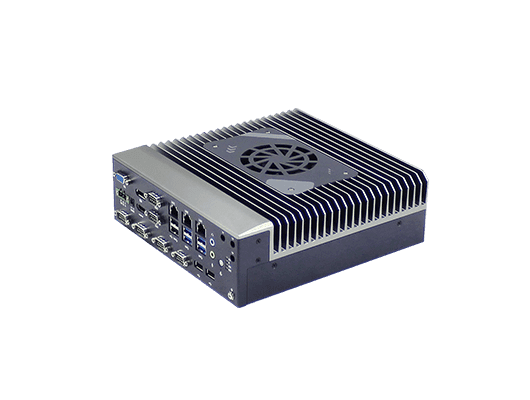

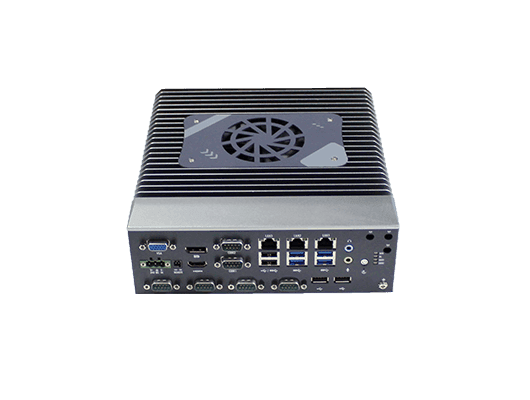

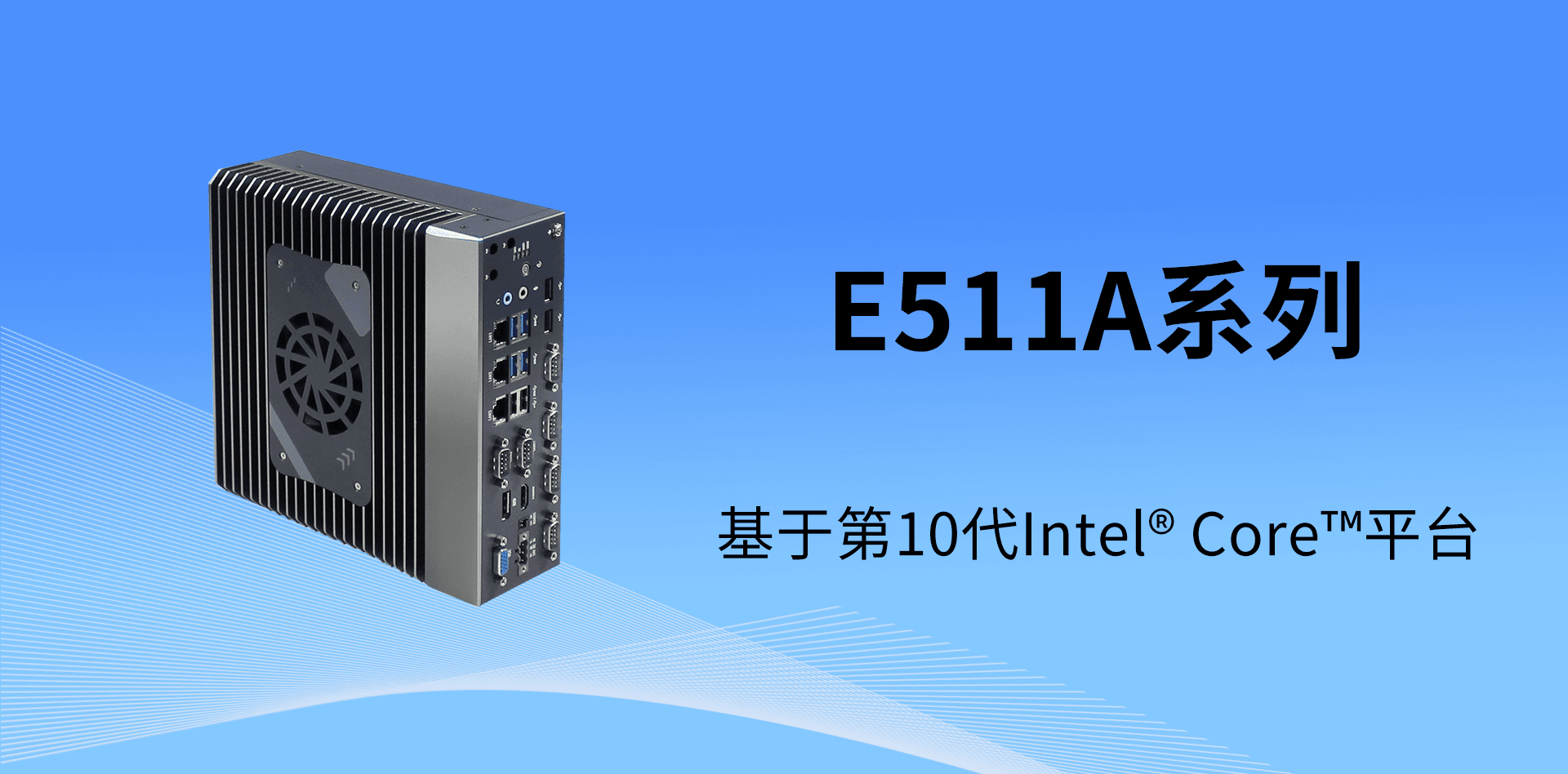

E511A系列
搭载 第10代酷睿 处理器平台，配置 双千兆网口 HDMI+DP双显 与多路工业扩展，支持 24V供电 0℃~50℃宽温 工业级高可靠运行
型号: E511A
系统核心规格
- 处理器: Intel Core i3/i5/i7，第10代或第11代版本（LGA1200）
- 内存: 2 x DDR4，最高64GB内存
- 网络接口: 3（2 x Intel i210, 1 x Intel i219）
- 显示接口: 1 x DP, 1 x VGA, 1 x HDMI (Q470:独立三显, H420E:独立双显)
- 供电输入: 24V DC；9–36V DC 选配
- 操作系统: Windows 10/11, centos 8, ubuntu 20.04/22.04
- 工作温度: 0–50°C
产品概述
技术规格
规格参数_1
| Specs | Item | E511A |
|---|---|---|
| Processor System | CPU | Intel Core i3/i5/i7，第10代或第11代版本（LGA1200） |
| Chipset | H420E / H470 / Q470 | |
| Socket | LGA1200 | |
| TDP | Max 65W | |
| BIOS | AMI 256Mbit SPI Flash | |
| Memory | Technology | 2 x 260 PIN DDR4 SO-DIMM |
| Capacity | Max 64GB | |
| Graphics | Controller | Intel UHD Graphics supports DirectX12, OpenGL 4.5 and OpenCL 2.1 |
| Graphic Features | 3D Acceleration: Direct3D 2015, OpenGL4.5, OpenCL2.1HW Decode: HEVC/H.265 (8/10-bit), AVC/H.264, VP9(8/10-bit),VP8, MPEG2,MJPEG,VC-1HW Encode: HEVC/H.265 (8/10-bit), AVC/H.264, VP9(8-bit),VP8, MPEG2,MJPEG | |

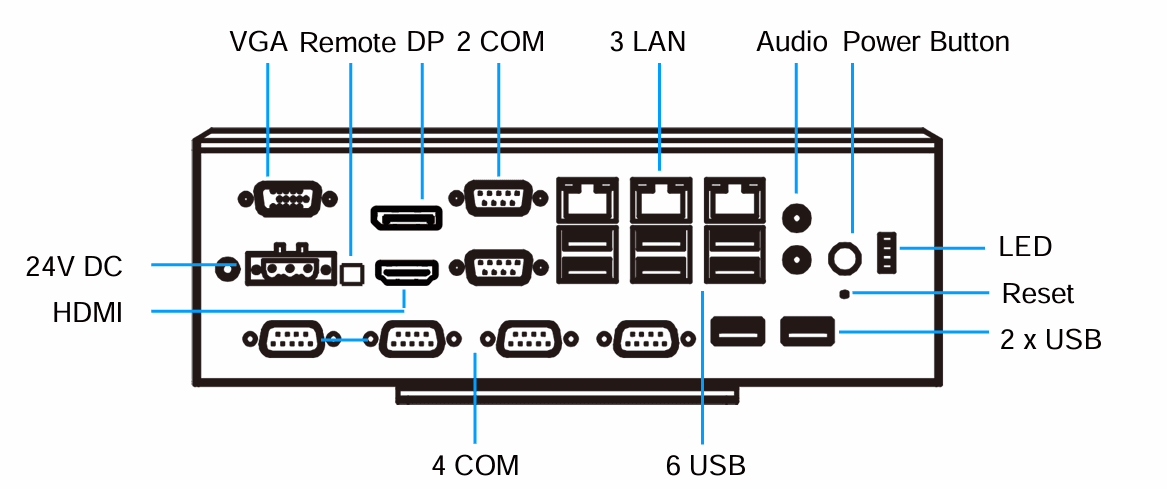

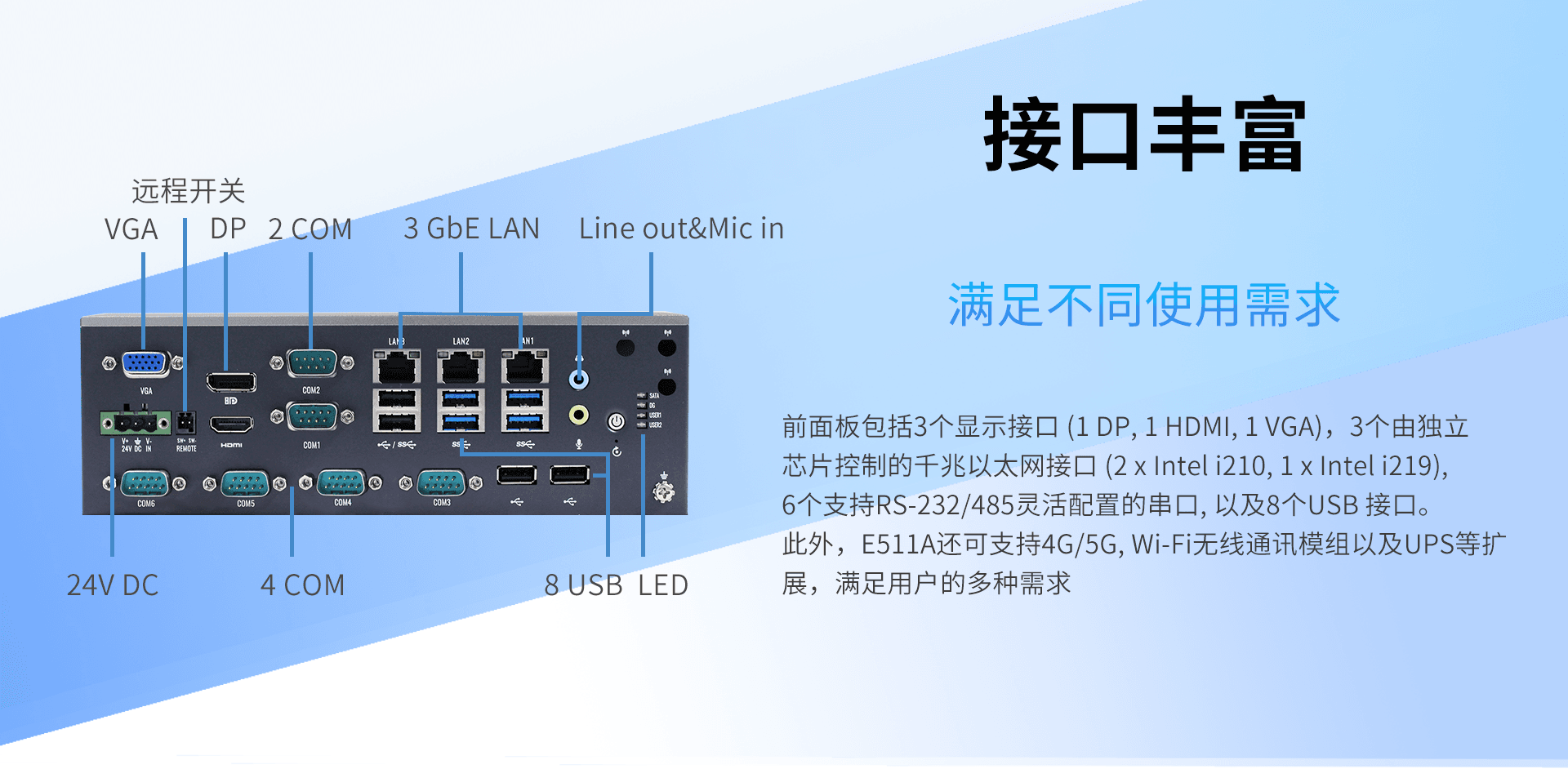

| External I/O | DP | 1 x DP1.4 resolution up to 4096x2304@60Hz |
| HDMI | 1 × HDMI 2.0, 4096 × 2160 @ 60Hz | |
| VGA | 1 x VGA resolution up to 1920 x 1200@60Hz | |
| LAN | 2 x Intel i210 GbE LAN, 1 x Intel i219 GbE LAN | |
| Serial Ports | 1 × RS-232/422/485; 3 × RS-232/485; 2 × RS-232 | |
| USB 3.0 | 4 (H420E) / 6 (Q470/H470) | |
| USB 2.0 | 4 (H420E) / 2 (Q470/H470) | |
| Audio | 1 x Line out, 1 x Mic in | |
| Remote | 1 x 2 PIN Remote Switch | |
| Power Input Connector | 1 x 3 PIN Power Input Connector | |
| LED & Switch | LED | HDD, Memory, User-defined 1, User-defined 2 |
| Power Button | 1 x Power Button | |
| Reset | 1 x Reset Button | |
| Internal Connectors | USB2.0 | 1 x Internal USB2.0 support Dongle |
| M.2 E-Key | 1 × M.2 2230 Wi-Fi；Q470/H470：CNVi、PCIe；H420E：PCIe | |
| M.2 B-Key | 1 x M.2 3052 support 4G/5G | |
| M.2 B-Key | 2 x M.2 2280 SATA3.0 | |
| SIM | 1 × Nano SIM | |
| Power Supply | Power Input | 24V DC；9–36V DC 选配 |
| Power Management | AT/ATX | |
| Max. Consumption | 150W | |
| Others | Watchdog | 65536 level, 0~65535 sec |
| TPM | TPM2.0 (Optional) | |
| Physical Characteristics | Construction | Aluminium Alloy |
| Dimension | 220 x 226 x 75mm (L x W x H) | |
| Weight | 3.4 kg | |
| Installation | Wall Mounting | |
| Environment | Operating Temperature | 0°C~50°C (32~122℉) |
| Storage Temperature | -40°C~85°C （-40~185℉） | |
| Operating Humidity | 95%@40°C(Non-Condensing) | |
| Storage Humidity | 95% @60°C ( Non-Condensing ) | |
| Certification | EMC | CE, FCC |
| Operation System | OS | Windows 10/11, centos 8, ubuntu 20.04/22.04 |
资料下载
该产品暂无下载附件，可向工程师索取资料。
常见技术与选型问题
针对该型号的硬件规格、系统兼容性与部署支持
E511A 的处理器与内存规格是什么？
处理器: Intel Core i3/i5/i7，第10代或第11代版本（LGA1200）; 内存: 2 x DDR4，最高64GB内存
E511A 提供哪些网络与显示接口？
网络接口: 3（2 x Intel i210, 1 x Intel i219）; 显示接口: 1 x DP, 1 x VGA, 1 x HDMI (Q470:独立三显, H420E:独立双显)
E511A 的供电、工作温度与操作系统要求是什么？
供电输入: 24V DC；9–36V DC 选配; 工作温度: 0–50°C; 操作系统: Windows 10/11, centos 8, ubuntu 20.04/22.04
