型号: E510
| Specs | Item | E510 |
|---|---|---|
| Processor System | CPU | Intel® 6th/7th/8th/9th Gen Processors with LGA1151 |
| Chipset | H110 | |
| BIOS | AMI 8MB UEFI | |
| Memory | Sockets | 2 x DDR4 SO-DIMM |
| Capacity | Max. 32GB | |
| Display | DP | 2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz |
| VGA | 1 x VGA, Max. 1920 x 1080@60Hz | |
| Dual Display | Yes, DP + DP or DP + VGA | |
| Audio | I/O | 1xMic-in, 1xLine-out |
| Ethernet | LAN | 5 x Intel i210 GbE LAN |
| LAN | 1 x Intel i219 GbE LAN | |

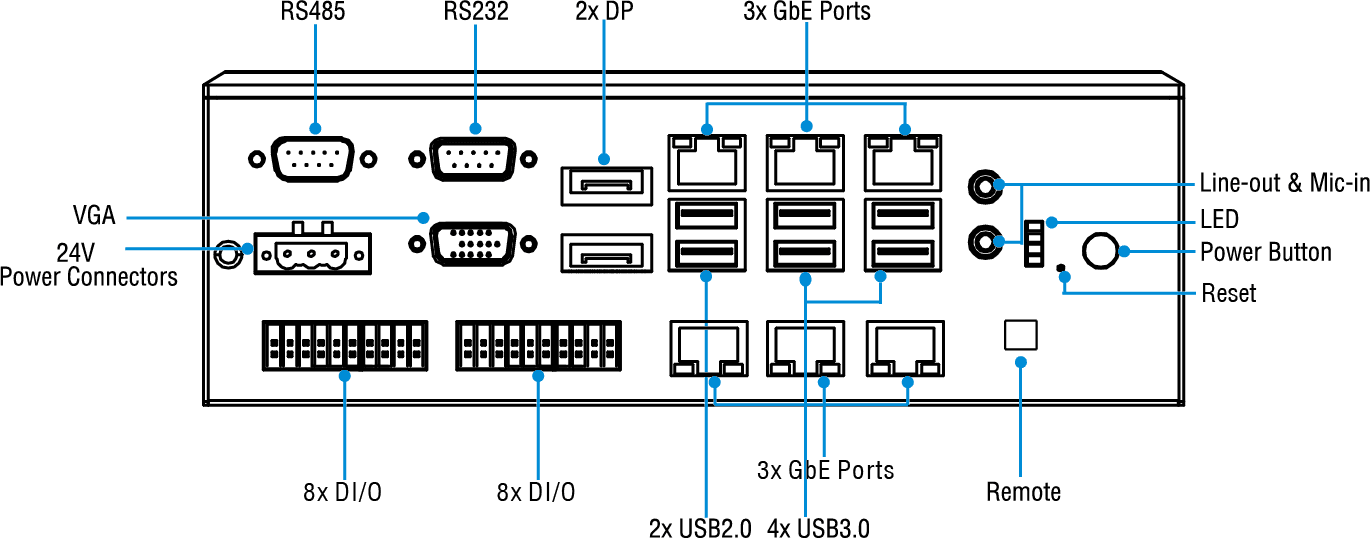

| I/O Interface | USB | 4 x USB 3.0, 2 x USB 2.0 |
| COM | 1 x RS-232/422/485, 1 x RS-232 | |
| DIO | 16 DI, 16 DO | |
| Power Connector | 1 x 4 PIN Power Connector | |
| Remote | 1 x 2 PIN Remote switch | |
| Expansion | Mini-PCIe | 1 x full-size mini-PCIe, Support WLAN/WWAN module |
| USIM | 1xUSIM, Support 3G/4G LTE | |
| Storage | M.2 | 1 x M.2 |
| SATA3.0 | 1 x SATA3.0, For 2.5" SATA storage device | |
| Watchdog | Output/Interval | Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec |
| Power Supply | DC input | 24V DC IN |
| OS | MicrosoftWindows | Windows 7(Intel® 6th Gen CPU only), Windows 10 64Bit |
| Linux | centos 7/8, ubuntu 18.04/20.04/22.04 | |
| Physical Characteristics | Construction | Aluminium Alloy |
| Mounting | Wall Mounting | |

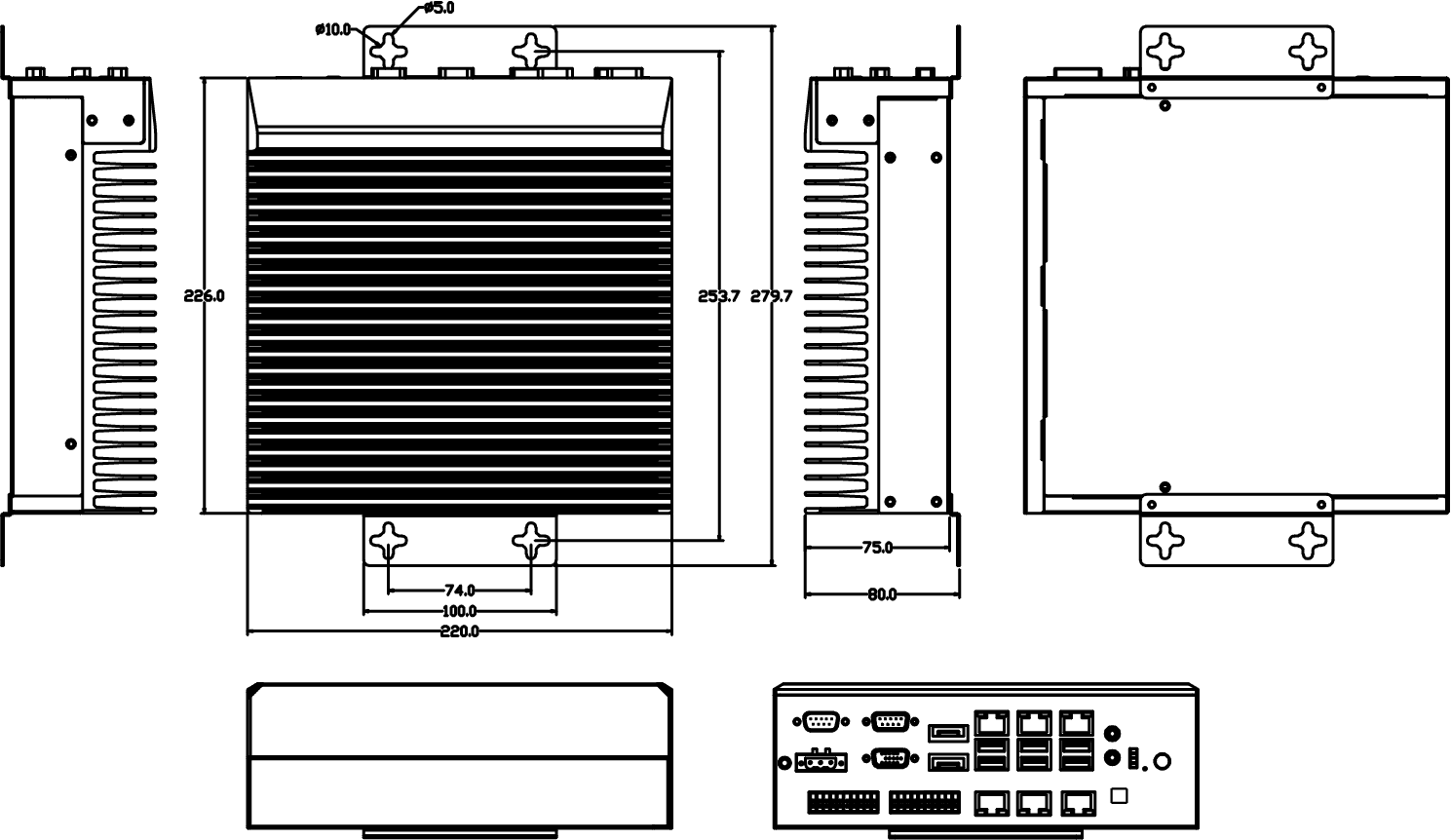

| Dimensions | 220 x 226 x 75mm (L x W x H) | |
| Weight | 3.4Kg | |
| Environment | Operating Temperature | 0°C~50°C, Airflow 0.7m / s |
| Storage Temperature | -40°C~80°C | |
| Relative Humidity | 95%@40°C(Non-Condensing) | |
| Vibration During Operation | With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis | |
| Shock During Operation | With SSD:30 G, IEC 60068-2-27, half sine, 11m duration | |
| ESD | Contact +/-4 KV, Air +/-8 KV | |
| EMC | CE/FCCClassB |
| 硬件及核心系统 | |
|---|---|
| 处理器/CPU | Intel 第六至九代台式机处理器（LGA1151） |
| 系统内存 | 2 x DDR4 SO-DIMM（Max.32GB） |
| 网络/局域网 | 6 (5 x Intel i210, 2 x Intel i219) |
| 显示输出 | 2 DP 、1 VGA, 支持DP+DP/DP+VGA 双独立显示 |
| I/O 和物理结构 | |
| 机械/外壳 | 工业金属机箱 |
| 操作系统 | Windows 7(仅第六代支持)，Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04 |
针对该型号的硬件规格、系统兼容性与部署支持
E510 兼容 Windows 7(仅第六代支持)，Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04 等工业操作系统。研响科技提供完善的底层 BSP 驱动包与长期系统镜像定制服务，满足工业自动化控制与边缘 AI 部署需求。
E510 采用工业级加固结构与高效无风扇被动散热架构，支持 -20°C 至 60°C 宽温范围稳定运行。密闭金属机箱有效隔离工业粉尘与油污，通过抗振动与抗冲击测试，确保工厂现场 7x24 小时连续无故障运转。
E510 支持 9–36V DC 宽压供电输入，具备内置过压、过流及电源防反接保护，配备 6 (5 x Intel i210, 2 x Intel i219)，支持 2 DP 、1 VGA, 支持DP+DP/DP+VGA 双独立显示，可灵活接入工厂配电柜、自动化机台与智能车载电气系统。
支持。研响科技提供涵盖主板 BIOS/UEFI 深度配置、专用 I/O 接口板扩展、专属机箱外观定制与品牌私有包装的全流程 OEM/ODM 服务，并为工业项目提供 5 至 7 年以上的稳定产品生命周期支持。
