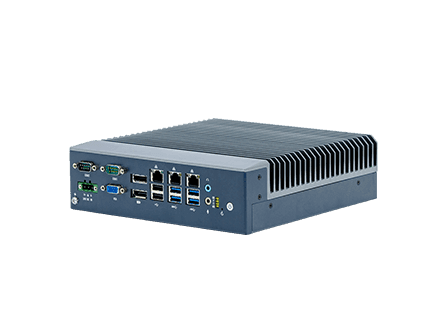

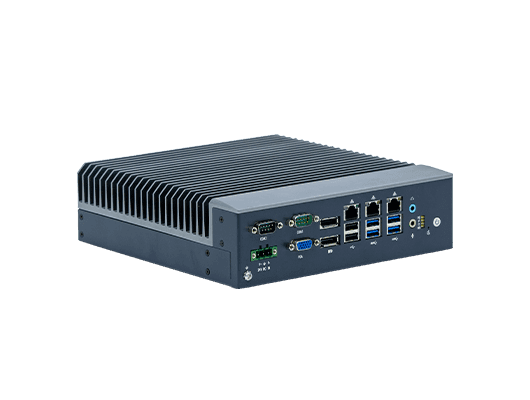

E500系列
搭载 Intel嵌入式处理器 处理器平台，配置 双千兆网口 VGA 与多路工业扩展，支持 24V供电 -20℃~50℃宽温 工业级高可靠运行
型号: E500
系统核心规格
- 处理器: Intel 第六至九代平台Core 处理器
- 内存: 2 x DDR4 SO-DIMM（Max.64GB）
- 网络接口: 3 (2 x Intel i210, 1 x Intel i219)
- 显示接口: 2 DP、1 VGA, 支持DP+DP/DP+VGA 双独立显示
- 供电输入: 24V DC；9–36V DC 选配
- 操作系统: Windows 7(仅第六代支持)，Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04
- 工作温度: -20–50°C，气流 0.7 m/s
产品概述
技术规格
规格参数_1
| Specs | Item | E500 |
|---|---|---|
| Processor System | CPU | Intel® 6th/7th/8th/9th Gen Processors with LGA1151 |
| Chipset | H110 | |
| BIOS | AMI 8MB UEFI | |
| Memory | Sockets | 2 x DDR4 SO-DIMM |
| Capacity | 最大 64GB | |
| Display | DP | 2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz |
| VGA | 1 x VGA, Max. 1920 x 1080@60Hz | |
| Dual Display | Yes, DP + DP or DP + VGA | |
| Audio | I/O | 1xMic-in, 1xLine-out |
| Ethernet | LAN | 2 x Intel i210 GbE LAN |
| LAN | 1 x Intel i219 GbE LAN | |

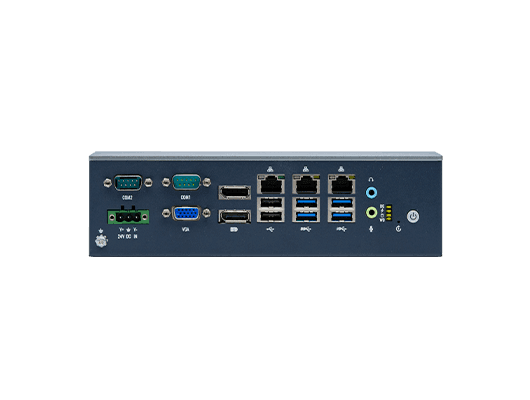

| I/O Interface | USB | 2 x USB2.0, 4 x USB3.0 |
| COM | 1 x RS-232/ 422/ 485, 1 x RS-232 | |
| Power Connector | 1 x 4-Pin Power Connector | |
| Expansion | Mini-PCIe | 1 x full-size mini-PCIe, Support WLAN/WWAN module |
| USIM | 1 x USIM, Support 3G/4G LTE | |
| Storage | M.2 | 1 x M.2 |
| SATA3.0 | 1 x SATA3.0, For 2.5" SATA storage device | |
| Watchdog | Output/Interval | Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec |
| Power Supply | DC input | 24V DC；9–36V DC 选配 |
| OS | MicrosoftWindows | Windows 7(Intel® 6th Gen CPU only), Windows 10 |
| Linux | Centos 7/8, ubuntu 18.04/ 20.04/ 22.04 | |
| Physical Characteristics | Construction | Aluminium Alloy |
| Mounting | Wall Mounting | |

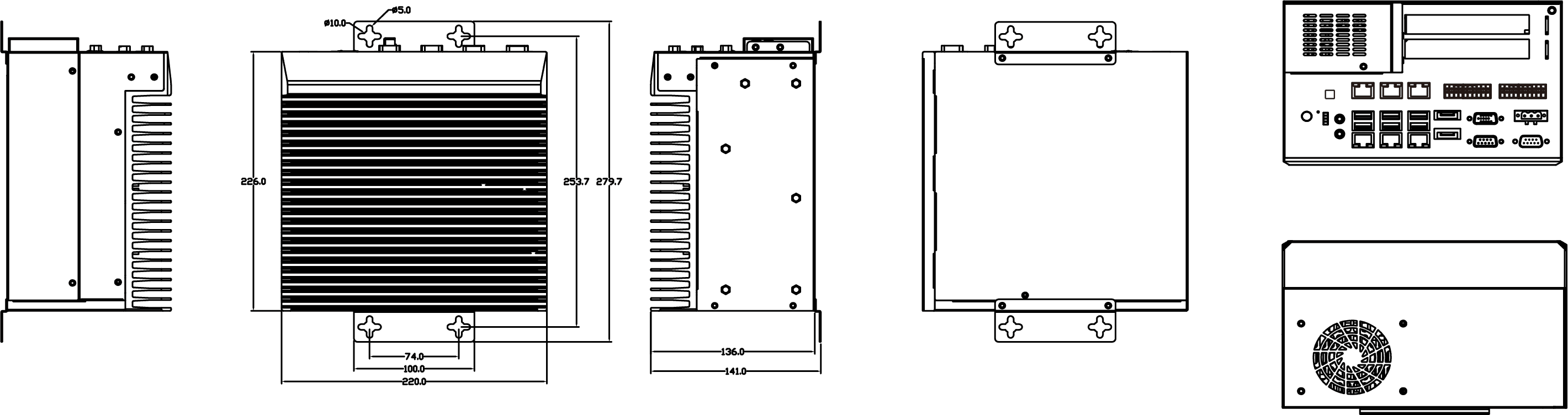

| Dimensions | 220 x 226 x 68 mm (L x W x H) | |
| Weight | 3.0 Kg | |
| Environment | Operating Temperature | -20–50°C，气流 0.7 m/s |
| Storage Temperature | −40–85°C (−40–185°F) | |
| Relative Humidity | 95%@40°C(Non-Condensing) | |
| Vibration During Operation | With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis | |
| Shock During Operation | With SSD:30 G, IEC 60068-2-27, half sine, 11m duration | |
| ESD | Contact +/-4 KV, Air +/-8 KV | |
| EMC | CE/FCCClassB |
资料下载
该产品暂无下载附件，可向工程师索取资料。
常见技术与选型问题
针对该型号的硬件规格、系统兼容性与部署支持
E500 的处理器与内存规格是什么？
处理器: Intel 第六至九代平台Core 处理器; 内存: 2 x DDR4 SO-DIMM（Max.64GB）
E500 提供哪些网络与显示接口？
网络接口: 3 (2 x Intel i210, 1 x Intel i219); 显示接口: 2 DP、1 VGA, 支持DP+DP/DP+VGA 双独立显示
E500 的供电、工作温度与操作系统要求是什么？
供电输入: 24V DC；9–36V DC 选配; 工作温度: -20–50°C，气流 0.7 m/s; 操作系统: Windows 7(仅第六代支持)，Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04
