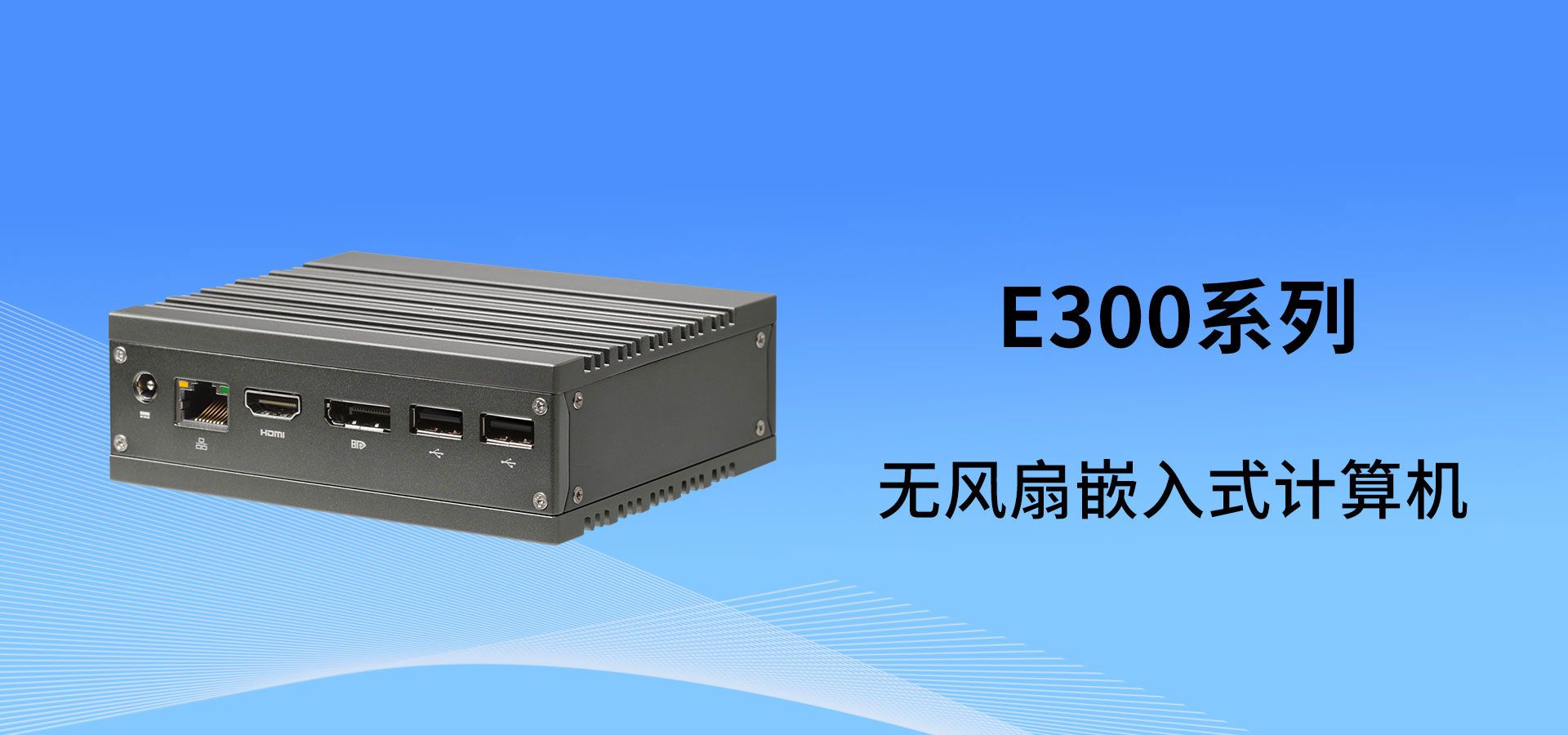

YX-E300系列
搭载 Intel嵌入式处理器 处理器平台，配置 千兆网口 HDMI+DP双显 与多路工业扩展，针对嵌入式与工业自动化系统优化
型号: YX-E300
系统核心规格

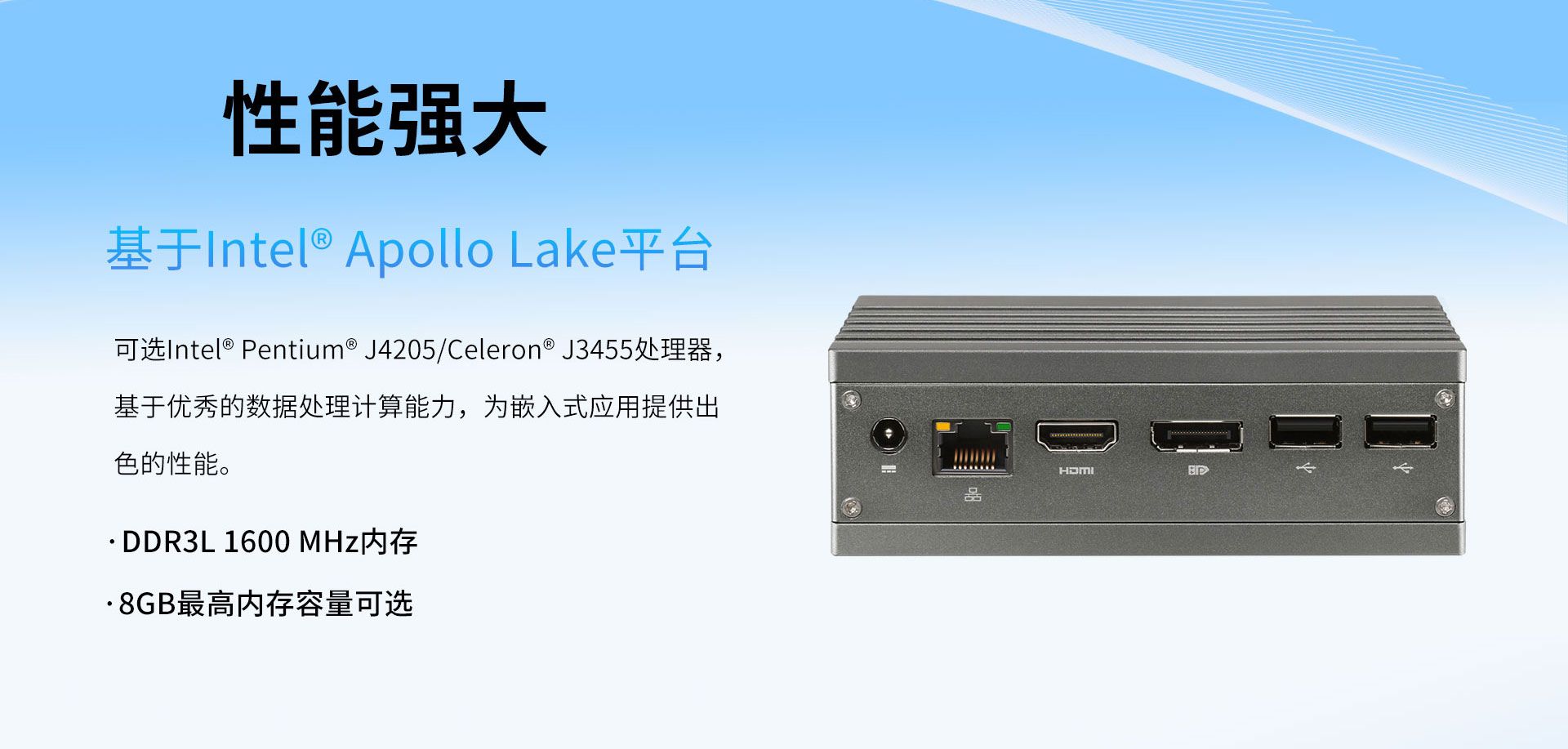

- 处理器: Intel Apollo Lake SoC处理器
- 内存: DDR3L （Max. 8GB）
- 网络接口: 1 x RTL8111H GbE
- 显示接口: 1 x HDMI, 1 x DP
- 操作系统: Windows 10 64 Bit, Linux
产品概述
技术规格
规格参数_1
| Specs | Item | E300 |
|---|---|---|
| Processor System | CPU | Intel® Apollo Lake N3350/J3355/J3455/N4200 系列处理器 |
| BIOS | AMI 8MB UEFI | |
| Memory | Sockets | DDR3L 1600 MHz |
| Capacity | 2GB (Max. 8GB) | |
| Display | Chipset | Intel HD Graphics 500/505 |
| Graphics engine | 4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP9 | |
| DP | 1, Max. resolution 4096 x 2160@60Hz | |
| HDMI | 1, Max. resolution 3840 x 2160@60Hz | |
| Dual Display | HDMI+DP | |
| Audio | I/O | Realtek ALC662, High Definition Audio, Line Out & Line In |
| Ethernet | LAN | 1 x RTL8111H GbE, support wake-on-LAN |

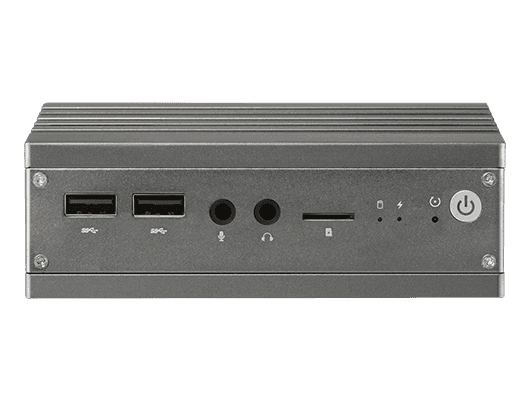

| I/O Interface | USB | 2 x USB2.0, 2 x USB3.0 |
| COM | 1xRS232(optional) | |
| Expansion | M.2 E Key | 1 x M.2 E Key, support WLAN module |
| Storage | M.2 | 1 x 2242 SSD |
| eMMC | 8GB, MAX. 256GB | |
| TF Card | 1 | |
| Power Supply | DC input | 24V DC IN |
| OS | Microsoft Windows | Windows 10 64Bit |
| Linux | Yes | |

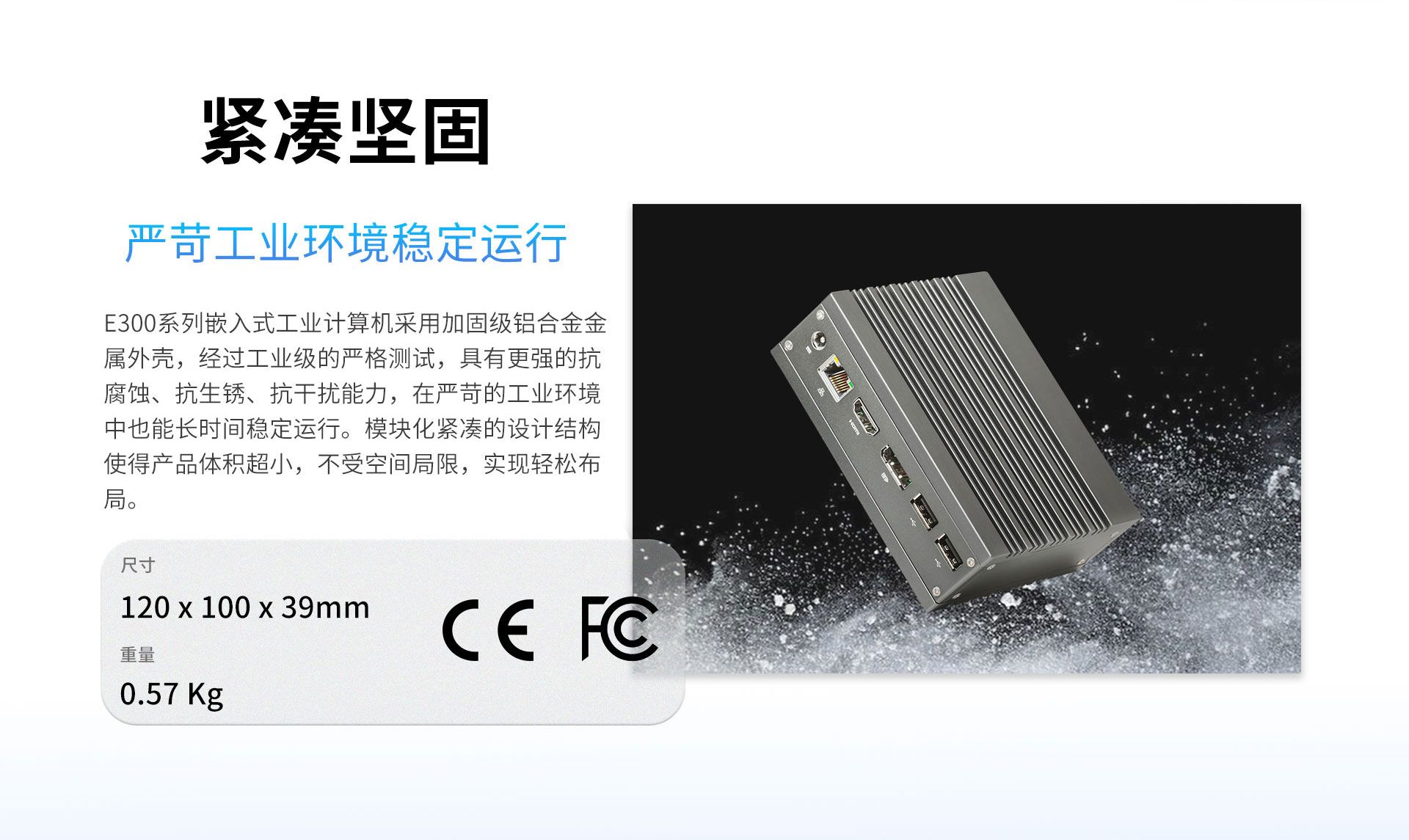

| Physical Characteristics | Construction | Aluminium Alloy |
| Mounting | Wall Mounting | |
| Dimensions | 120x100x39 mm(LxWxH) | |
| Weight | 0.57 Kg | |
| Environment | Operating Temperature | -20°C~60°C, Airflow 0.7m / s |
| Storage Temperature | -40°C~80°C | |
| Relative Humidity | 95%@40°C(Non-Condensing) | |
| Vibration During Operation | With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis | |
| Shock During Operation | With SSD:30 G, IEC 60068-2-27, half sine, 11m duration | |
| ESD | Contact +/-4 KV, Air +/-8 KV | |
| EMC | CE/FCCClassB |
资料下载
该产品暂无下载附件，可向工程师索取资料。
常见技术与选型问题
针对该型号的硬件规格、系统兼容性与部署支持
YX-E300 的处理器与内存规格是什么？
处理器: Intel Apollo Lake SoC处理器; 内存: DDR3L （Max. 8GB）
YX-E300 提供哪些网络与显示接口？
网络接口: 1 x RTL8111H GbE; 显示接口: 1 x HDMI, 1 x DP
YX-E300 的供电、工作温度与操作系统要求是什么？
操作系统: Windows 10 64 Bit, Linux
