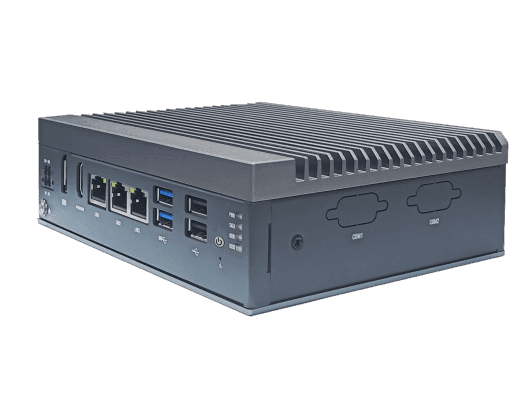

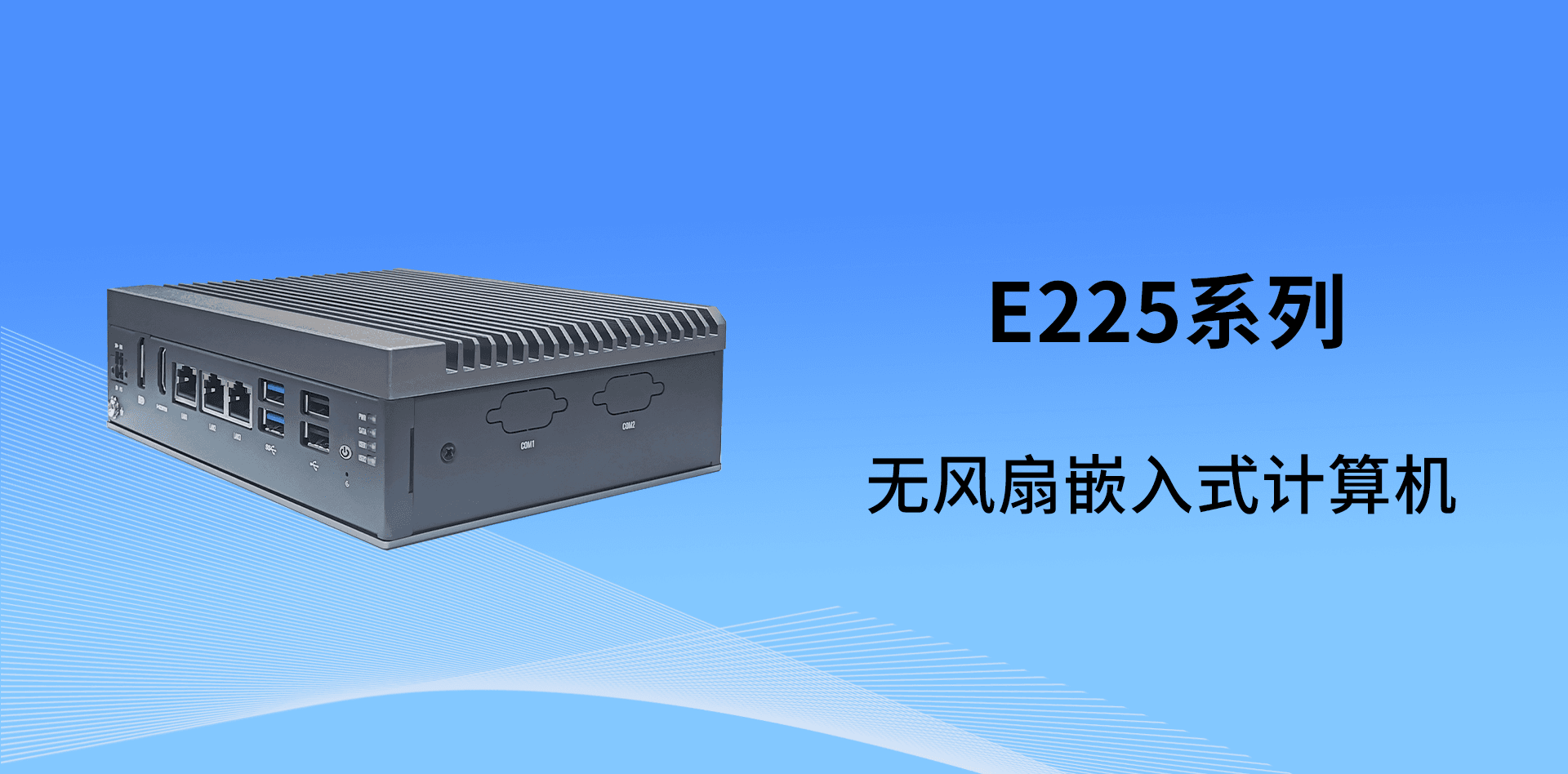

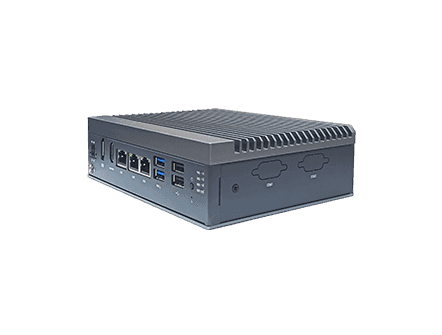

YX-E225系列
搭载 Intel N97 处理器平台，配置 双千兆网口 HDMI+DP双显 与多路工业扩展，支持 36V供电 0℃~60℃宽温 工业级高可靠运行
型号: YX-E225
系统核心规格
- 处理器: Intel Alder Lake-N N97
- 内存: DDR5-4800, 最高16GB

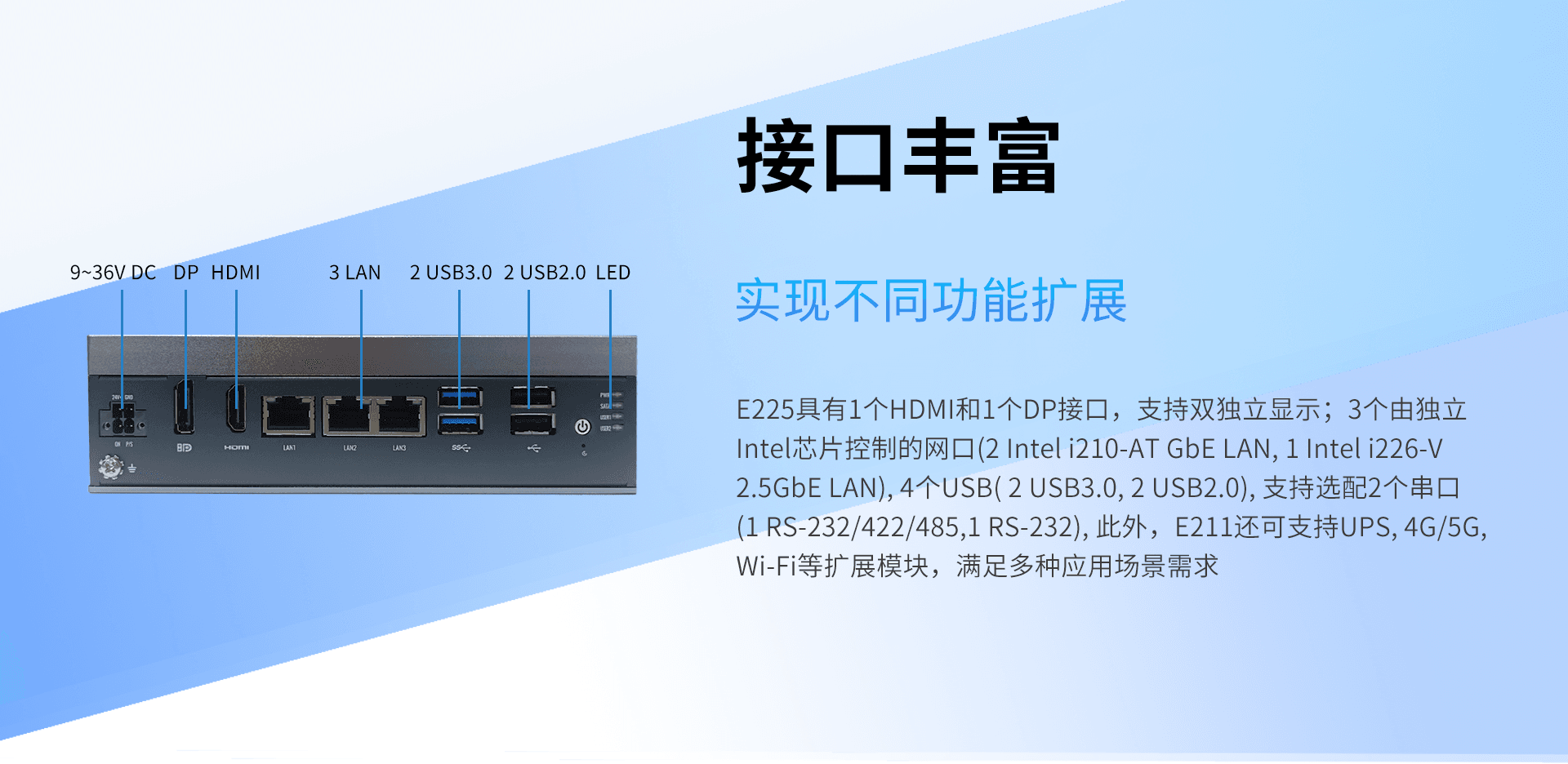

- 网络接口: 3 × GbE LAN (2 × Intel i210 + 1 × Realtek RTL8111H)
- 显示接口: 1 x HDMI, 1 x DP
- 供电输入: 9–36V DC
- 操作系统: Windows 10/11, centos 8, ubuntu 20.04/22.04
- 工作温度: 0–60°C
产品概述
技术规格
规格参数_1
| Specs | Item | E225 Series |
|---|---|---|
| Processor System | CPU | Intel Alder Lake-N N97 |
| TDP | 12W MAX | |
| BIOS | AMI 128Mbit SPI Flash | |
| Memory | Technology | Single channel DDR5 4800MT/s SO-DIMM |
| Max. Capacity | 16 GB | |
| Display | Controller | Intel Gen12 UHD Graphics Engines (SoC integrated) |
| Graphic Features | DX12, Open GL 4.6, Vulkan 1.2 | |

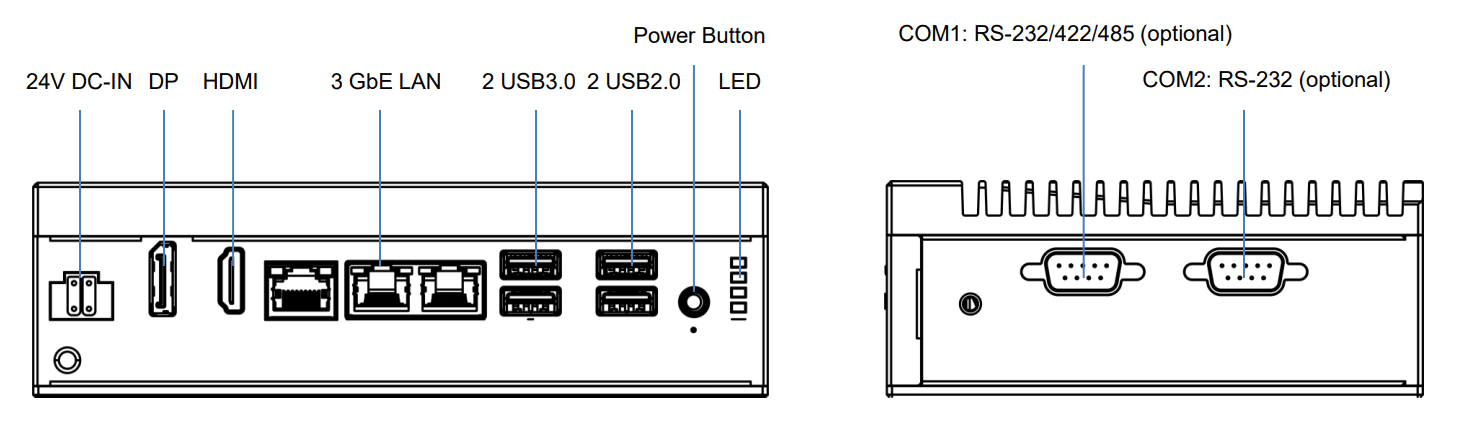

| I/O Interface | DP | 1 x DP 1.4 up to 4096 x 2304 @ 60Hz |
| HDMI | 1 x HDMI 2.0b up to 4K x 2K @60Hz | |
| Ethernet | 2 x Intel i210 GbE LAN, 1 x Realtek RTL8111H GbE LAN | |
| USB | 3 × USB 3.0; 1 × USB 2.0 | |
| COM | COM1: RS-232/422/485; COM2: RS-232（选配） | |
| Power Input Connector | Phoenix 4pin | |
| Expansion | M.2 E-Key | 1 × M.2 E-Key 2230 Wi-Fi（仅 CNVi） |
| M.2 B-Key | 1 x M.2 3052 Support 4G/5G | |
| M.2 M-Key | 1 x M.2 2280 SATA3.0 | |
| Internal USB2.0 | 1 × internal USB 2.0 pin-out; 1 × internal USB Type-A | |
| SIM | 1 x Nano SIM | |
| LED & Switch | LED Lights | Power status, HDD R/W,USER1,USER2 |
| Power Button | 1 x Power Button | |
| Reset | 1 x Reset | |
| Power | Supply Voltage | 9–36V DC |
| Max. Consumption | 60W | |
| Power Management | AT/ATX | |
| Others | Watchdog | Timer Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds |
| TPM | TPM 2.0 (optional) | |
| Environment | Operating Temperature | 0 ~ 60 °C (32~140°F) |
| Storage Temperature | -40° C ~ 85° C (-40~185°F) | |
| Relative Humidity (Operating) | 95% @ 40°C ( Non-Condensing ) | |
| Relative Humidity (Storage) | 95% @ 60 °C (non-condensing) | |
| Certification | EMC | CE, FCC |

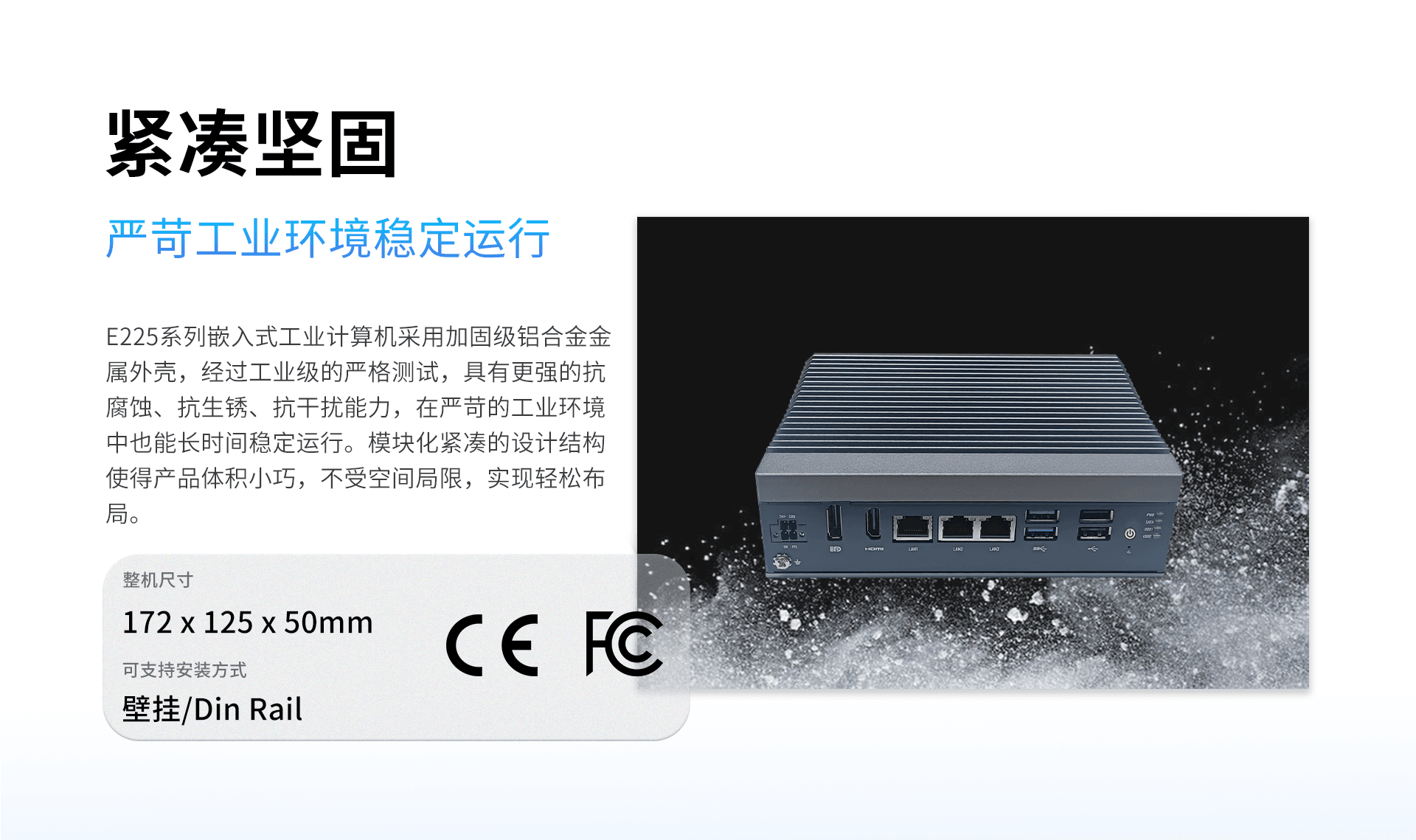

| Physical characteristic | Dimensions | 172 x 125 x 50mm(L x W x H) |
| Weight | 1.0 kg | |

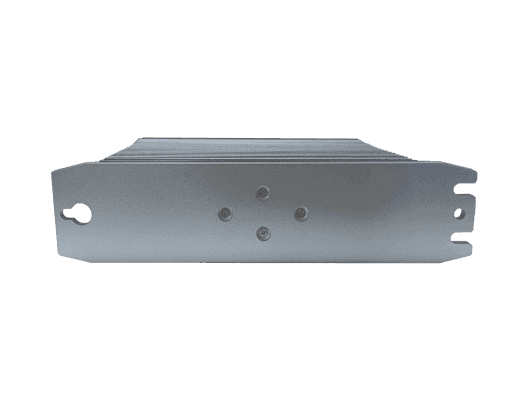

| Installation | Wall-mounting/ Din rail | |
| Operation system | OS | Windows 10/11, centos 8, ubuntu 20.04/22.04 |
资料下载
该产品暂无下载附件，可向工程师索取资料。
常见技术与选型问题
针对该型号的硬件规格、系统兼容性与部署支持
YX-E225 的处理器与内存规格是什么？
处理器: Intel Alder Lake-N N97; 内存: DDR5-4800, 最高16GB
YX-E225 提供哪些网络与显示接口？
网络接口: 3 × GbE LAN (2 × Intel i210 + 1 × Realtek RTL8111H); 显示接口: 1 x HDMI, 1 x DP
YX-E225 的供电、工作温度与操作系统要求是什么？
供电输入: 9–36V DC; 工作温度: 0–60°C; 操作系统: Windows 10/11, centos 8, ubuntu 20.04/22.04
