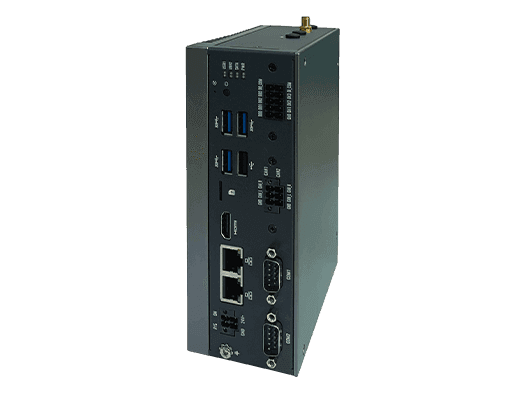

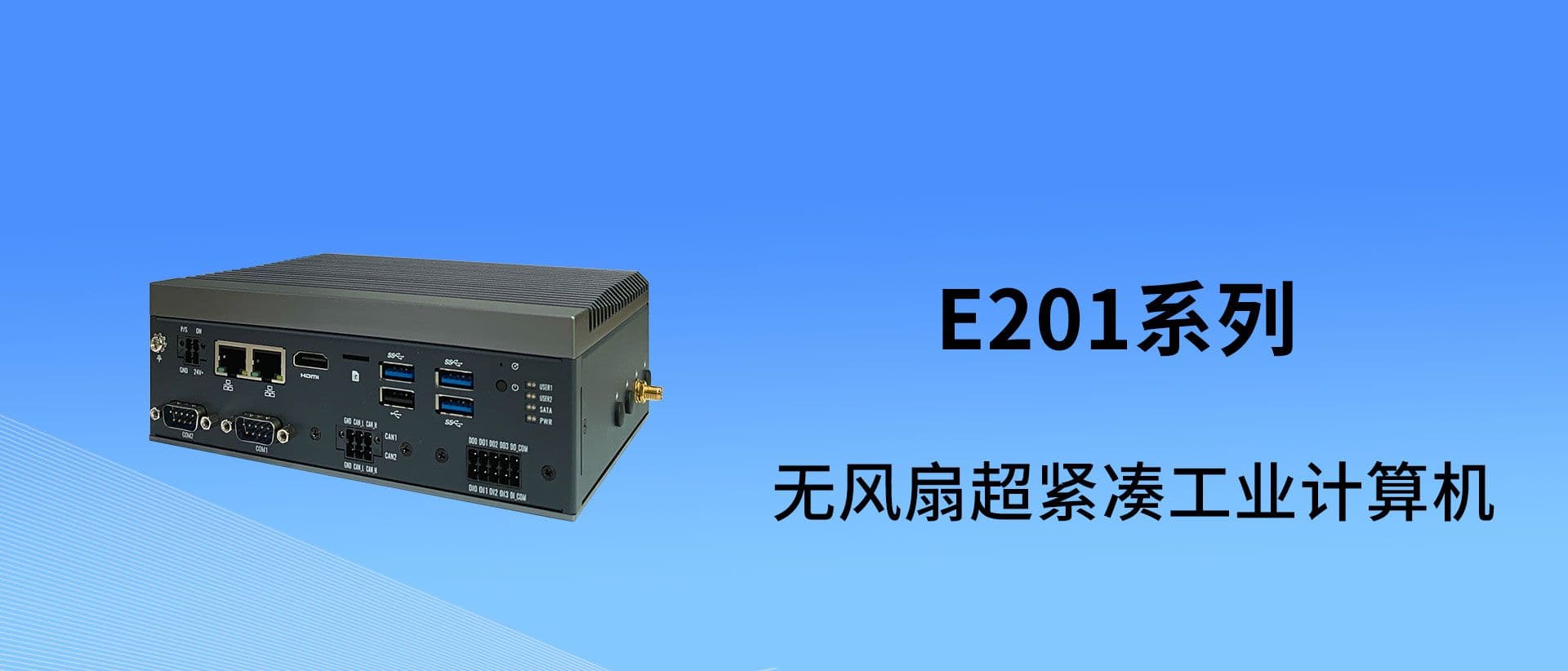

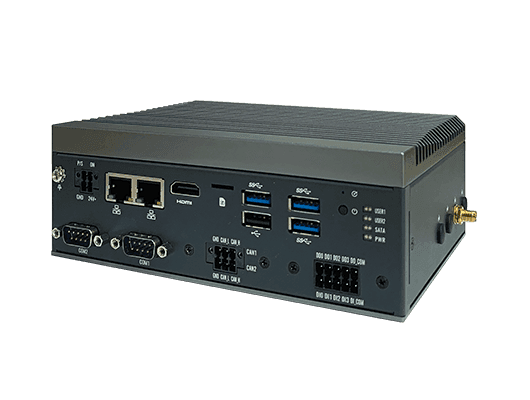

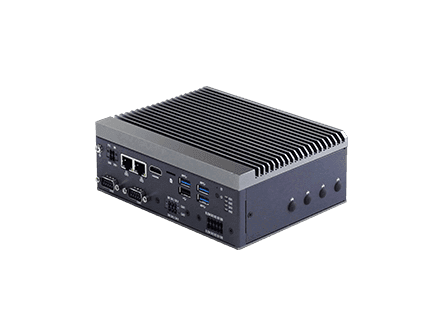

YX-E201系列
搭载 Intel嵌入式处理器 处理器平台，配置 2.5G高速网口 HDMI 与多路工业扩展，支持 36V供电 0℃~60℃宽温 工业级高可靠运行
型号: YX-E201
系统核心规格

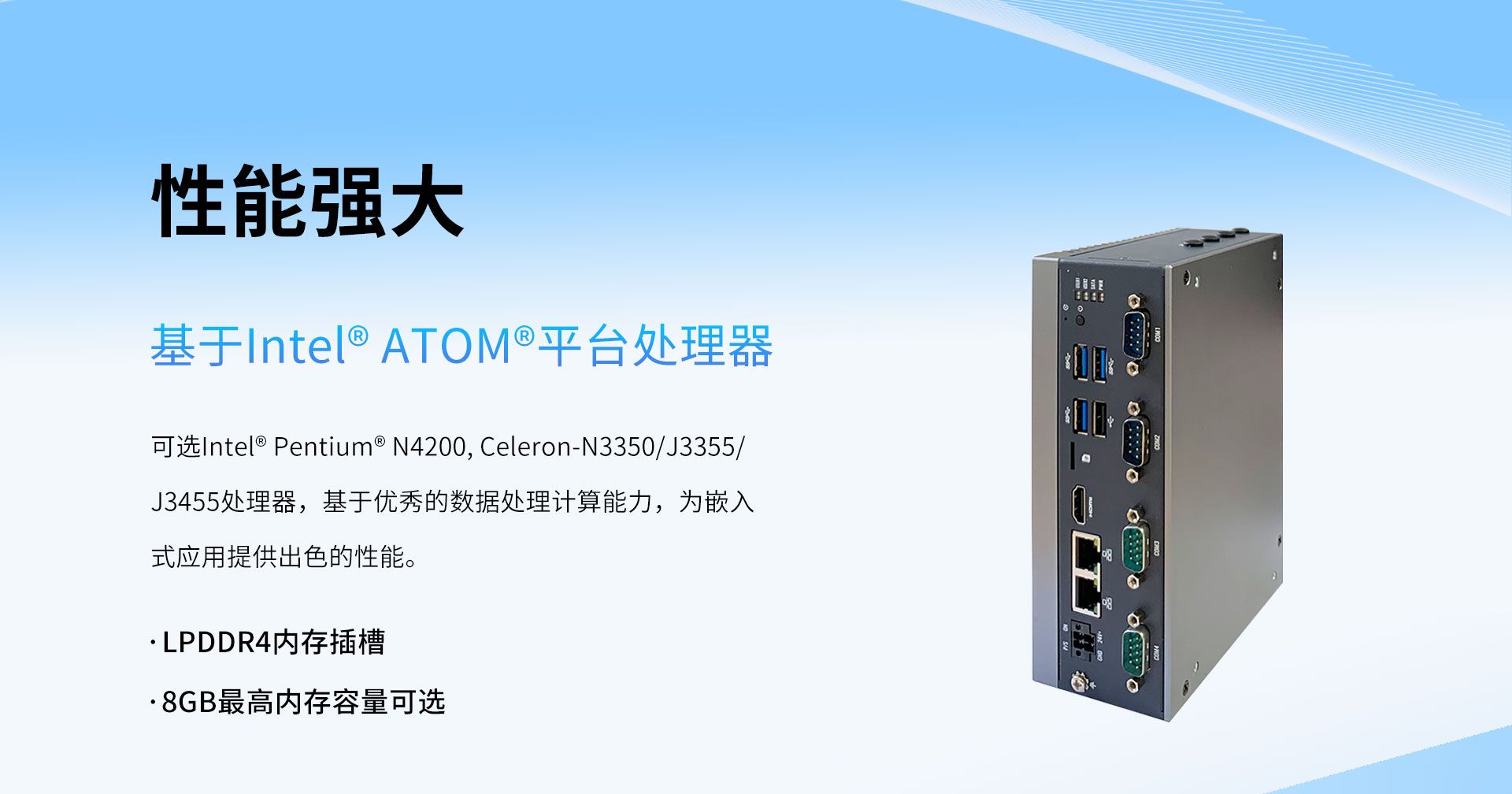

- 处理器: Intel Apollo Lake Pentium J4205 / Celeron J3455
- 内存: LPDDR4（Max. 8GB）
- 网络接口: 2 × Intel i225-V 2.5GbE LAN
- 显示接口: 1 x HDMI
- 供电输入: 9–36V DC
- 操作系统: Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04
- 工作温度: 0–60°C
产品概述
技术规格
| Specs | Item | E201 Series |
|---|---|---|
| Processor System | CPU | Intel Apollo Lake Pentium J4205 / Celeron J3455 |
| BIOS | AMI UEFI BIOS at 64 Mb | |
| Memory | Sockets | LPDDR4 |
| Capacity | Max. 8 GB | |
| Graphics | Controller | Intel Gen9 Graphic engine |
| Features | DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: H.264, MPEG2, VC-1, WMV9, H.265/HEVC, VP8, JPEG/MJPEG | |

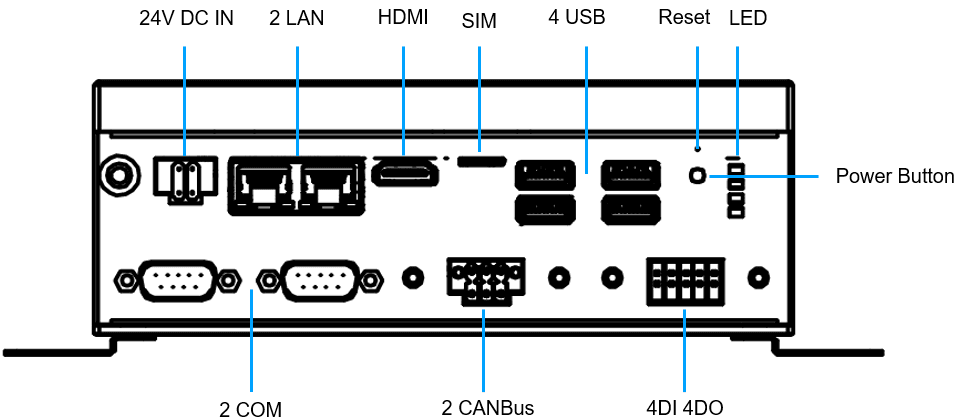

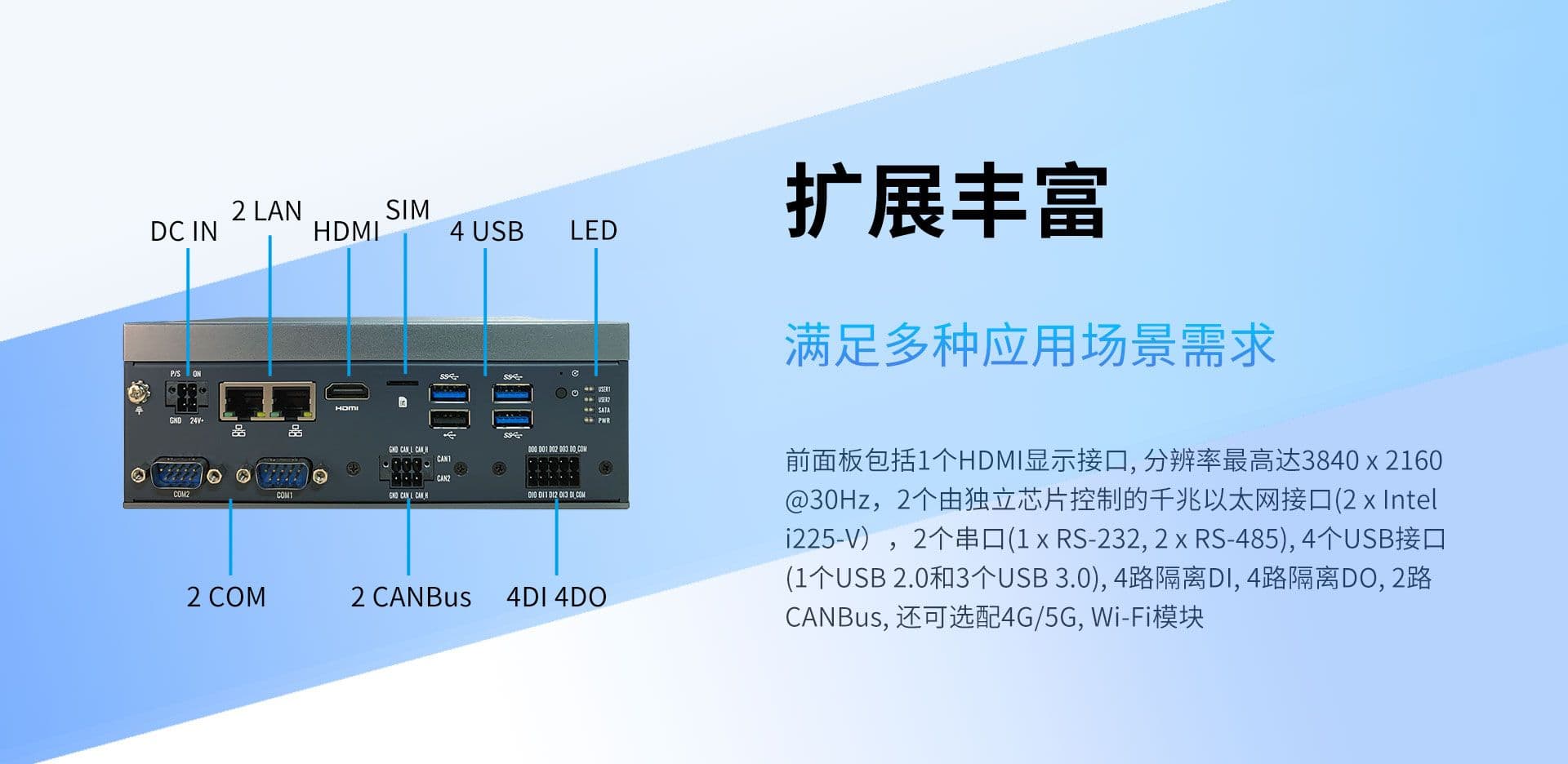

| External IO | HDMI | 1 x HDMI, resolution up to 3840 x 2160 @ 30Hz |
| Ethernet | 2 x Intel i225-V 2.5GbE LAN | |
| COM | 1 × RS-232; 1 × RS-232/422/485 | |
| USB | 3x USB3.0, 1 x USB2.0 | |
| SIM | 1 × Nano SIM | |
| CAN | 2 x CANBus | |
| DIO | 4 x DI, 4 x DO | |
| Power DC Jack | Phoenix 4pin terminal | |
| Expansion | M.2 E-Key | 1 x M.2 2242Support Wi-Fi |
| M.2 B-Key | 1 x M.2 3052 Support 4G/5G | |
| M.2 M-Key | 1 x M.2 2280 SATA3.0 | |
| SATA 3.0 | 1 × SATA 3.0（选配） | |
| LED | LED Lights | Power, SATA, USER1, USER2 |
| Power | Power Type | 9–36V DC |
| Others | Watchdog | 255-level timer, resettable |
| OS | Operation system | Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04 |

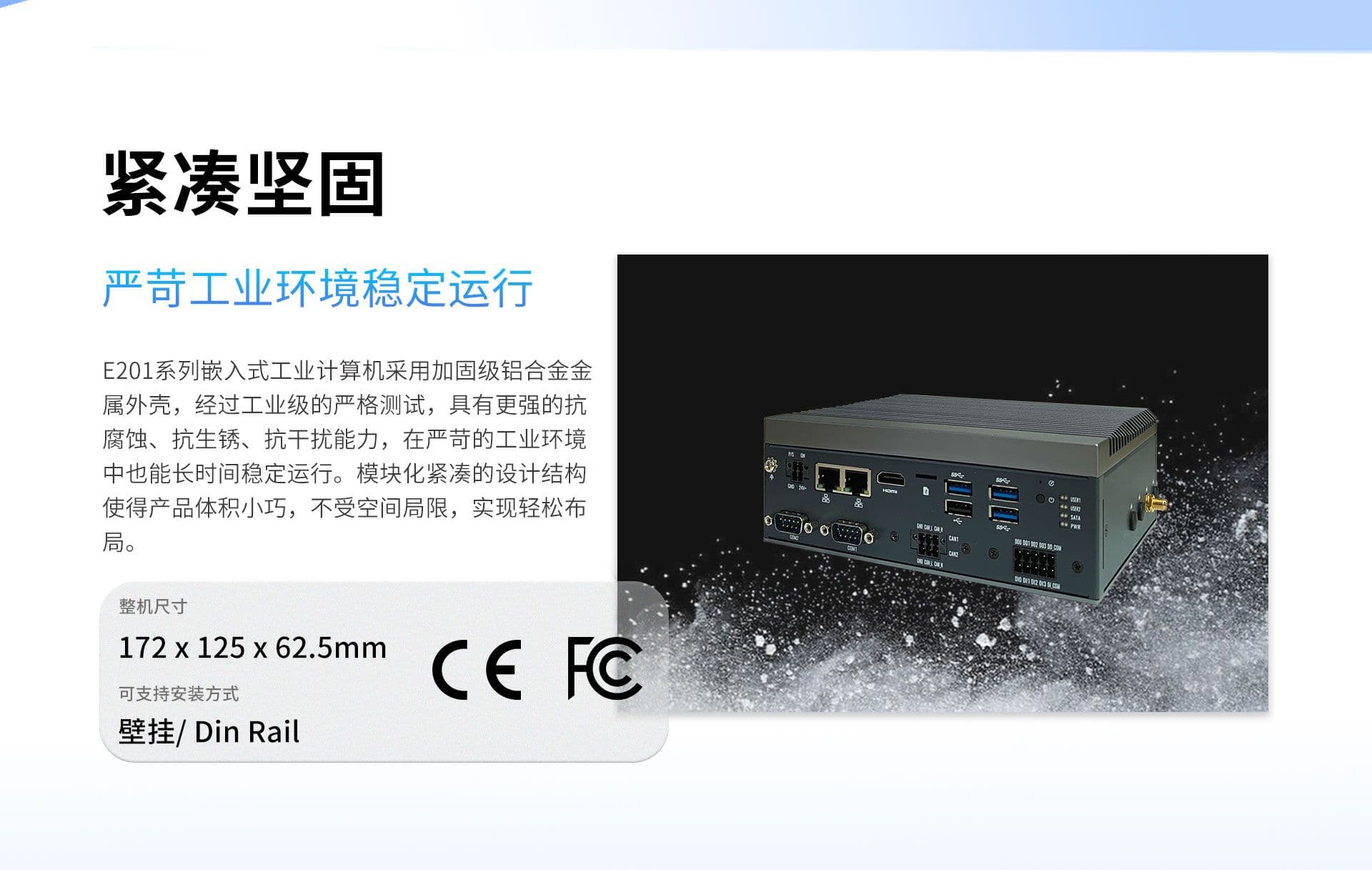

| Physical Characteristics | Dimensions | 172 x 125 x 62.5 mm |
| Construction | AluminiumAlloy | |

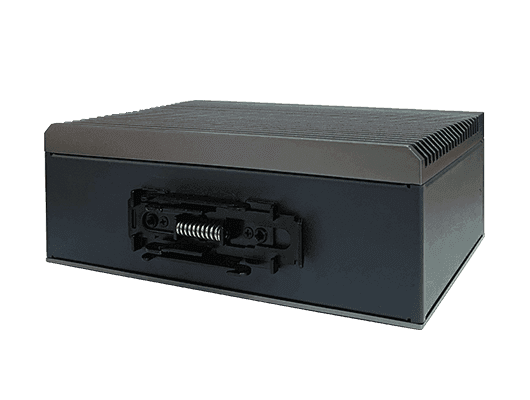

| Mounting | Wall Mounting/ Din Rail Clip | |
| Certification | EMC | CE, FCC |
| Environment | Operating Temperature | 0 ~ 60 °C(32~140°F) |
| Storage Temperature | -40°C ~ 85°C(-40~185°F) | |
| Relative Humidity (Operating) | 95% @ 40 °C (non-condensing) | |
| Relative Humidity(Storage) | 95% @ 60 °C (non-condensing) |
资料下载
该产品暂无下载附件，可向工程师索取资料。
常见技术与选型问题
针对该型号的硬件规格、系统兼容性与部署支持
YX-E201 的处理器与内存规格是什么？
处理器: Intel Apollo Lake Pentium J4205 / Celeron J3455; 内存: LPDDR4（Max. 8GB）
YX-E201 提供哪些网络与显示接口？
网络接口: 2 × Intel i225-V 2.5GbE LAN; 显示接口: 1 x HDMI
YX-E201 的供电、工作温度与操作系统要求是什么？
供电输入: 9–36V DC; 工作温度: 0–60°C; 操作系统: Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04
