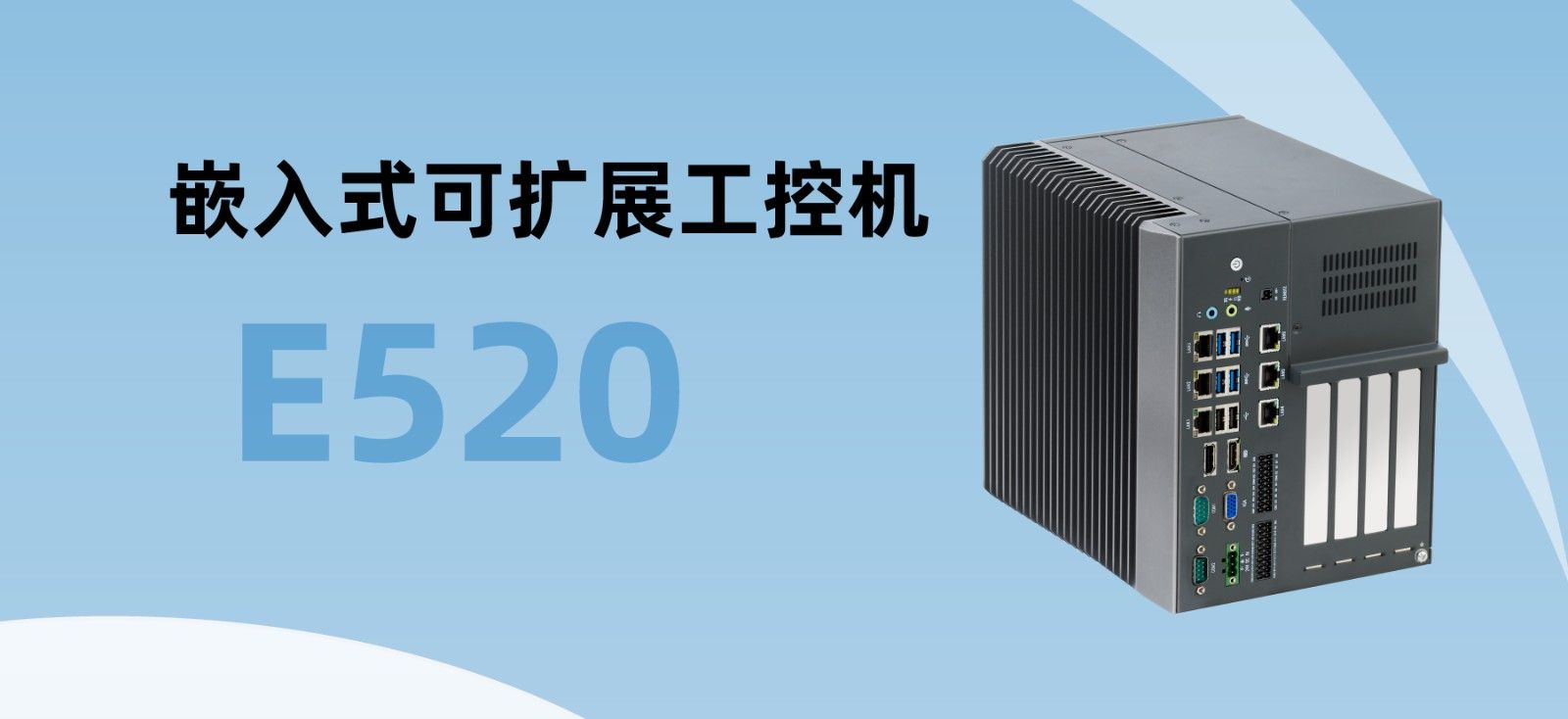

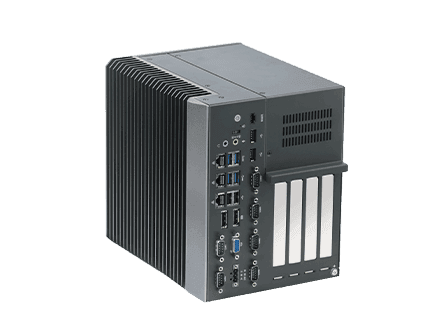

型号: E520
| Specs | Item | E520C Series |
|---|---|---|
| Processor System | CPU | Intel® 12th~13thgeneration Core™ i3/ i5/ i7 CPU |
| TDP | Base 65W | |
| BIOS | AMI 128Mbit SPI Flash | |
| Memory | Technology | Dual channel DDR4 SO-DIMM |
| Capacity | Max. 64GB | |

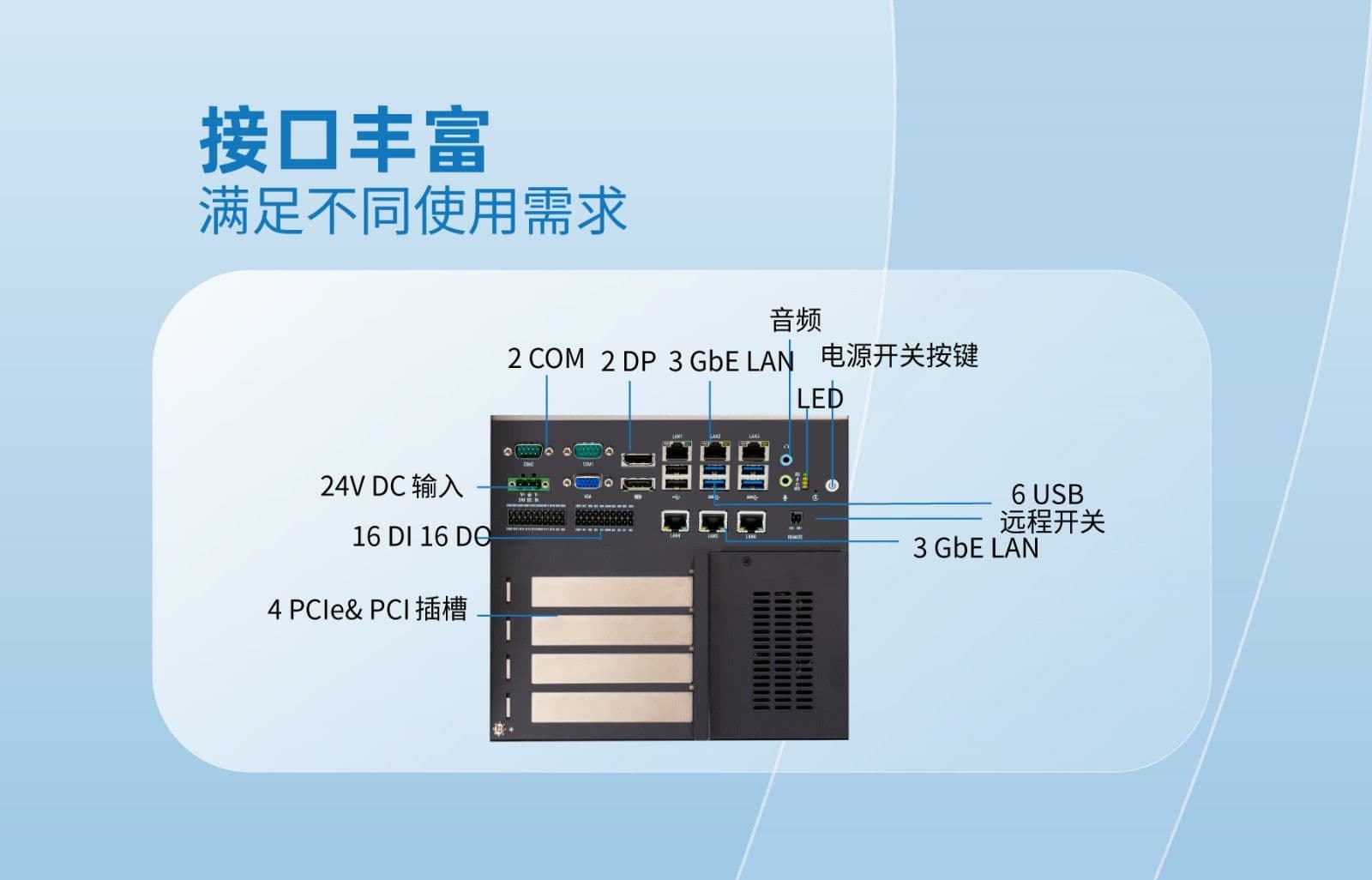

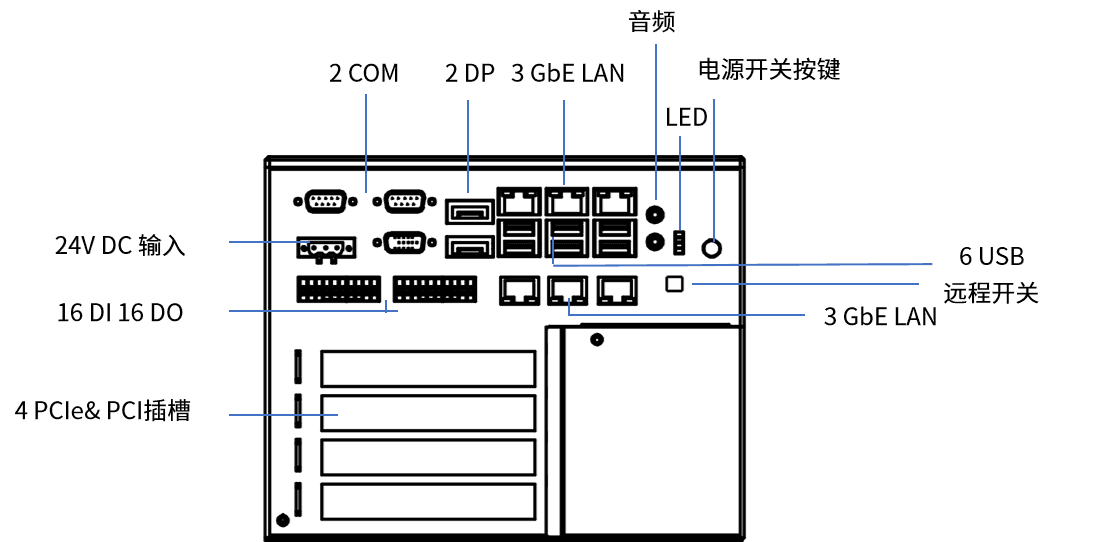

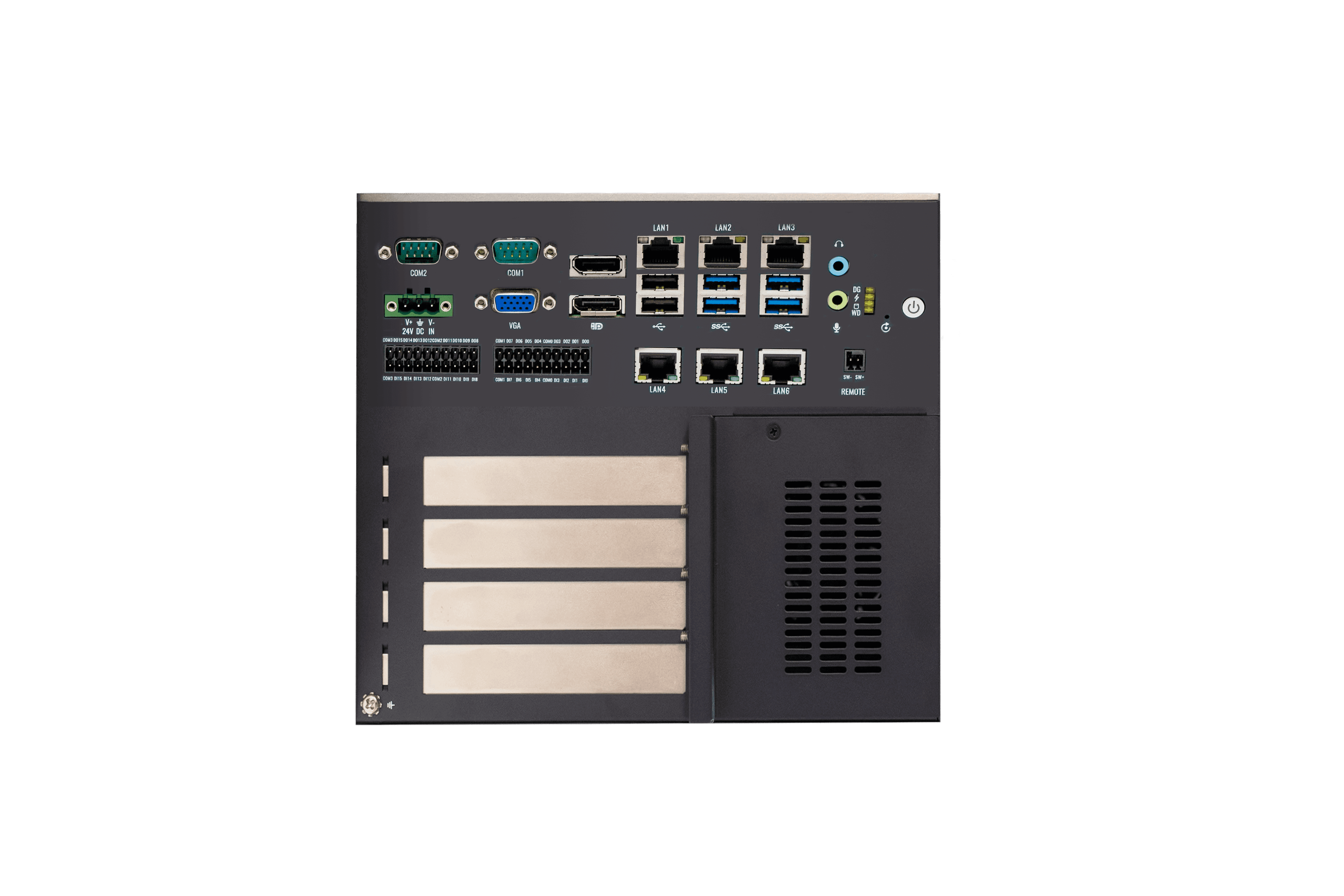

| External I/O | DP | 1 x DP1.4a resolution upto 7680 x 4320 @60Hz |
| VGA | 1 x VGA resolution up to 1920 x 1080 @60Hz | |
| HDMI | 1 x HDMI2.1 resolution upto 4096 x 2160 @60Hz | |
| Ethernet | 5 x Intel i210 GbE LAN, 1 x Intel i219GbE LAN | |
| USB | 2 x USB 2.0, 4 x USB 3.0 | |
| COM | 1 x RS-232/RS-485, 1 x RS232 | |
| DIO | 16 x DI, 16 x DO | |
| Audio | 1 x Mic-In, 1 x Line-Out | |
| Remote | 1 x Remote | |
| Power Input Connector | 1 x 3 PIN Phoenix terminal | |
| Expansion | PCIe | 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x4 (x2 signal) |
| PCI | 2 x PCI | |
| LED & Switch | LED Indicator | HDD, Memory, User-defined 1, User-defined 2 |
| Power Button | 1 x Power Button | |
| Reset | 1 x Reset | |
| Internal Connectors | USB 2.0 | 1 x Internal USB2.0 Type-A support Dongle |
| SATA 3.0 | 2 x SATA3.0 | |
| M.2 E-Key | 1 x M.2 2230 support Wi-Fi | |
| M.2 B-Key | 1 x M.2 3052 support 4G/5G | |
| M.2 B-Key | 1 x M.2 2280 SATA3.0 | |
| SIM | 1 x Micro SIM | |
| Power Supply | Power Input | 24V DC |
| Power Management | AT/ATX | |
| Max. Consumption | 150W | |
| Others | Watchdog | 65536 level, 0~65535 sec |
| TPM | TPM2.0 (Optional) | |
| Physical Characteristics | Construction | Aluminium Alloy |

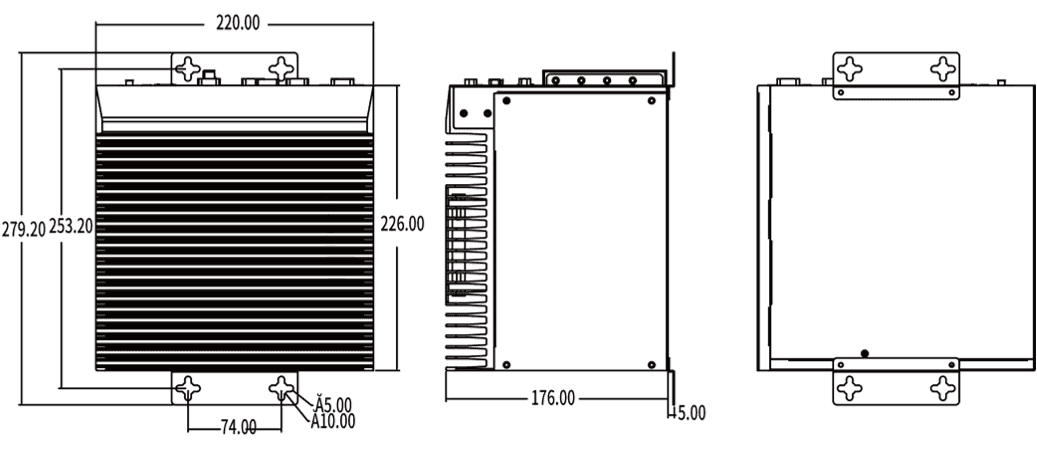

| Dimension | 220 x 226 x 176mm (L x W x H) | |
| Weight | 4.3 Kg | |
| Installation | Wall-mounting | |
| Environment | Operating Temperature | 0°C~50°C (32~122℉) |
| Storage Temperature | -40°C~85°C （-40~185℉） | |
| Operating Humidity | 95% @ 40°C ( Non-Condensing ) | |
| Storage Humidity | 95% @60°C ( Non-Condensing ) | |
| Certification | EMC | CE, FCC |
| Operatiion System | OS | Windows 10/11, centos 8, ubuntu 20.04/22.04 |
| 硬件及核心系统 | |
|---|---|
| 处理器/CPU | Intel 第12至13代酷睿i3/ i5/ i7处理器 |
| 系统内存 | 2 x DDR4 SO-DIMM (Max. 64GB) |
| 网络/局域网 | 6 GbE LAN (5 x Intel i210, 1 x Intel i219） |
| 显示输出 | 1 x DP, 1 x HDMI, 1 x VGA |
| I/O 和物理结构 | |
| 机械/外壳 | 工业金属机箱 |
| 操作系统 | Windows 10/11, centos 8, ubuntu 20.04/22.04 |
针对该型号的硬件规格、系统兼容性与部署支持
E520 兼容 Windows 10/11, centos 8, ubuntu 20.04/22.04 等工业操作系统。研响科技提供完善的底层 BSP 驱动包与长期系统镜像定制服务，满足工业自动化控制与边缘 AI 部署需求。

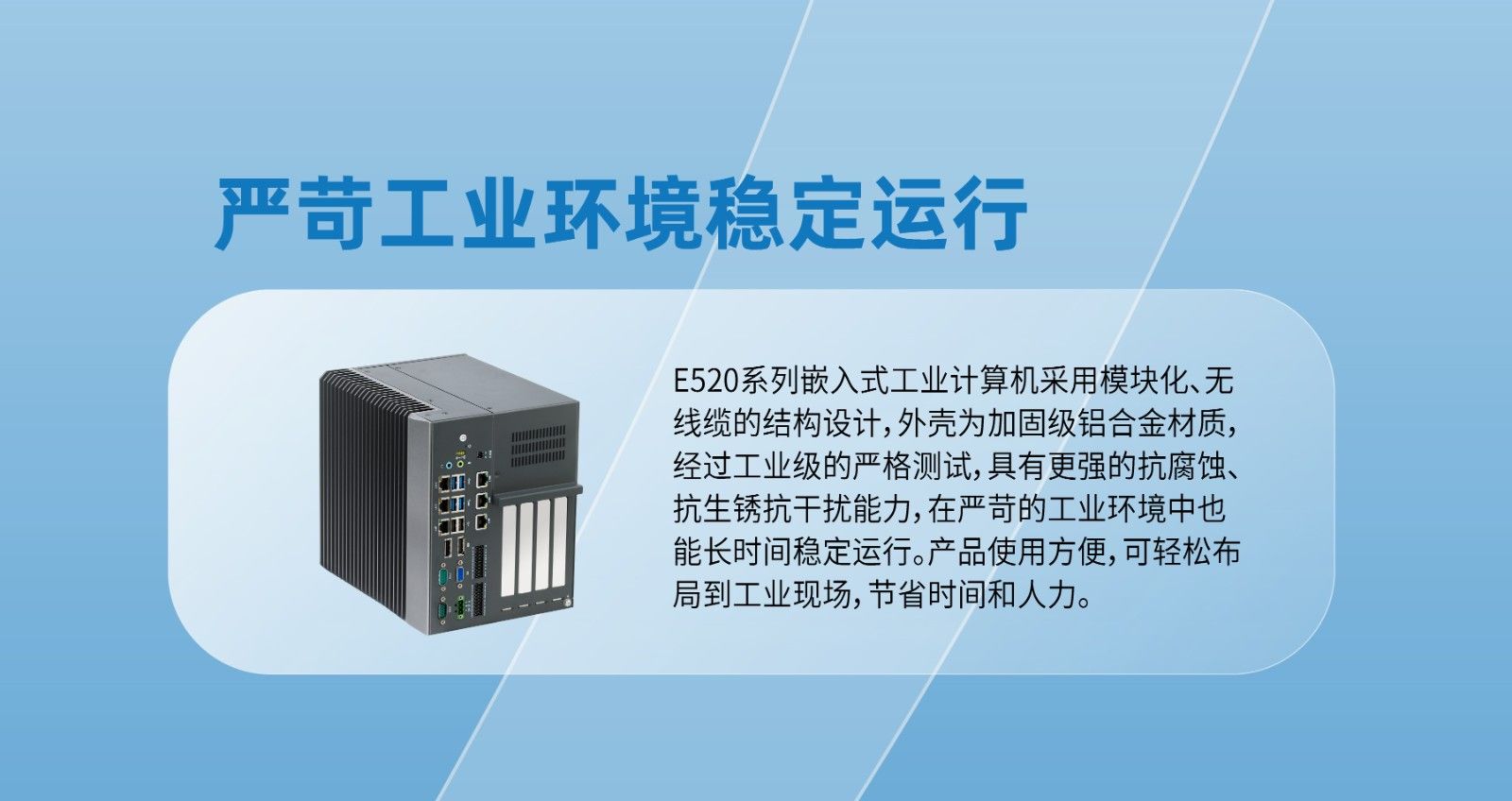

E520 采用工业级加固结构与高效无风扇被动散热架构，支持 -20°C 至 60°C 宽温范围稳定运行。密闭金属机箱有效隔离工业粉尘与油污，通过抗振动与抗冲击测试，确保工厂现场 7x24 小时连续无故障运转。
E520 支持 9–36V DC 宽压供电输入，具备内置过压、过流及电源防反接保护，配备 6 GbE LAN (5 x Intel i210, 1 x Intel i219），支持 1 x DP, 1 x HDMI, 1 x VGA，可灵活接入工厂配电柜、自动化机台与智能车载电气系统。
支持。研响科技提供涵盖主板 BIOS/UEFI 深度配置、专用 I/O 接口板扩展、专属机箱外观定制与品牌私有包装的全流程 OEM/ODM 服务，并为工业项目提供 5 至 7 年以上的稳定产品生命周期支持。
