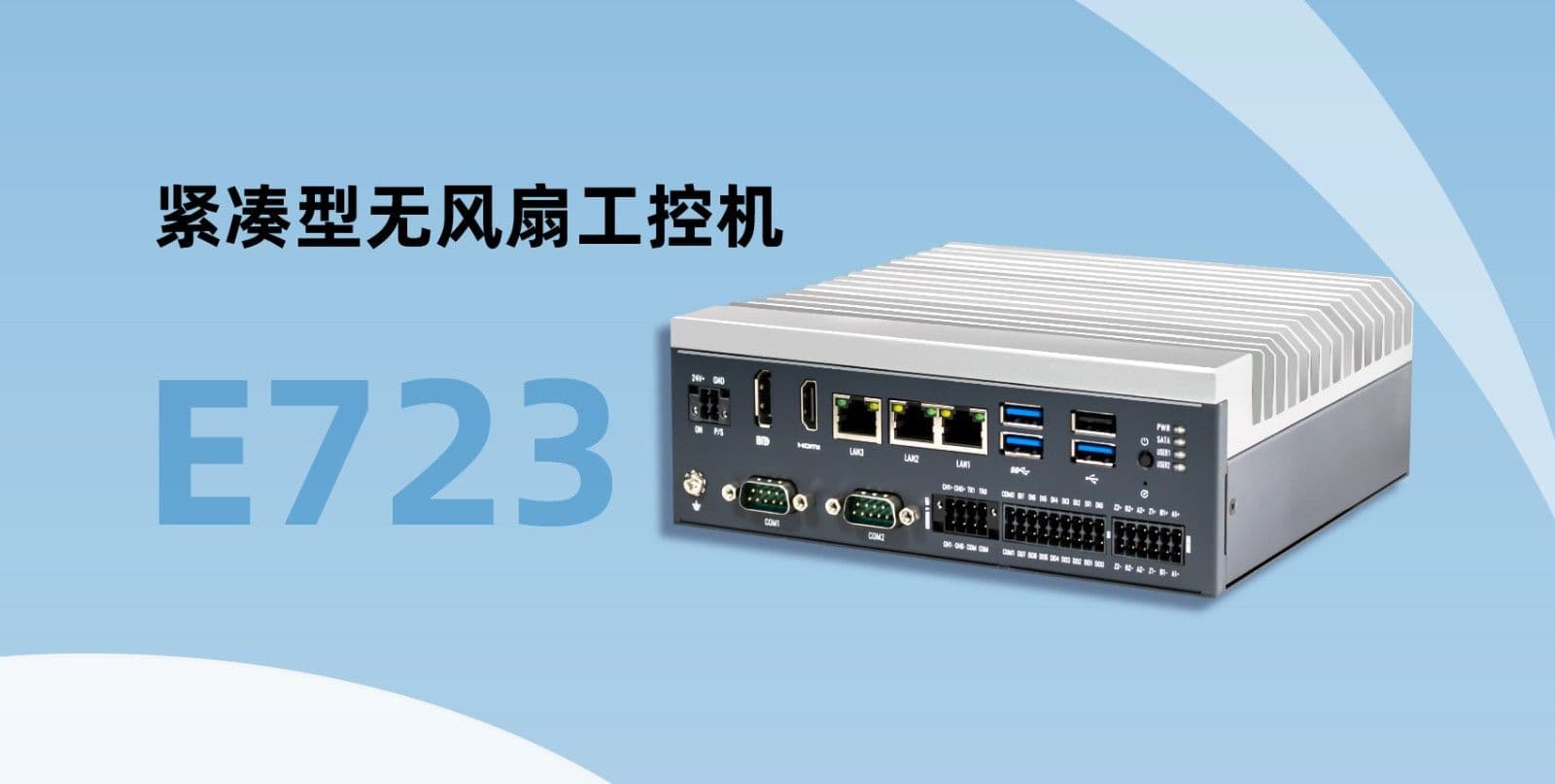

YX-E723 series
Powered by Intel N97 Processor, Equipped with Dual GbE LAN, HDMI DP & Industrial I/O, Supports 36V DC, 0°C to 60°C Wide Operation
Model: YX-E723
System Core Specifications
- CPU: Intel® Alder Lake-N N97、i3-N305
- Memory: Single channel DDR5-4800, up to 16GB
- Networking: 3 LAN (2 x Intel i210 supports POE, 1 x Realtek RTL8111H)
- Display: 1 x HDMI, 1 x DP
- Power: 9–36V DC ±10%
- Operating System: Windows 10/11, centos 8, ubuntu 20.04/22.04
- Operating Temp: 0–60°C
Product overview
Processor and memory
Intel Alder Lake-N N97 or Core i3-N305; processor TDP up to 15W. This configuration uses DDR5-4800 SO-DIMM memory up to 16GB.

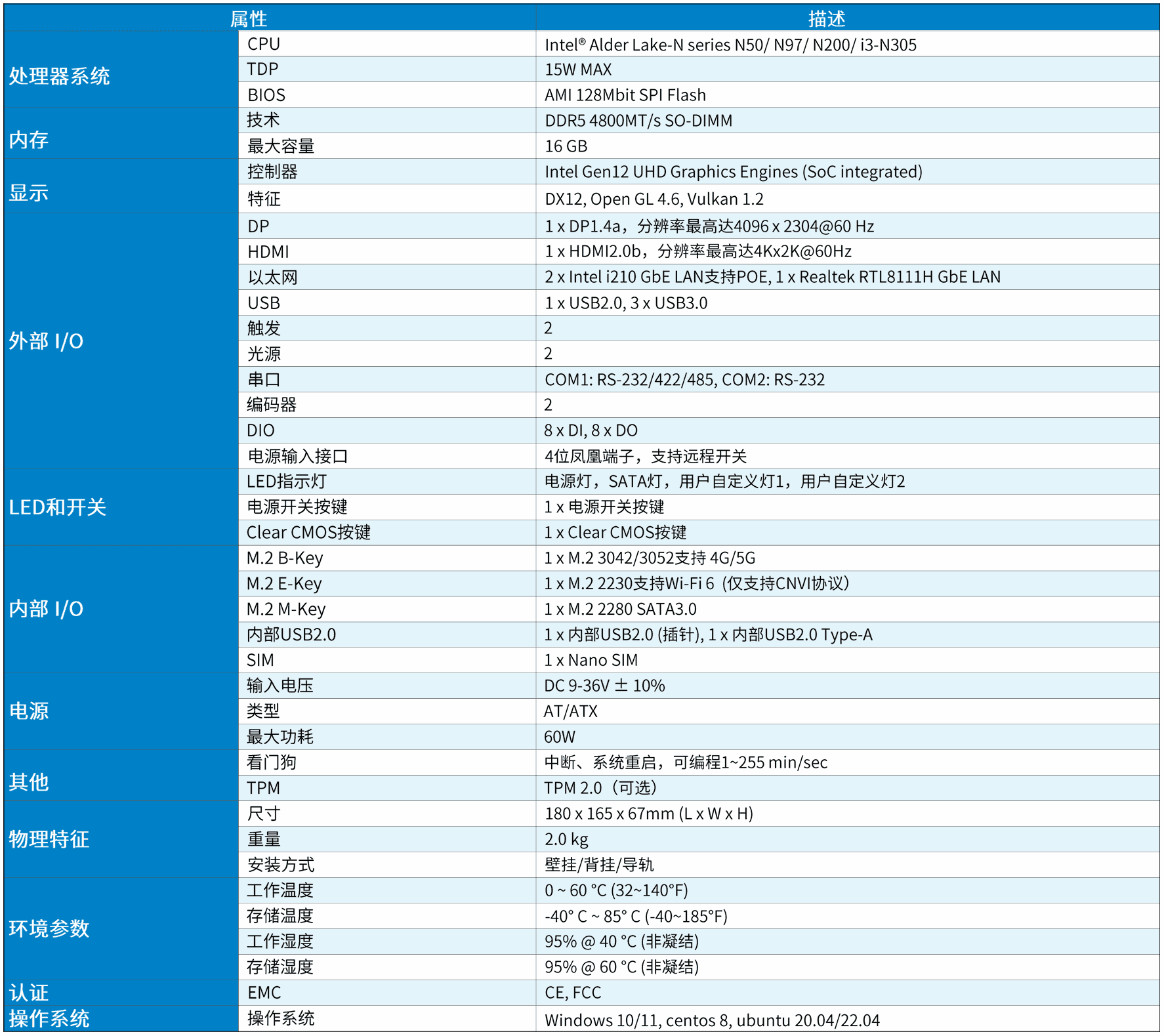

  Technical specifications
| Parameter | E723 — DDR5 variant |
|---|---|
| Processor | Intel Alder Lake-N N97 / Core i3-N305 |
| Processor TDP | 15W Max. |
| BIOS | AMI 128Mbit SPI Flash |
| Memory configuration | 1 × DDR5-4800 SO-DIMM; up to 16GB (DDR5 variant) |
| Graphics | Intel Gen12 UHD Graphics (SoC) |
| Graphics APIs | DirectX 12; OpenGL 4.6; Vulkan 1.2 |
| DisplayPort | 1 × DP 1.4a, 4096 × 2304 @ 60Hz |
| HDMI | 1 × HDMI 2.0b, 4K × 2K @ 60Hz |

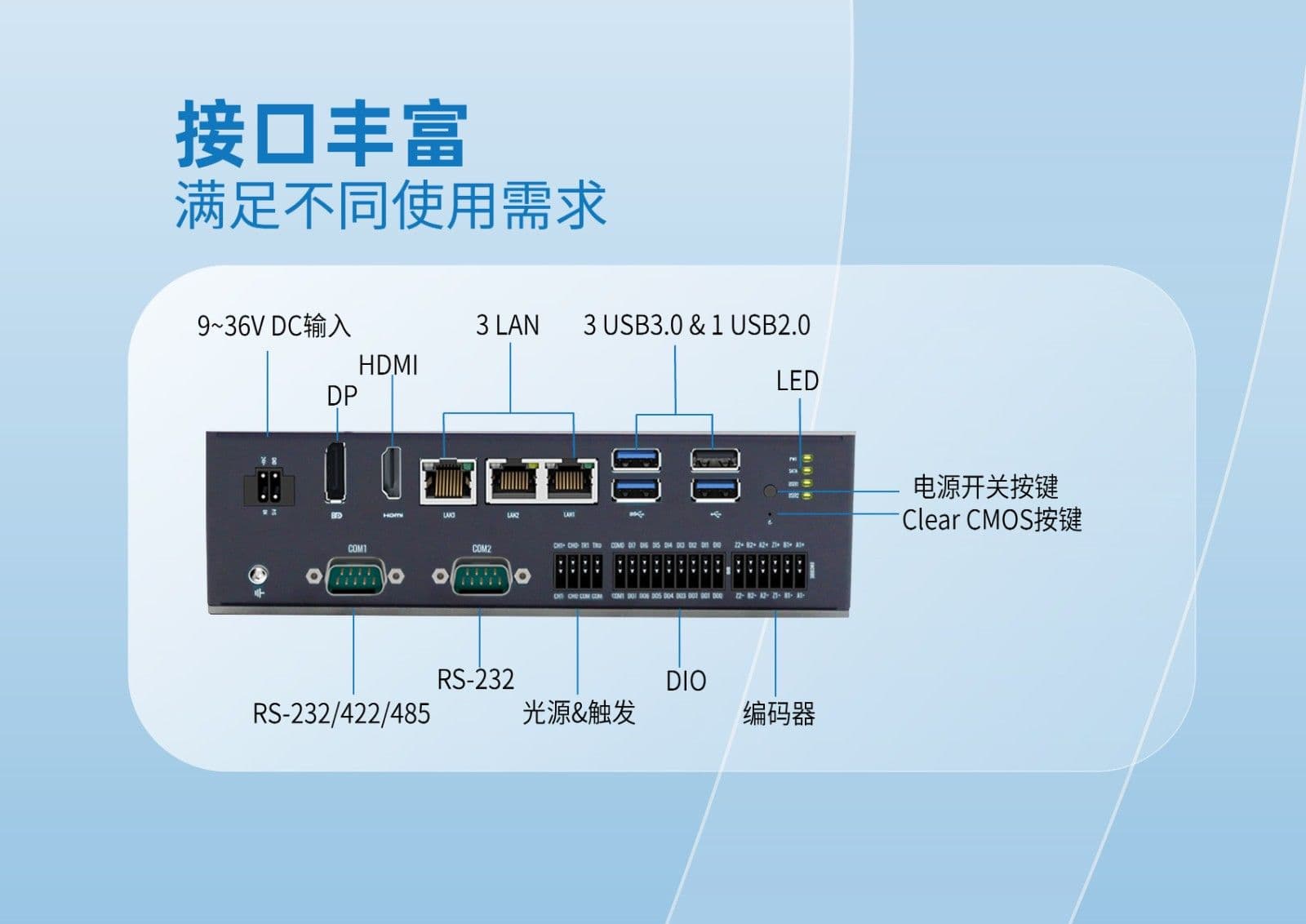

| Ethernet | 2 × Intel i210 GbE LAN (PoE); 1 × Realtek RTL8111H GbE LAN |
| External USB | 3 × USB 3.0; 1 × USB 2.0 |
| Trigger inputs | 2 |
| Light-source interfaces | 2 |
| Serial ports | COM1: RS-232/422/485; COM2: RS-232 |
| Encoder interfaces | 2 |
| Digital I/O | 8 × DI; 8 × DO |
| Power input connector | 4-pin Phoenix terminal; remote switch supported |
| Status LEDs | Power, SATA, User 1, User 2 |
| Buttons | 1 × power button; 1 × Clear CMOS button |
| Cellular expansion | 1 × M.2 B-Key 3042/3052 (4G/5G) |
| Wi-Fi expansion | 1 × M.2 E-Key 2230 (CNVi only) |
| SSD interface | 1 × M.2 M-Key 2280 SATA 3.0 |
| Internal USB | 1 × USB 2.0 pin-out; 1 × USB 2.0 Type-A |
| SIM | 1 × Nano SIM |
| Power input | 9–36V DC ±10% |
| Power management | AT/ATX |
| Maximum power consumption | 60W |
| Watchdog | Interrupt/system reset; programmable 1–255 min/sec |
| TPM | TPM 2.0 (optional) |
| Dimensions (L × W × H) | 180 × 165 × 67 mm |
| Weight | 2.0 kg |
| Installation | Wall mount / back mount / DIN rail |
| Operating temperature | 0–60°C |
| Storage temperature | −40–85°C |
| Operating humidity | 95% @ 40°C, non-condensing |
| Storage humidity | 95% @ 60°C, non-condensing |
| EMC | CE, FCC |
| Operating systems | Windows 10/11; CentOS 8; Ubuntu 20.04/22.04 |
Downloads
No download files are attached to this product. You can request documents from our engineers.
Frequently Asked Questions
Technical specifications, OS compatibility, and deployment details for this platform
What processor and memory are listed for YX-E723?
Processor: Intel® Alder Lake-N N97、i3-N305; Memory: Single channel DDR5-4800, up to 16GB
What interfaces are listed for YX-E723?
Network: 3 LAN (2 x Intel i210 supports POE, 1 x Realtek RTL8111H); Display: 1 x HDMI, 1 x DP
What operating conditions and software are listed for YX-E723?
Power input: 9–36V DC ±10%; Operating temperature: 0–60°C; Operating system: Windows 10/11, centos 8, ubuntu 20.04/22.04
