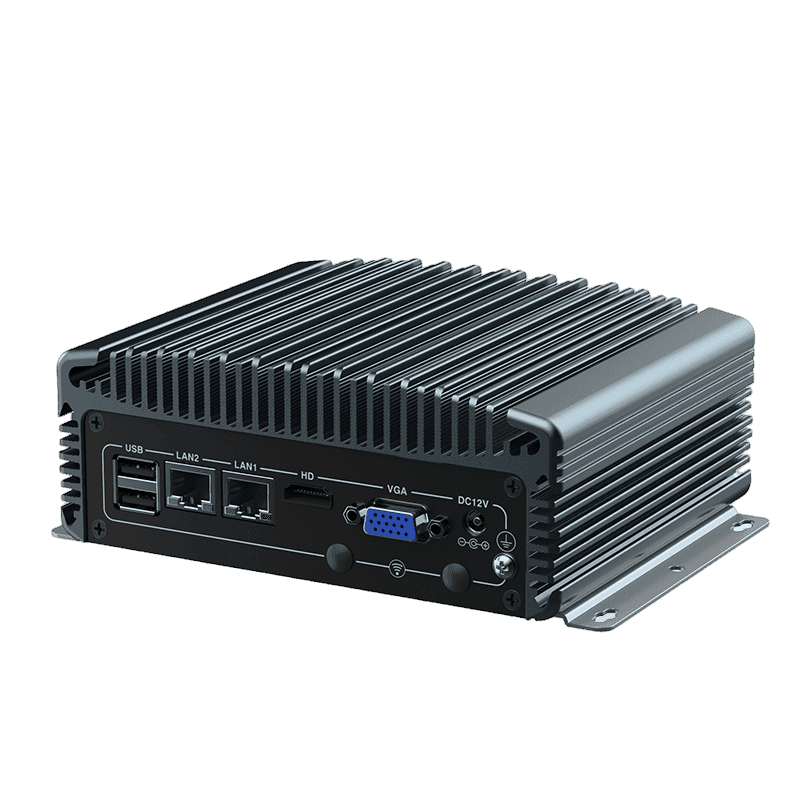

Model: NS7
| category | Specifications |
|---|---|
| processor | CPU: Intel 6th/7th/8th generation processor; |
| Memory | Dual Channel DDR4 ，MAX 32GB |
| show | VGA/ HDMI (4K2K resolution), up to 4096 x 2304 @60Hz; 1 x HDMI，1 x VGA |
| Ethernet | 2 RTL8111H 10/100/1000 |

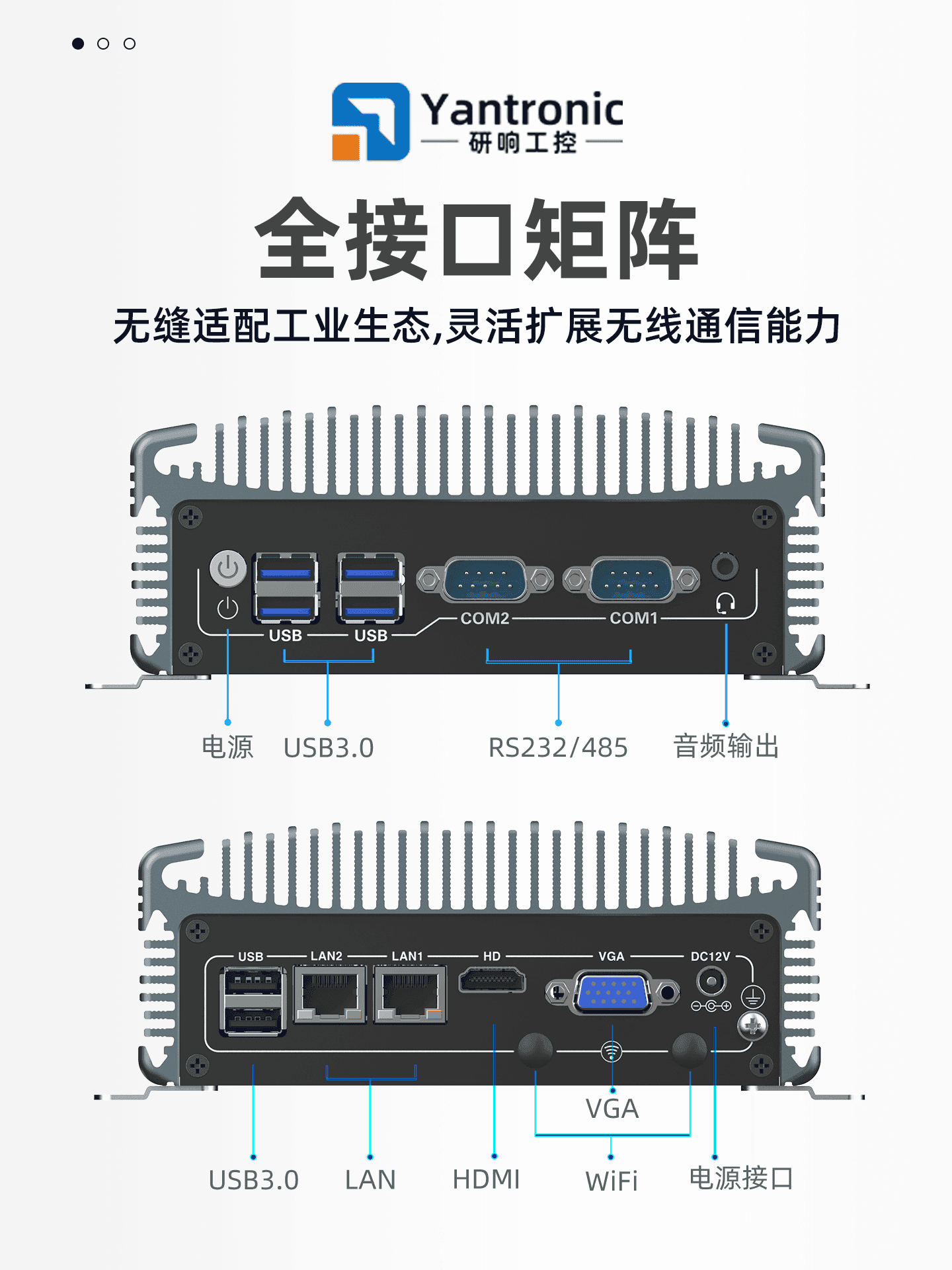

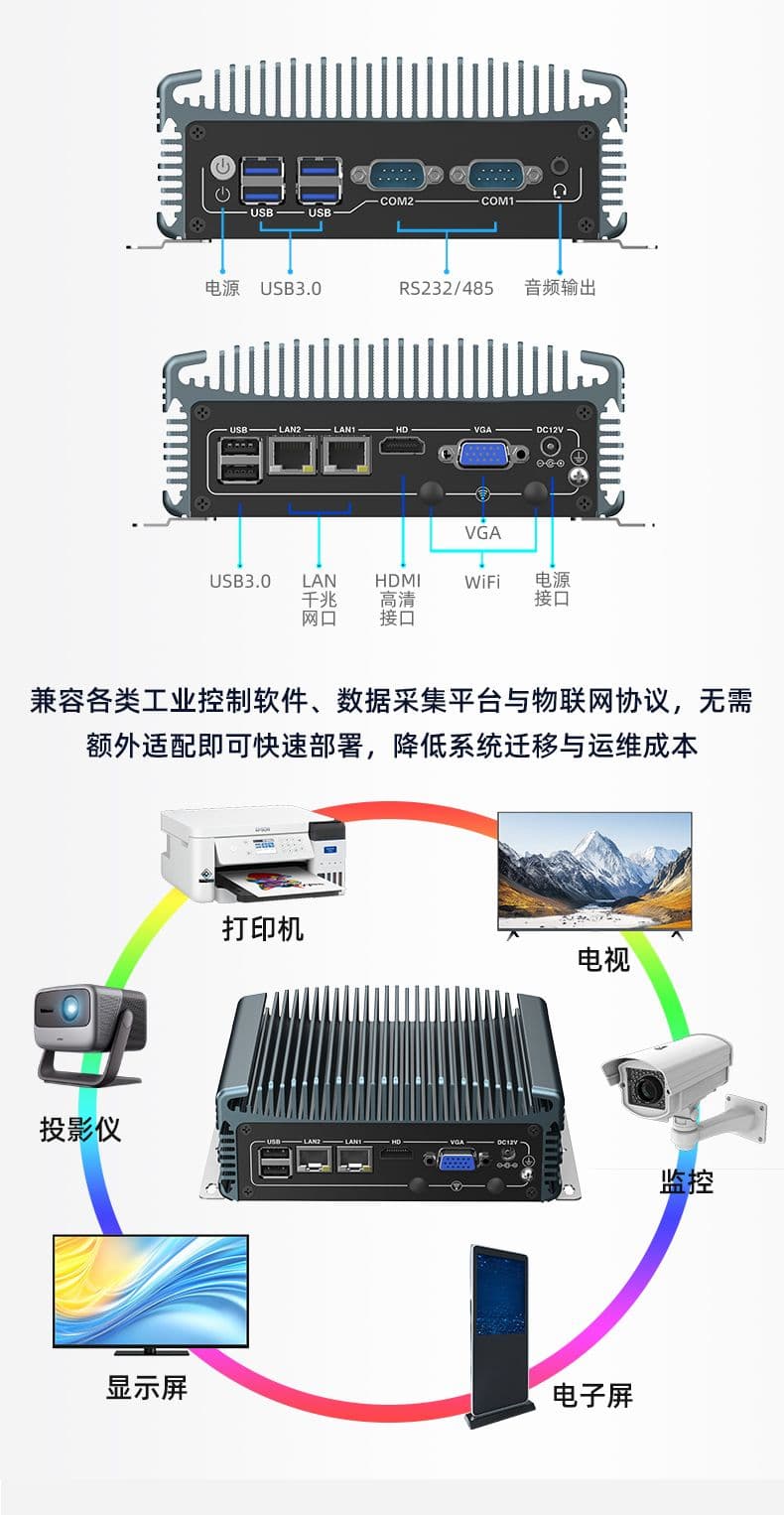

| External interface | USB：2 x USB 2.0, 4 x USB 3.0；COM：1 x RS-232/485， 1 x RS-232; Remote*1; Reset button*1; Power button*1 |
| storage | 1 x SATA3.0 for 2.5-inch storage; 1 x msata |
| expand | 1x full-size Mini-pcle, supports WLAN/WWAN module; 1xUSB2.0 internal interface; 1x USIM |
| watchdog | Interrupt, system reset/255 level timer interval, from 1 to 255 seconds. |
| power supply | 12V |
| OS | Windows 7 (Intel Gen6 CPU only) or Windows 10 64-bit Linux |
| physical properties | Dimensions: 155 x 128 x 60mm; Weight: 1.8Kg-2.3Kg; Structure: aluminum alloy structure; installation method: desktop/wall-mounted installation |
| working environment | Working temperature: 0°C~50°C, air flow 0.7m/s; Storage temperature: -40°C~80°C; Relative humidity: 10~95% @40°C (non-condensing); Vibration during operation: with SSD: 3Grms, IEC60068-2-64, random vibration, 5~500Hz, 1 hour per axis; Shock during operation: With SSD: 30G, IEC60068-2-27, half-sine wave, 11ms duration; ESD: contact potential difference +/-4kV, air potential difference +/-8kV; EMC: CE/FCC Class B |
| Hardware & Core System | |
|---|---|
| Processor / CPU | Intel 6/7/8 generation processor |
| System Memory | DDR4 MAX 32GB |
| Network / LAN | 2*RTL8111H(1000M) |
| Display Output | 1*VGA 1*HDMI(4K) |
| I/O & Physical Construction | |
| Mechanical / Housing | Industrial Metal Chassis |
| Power Requirement | DC 12V |
| Operating System | Windows 7/10，Linux |
| Operating Temperature | 0-50℃ |
Technical specifications, OS compatibility, and deployment details for this platform
NS7 supports Windows 7/10，Linux. Yantronic provides board support packages (BSP), driver validation, and long-term OS maintenance for mission-critical automation and edge AI workloads.
Engineered with an industrial-grade passive heatsink and rugged chassis, NS7 operates reliably across 0-50℃. The fanless, sealed design prevents dust ingress, withstands mechanical shock and vibration, and ensures continuous 24/7 operation.
NS7 is equipped with DC 12V featuring over-voltage, over-current, and reverse polarity protections, along with 2 RTL8111H(1000M) and 1 VGA 1 HDMI(4K) for seamless integration into factory cabinets and automated machinery.
Yes. Yantronic offers full OEM/ODM customization services for NS7, including custom BIOS configurations, additional I/O expansion daughterboards, private-label branding, and enclosure modifications, backed by a guaranteed 5 to 7+ year product lifecycle commitment.
