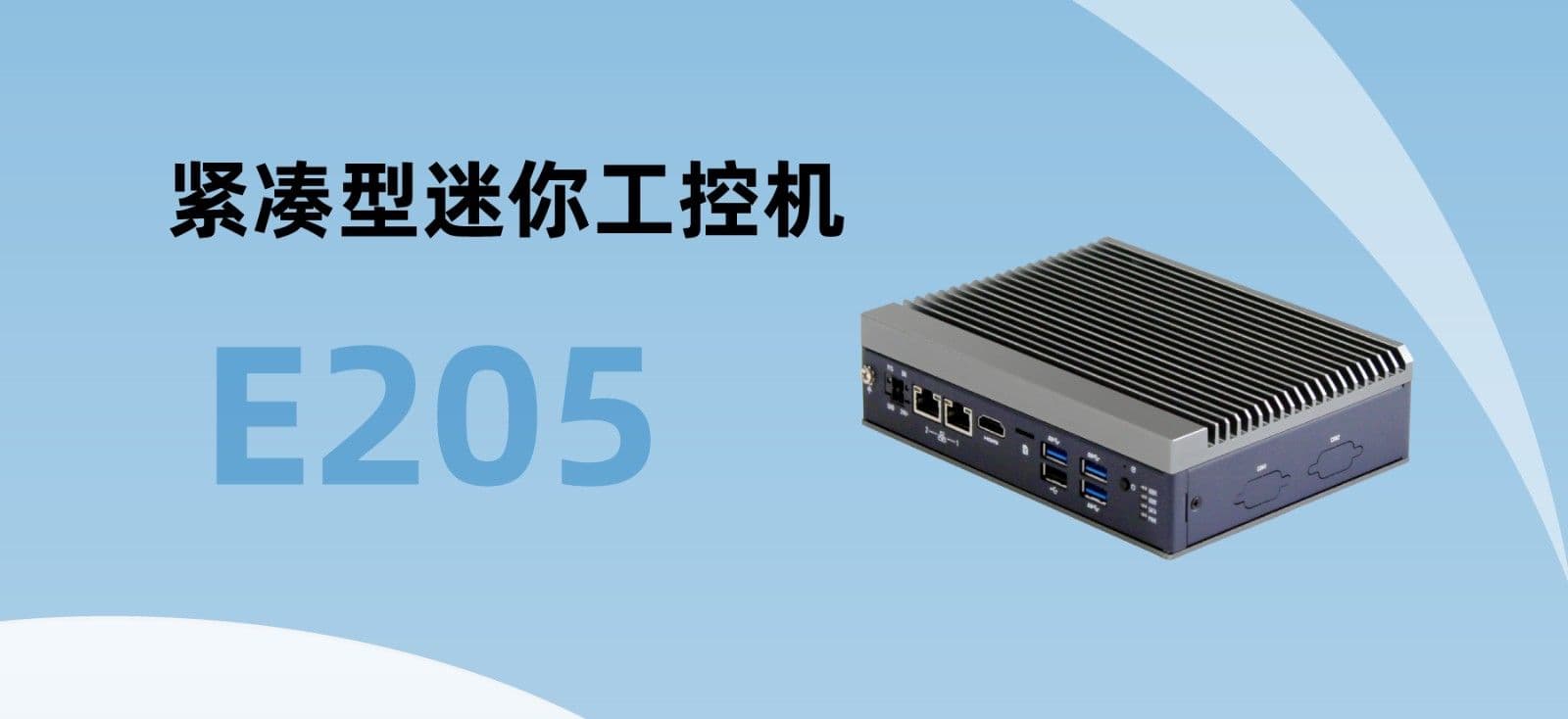

YX-E200 series
Powered by Intel Embedded CPU Processor, Equipped with 2.5GbE LAN, HDMI & Industrial I/O, Supports 36V DC Wide Operation
Model: YX-E200
System Core Specifications
- CPU: Intel Apollo Lake Pentium J4205 / Celeron J3455
- Memory: LPDDR4（Max. 8GB）
- Networking: 2 × Intel i226-V 2.5GbE LAN
- Display: 1 x HDMI
- Power: 9–36V DC
- Operating System: • Win 10/11 and Linux multi-version systems
- Operating Temp: 0 ~ 60 °C
Product overview
Technical specifications
E200 Series Product Specifications
| category | parameter | Specifications |
|---|---|---|
| processor system | CPU | Intel Apollo Lake Pentium J4205 / Celeron J3455 |
| BIOS | AMI UEFI BIOS at 64 Mb | |
| Memory | slot | LPDDR4 |
| capacity | Max. 8 GB | |
| graphics card | controller | Intel Gen9 Graphic engine |
| characteristic | DirectX 12.0, OpenGL 4.1, OpenCL 2.0, HW Decoder H.264, MPEG2, VC-1, WMV9, H.265-HEVC, VP8, JPEG/MJPEG | |
| show | HDMI | 1 x HDMI, resolution up to 3840 x 2160 @ 30Hz |

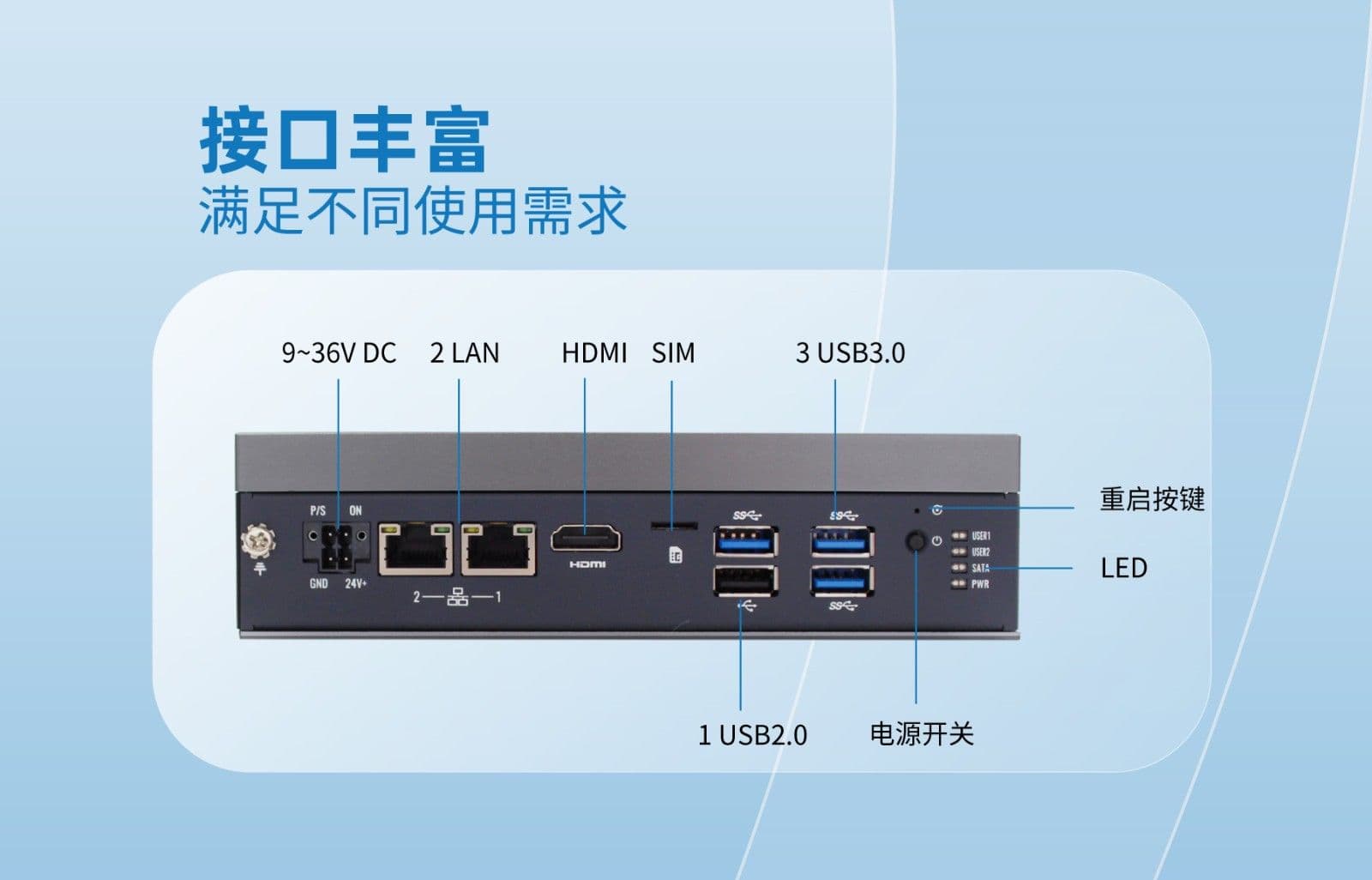

| External I/O | Ethernet | 2 × Intel i226-V 2.5GbE LAN |
| COM | 1 × RS-232/422/485; 2 × RS-232/485; 1 × RS-232 | |
| USB | 3 x USB3.0, 1 x USB2.0 | |
| SIM | 1 × Nano SIM | |
| Expand | Power DC Jack | Phoenix 4pin terminal |
| M.2 E-Key | 1 x M.2 2242 Support Wi-Fi | |
| M.2 B-Key | 1 x M.2 3052 Support 4G/5G | |
| M.2 M-Key | 1 x M.2 2280 SATA3.0 | |
| storage | SATA 3.0 | 1 × SATA 3.0 (optional) |
| LED | LED indicator light | Power, SATA, USB#1, USB#2 |
| other | Power supply type | 9–36V DC |
| watchdog | Watchdog | 255-level timer, resettable |
| operating system | Operation system | Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04 |
| physical properties | size | 172 x 125 x 62.5 mm |
| structure | AluminiumAlloy | |
| Installation method | Wall Mounting/Din Rail Clip | |
| Certification | EMC | CE, FCC |
| environment | working temperature | 0–60°C |
| Storage temperature | -40°C～85°C (-40～185°F) | |
| Relative humidity (operating) | 95% @ 40 °C (non-condensing) | |
| Relative humidity (storage) | 95% @ 60 °C (non-condensing) |
Downloads
No download files are attached to this product. You can request documents from our engineers.
Frequently Asked Questions
Technical specifications, OS compatibility, and deployment details for this platform
What processor and memory are listed for YX-E200?
Processor: Intel Apollo Lake Pentium J4205 / Celeron J3455; Memory: LPDDR4（Max. 8GB）
What interfaces are listed for YX-E200?
Network: 2 × Intel i226-V 2.5GbE LAN; Display: 1 x HDMI
What operating conditions and software are listed for YX-E200?
Power input: 9–36V DC; Operating temperature: 0 ~ 60 °C; Operating system: • Win 10/11 and Linux multi-version systems
