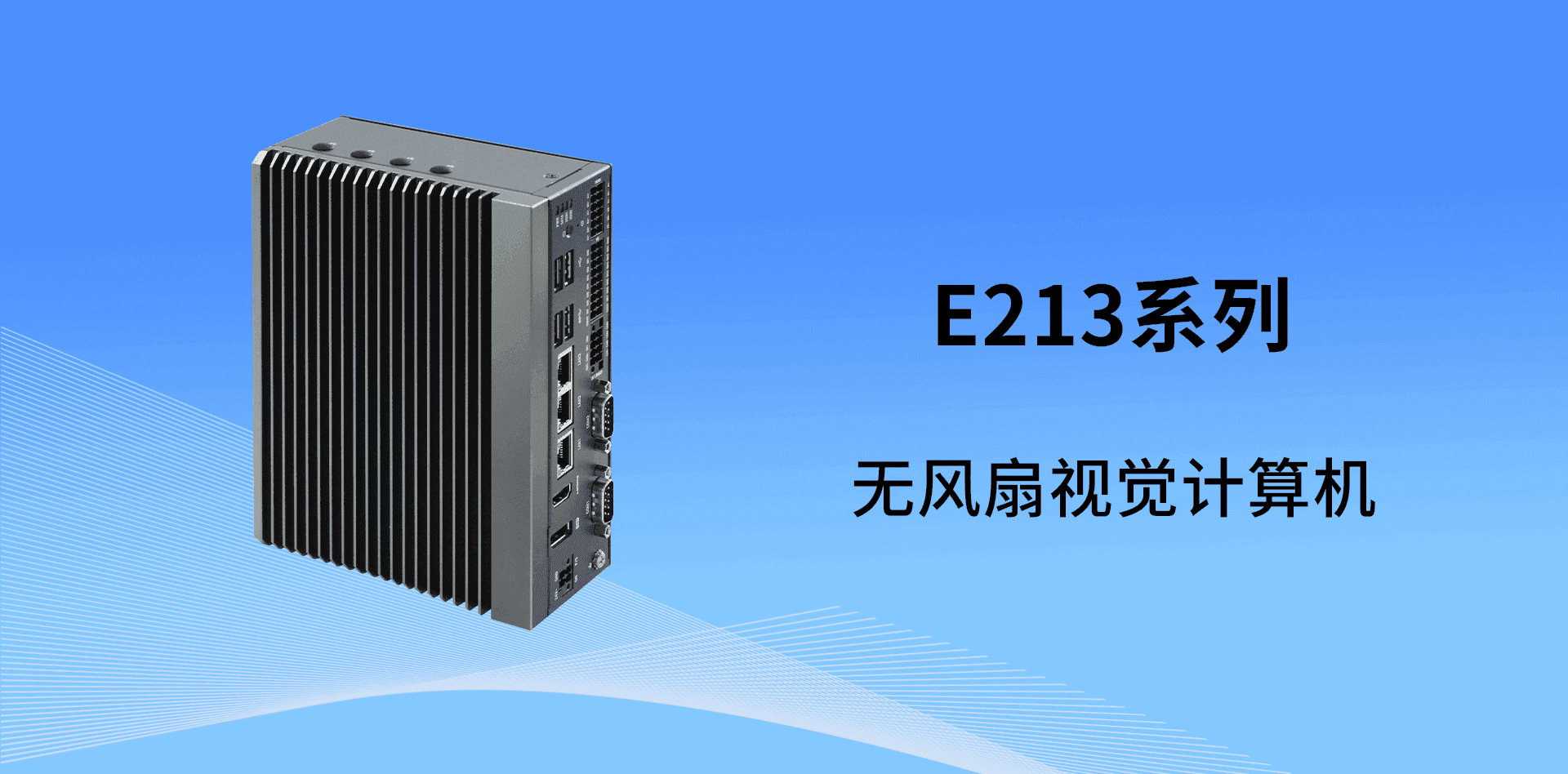

YX-E213 series
Powered by Intel J6412 Processor, Equipped with Dual GbE LAN, HDMI DP & Industrial I/O, Supports 36V DC, 0°C to 60°C Wide Operation
Model: YX-E213
System Core Specifications
- CPU: Intel Elkhart Lake J6412, N6210, X6425E
- Memory: 2 x DDR4-3200 up to 32GB
- Networking: 3（2 x Intel i210,1 x Intel i226）
- Display: 1 x HDMI, 1 x DP
- Power: 9–36V DC ±10%
- Operating System: Windows 10/11, centos 8, ubuntu 20.04~24.04
- Operating Temp: 0–60°C
Product overview
Technical specifications
Specifications_1
| property | property | describe |
|---|---|---|

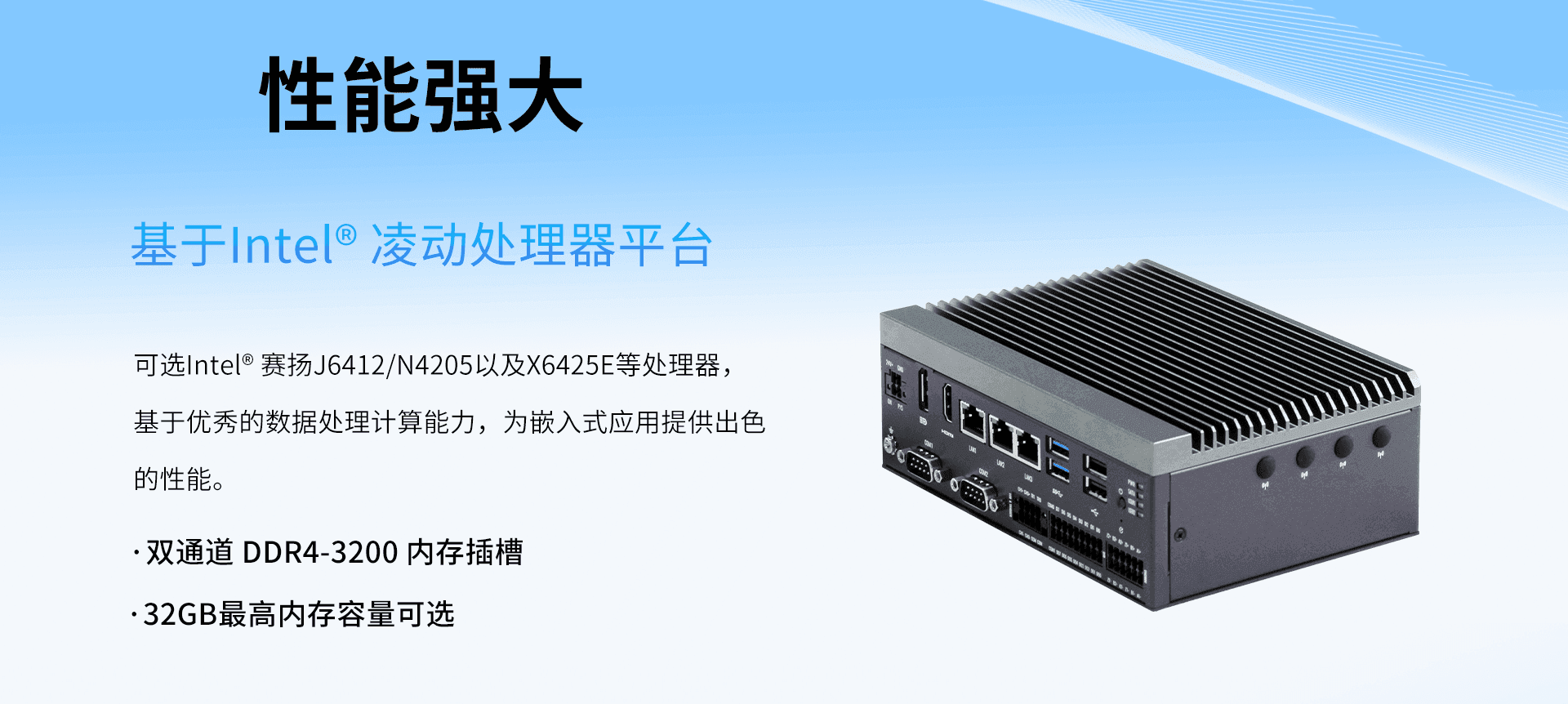

| Processor platform | CPU | Intel® Atom J6412/N6210/X6425E CPU |
| TDP | 12W Max | |
| BIOS | AMI 128Mbit SPI Flash | |
| Memory | technology | 2 x DDR4 3200MT/s SO-DIMM |
| maximum capacity | 32 GB | |
| show | controller | Intel Gen11 Graphics Engines (SoC integrated) |
| feature | DX12, OGL4.5, OCL1.2, Vulkan 1.1, MPEG2, H.264, JPEG/MJPEG, H.265 (HEVC) | |

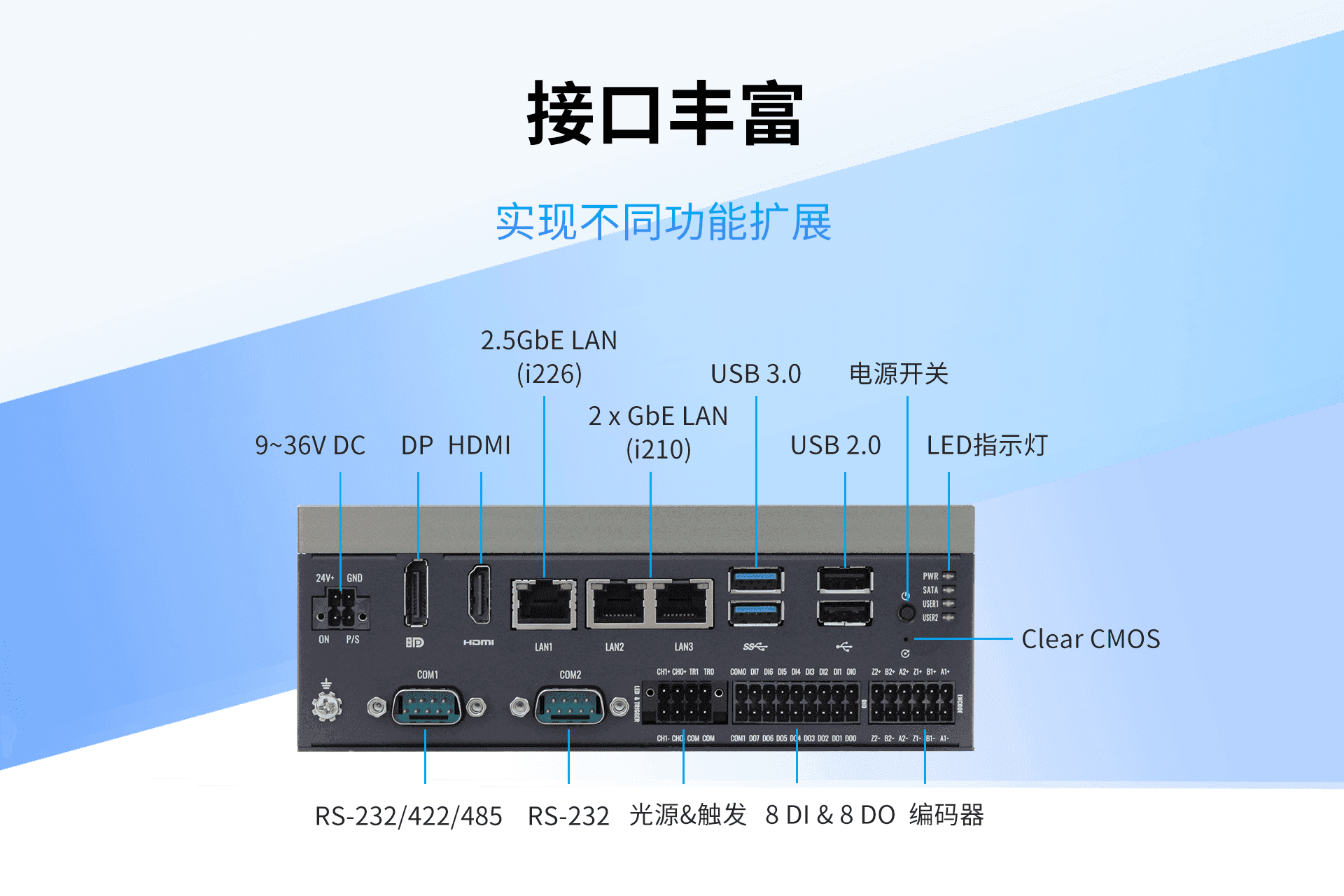

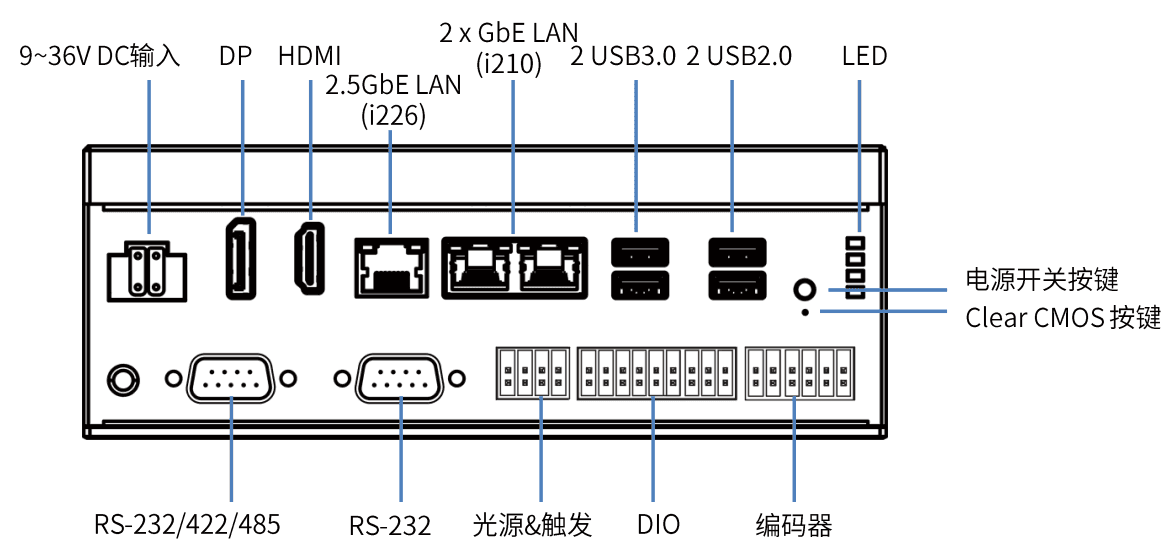

| external interface | DP | 1 x DP1.4, resolution up to 4096 x 2160@60Hz |
| HDMI | 1 x HDMI 2.0b, resolution up to 4096 x 2160@60Hz | |
| Ethernet | 2 × Intel i210 GbE LAN (PoE optional); 1 × Intel i226 2.5GbE LAN | |
| serial port | COM1: RS-232/422/485, COM2: RS-232 | |
| USB | 2 x USB2.0, 2 x USB3.0 | |
| DIO | 8 x DI, 8 x DO | |
| light source | 2 x light sources | |
| trigger | 2 x trigger | |
| encoder | 2 x encoder | |
| Power input interface | 4-position Phoenix terminal, supports remote switch | |
| LEDs and switches | LED | Power light, SATA light, user-defined light 1, user-defined light 2 |
| Power switch button | 1 x power switch button | |
| Reset button | 1 x reset button | |
| Internal I/O | M.2 E-Key | 1 x M.2 2230 supports Wi-Fi (supports PCIe protocol) |
| M.2 B-Key | 1 x M.2 3052 supports 4G/5G | |
| M.2 M-Key | 1 x M.2 2280 SATA3.0 | |
| SATA | 1 x SATA3.0 | |
| Internal USB2.0 | 1 x Internal USB2.0 Type-A | |
| SIM | 1 x Nano SIM | |
| power supply | input voltage | DC 9-36V ±10% |
| type | AT/ATX | |
| other | watchdog | Interrupt, system restart, programmable 1~255 min/sec |
| TPM | TPM 2.0 (optional) | |

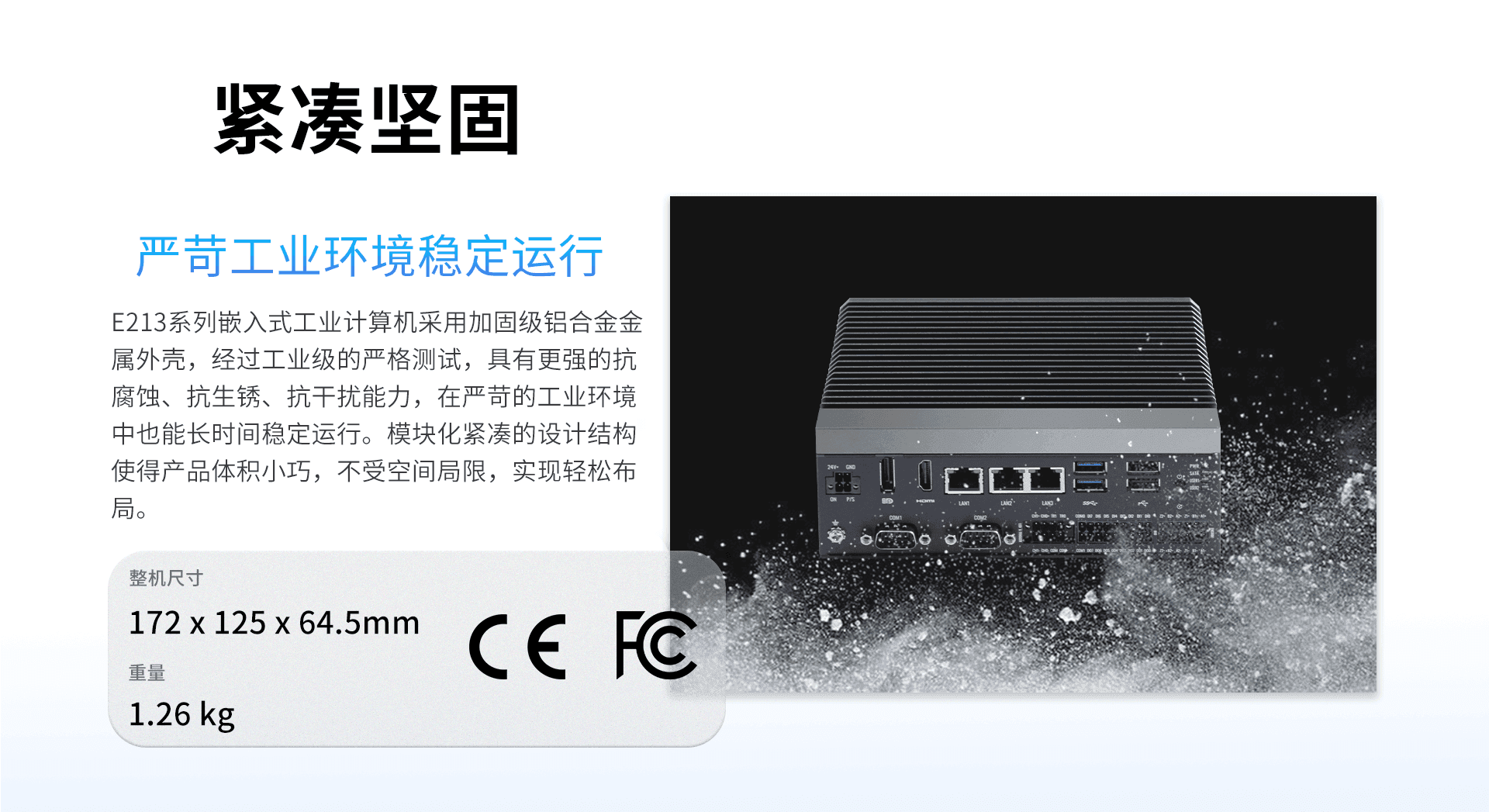

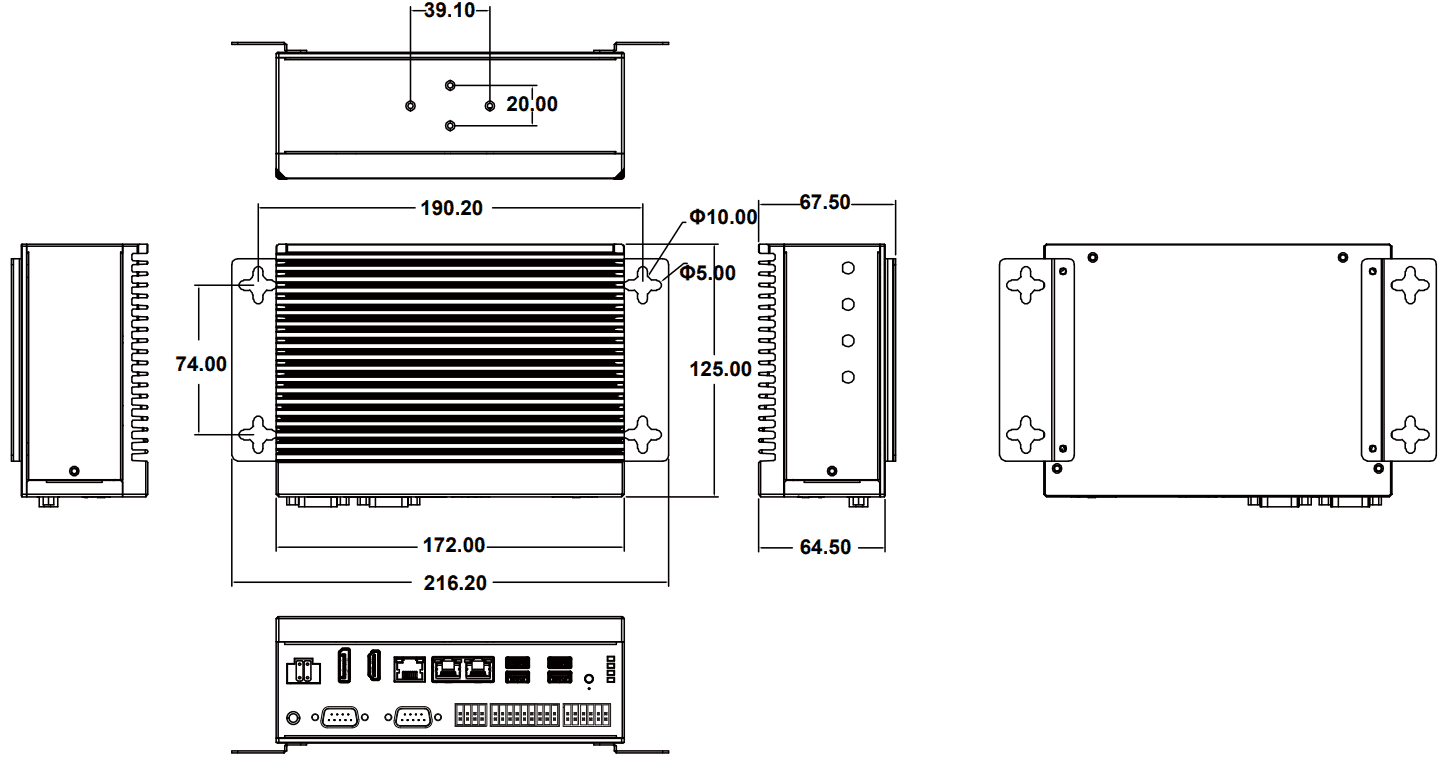

| physical characteristics | size | 172 × 125 × 62.5 mm (L × W × H) |
| weight | 1.26 kg | |
| Installation method | Wall-mounted/back-mounted/rail | |
| Environmental parameters | working temperature | 0~60℃ (32~140℉) |
| Storage temperature | -40~85℃ (-40~185℉) | |
| Working humidity | 95% @40℃ (non-condensing) | |
| Storage humidity | 95% @60℃ (non-condensing) | |
| Certification | EMC | CE, FCC |
| operating system | operating system | Windows 10/11, centos 8, ubuntu 20.04~24.04 |
Downloads
No download files are attached to this product. You can request documents from our engineers.
Frequently Asked Questions
Technical specifications, OS compatibility, and deployment details for this platform
What processor and memory are listed for YX-E213?
Processor: Intel Elkhart Lake J6412, N6210, X6425E; Memory: 2 x DDR4-3200 up to 32GB
What interfaces are listed for YX-E213?
Network: 3（2 x Intel i210,1 x Intel i226）; Display: 1 x HDMI, 1 x DP
What operating conditions and software are listed for YX-E213?
Power input: 9–36V DC ±10%; Operating temperature: 0–60°C; Operating system: Windows 10/11, centos 8, ubuntu 20.04~24.04
