Model: YX-E211
| Specs | Item | E211 Series |
|---|---|---|

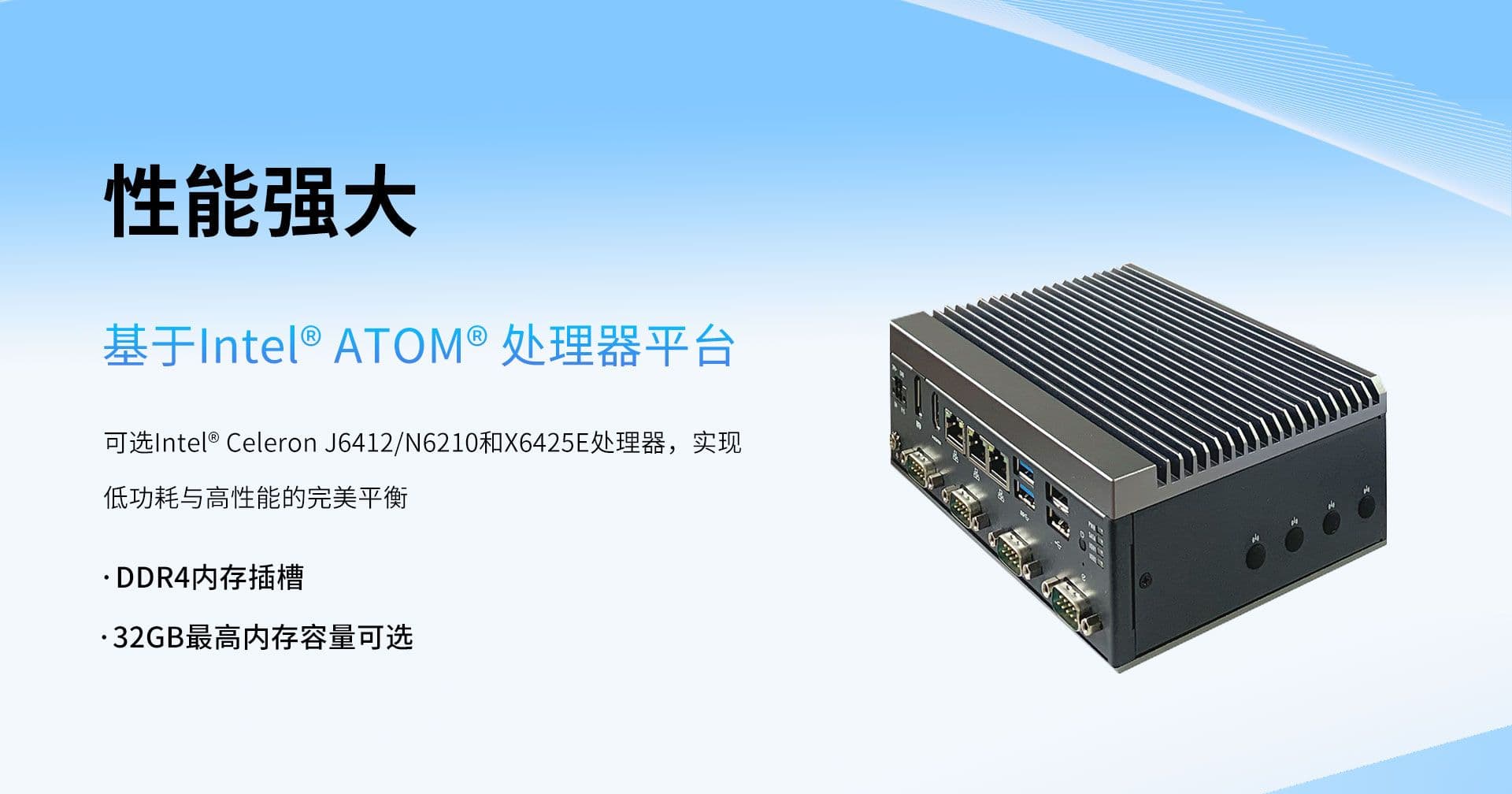

| Processor System | CPU | Intel® Elkhart Lake platform J6412/N6210/X6425E CPU |
| TDP | 12W Max | |
| BIOS | AMI 128Mbit SPI Flash | |
| Memory | Technology | 2 x DDR4 3200MT/s SO-DIMM |
| Max. Capacity | 32 GB | |
| Graphics | Controller | Intel Gen11 Graphics Engines (SoC integrated) |
| Features | DX12, OGL4.5, OCL1.2, Vulkan 1.1, MPEG2, H.264, JPEG/MJPEG, H.265 (HEVC) | |

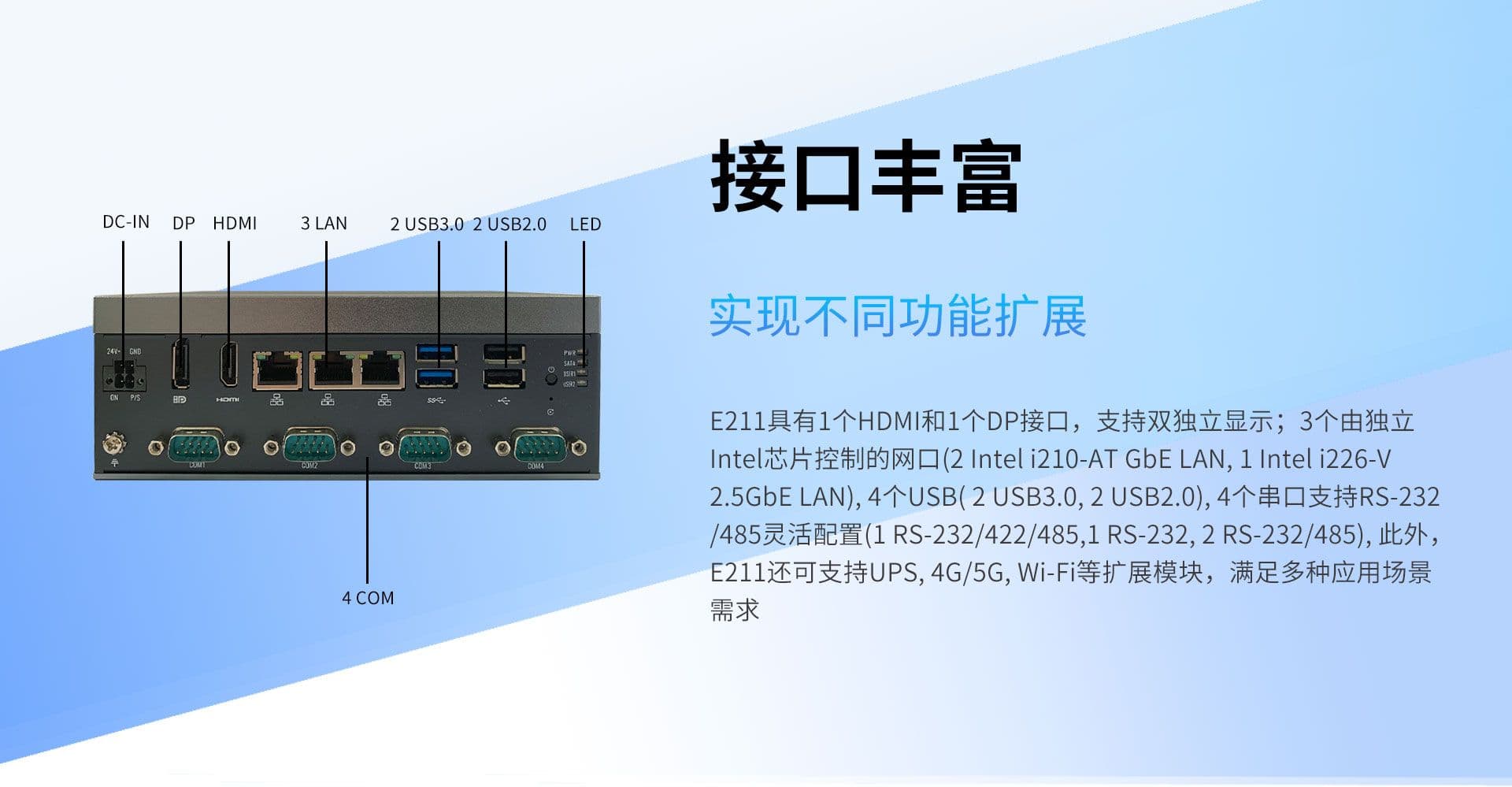

| External IO | DP | 1 x DP1.4up to 4096 x 2160@60Hz |
| HDMI | 1 x HDMI 2.0b, up to 4096 x 2160@60Hz | |
| Ethernet | 2 x Intel i210-AT GbE LAN, 1 x Intel i226-V 2.5GbE LAN | |
| COM | COM1: RS-232/422/485, COM2: RS-232, COM3~4: RS-232/485 | |
| USB | 2x USB2.0, 2 x USB3.0 | |
| Power DC Jack | Phoenix 4pin | |
| Expansion | M.2 E-Key | 1 x M.2 2230 Support Wi-Fi |
| M.2 B-Key | 1 x M.2 3052 Support 4G/5G | |
| M.2 M-Key | 1 x M.2 2280 Sata3.0 | |
| SATA | 1x SATA3.0 | |
| Internal USB2.0 | 3 x Internal USB2.0 (Pinout), 1 x Internal USB Type-A | |
| SIM | 1 x Nano SIM | |
| LED | LED Lights | Power status, HDD R/W,USER1,USER2 |
| Power | Supply Voltage | DC 9-36V ±10% |
| Max. Consumption | 30W | |
| Power Management | AT/ATX | |
| Others | Watch Dog | Timer Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds |
| TPM | TPM 2.0(optional) | |
| Environment | Operating Temperature | 0 ~ 60 °C(32~140°F) |
| Storage Temperature | -40°C ~ 85°C(-40~185°F) | |
| Relative Humidity (Operating) | 95% @ 40 °C (non-condensing) | |
| Relative Humidity(Storage) | 95% @ 60 °C (non-condensing) | |

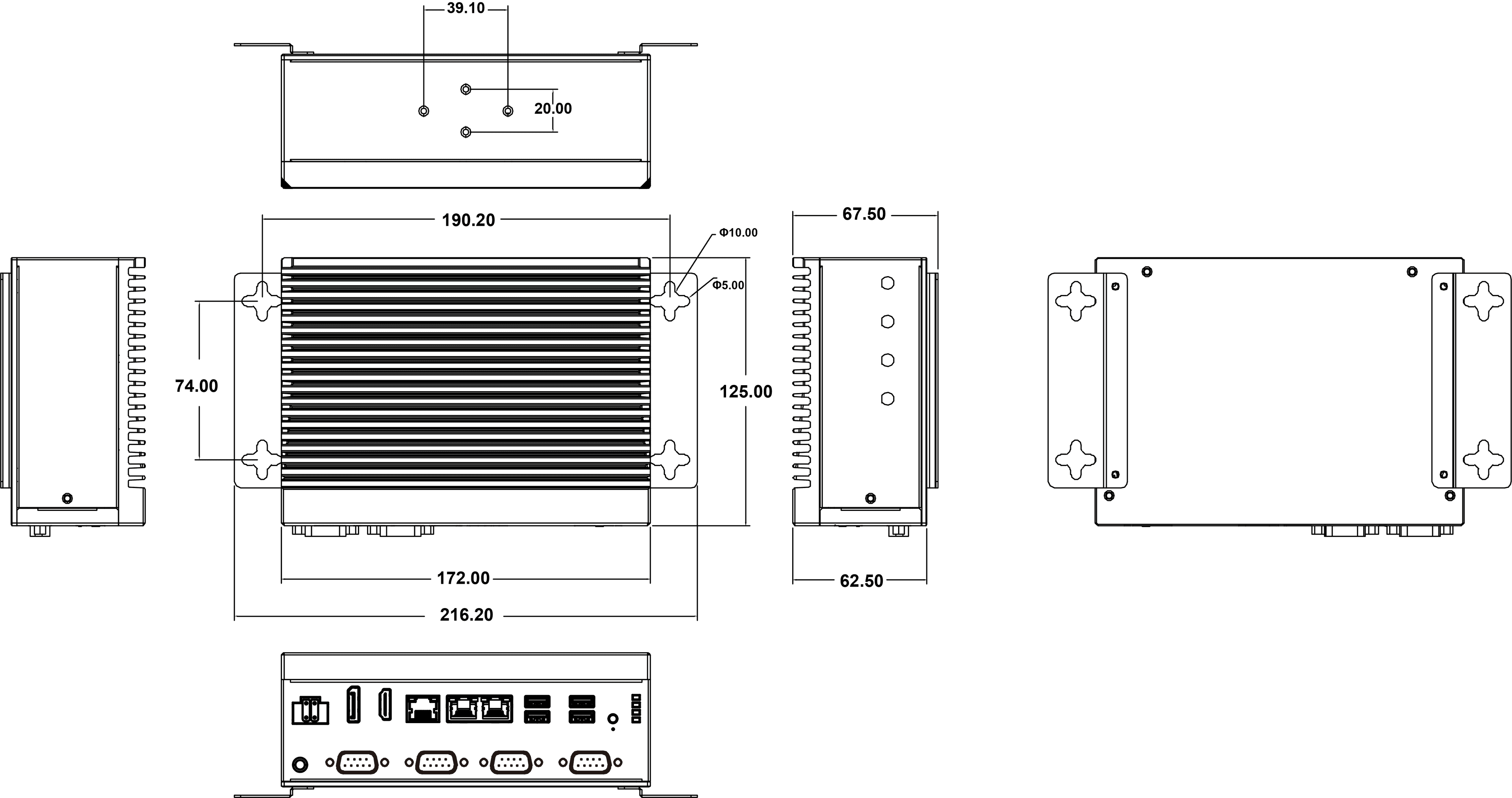

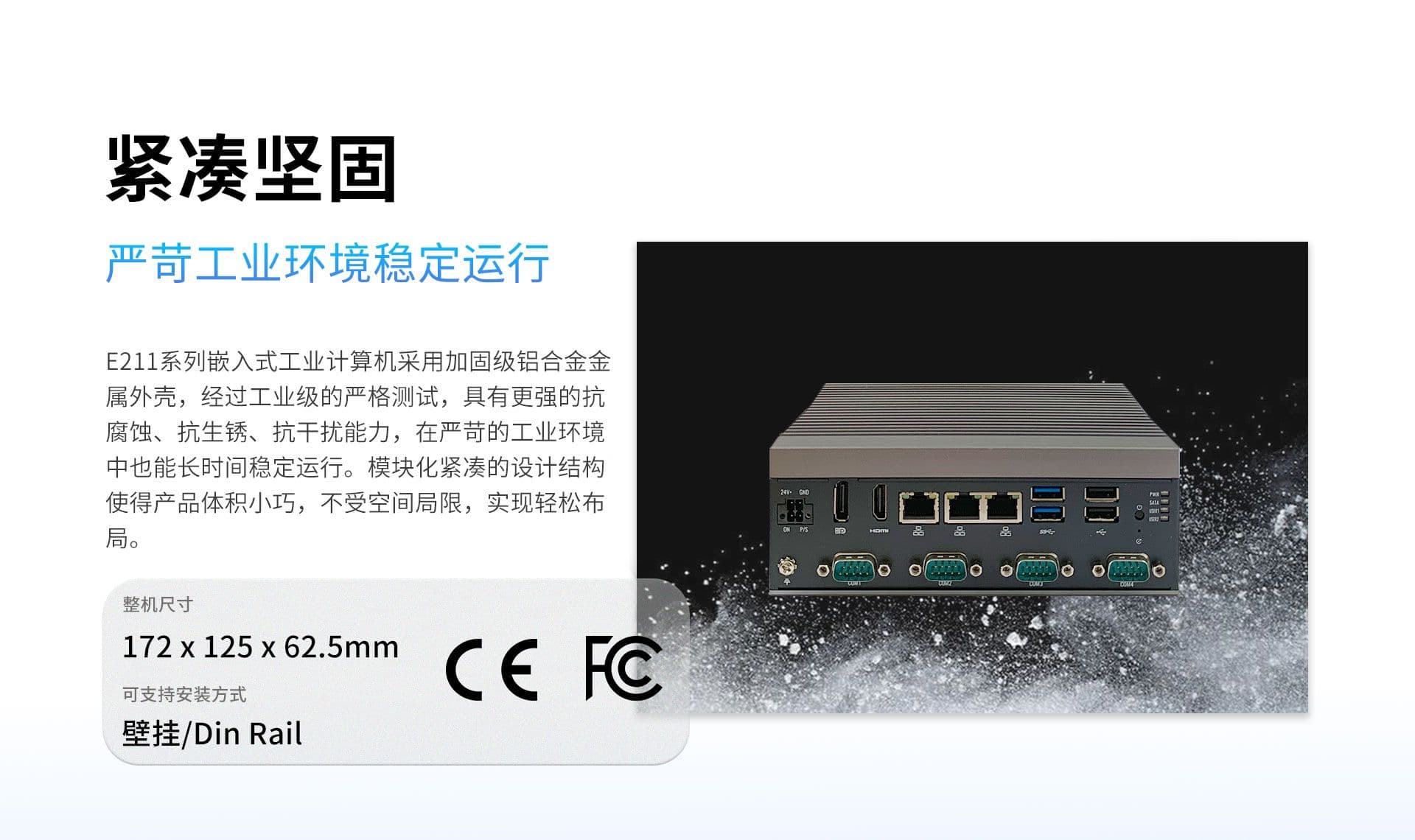

| Physical Characteristics | Dimensions | 172 x 125 x 62.5mm(Lx Wx H) |

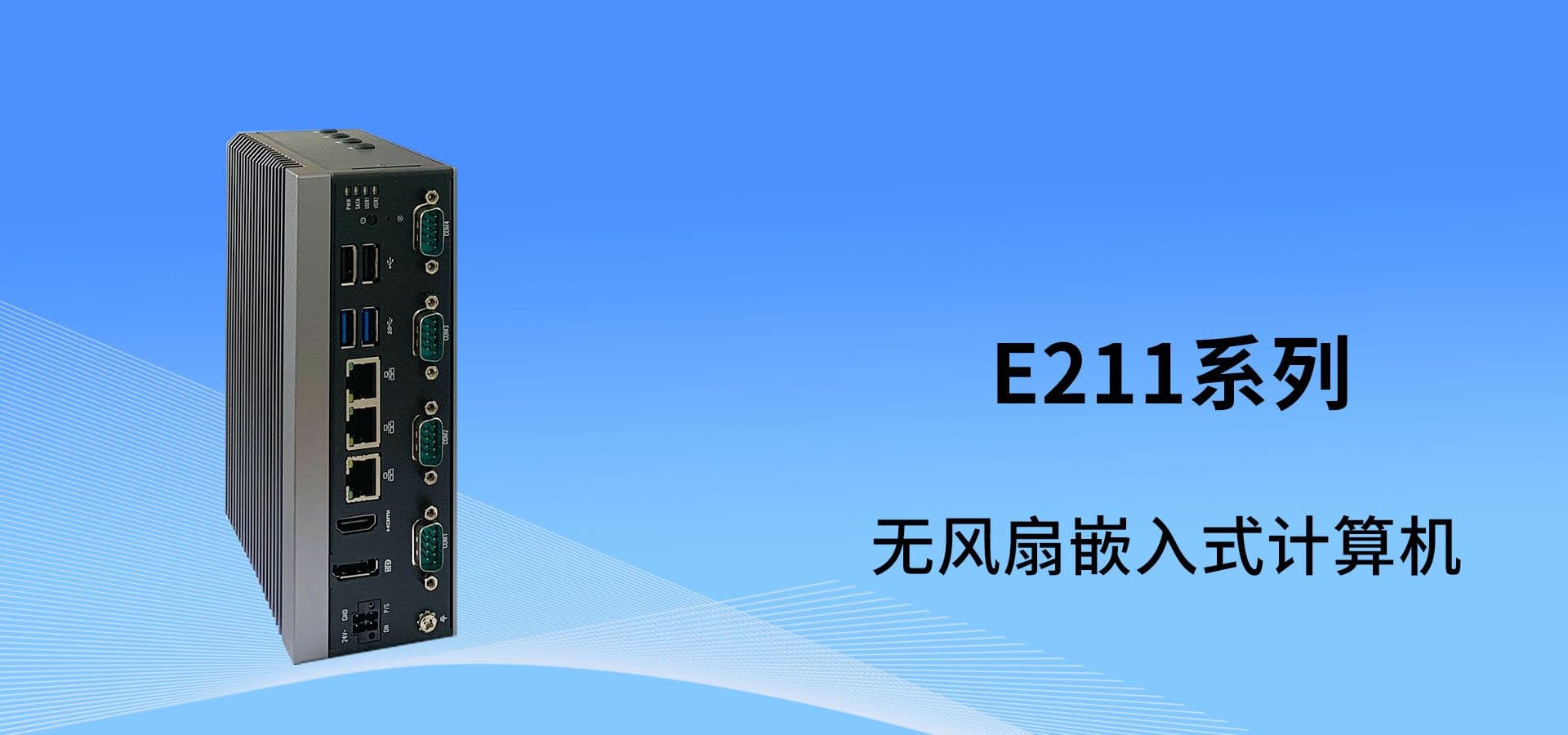

| Installation | Wall-mounting/Din Rail | |
| Certification | EMC | CE, FCC |
| OS Support | OS Support | Windows 10/11, centos 8, ubuntu 20.04/22.04 |
| Hardware & Core System | |
|---|---|
| Processor / CPU | Intel Elkhart Lake J6412, N6210, X6425E |
| System Memory | 2 x DDR4-3200 up to 32GB |
| Network / LAN | 3 (2 x Intel i210,1 x Intel i226） |
| Display Output | 1 x HDMI, 1 x DP |
| I/O & Physical Construction | |
| Mechanical / Housing | Industrial Metal Chassis |
| Operating System | Windows 10/11, centos 8, ubuntu 20.04/22.04 |
Technical specifications, OS compatibility, and deployment details for this platform
YX-E211 supports Windows 10/11, centos 8, ubuntu 20.04/22.04. Yantronic provides board support packages (BSP), driver validation, and long-term OS maintenance for mission-critical automation and edge AI workloads.
Engineered with an industrial-grade passive heatsink and rugged chassis, YX-E211 operates reliably across -20°C to 60°C. The fanless, sealed design prevents dust ingress, withstands mechanical shock and vibration, and ensures continuous 24/7 operation.
YX-E211 is equipped with a wide-range 9–36V DC input featuring over-voltage, over-current, and reverse polarity protections, along with 3 (2 x Intel i210,1 x Intel i226） and 1 x HDMI, 1 x DP for seamless integration into factory cabinets and automated machinery.
Yes. Yantronic offers full OEM/ODM customization services for YX-E211, including custom BIOS configurations, additional I/O expansion daughterboards, private-label branding, and enclosure modifications, backed by a guaranteed 5 to 7+ year product lifecycle commitment.
