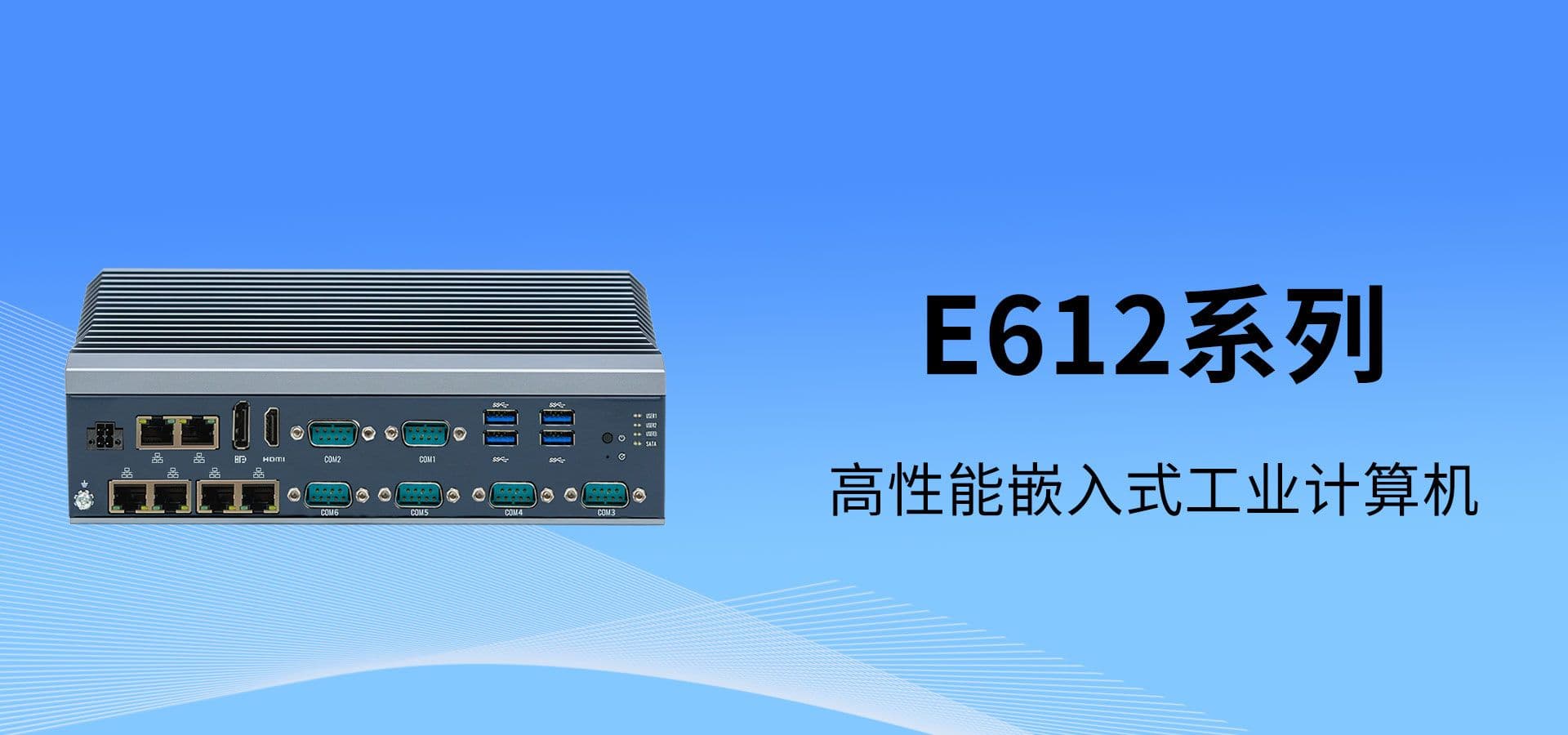

YX-E612 series

Model: YX-E612

System Core Specifications

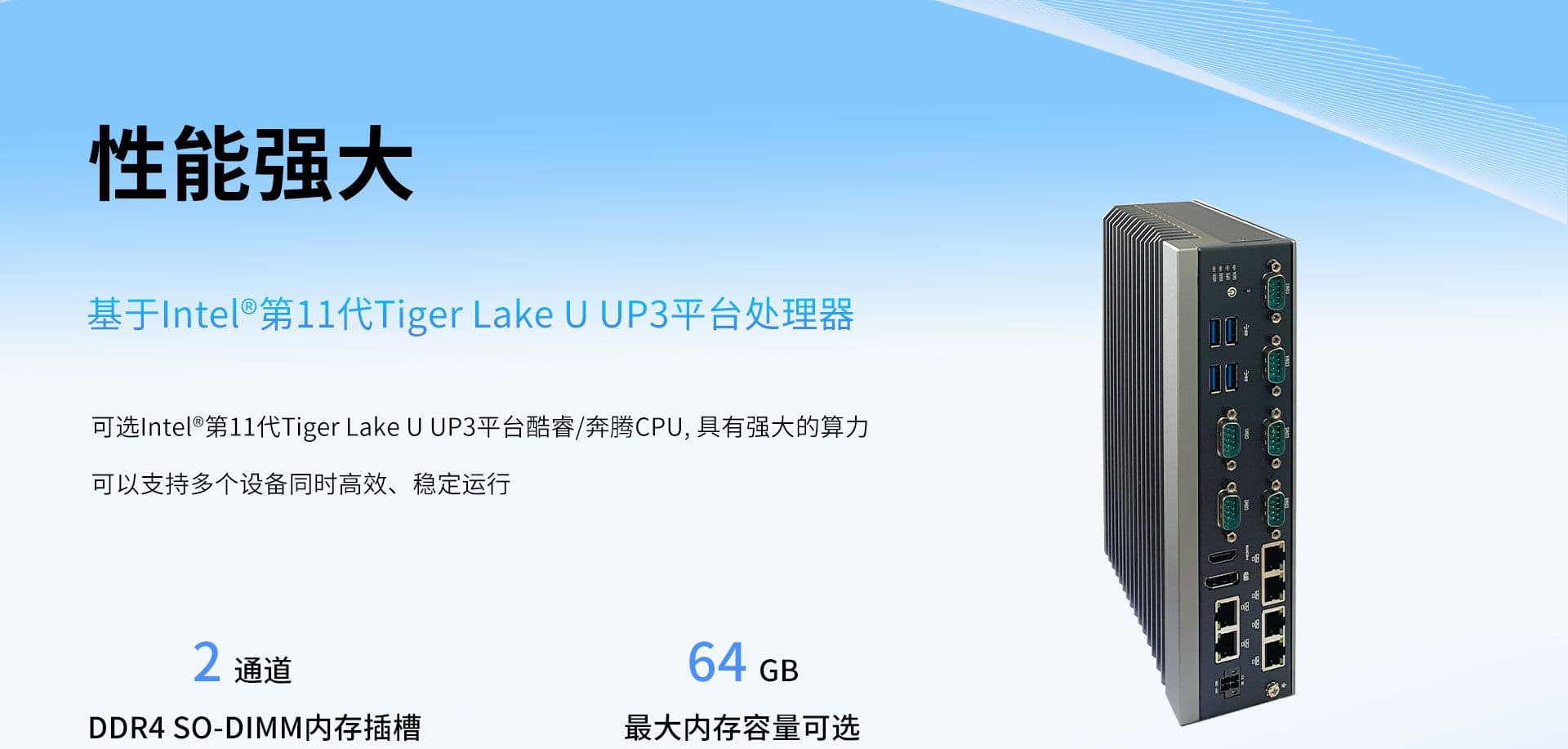

•CPU: Intel 11th Generation Tiger Lake U UP3 Platform Core Processor
•Memory: 2 x DDR4 SO-DIMM（Max.64GB）
•Networking: 4 x Intel i210 (supports PoE), 2 x Intel i226
•Display: 1 x HDMI, 1 x DP
•Operating System: Windows 10/11, centos 8, ubuntu 20.04/22.04

Product

System Features

Specs	Item	E612
Processor System	CPU	Intel Tiger Lake-U UP3(i7-1165G7/i5-1135G7/i3-1115G4/6305E)
	TDP	28W MAX
	BIOS	AMI 128Mbit SPI Flash
Memory	Technology	2 x DDR4 3200MT/s SO-DIMM
Memory	Capacity	Max. 64GB
Graphics	Controller	Intel® Iris® Xe graphics, up to 96 graphics execution units(EU)
Graphics	Graphic Features	5K60 10b 4:4:4 HEVC/VP9/SCC, 8K60 12b 4:2:0 HEVC/VP9/SCC, 8K30 10b 4:2:0 AV1, 4K60 8b 4:2:0 AVC

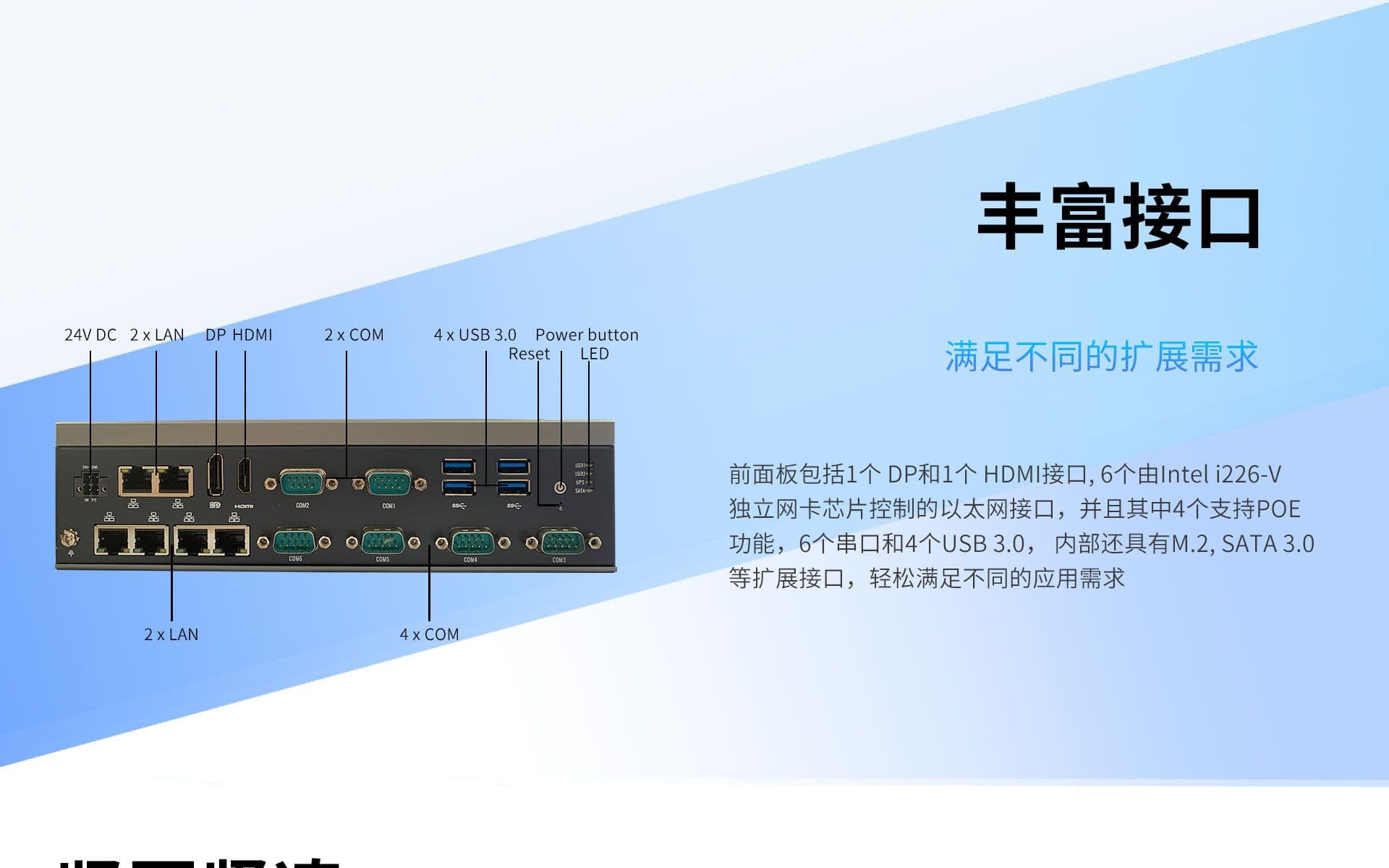

External IO	DP	1 x DP 1.4a up to 4096 x 2304 x 36 bpp @60 Hz or 5120 x 3200 x 24 bpp @60Hz
	HDMI	1 x HDMI 2.0b up to 4096 x 2304 x 24 bpp @60 Hz
	Ethernet	6 x Intel i226-V
	Serial Ports	2 x RS-232, 3 x RS-232/485, 1 x RS-232/422/485
	USB	4xUSB3.0
	LED	USER1,USER2,UPS,SATA
	Reset	1
Expansion	M.2 E-Key	1 x M.2 E-Key 2230 supports WiFi
Expansion	M.2 B-Key	1 x M.2 B-Key 3052 supports 4G/5G
Storage	M.2	1 x M.2 M-Key 2280 support SSD (PCIe x4)
	SATA3.0	1
	SIM	1 x Nano SIM
Power Requirement	Supply voltage	24V DC IN
	Power management	AT/ATX
	Max. consumption	60W
	Test environment	Intel Core i7-1165GRE DDR4 32GB X2
OS	Operation system	Windows 10 64Bit, Linux

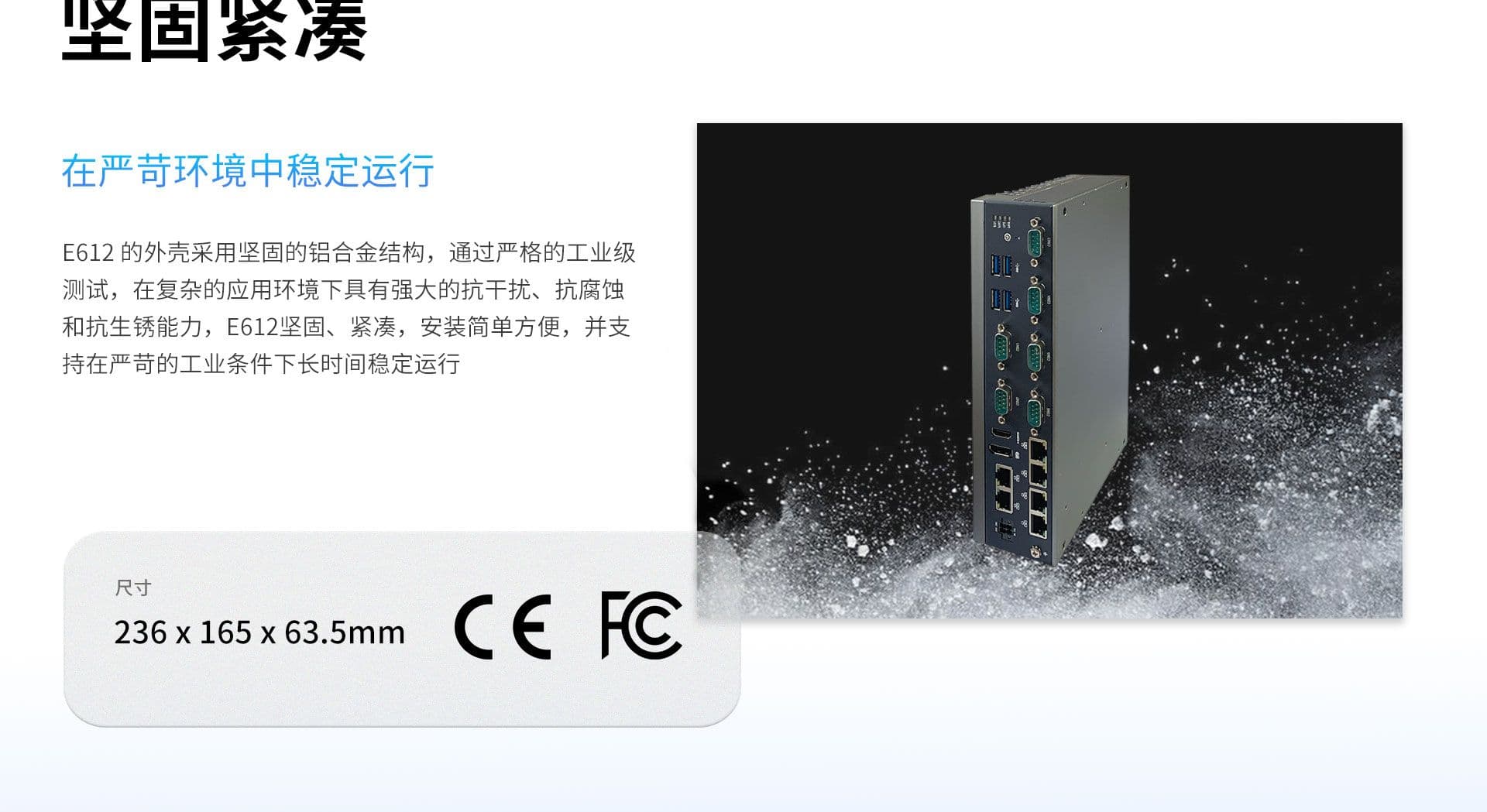

Physical Characteristics	Construction	Aluminum alloy
	Mounting	Wall Mounting
	Dimensions	236x165x63.5 mm(LxWxH)
Others	Watchdog	65536 level, 0~65535 sec
Others	TPM	TPM 2.0
Environment	Operating Temperature	0°C~50°C
	Storage Temperature	-40°C~85°C
	Relative Humidity	Operating95%@40°C(Non-Condensing)Non-operating 95%@60℃（Non-Condensing）
	EMC	CE, FCC

Technical

downloadTechnical Datasheet (PDF)

Hardware & Core System
Processor / CPU	Intel 11th Generation Tiger Lake U UP3 Platform Core Processor
System Memory	2 x DDR4 SO-DIMM（Max.64GB）
Network / LAN	4 x Intel i210 (supports PoE), 2 x Intel i226
Display Output	1 x HDMI, 1 x DP
I/O & Physical Construction
Mechanical / Housing	Industrial Metal Chassis
Operating System	Windows 10/11, centos 8, ubuntu 20.04/22.04

Q&A

Frequently Asked Questions

Technical specifications, OS compatibility, and deployment details for this platform

Which operating systems are supported on YX-E612?

YX-E612 supports Windows 10/11, centos 8, ubuntu 20.04/22.04. Yantronic provides board support packages (BSP), driver validation, and long-term OS maintenance for mission-critical automation and edge AI workloads.

How does YX-E612 handle thermal management and harsh industrial environments?

Engineered with an industrial-grade passive heatsink and rugged chassis, YX-E612 operates reliably across -20°C to 60°C. The fanless, sealed design prevents dust ingress, withstands mechanical shock and vibration, and ensures continuous 24/7 operation.

What are the power input requirements and connectivity options for YX-E612?

YX-E612 is equipped with a wide-range 9–36V DC input featuring over-voltage, over-current, and reverse polarity protections, along with 4 x Intel i210 (supports PoE), 2 x Intel i226 and 1 x HDMI, 1 x DP for seamless integration into factory cabinets and automated machinery.

Does Yantronic support OEM/ODM customization and long lifecycle availability for YX-E612?

Yes. Yantronic offers full OEM/ODM customization services for YX-E612, including custom BIOS configurations, additional I/O expansion daughterboards, private-label branding, and enclosure modifications, backed by a guaranteed 5 to 7+ year product lifecycle commitment.
