YX-E610 series
Powered by Intel 11th Gen Core Processor, Equipped with 6x GbE LAN, HDMI DP & Industrial I/O, Engineered for Industrial Automation & Embedded Systems
Model: YX-E610
System Core Specifications
- CPU: Intel 11th generation Tiger Lake U UP3 platform processor
- Memory: 2 x DDR4 SO-DIMM（Max.64GB）
- Networking: 4 x Intel i226-V 2.5GbE LAN
- Display: 1 x HDMI, 1 x DP
- Operating System: Windows 10/11, centos 8, ubuntu 20.04/22.04
Product overview
Technical specifications
| Specs | Item | E610 |
|---|---|---|

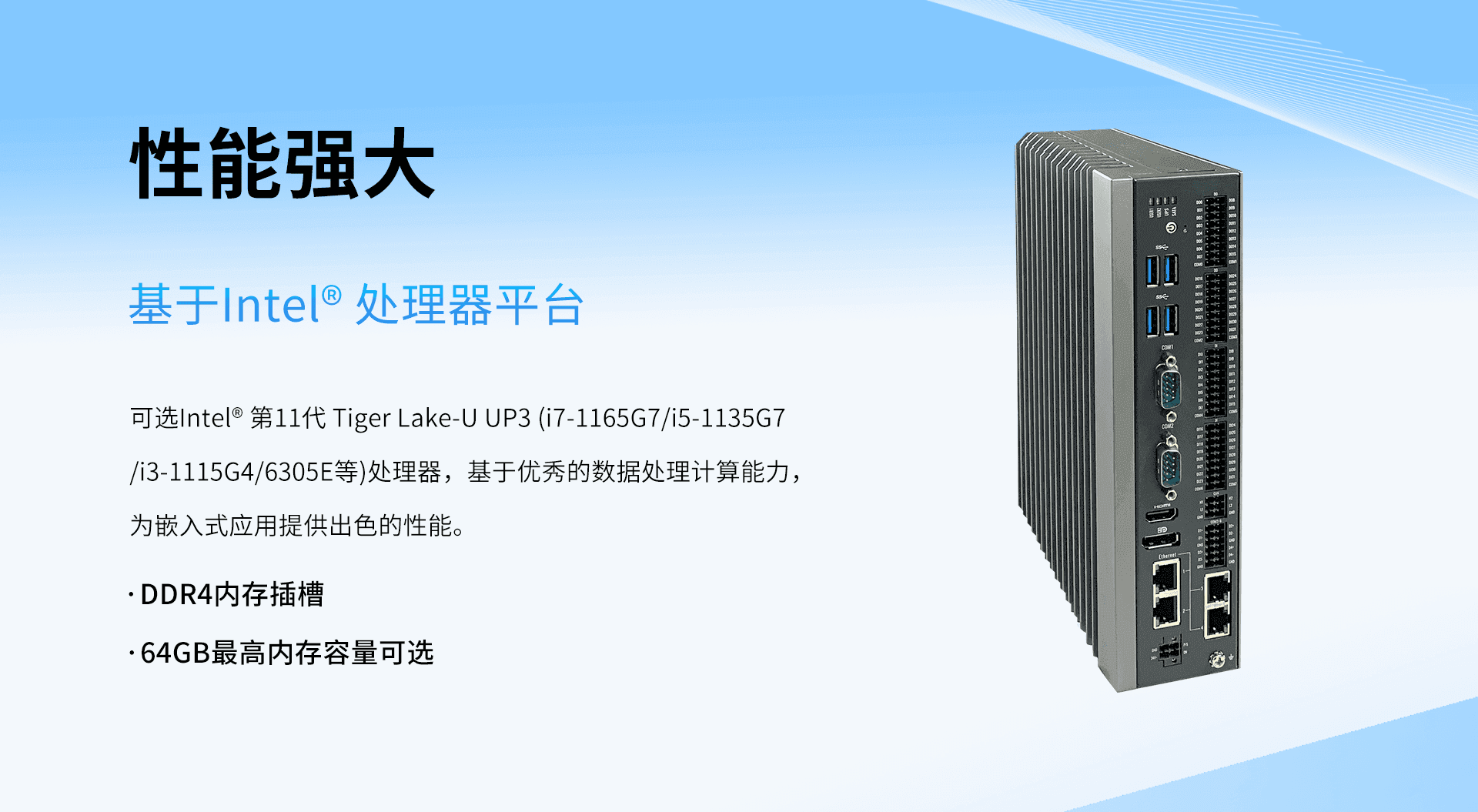

| Processor System | CPU | Intel Tiger Lake-U UP3(i7-1165G7/i5-1135G7/i3-1115G4/6305E) |
| TDP | 28W MAX | |
| BIOS | AMI 128Mbit SPI Flash | |
| Memory | Technology | 2 x DDR4 3200MT/s SO-DIMM |
| Capacity | Max. 64GB | |
| Graphics | Controller | Intel® Iris® Xe graphics, up to 96 graphics execution units(EU) |
| Graphic Features | 5K60 10b 4:4:4 HEVC/VP9/SCC, 8K60 12b 4:2:0 HEVC/VP9/SCC, 8K30 10b 4:2:0 AV1, 4K60 8b 4:2:0 AVC | |

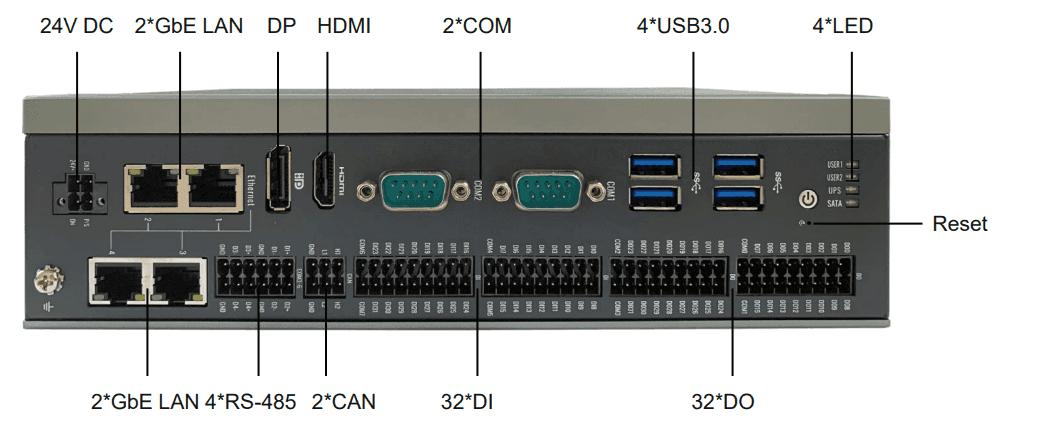

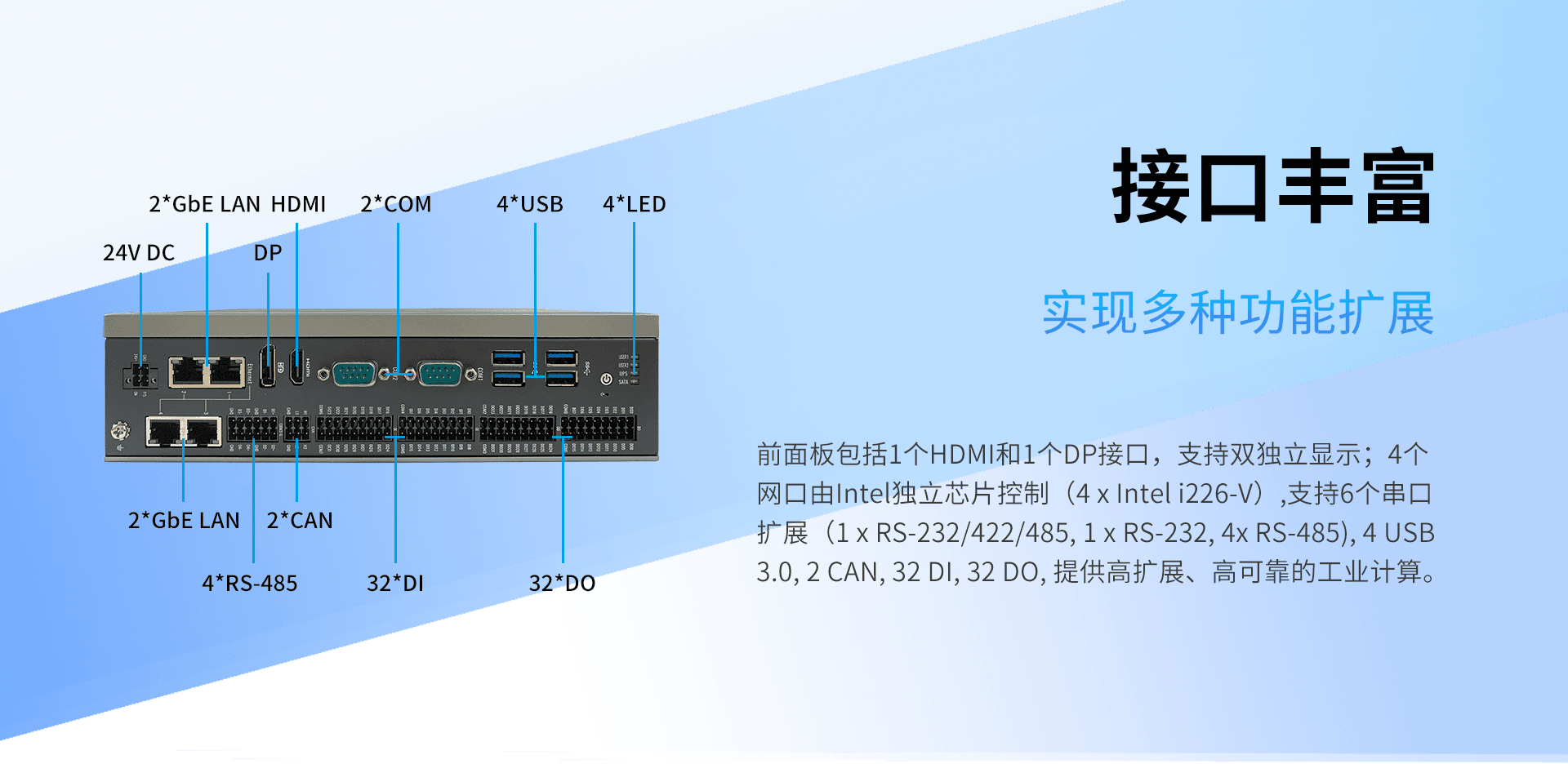

| External IO | DP | 1 x DP 1.4a up to 4096 x 2304 x 36 bpp @60 Hz or 5120 x 3200 x 24 bpp @60Hz |
| HDMI | 1 x HDMI 2.0b up to 4096 x 2304 x 24 bpp @60 Hz | |
| Ethernet | 4 x Intel i226-V 2.5GbE LAN | |
| Serial Ports | 1 x RS-232/422/485, 1 x RS-232, 4 x RS-485 | |
| USB | 4 x USB3.0 | |
| DIO | 32 DI, 32 DO | |
| CAN | 2 x CANBus 2.0 A/B | |
| LED | USER1,USER2,UPS,SATA | |
| Reset | 1 | |
| Expansion | M.2 E-Key | 1 x M.2 E-Key 2230 supports WiFi |
| M.2 B-Key | 1 x M.2 B-Key 3052 supports 4G/5G | |
| Mini PCIe | 1 | |
| Storage | M.2 | 1 x M.2 M-Key 2280 support SSD (PCIe x4) |
| SATA3.0 | 1 | |
| SIM | 1 x Nano SIM | |
| Power Requirement | Supply voltage | 24V DC IN |
| Power management | AT/ATX | |
| Max. consumption | 60W | |
| Test environment | Intel Core i7-1165GRE DDR4 32GB X2 | |
| OS | Operation system | Windows 10/11, Linux centos 8, ubuntu 20.04/22.04 |
| Physical Characteristics | Construction | Aluminum alloy |
| Mounting | Wall Mounting | |

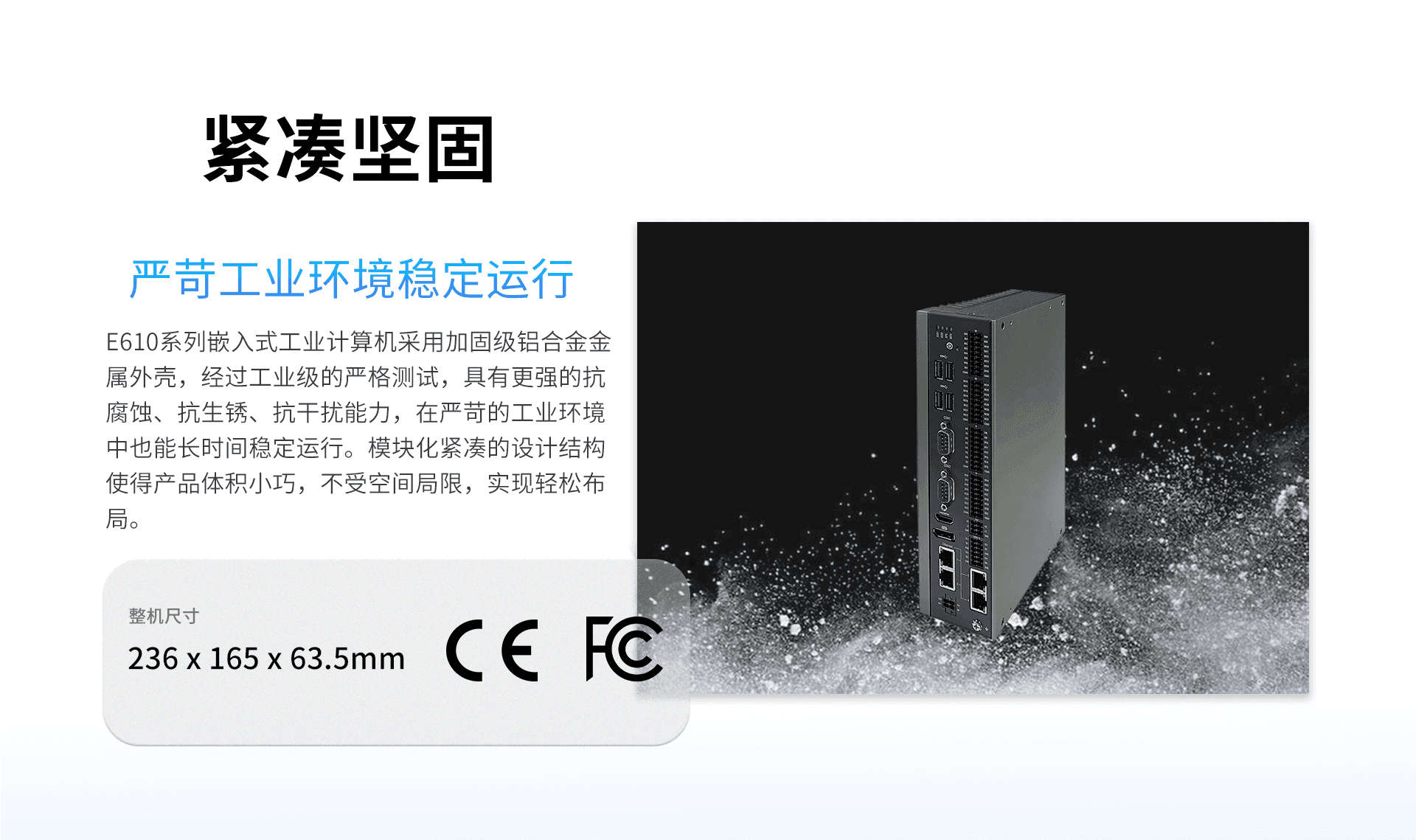

| Dimensions | 236x165x63.5 mm(LxWxH) | |
| Others | Watchdog | 65536 level, 0~65535 sec |
| TPM | TPM 2.0 | |
| Environment | Operating Temperature | 0°C~50°C |
| Storage Temperature | -40°C~85°C | |
| Relative Humidity | Operating95%@40°C(Non-Condensing)Non-operating 95%@60℃（Non-Condensing） | |
| EMC | CE, FCC |
Downloads
No download files are attached to this product. You can request documents from our engineers.
Frequently Asked Questions
Technical specifications, OS compatibility, and deployment details for this platform
What processor and memory are listed for YX-E610?
Processor: Intel 11th generation Tiger Lake U UP3 platform processor; Memory: 2 x DDR4 SO-DIMM（Max.64GB）
What interfaces are listed for YX-E610?
Network: 4 x Intel i226-V 2.5GbE LAN; Display: 1 x HDMI, 1 x DP
What operating conditions and software are listed for YX-E610?
Operating system: Windows 10/11, centos 8, ubuntu 20.04/22.04
