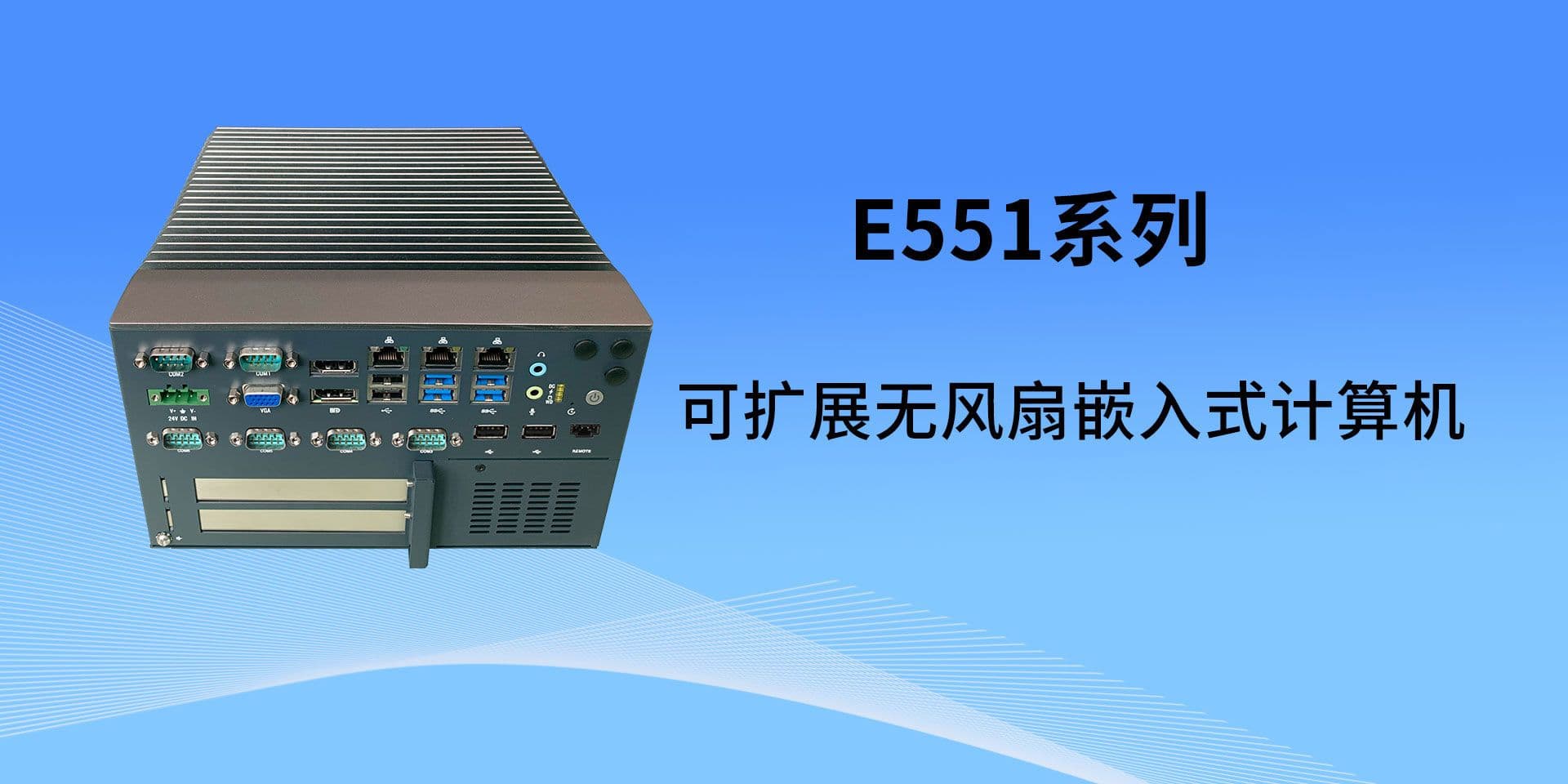

YX-E551 series

Model: YX-E551

System Core Specifications

•CPU: Intel sixth to ninth generation desktop processors (LGA1151)
•Memory: 2x DDR4 SO-DIMM(Max.32GB)
•Networking: 3（2 x Intel i211-AT,1 x Intel i219-LM）
•Display: 2 x DP, 1 x VGA supports dual independent displays
•Operating System: Windows 7 (6th generation only), Windows 10 64 Bit, Linux

Product

System Features

Specs	Item	E551 Series

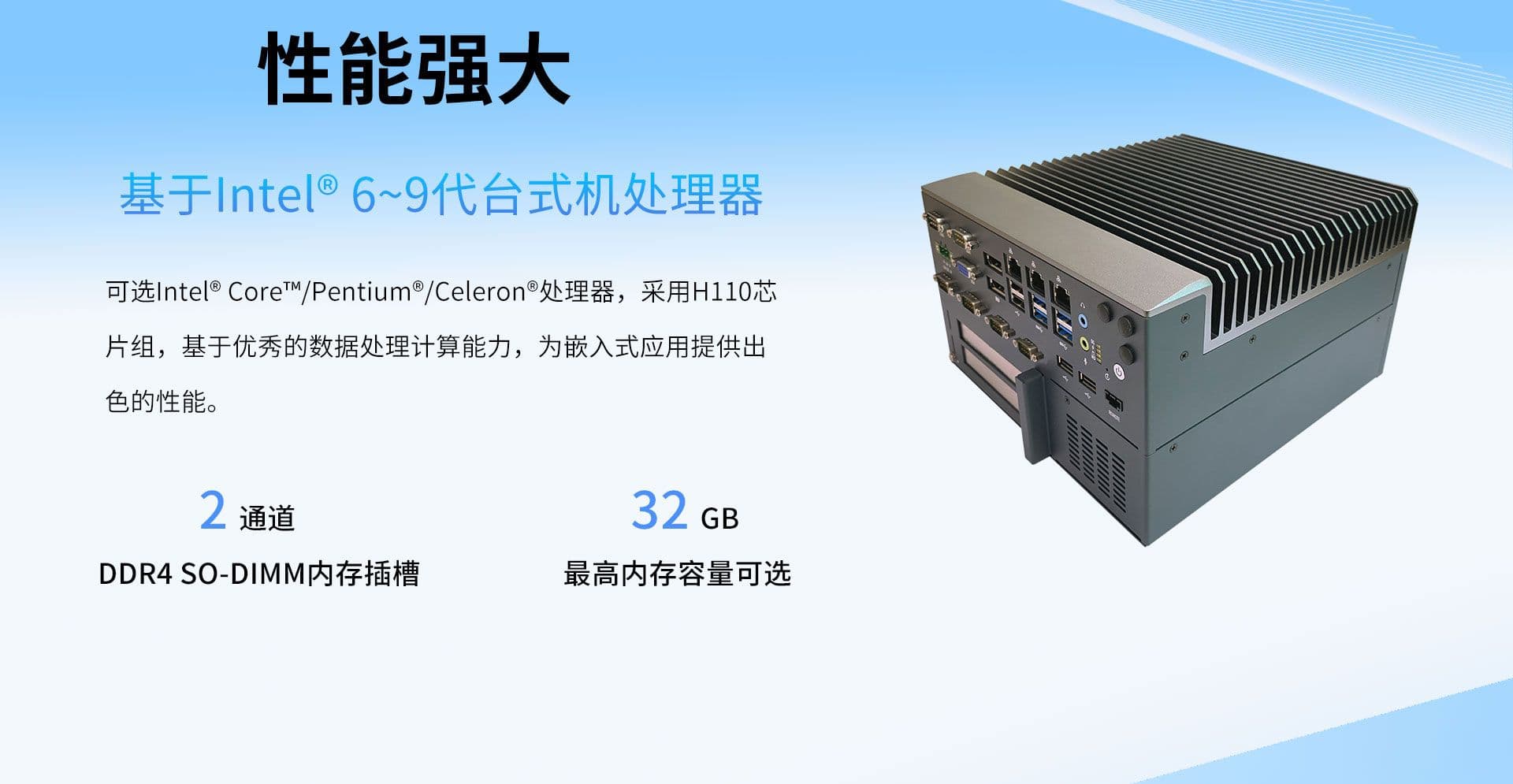

Processor System	CPU	Intel® 6th/7th/8th/9th Gen Processors with LGA1151
	Chipset	H110
	BIOS	AMI 8MB UEFI
Memory	Sockets	Dual channel 260-PIN DDR4SO-DIMM
Memory	Capacity	Max. 32GB
Display	DP	2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz
	VGA	1 x VGA, Max. 1920 x 1080@60Hz
	Dual Display	Yes, DP + DP or DP + VGA
Audio	Controller	Realtek ALC662, High Definition Audio. Mic-in, Line-out
Ethernet	LAN	2 x Intel® i211-AT GbE, 1 x Intel® i219-LM GbE

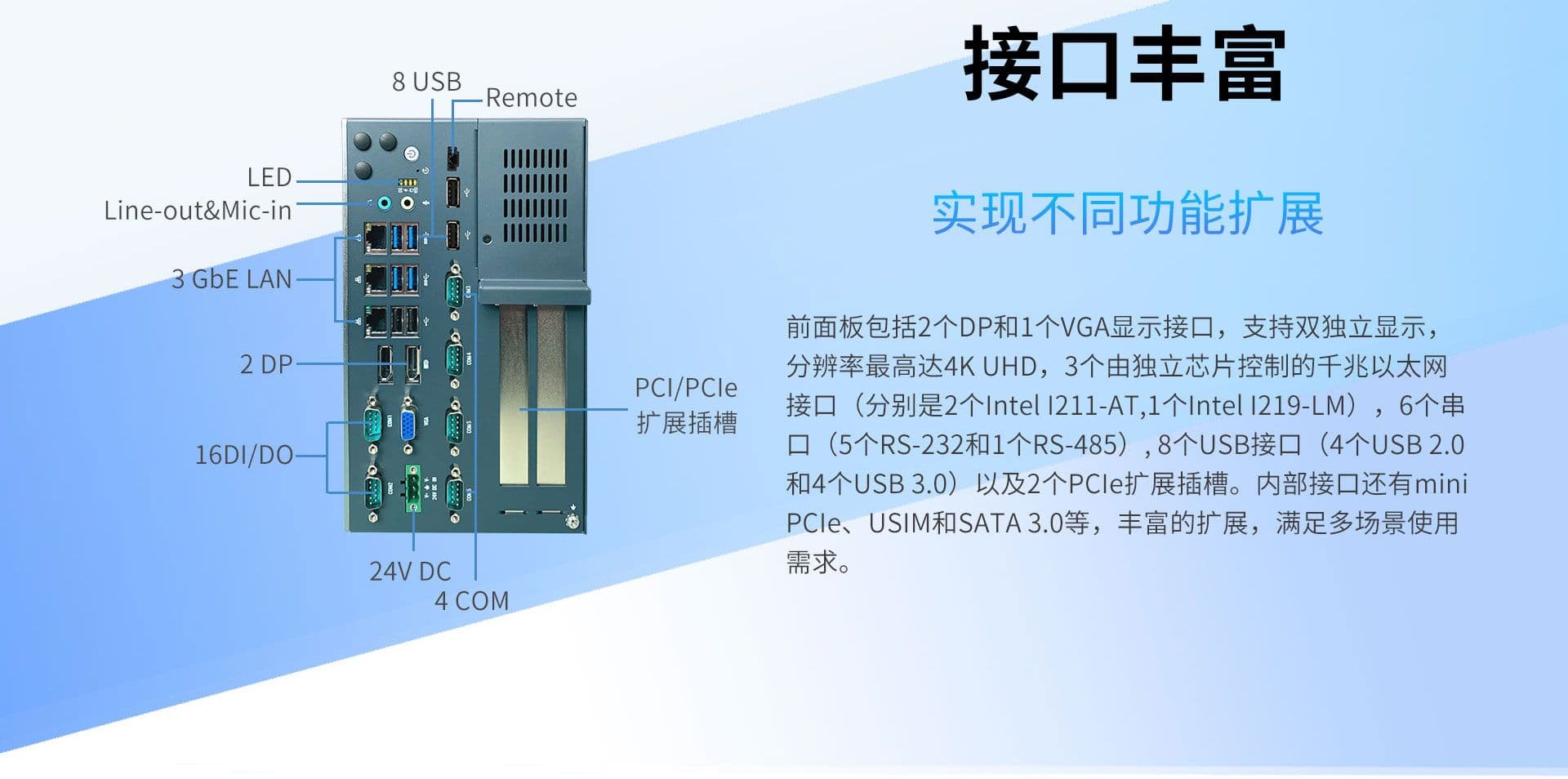

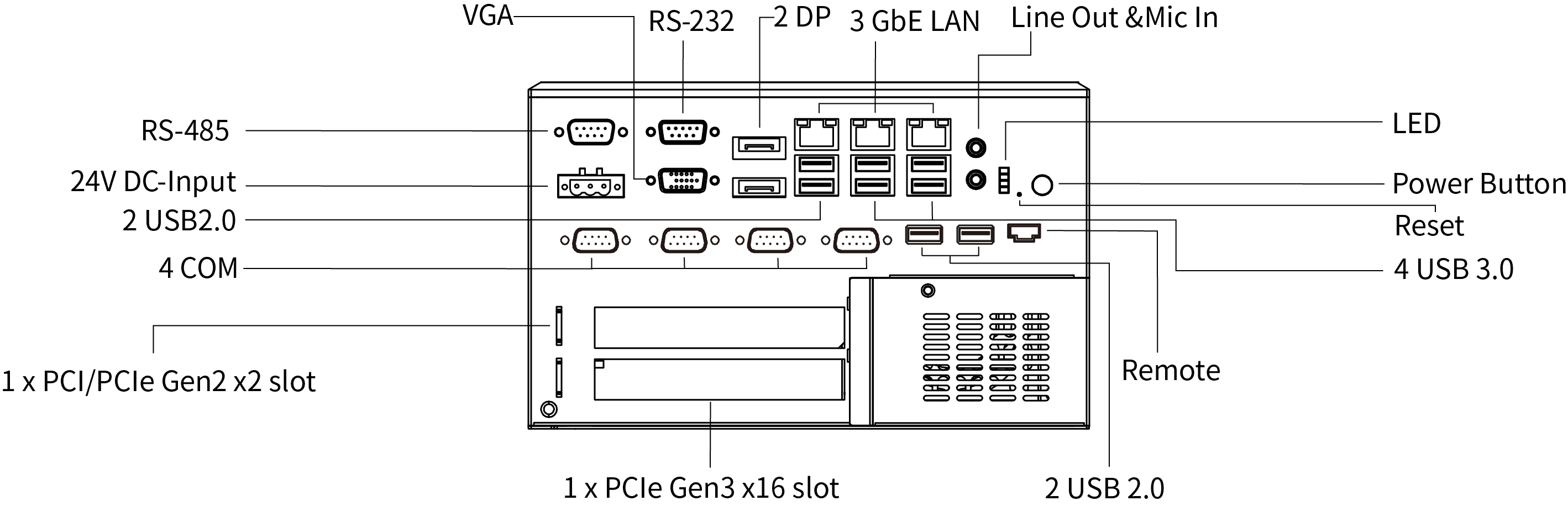

Peripheral Interface	USB	4 x USB 2.0, 4 x USB 3.0
	COM	3 x RS-232/RS-485, 3 x RS232
	LED	4 x LED(SATA/Standby/Memory/Watchdog)
	Reset	1 x Reset Button
	Power Button	1
Storage	SATA3.0	1 x SATA 3.0 for 2.5 inches storages
Storage	m.2	1 x m.2
Expansion	Mini-PCIe	1 x full-size mini-PCIe, Support WLAN/WWAN module
	USIM	1 x USIM, Support 3G/4G LTE
	Internal USB	1 x USB 2.0 internal
	PCIe/PCI	1 x PCIe 3.0 x16, 1 x PCIe 2.0 x2/PCI
Watchdog	Output/Interval	Interrupt, System Reset/255 levels timer interval,from 1 to 255 sec
Power Supply	DC Input	24V DC
OS	Microsoft Windows	Windows 7(Intel® 6th Gen CPU Only)，Windows 10 64Bit
OS	Linux	Yes

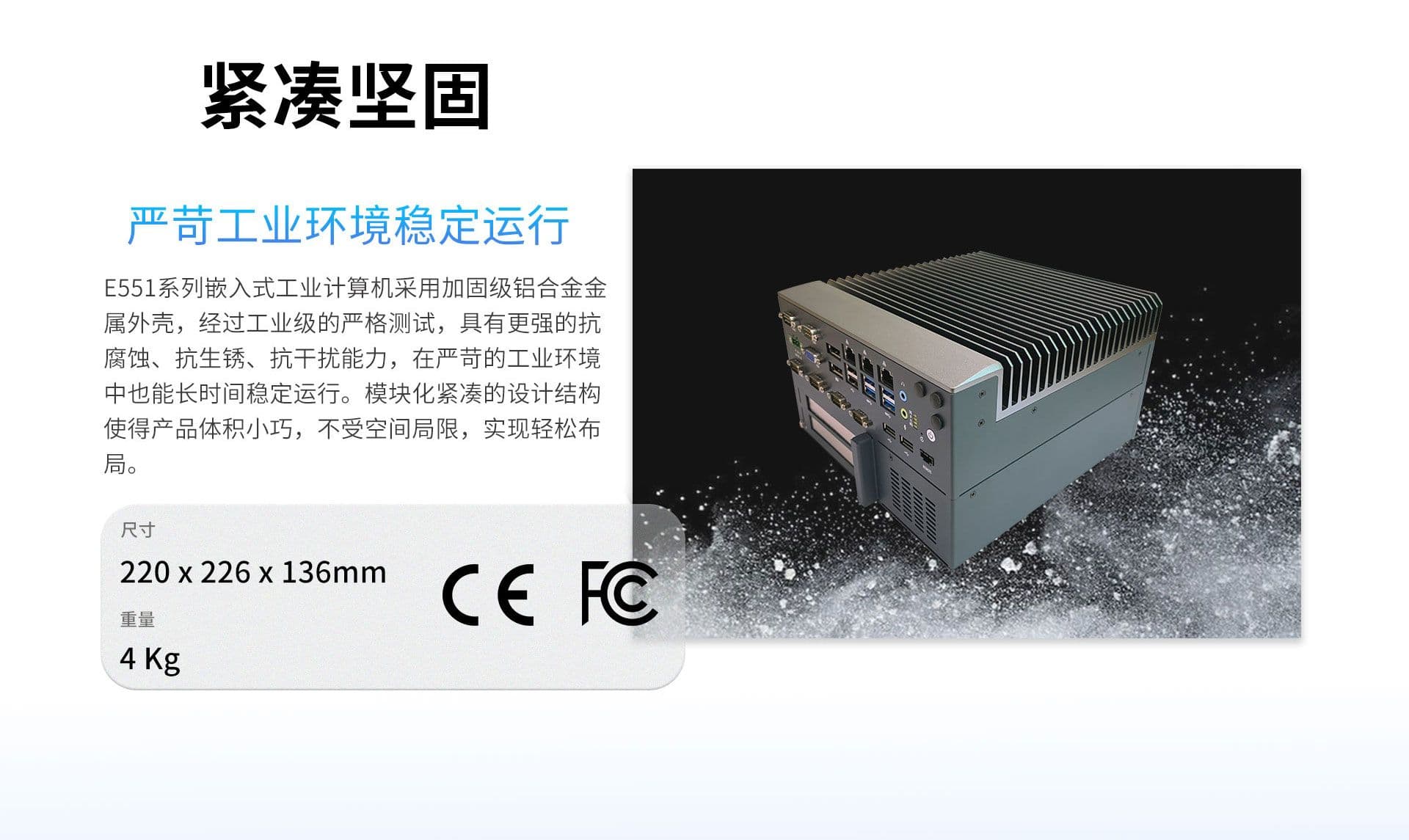

Physical Characteristics	Construction	Aluminium Alloy
	Mounting	Desktop/Wall Mounting

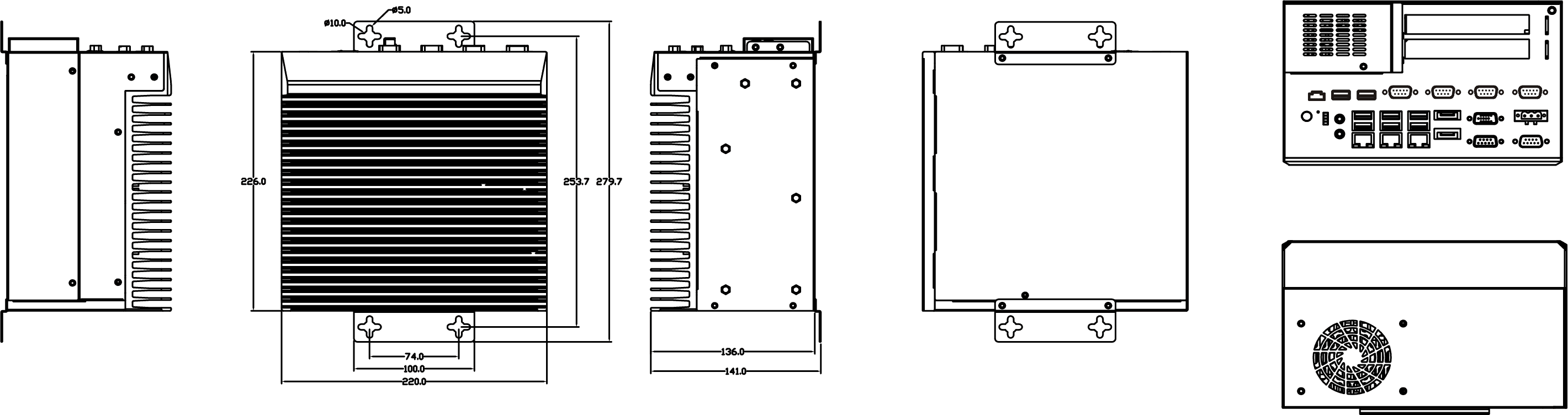

	Dimensions	220 x 226 x 136mm (LxWxH)
	Weight	4.0 Kg
Environment	Operating Temperature	0°C~50°C, airflow 0.7m / s
	Storage Temperature	-40°C~80°C
	Relative Humidity	10~95% @ 40°C ( Non-Condensing )
	Vibration During Operation	With SSD:3Grms, IEC 60068-2-64, random vibration,5~500 Hz, 1hr/axis
	Shock During Operation	With SSD:30 G, IEC 60068-2-27, half sine, 11m duration
	ESD	Contact +/-4 KV, Air +/-8 KV
	EMC	CE/FCC Class B

Technical

downloadTechnical Datasheet (PDF)

Hardware & Core System
Processor / CPU	Intel sixth to ninth generation desktop processors (LGA1151)
System Memory	2x DDR4 SO-DIMM(Max.32GB)
Network / LAN	3（2 x Intel i211-AT,1 x Intel i219-LM）
Display Output	2 x DP, 1 x VGA supports dual independent displays
I/O & Physical Construction
Mechanical / Housing	Industrial Metal Chassis
Operating System	Windows 7 (6th generation only), Windows 10 64 Bit, Linux

Q&A

Frequently Asked Questions

Technical specifications, OS compatibility, and deployment details for this platform

Which operating systems are supported on YX-E551?

YX-E551 supports Windows 7 (6th generation only), Windows 10 64 Bit, Linux. Yantronic provides board support packages (BSP), driver validation, and long-term OS maintenance for mission-critical automation and edge AI workloads.

How does YX-E551 handle thermal management and harsh industrial environments?

Engineered with an industrial-grade passive heatsink and rugged chassis, YX-E551 operates reliably across -20°C to 60°C. The fanless, sealed design prevents dust ingress, withstands mechanical shock and vibration, and ensures continuous 24/7 operation.

What are the power input requirements and connectivity options for YX-E551?

YX-E551 is equipped with a wide-range 9–36V DC input featuring over-voltage, over-current, and reverse polarity protections, along with 3（2 x Intel i211-AT,1 x Intel i219-LM） and 2 x DP, 1 x VGA supports dual independent displays for seamless integration into factory cabinets and automated machinery.

Does Yantronic support OEM/ODM customization and long lifecycle availability for YX-E551?

Yes. Yantronic offers full OEM/ODM customization services for YX-E551, including custom BIOS configurations, additional I/O expansion daughterboards, private-label branding, and enclosure modifications, backed by a guaranteed 5 to 7+ year product lifecycle commitment.
