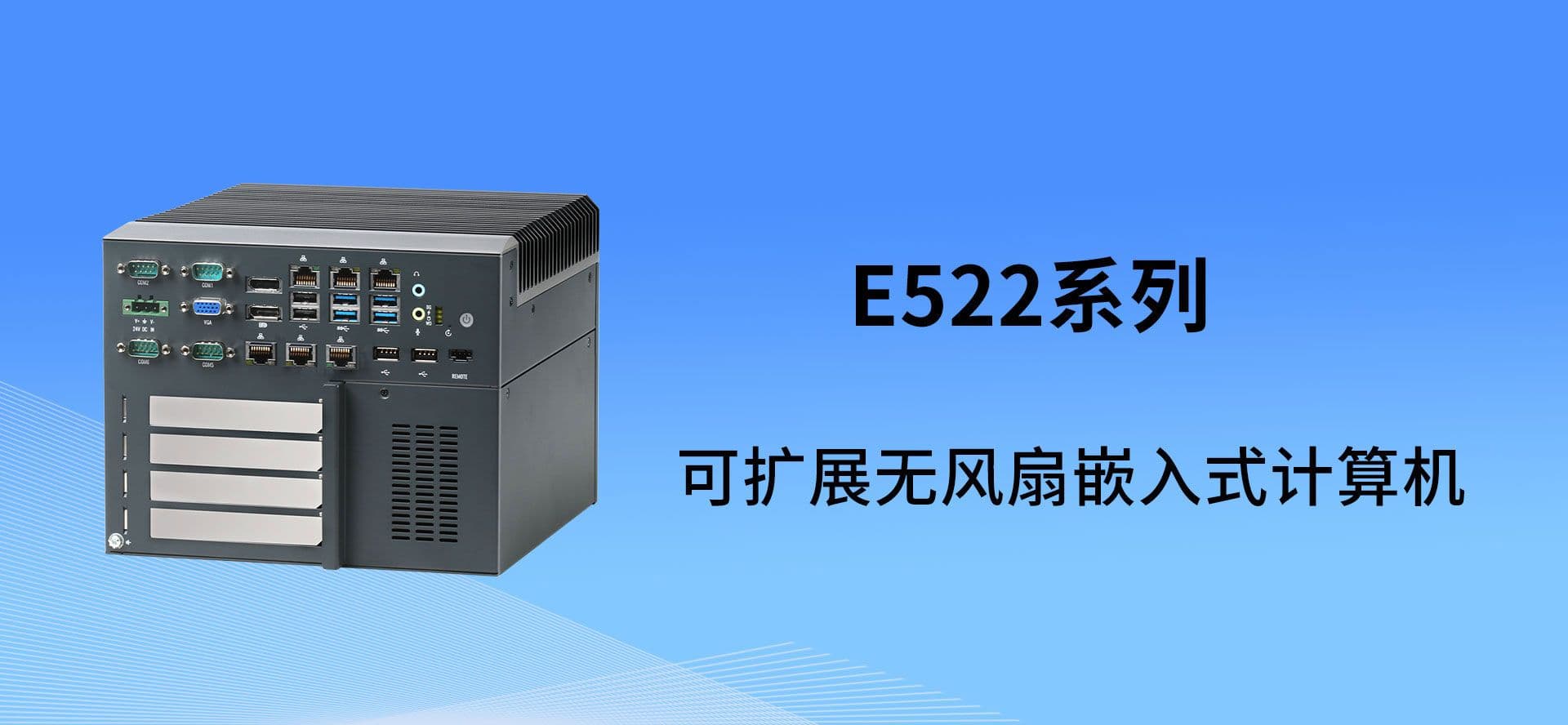

YX-E522 series
Powered by Intel LGA1151 Processor, Equipped with GbE LAN, VGA & Industrial I/O, Supports 24V DC, 0°C to 50°C Wide Operation
Model: YX-E522
System Core Specifications
- CPU: Intel sixth to ninth generation desktop processors (LGA1151)
- Memory: 2x DDR4 SO-DIMM （Max.64GB）
- Networking: 6 (5 x Intel i211, 1 x Intel i219)
- Display: 2 x DP, 1 x VGA supports dual independent displays
- Power: 24V DC; 9–36V DC optional
- Operating System: Windows 7 (only supported by the sixth generation), Windows 10, centos 7/8, ubuntu 18.04~24.04
- Operating Temp: 0–50°C with airflow 0.7 m/s
Product overview
Technical specifications
| Specs | Item | E522 |
|---|---|---|

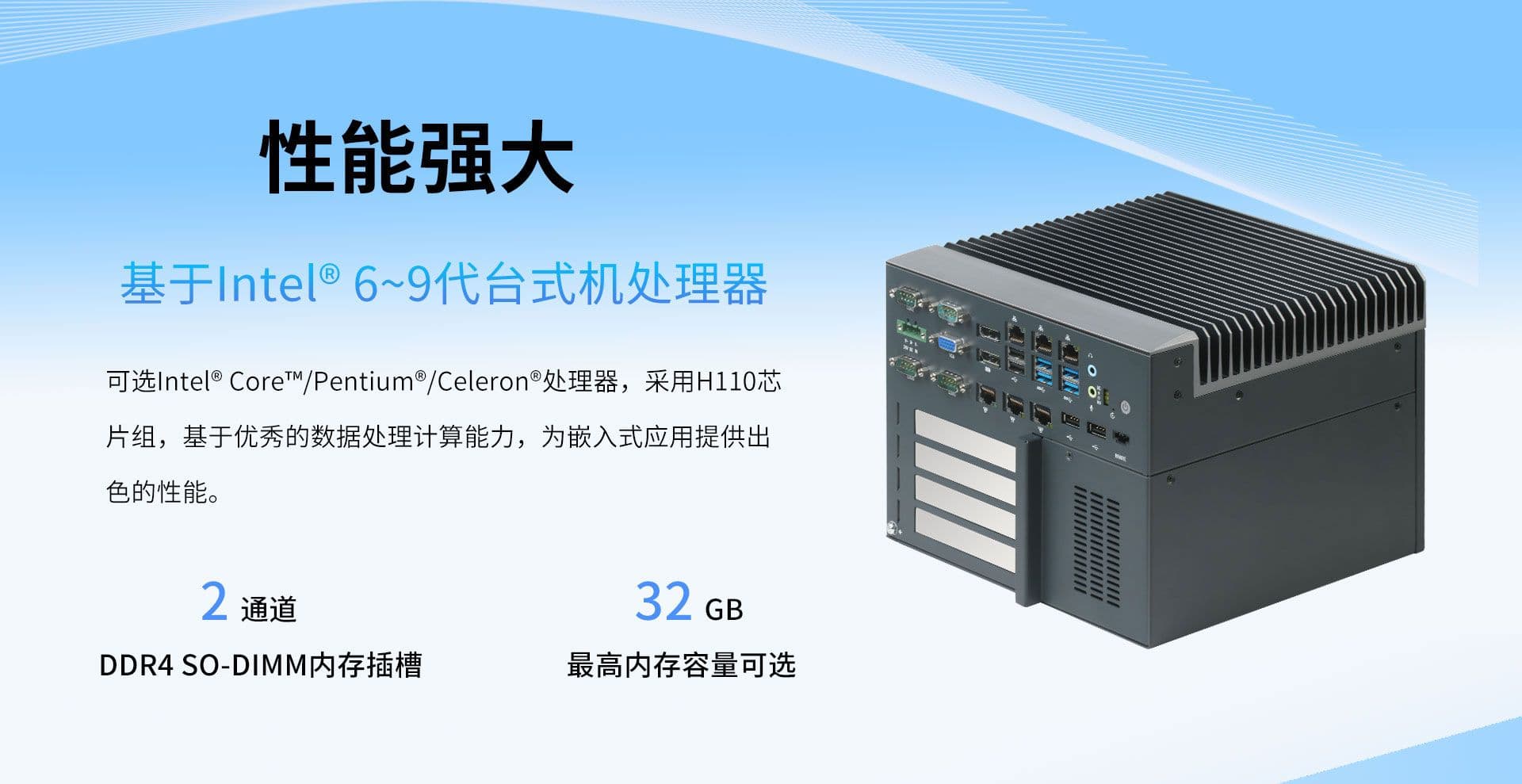

| Processor System | CPU | Intel® 6th/7th/8th/9th Gen Processors with LGA1151 |
| Chipset | H110 | |
| BIOS | AMI 8MB UEFI | |
| Memory | Sockets | Dual channel 260-pin DDR4SO-DIMM |
| Capacity | Max. 64GB | |
| Display | DP | 2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz |
| VGA | 1 x VGA, Max. 1920 x 1080@60Hz | |
| Dual Display | Yes, DP + DP or DP + VGA | |
| Audio | Controller | Realtek ALC662, High Definition Audio. Mic-in, Line-out |

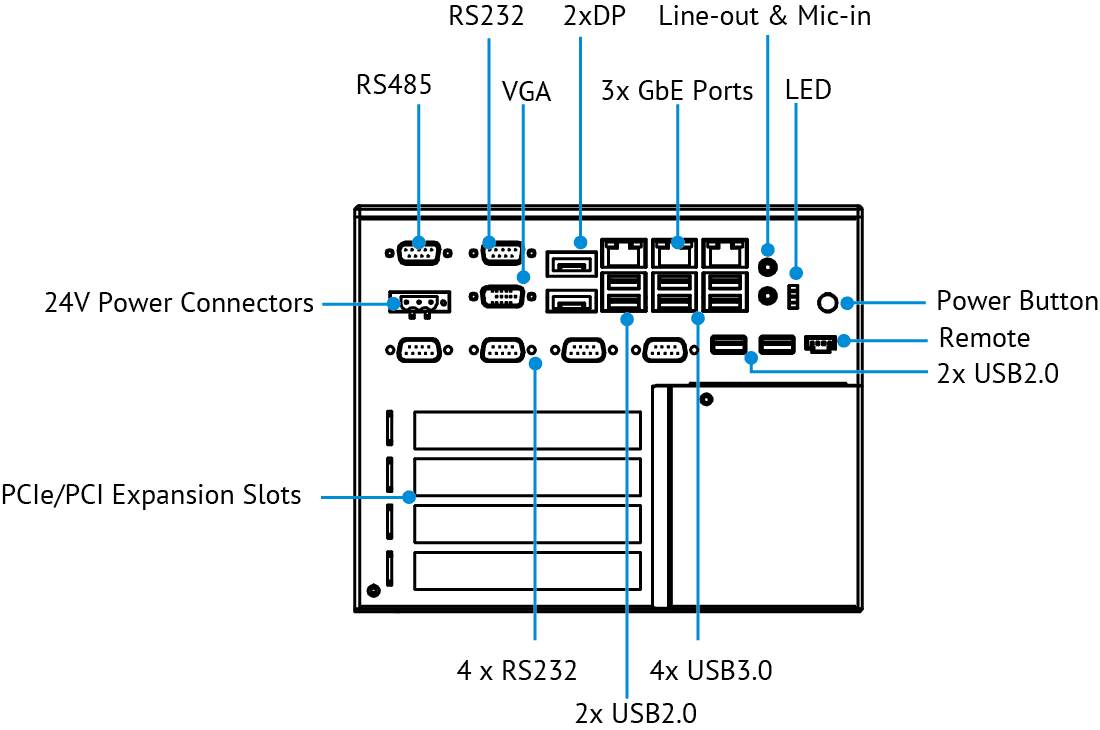

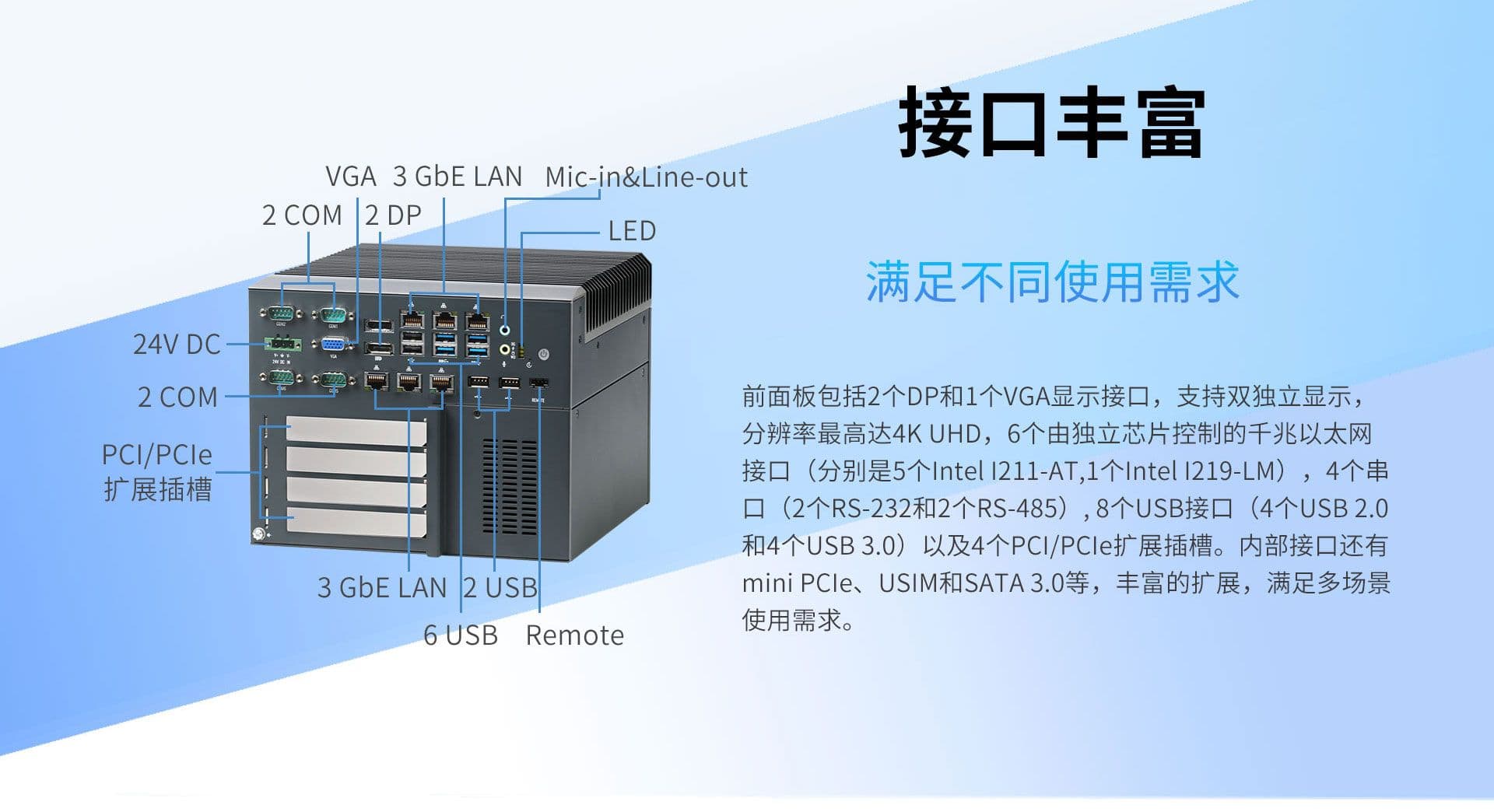

| Ethernet | LAN | 5 x Intel® i211-AT GbE, 1 x Intel® i219-LM GbE |
| Peripheral Interface | USB | 4 x USB2.0, 4 x USB3.0 |
| COM | 1 × RS-232/422/485; 2 × RS-232/485; 1 × RS-232 | |
| LED | 4 x LED(SATA/Standby/Memory/Watchdog) | |
| Reset | 1 | |
| Power button | 1 | |
| Storage | SATA3.0 | 1 x SATA 3.0 for 2.5 inches storages |
| m.2 | 1 x m.2 | |
| Expansion | Mini-PCIe | 1 x full-size mini-PCIe, Support WLAN/WWAN module |
| USIM | 1 x USIM, Support 3G/4G LTE | |
| Internal USB | 1 x USB 2.0 internal | |
| PCIe/PCI | 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x2, 2 x PCI | |
| Watchdog | Output/Interval | Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec |
| Power Supply | DC Input | 24V DC; 9–36V DC optional |
| OS | Microsoft Windows | Windows 7(Intel® 6th Gen CPU Only)，Windows 10 64Bit |
| Linux | Yes | |
| Physical Characteristics | Construction | Aluminium Alloy |
| Mounting | Desktop/Wall Mounting | |

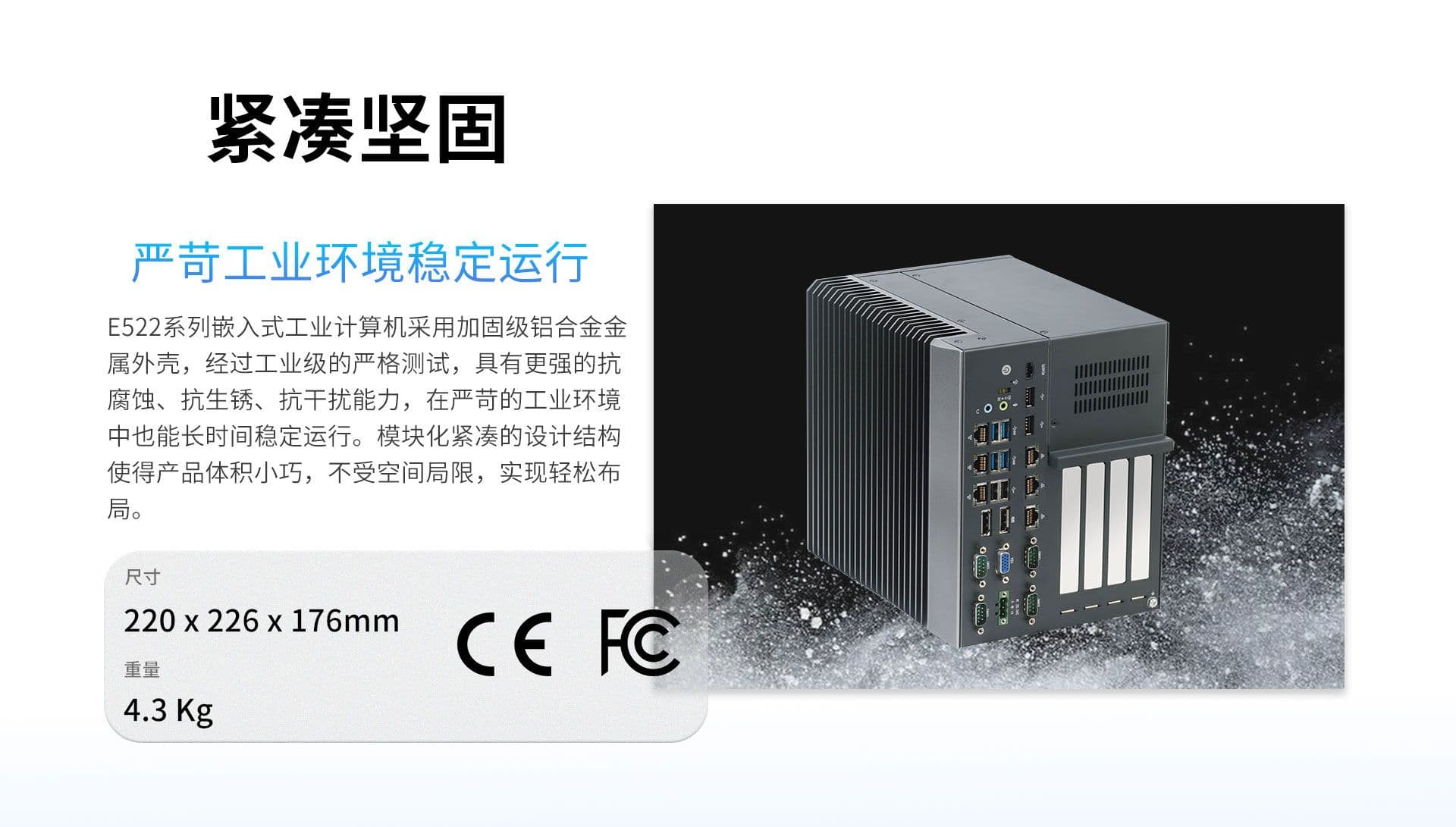

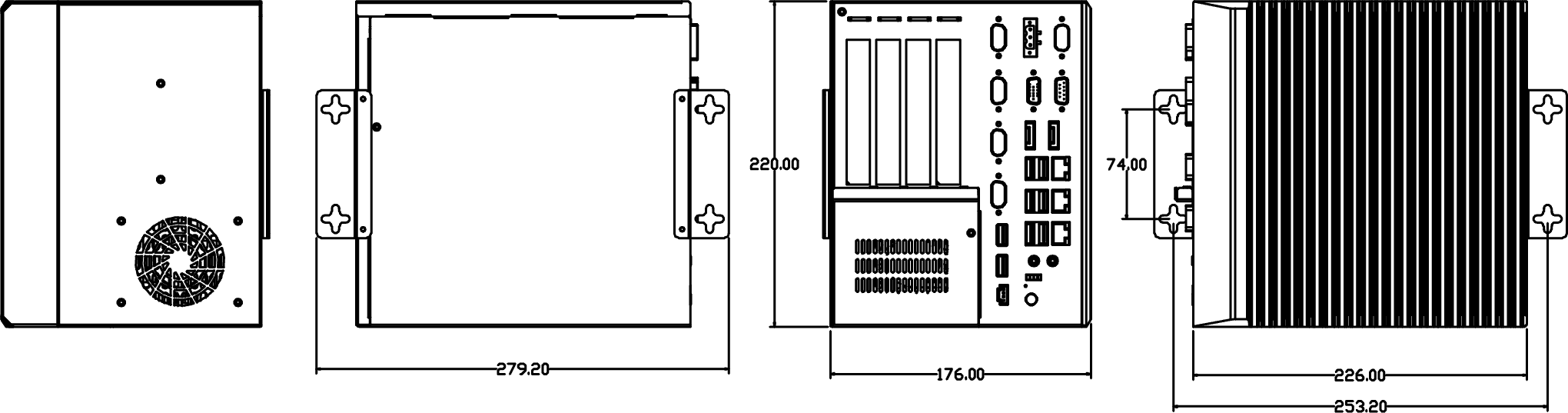

| Dimensions | 220 x 226 x 176mm (LxWxH) | |
| Weight | 4.3 Kg | |
| Environment | Operating Temperature | 0°C~50°C, airflow 0.7m / s |
| Storage Temperature | −40–85°C (−40–185°F) | |
| Relative Humidity | 10~95% @ 40°C ( Non-Condensing ) | |
| Vibration During Operation | With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis | |
| Shock During Operation | With SSD:30 G, IEC 60068-2-27, half sine, 11m duration | |
| ESD | Contact +/-4 KV, Air +/-8 KV | |
| EMC | CE/FCC Class B |
Downloads
No download files are attached to this product. You can request documents from our engineers.
Frequently Asked Questions
Technical specifications, OS compatibility, and deployment details for this platform
What processor and memory are listed for YX-E522?
Processor: Intel sixth to ninth generation desktop processors (LGA1151); Memory: 2x DDR4 SO-DIMM （Max.64GB）
What interfaces are listed for YX-E522?
Network: 6 (5 x Intel i211, 1 x Intel i219); Display: 2 x DP, 1 x VGA supports dual independent displays
What operating conditions and software are listed for YX-E522?
Power input: 24V DC; 9–36V DC optional; Operating temperature: 0–50°C with airflow 0.7 m/s; Operating system: Windows 7 (only supported by the sixth generation), Windows 10, centos 7/8, ubuntu 18.04~24.04
