YX-E512A
Powered by Intel LGA1200 Processor, Equipped with GbE LAN, HDMI DP & Industrial I/O, Supports 24V DC, 0°C to 50°C Wide Operation
Model: YX-E512A
System Core Specifications
- CPU: Intel Core i3/i5/i7, 10th- or 11th-generation variants (LGA1200)
- Memory: 2 x DDR4, up to 64GB memory
- Networking: 6 (5 x Intel i210, 1 x Intel i219)
- Display: 1 x DP, 1 x VGA, 1 x HDMI (Q470: independent three displays, H420E: independent dual displays)
- Power: 24V DC; 9–36V DC optional
- Operating System: Windows 10/11, centos 8, ubuntu 20.04/22.04
- Operating Temp: 0–50°C
Product overview
Technical specifications
| Specs | Item | E512A |
|---|---|---|
| Processor System | CPU | Intel Core i3/i5/i7, 10th- or 11th-generation variants (LGA1200) |
| Chipset | H420E / H470 / Q470 | |
| Socket | LGA1200 | |
| TDP | Max 65W | |
| BIOS | AMI 256Mbit SPI Flash | |
| Memory | Technology | 2 x 260 PIN DDR4 SO-DIMM |
| Capacity | Max 64GB | |
| Graphics | Controller | Intel UHD Graphics supports DirectX12, OpenGL 4.5 and OpenCL 2.1 |
| Graphic Features | 3D Acceleration: Direct3D 2015, OpenGL4.5, OpenCL2.1HW Decode: HEVC/H.265 (8/10-bit), AVC/H.264, VP9(8/10-bit),VP8, MPEG2,MJPEG,VC-1HW Encode: HEVC/H.265 (8/10-bit), AVC/H.264, VP9(8-bit),VP8, MPEG2,MJPEG | |

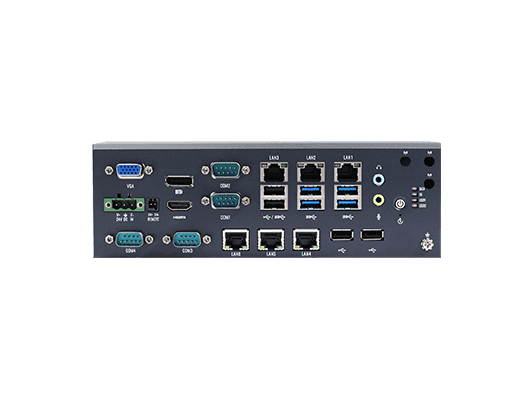

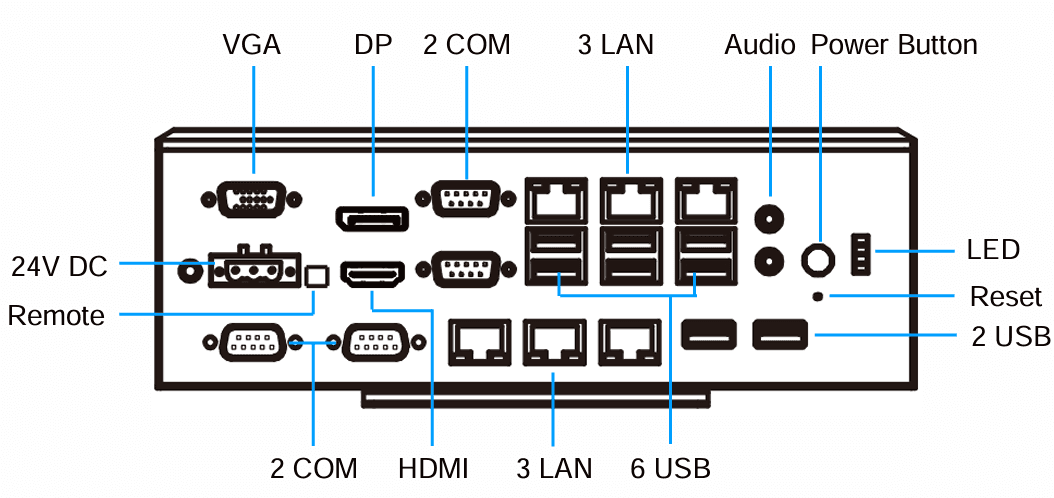

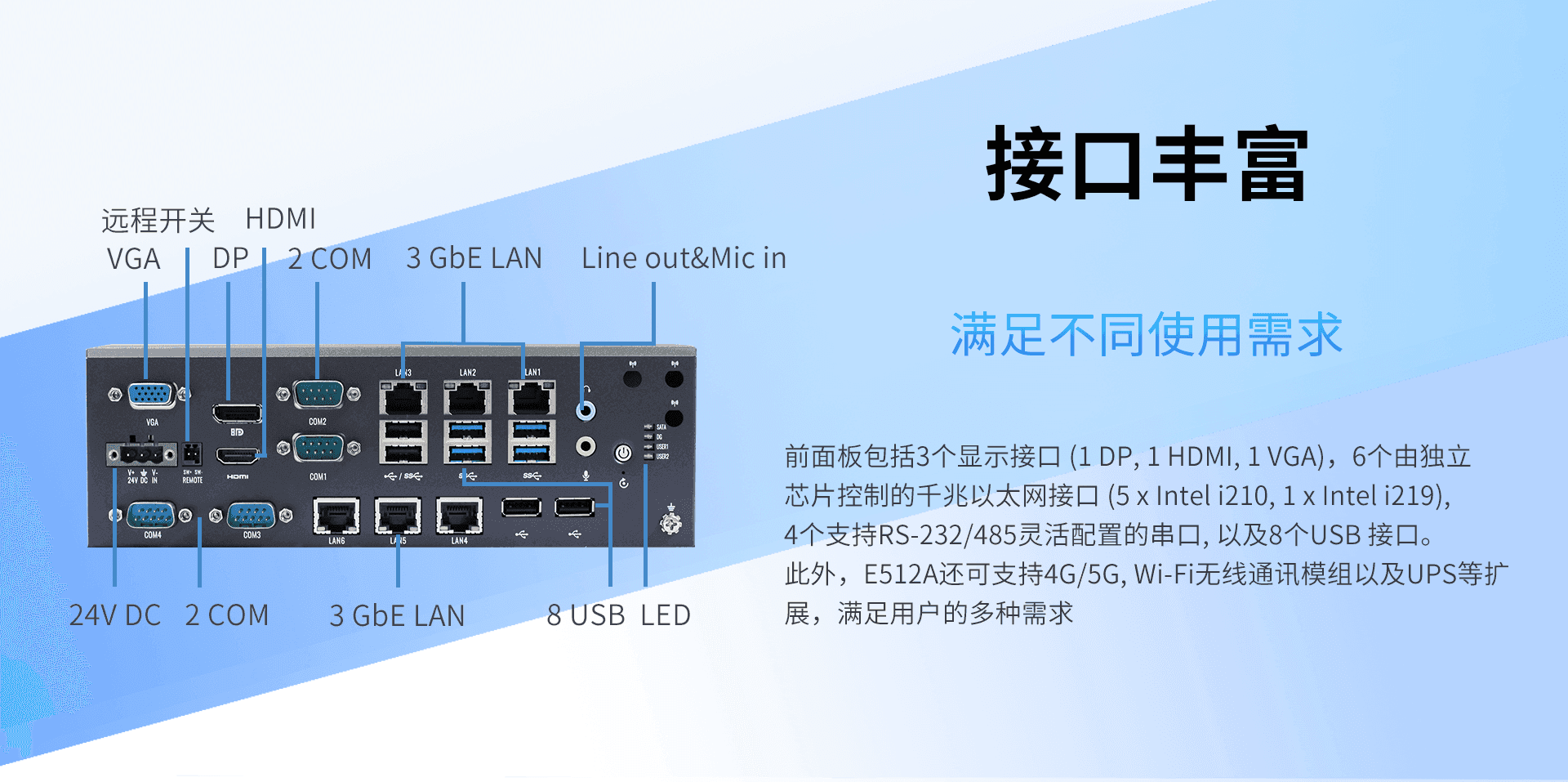

| External I/O | DP | 1 x DP1.4 resolution up to 4096x2304@60Hz |
| HDMI | 1 × HDMI 2.0, 4096 × 2160 @ 60Hz | |
| VGA | 1 x VGA resolution up to 1920 x 1200@60Hz | |
| LAN | 5 x Intel i210 GbE LAN, 1 x Intel i219 GbE LAN | |
| Serial Ports | 1 × RS-232/422/485; 2 × RS-232/485; 1 × RS-232 | |
| USB 3.0 | 4 (H420E) / 6 (Q470/H470) | |
| USB 2.0 | 4 (H420E) / 2 (Q470/H470) | |
| Audio | 1 x Line out, 1 x Mic in | |
| Remote | 1 x 2 PIN Remote Switch | |
| Power Input Connector | 1 x 3 PIN Power Input Connector | |
| LED & Switch | LED | HDD, Memory, User-defined 1, User-defined 2 |
| Power Button | 1 x Power Button | |
| Reset | 1 x Reset Button | |
| Internal Connectors | USB2.0 | 1 x Internal USB2.0 support Dongle |
| M.2 E-Key | 1 × M.2 2230 Wi-Fi; Q470/H470: CNVi and PCIe; H420E: PCIe | |
| M.2 B-Key | 1 x M.2 3052 support 4G/5G | |
| M.2 B-Key | 2 x M.2 2280 SATA3.0 | |
| SIM | 1 × Nano SIM | |
| Power Supply | Power Input | 24V DC; 9–36V DC optional |
| Power Management | AT/ATX | |
| Max. Consumption | 150W | |
| Others | Watchdog | 65536 level, 0~65535 sec |
| TPM | TPM2.0 (Optional) | |

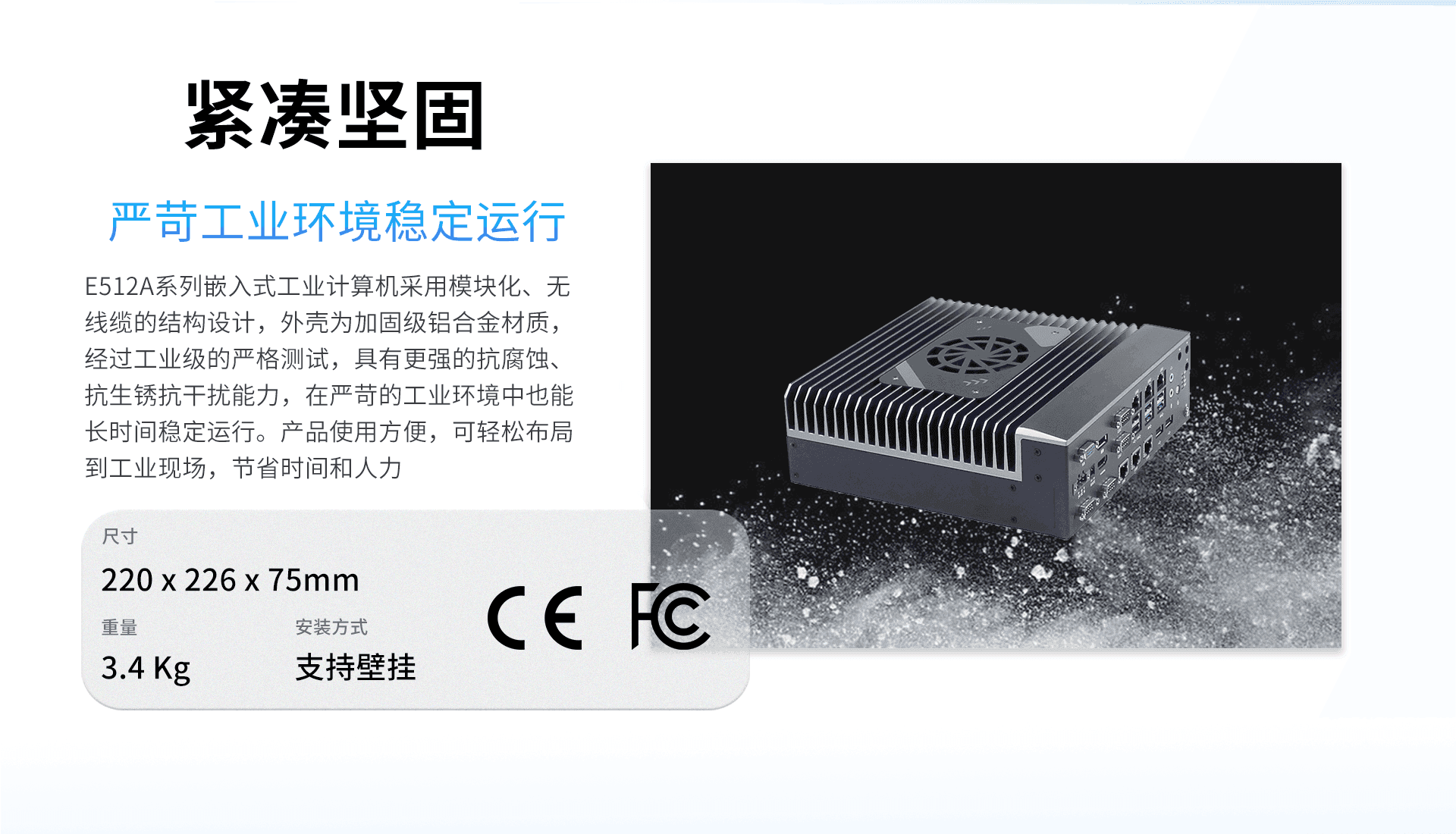

| Physical Characteristics | Construction | Aluminium Alloy |

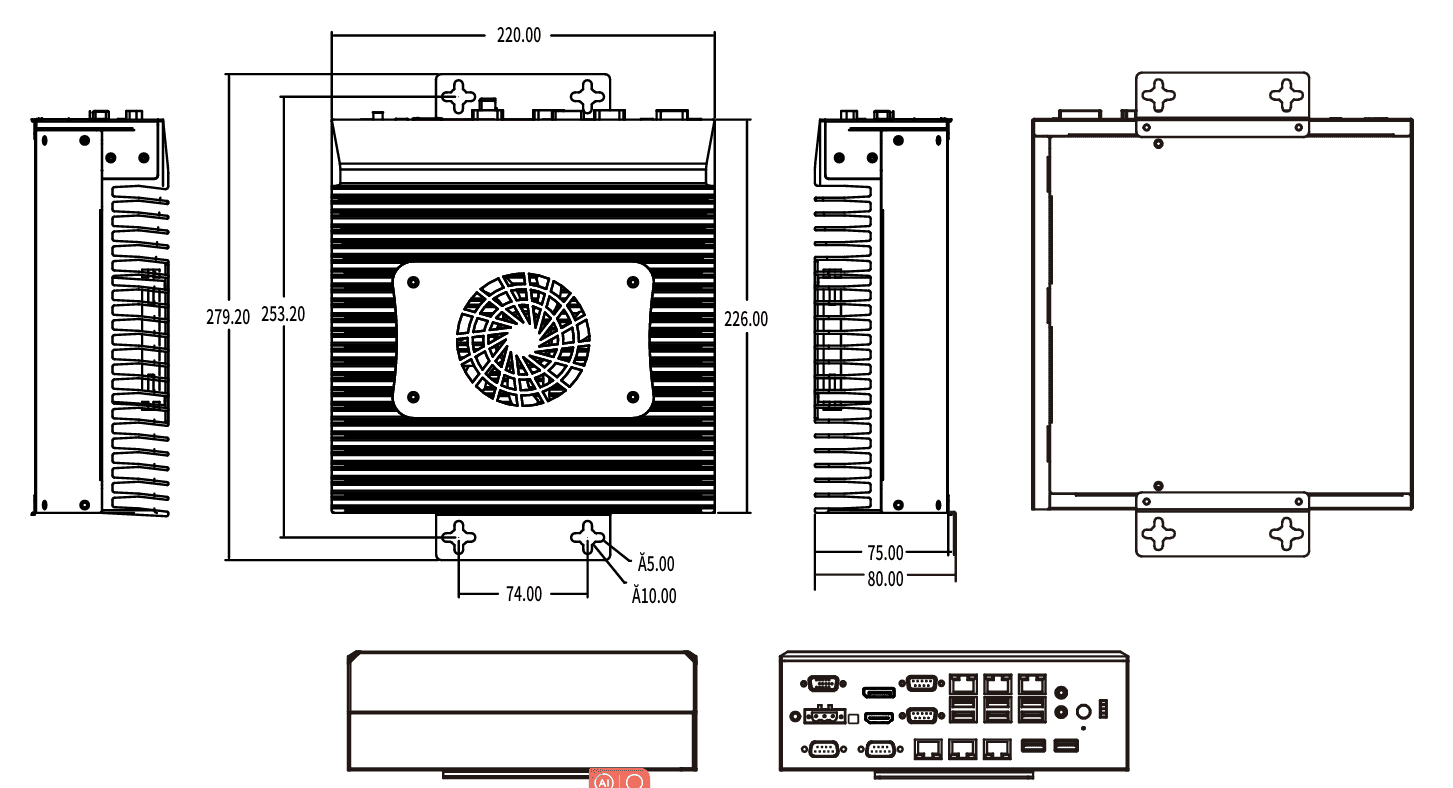

| Dimension | 220 x 226 x 75mm (L x W x H) | |
| Weight | 3.4 kg | |
| Installation | Wall Mounting | |
| Environment | Operating Temperature | 0°C~50°C (32~122℉) |
| Storage Temperature | -40°C~85°C （-40~185℉） | |
| Operating Humidity | 95%@40°C(Non-Condensing) | |
| Storage Humidity | 95% @60°C ( Non-Condensing ) | |
| Certification | EMC | CE, FCC |
| Operation System | OS | Windows 10/11, centos 8, ubuntu 20.04/22.04 |
Downloads
No download files are attached to this product. You can request documents from our engineers.
Frequently Asked Questions
Technical specifications, OS compatibility, and deployment details for this platform
What processor and memory are listed for YX-E512A?
Processor: Intel Core i3/i5/i7, 10th- or 11th-generation variants (LGA1200); Memory: 2 x DDR4, up to 64GB memory
What interfaces are listed for YX-E512A?
Network: 6 (5 x Intel i210, 1 x Intel i219); Display: 1 x DP, 1 x VGA, 1 x HDMI (Q470: independent three displays, H420E: independent dual displays)
What operating conditions and software are listed for YX-E512A?
Power input: 24V DC; 9–36V DC optional; Operating temperature: 0–50°C; Operating system: Windows 10/11, centos 8, ubuntu 20.04/22.04
