YX-E512 series
Powered by Intel LGA1151 Processor, Equipped with GbE LAN, VGA & Industrial I/O, Supports 24V DC, 0°C to 50°C Wide Operation
Model: YX-E512
System Core Specifications
- CPU: Intel sixth to ninth generation desktop processors (LGA1151)
- Memory: 2x DDR4 SO-DIMM（Max.64GB）
- Networking: 6 (5 x Intel i210, 1 x Intel i219)
- Display: 2 DP, 1 VGA, supports DP+DP/DP+VGA dual independent display
- Power: 24V DC; 9–36V DC optional
- Operating System: Windows 7 (only supported by the sixth generation), Windows 10, centos 7/8, ubuntu 18.04~24.04
- Operating Temp: 0–50°C with airflow 0.7 m/s
Product overview
Technical specifications
Specifications_1
| Specs | Item | E512 |
|---|---|---|
| Processor System | CPU | Intel® 6th/7th/8th/9th Gen Processors with LGA1151 |
| Chipset | H110 | |
| BIOS | AMI 8MB UEFI | |
| Memory | Sockets | 2xDDR4 SO-DIMM |
| Capacity | Max. 64GB | |
| Display | DP | 2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz |
| VGA | 1 x VGA, Max. 1920 x 1080@60Hz | |
| Dual Display | Yes, DP + DP or DP + VGA | |
| Audio | I/O | 1xMic-in, 1xLine-out |
| Ethernet | LAN | 5 x Intel® i210 GbE |
| LAN | 1 x Intel® i219-LM GbE | |

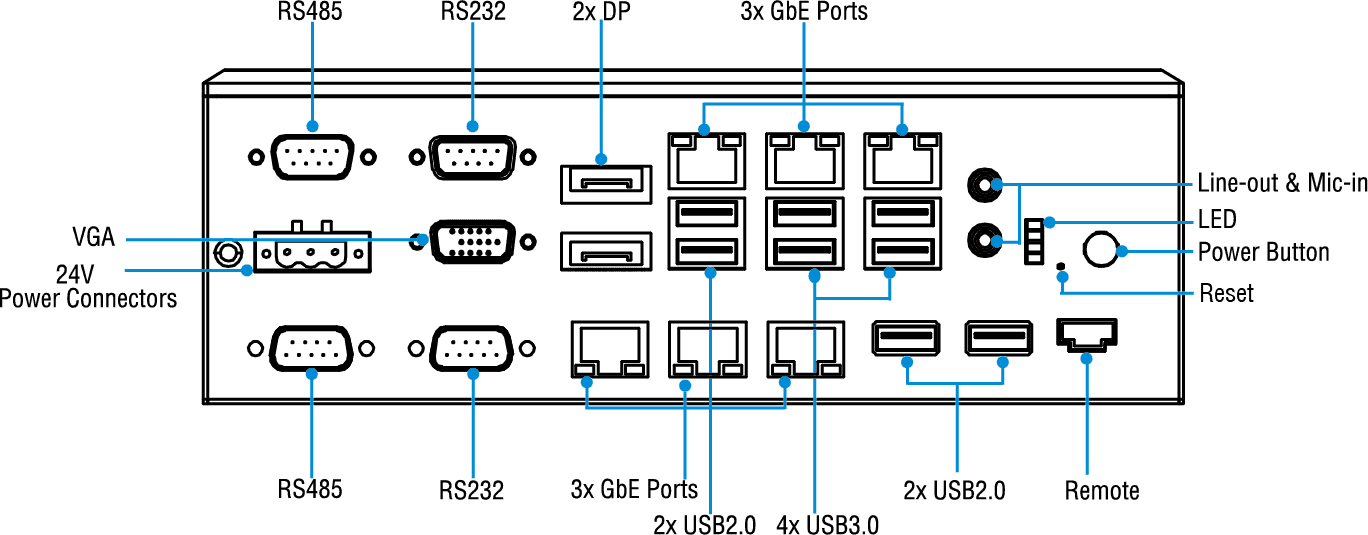

| I/O Interface | USB | 4xUSB2.0, 4xUSB3.0 |
| COM | 1 × RS-232/422/485; 2 × RS-232/485; 1 × RS-232 | |
| Remote | 4-pin remote power on/off switch and LED on the front | |
| Expansion | Mini-PCIe | 1 x full-size mini-PCIe, Support WLAN/WWAN module |
| USIM | 1xUSIM, Support 3G/4G LTE | |
| Storage | M.2 | 1 x M.2 |
| SATA3.0 | 1 x SATA3.0, For 2.5" SATA storage device | |
| Watchdog | Output/Interval | Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec |
| Power Supply | DC input | 24V DC; 9–36V DC optional |
| OS | MicrosoftWindows | Windows 7(Intel® 6th Gen CPU only), Windows 10 64Bit |
| Linux | Yes | |
| Physical Characteristics | Construction | Aluminium Alloy |
| Mounting | Wall Mounting | |

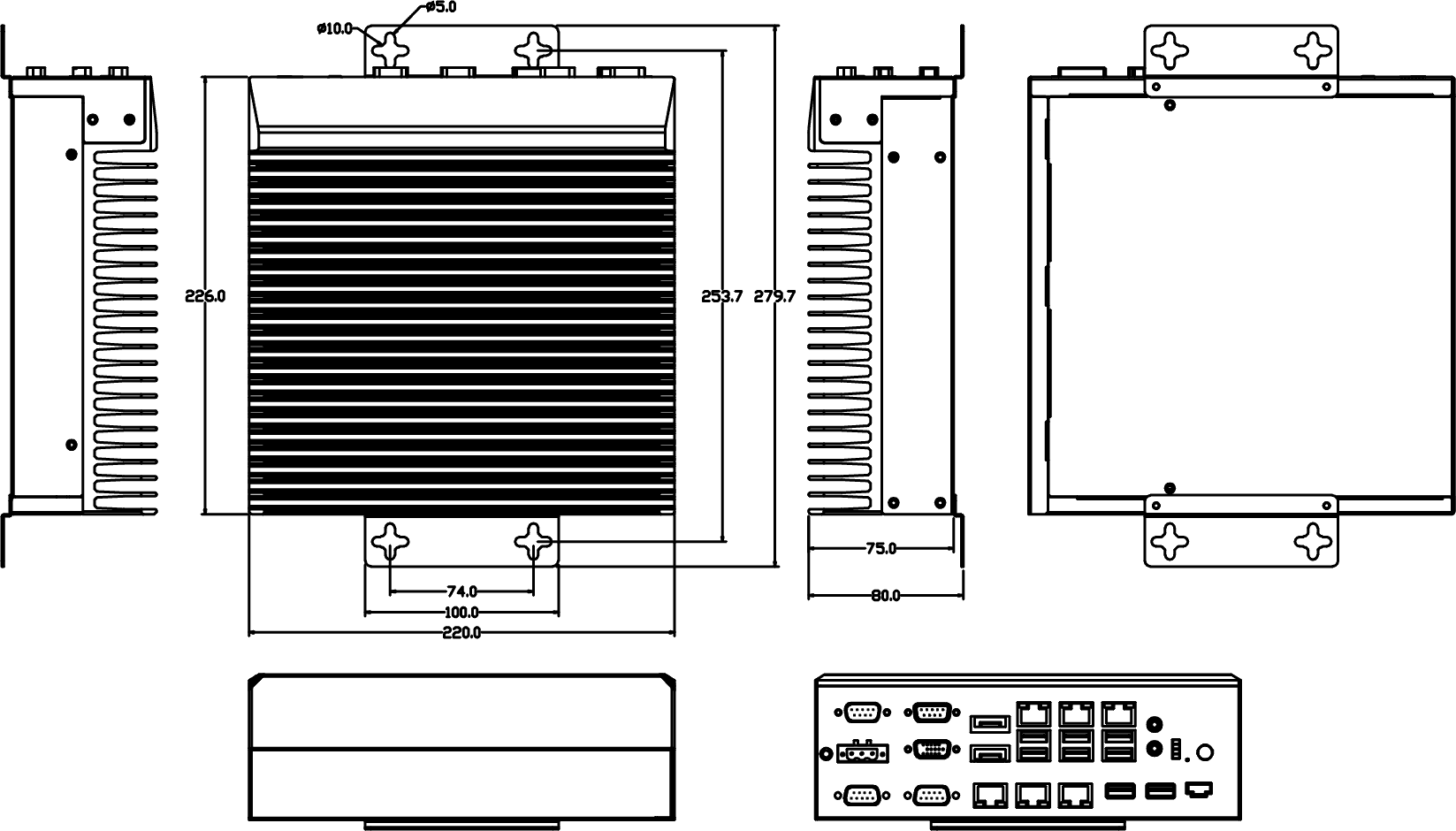

| Dimensions | 220x226x75mm(LxWxH) | |
| Weight | 3.3Kg | |
| Environment | Operating Temperature | 0°C~50°C, Airflow 0.7m / s |
| Storage Temperature | −40–85°C (−40–185°F) | |
| Relative Humidity | 95%@40°C(Non-Condensing) | |
| Vibration During Operation | With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis | |
| Shock During Operation | With SSD:30 G, IEC 60068-2-27, half sine, 11m duration | |
| ESD | Contact +/-4 KV, Air +/-8 KV | |
| EMC | CE/FCCClassB |
Downloads
No download files are attached to this product. You can request documents from our engineers.
Frequently Asked Questions
Technical specifications, OS compatibility, and deployment details for this platform
What processor and memory are listed for YX-E512?
Processor: Intel sixth to ninth generation desktop processors (LGA1151); Memory: 2x DDR4 SO-DIMM（Max.64GB）
What interfaces are listed for YX-E512?
Network: 6 (5 x Intel i210, 1 x Intel i219); Display: 2 DP, 1 VGA, supports DP+DP/DP+VGA dual independent display
What operating conditions and software are listed for YX-E512?
Power input: 24V DC; 9–36V DC optional; Operating temperature: 0–50°C with airflow 0.7 m/s; Operating system: Windows 7 (only supported by the sixth generation), Windows 10, centos 7/8, ubuntu 18.04~24.04
