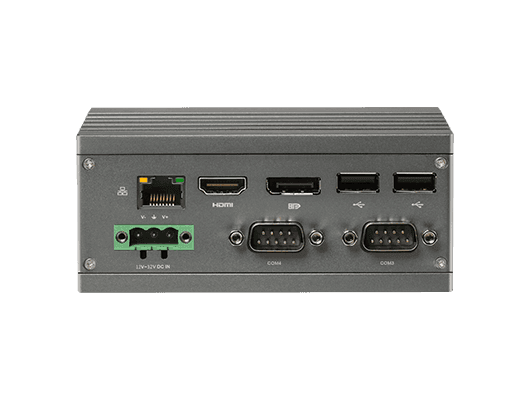

YX-E310 series
Powered by Intel Embedded CPU Processor, Equipped with Dual GbE LAN, HDMI DP & Industrial I/O, Engineered for Industrial Automation & Embedded Systems
Model: YX-E310
System Core Specifications
- CPU: Intel Apollo Lake SoC Processor
- Memory: DDR3L 1600MHz(Max. 8GB)
- Networking: 3（2 x Intel i211/I210-AT,1 x RTL8111H GbE）
- Display: 1 x HDMI, 1 x DP
- Operating System: Windows 10 64 Bit, Linux
Product overview
Technical specifications
| Specs | Item | E310 |
|---|---|---|
| Processor System | CPU | Intel® Apollo Lake N3350/J3355/J3455/N4200 Series Processors |
| BIOS | AMI 8MB UEFI | |
| Memory | Sockets | DDR3L 1600 MHz |
| Capacity | 2GB (Max. 8GB) | |
| Display | Chipset | Intel HD Graphics 500/505 |
| Graphics engine | 4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP9 | |
| DP | 1, Max. resolution 4096 x 2160@60Hz | |
| HDMI | 1, Max. resolution 3840 x 2160@60Hz | |
| Dual Display | HDMI+DP | |
| Audio | I/O | Realtek ALC662, High Definition Audio, Line Out & Line In |
| Ethernet | LAN | 1 x RTL8111H GbE, 2 x Intel i210/i211-AT GbE |

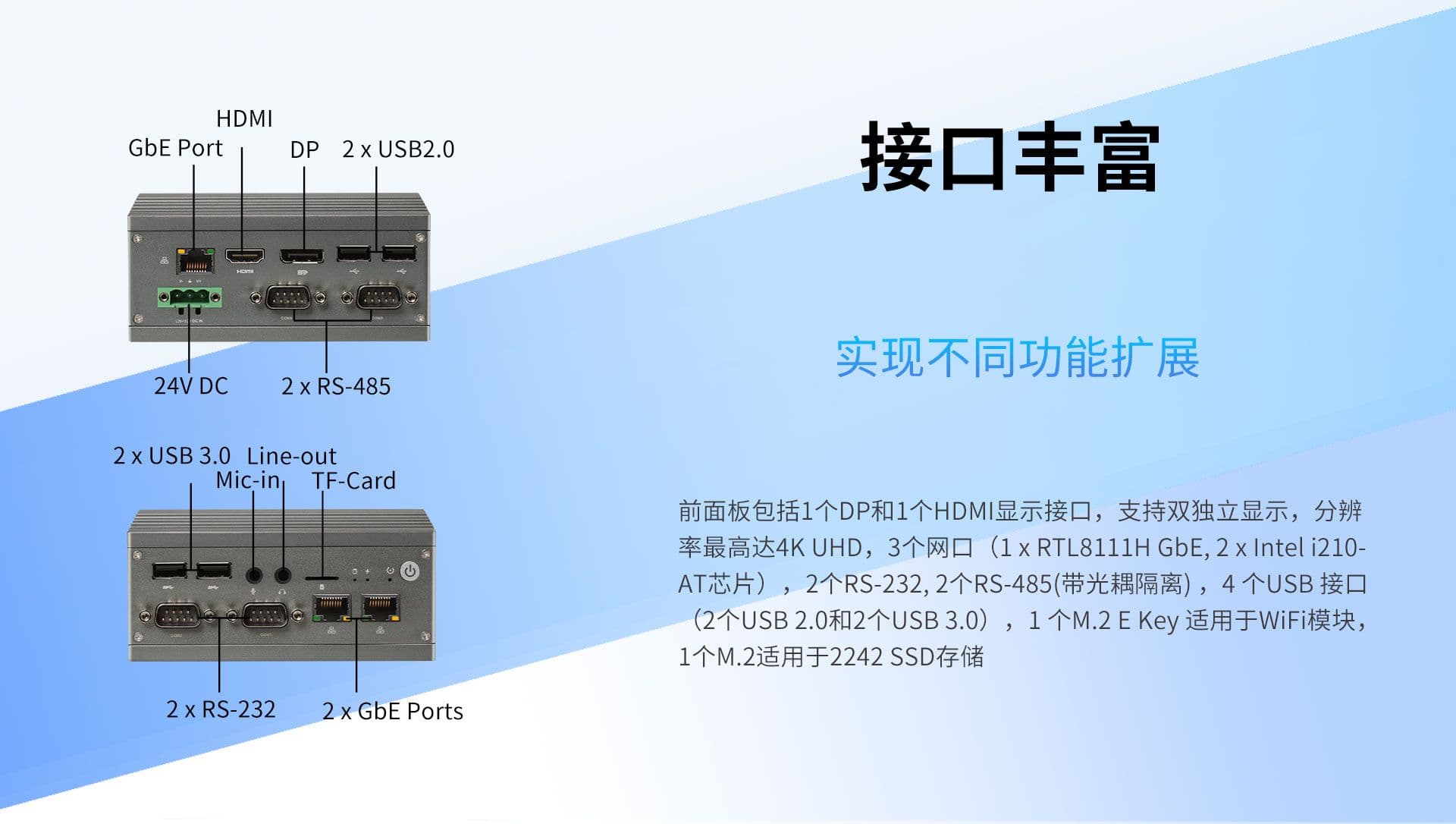

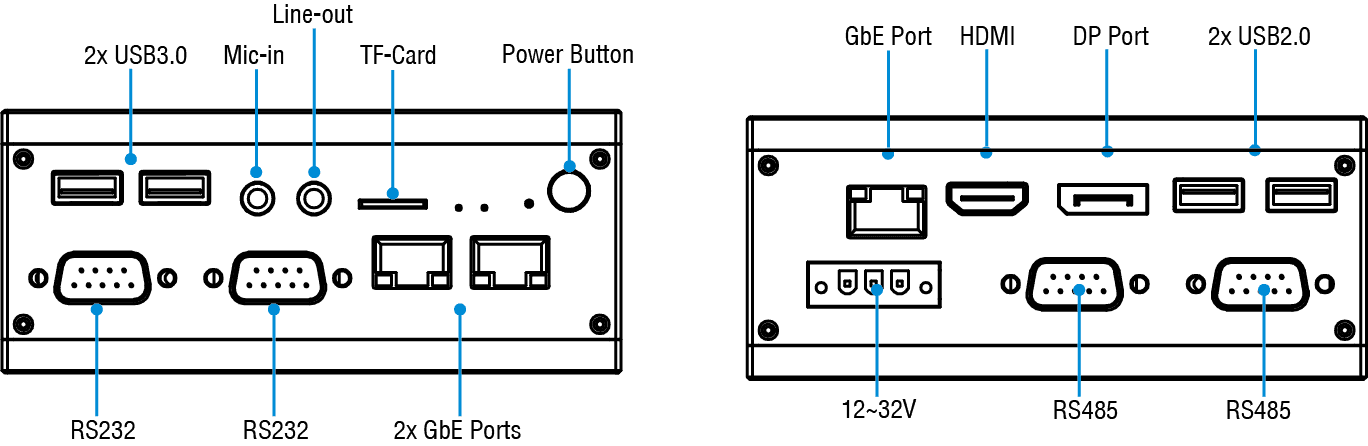

| I/O Interface | USB | 2 x USB2.0, 2 x USB3.0 |
| COM | 2 x RS232, 2 x RS485 | |
| Expansion | Mini-PCIe | 1 x full-size Mini-PCIe, support WLAN/WWAN module |
| SIM | 1 x USIM for 3G/4G LTE | |
| Storage | M.2 | 1 x 2242 SSD |
| eMMC | MAX. 256GB | |
| TF Card | 1 | |
| Power Supply | DC input | 12~32V DC IN |
| OS | Microsoft Windows | Windows 10 64Bit |
| Linux | Yes | |
| Physical Characteristics | Construction | Aluminium Alloy |
| Mounting | Wall Mounting | |

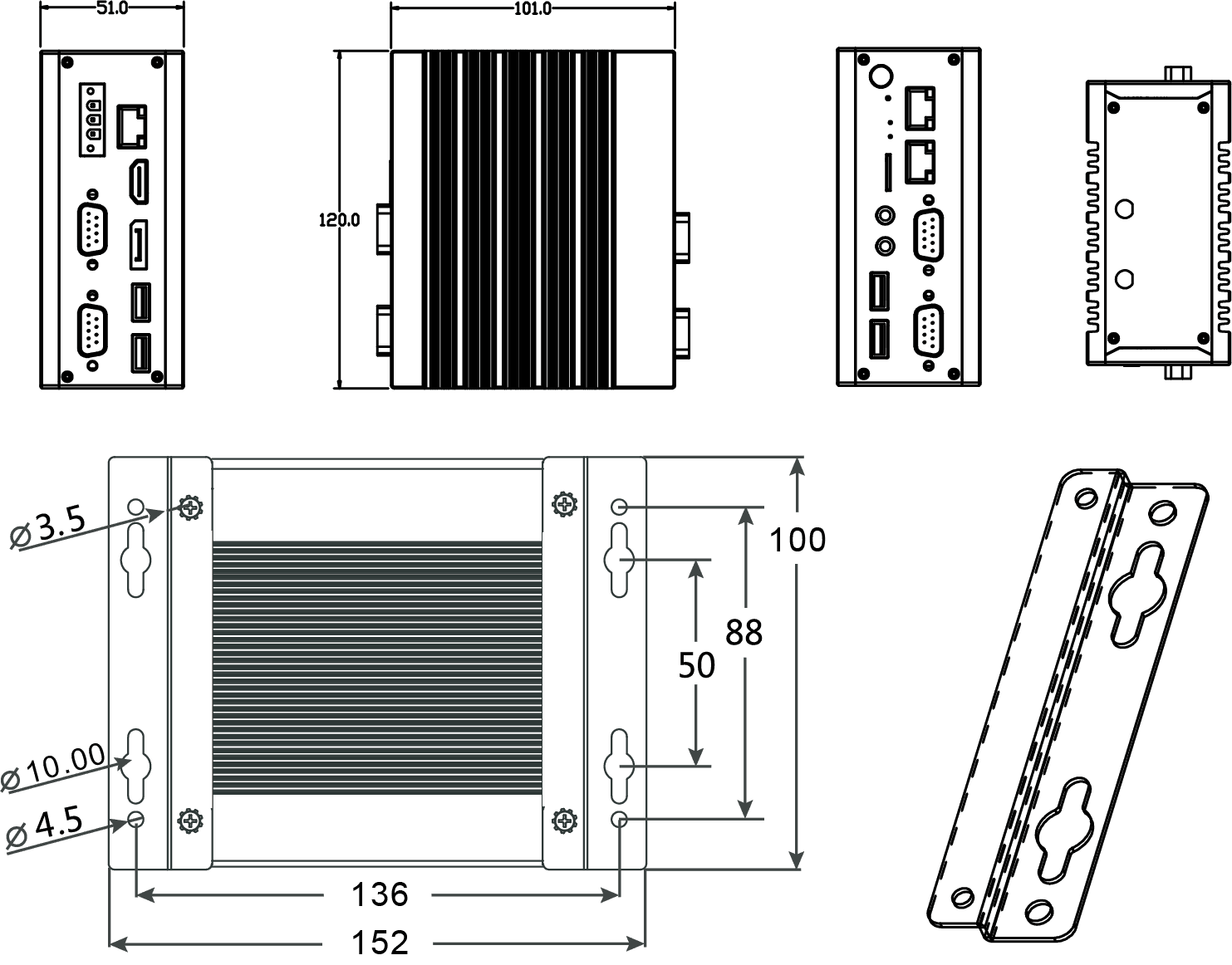

| Dimensions | 120x100x51 mm(LxWxH) | |
| Weight | 0.65 Kg | |
| Environment | Operating Temperature | -20°C~60°C, Airflow 0.7m / s |
| Storage Temperature | -40°C~80°C | |
| Relative Humidity | 95%@40°C(Non-Condensing) | |
| Vibration During Operation | With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis | |
| Shock During Operation | With SSD:30 G, IEC 60068-2-27, half sine, 11m duration | |
| ESD | Contact +/-4 KV, Air +/-8 KV | |
| EMC | CE/FCCClassB |
Downloads
No download files are attached to this product. You can request documents from our engineers.
Frequently Asked Questions
Technical specifications, OS compatibility, and deployment details for this platform
What processor and memory are listed for YX-E310?
Processor: Intel Apollo Lake SoC Processor; Memory: DDR3L 1600MHz(Max. 8GB)
What interfaces are listed for YX-E310?
Network: 3（2 x Intel i211/I210-AT,1 x RTL8111H GbE）; Display: 1 x HDMI, 1 x DP
What operating conditions and software are listed for YX-E310?
Operating system: Windows 10 64 Bit, Linux
