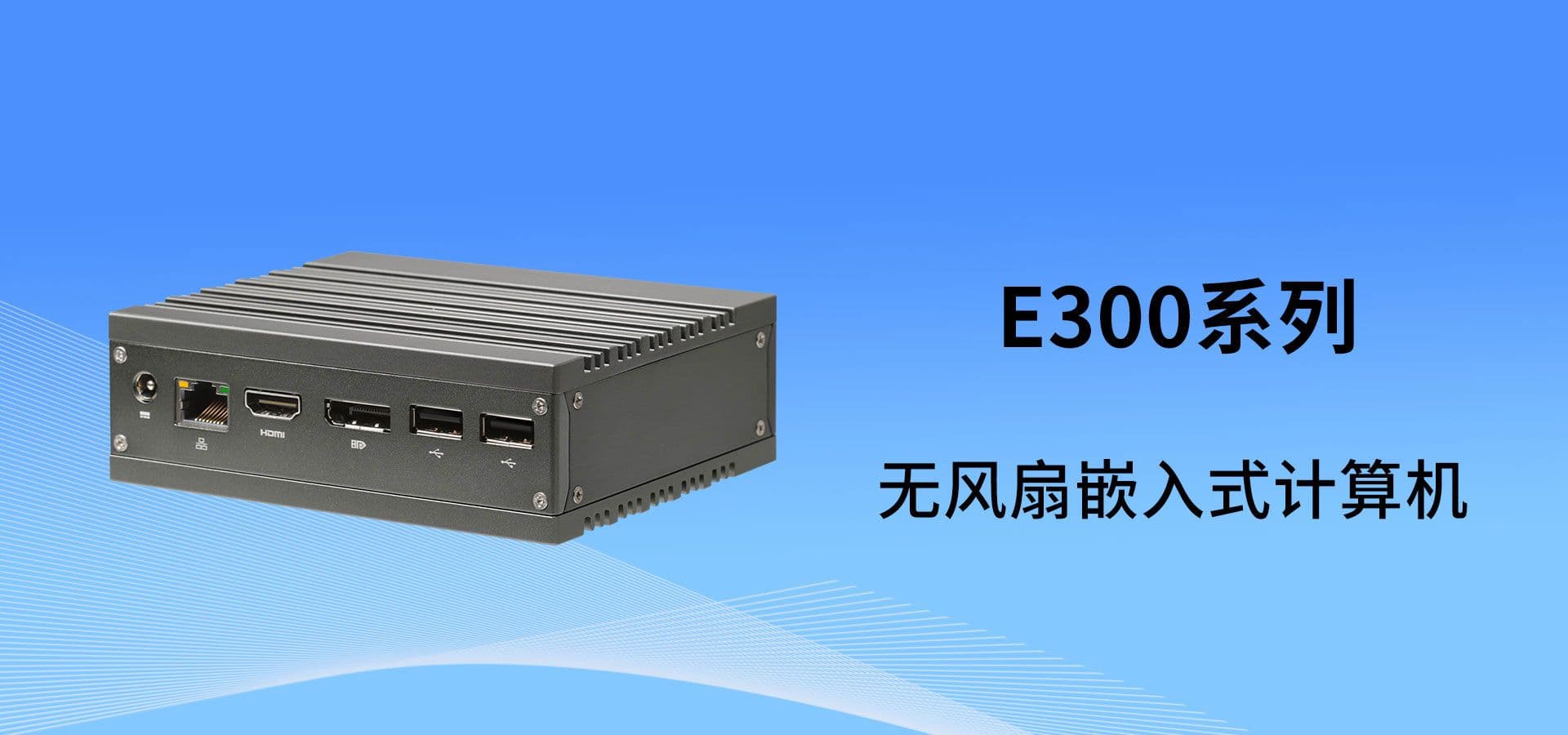

YX-E300 series
Powered by Intel Embedded CPU Processor, Equipped with GbE LAN, HDMI DP & Industrial I/O, Engineered for Industrial Automation & Embedded Systems
Model: YX-E300
System Core Specifications
- CPU: Intel Apollo Lake SoC Processor
- Memory: DDR3L （Max. 8GB）
- Networking: 1 x RTL8111H GbE
- Display: 1 x HDMI, 1 x DP
- Operating System: Windows 10 64 Bit, Linux
Product overview
Technical specifications
Specifications_1
| Specs | Item | E300 |
|---|---|---|

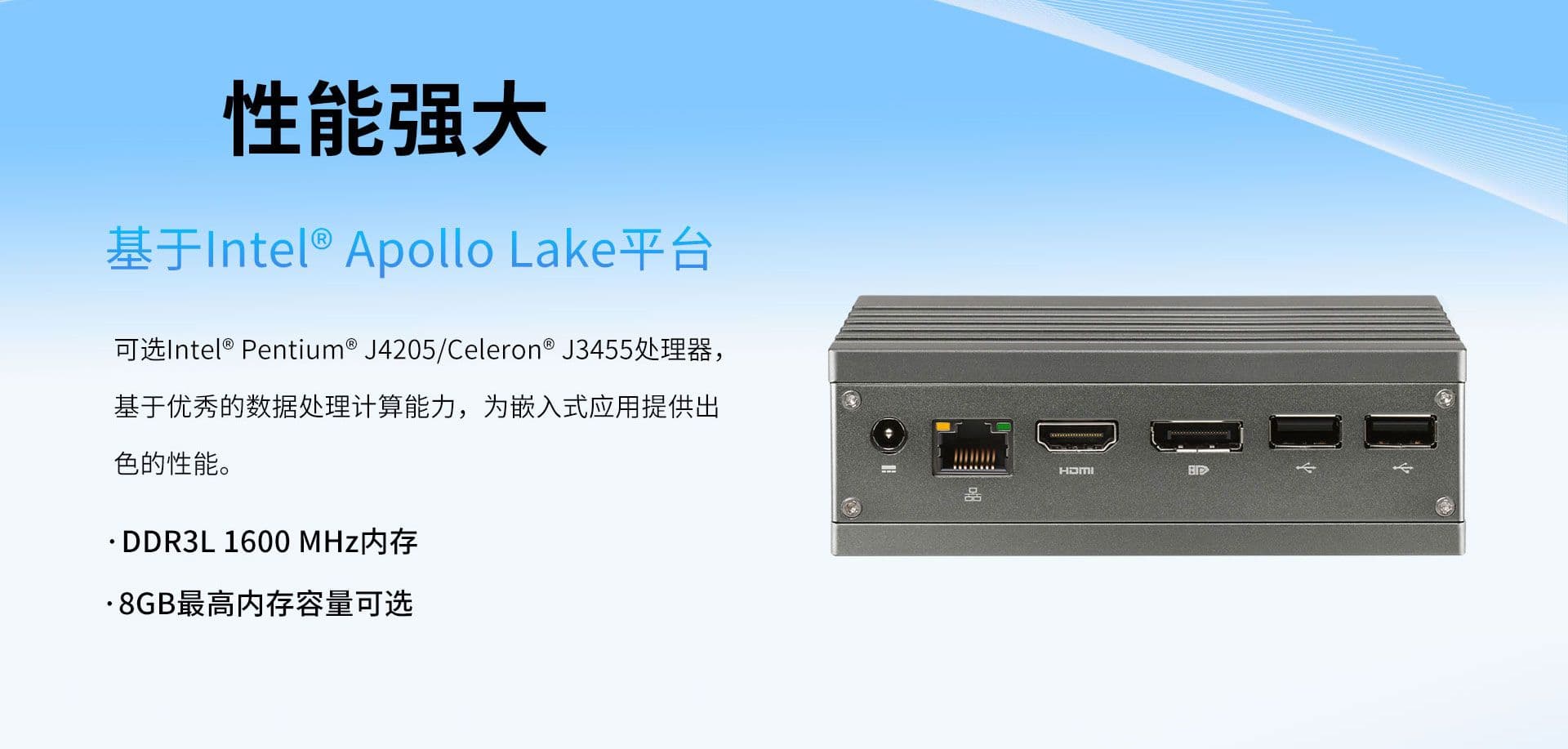

| Processor System | CPU | Intel® Apollo Lake N3350/J3355/J3455/N4200 Series Processors |
| BIOS | AMI 8MB UEFI | |
| Memory | Sockets | DDR3L 1600 MHz |
| Capacity | 2GB (Max. 8GB) | |
| Display | Chipset | Intel HD Graphics 500/505 |
| Graphics engine | 4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP9 | |
| DP | 1, Max. resolution 4096 x 2160@60Hz | |
| HDMI | 1, Max. resolution 3840 x 2160@60Hz | |
| Dual Display | HDMI+DP | |
| Audio | I/O | Realtek ALC662, High Definition Audio, Line Out & Line In |
| Ethernet | LAN | 1 x RTL8111H GbE, support wake-on-LAN |
| I/O Interface | USB | 2 x USB2.0, 2 x USB3.0 |
| COM | 1xRS232(optional) | |
| Expansion | M.2 E Key | 1 x M.2 E Key, support WLAN module |
| Storage | M.2 | 1 x 2242 SSD |
| eMMC | 8GB, MAX. 256GB | |
| TF Card | 1 | |
| Power Supply | DC input | 24V DC IN |
| OS | Microsoft Windows | Windows 10 64Bit |
| Linux | Yes | |

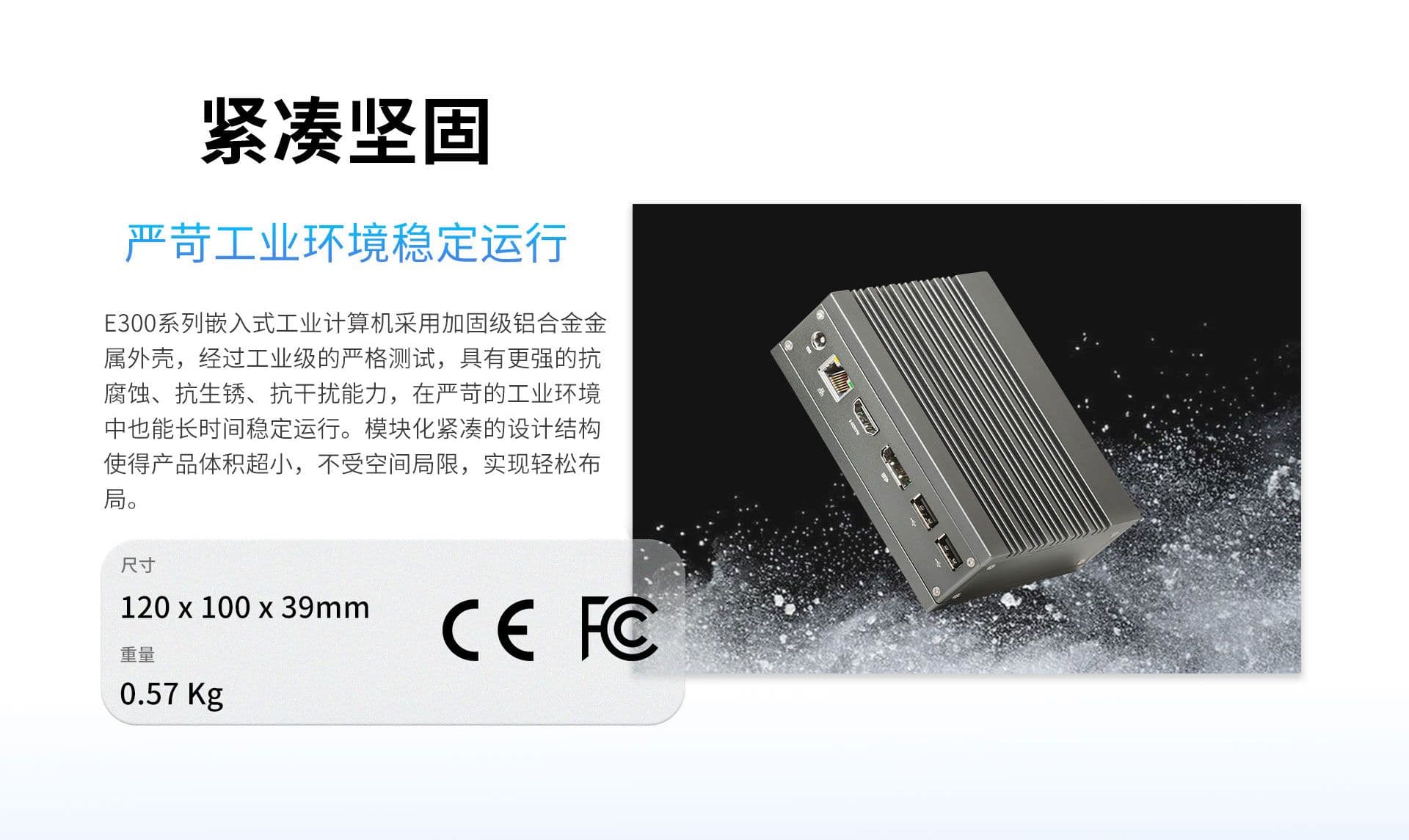

| Physical Characteristics | Construction | Aluminium Alloy |
| Mounting | Wall Mounting | |
| Dimensions | 120x100x39 mm(LxWxH) | |
| Weight | 0.57 Kg | |
| Environment | Operating Temperature | -20°C~60°C, Airflow 0.7m / s |
| Storage Temperature | -40°C~80°C | |
| Relative Humidity | 95%@40°C(Non-Condensing) | |
| Vibration During Operation | With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis | |
| Shock During Operation | With SSD:30 G, IEC 60068-2-27, half sine, 11m duration | |
| ESD | Contact +/-4 KV, Air +/-8 KV | |
| EMC | CE/FCCClassB |
Downloads
No download files are attached to this product. You can request documents from our engineers.
Frequently Asked Questions
Technical specifications, OS compatibility, and deployment details for this platform
What processor and memory are listed for YX-E300?
Processor: Intel Apollo Lake SoC Processor; Memory: DDR3L （Max. 8GB）
What interfaces are listed for YX-E300?
Network: 1 x RTL8111H GbE; Display: 1 x HDMI, 1 x DP
What operating conditions and software are listed for YX-E300?
Operating system: Windows 10 64 Bit, Linux
