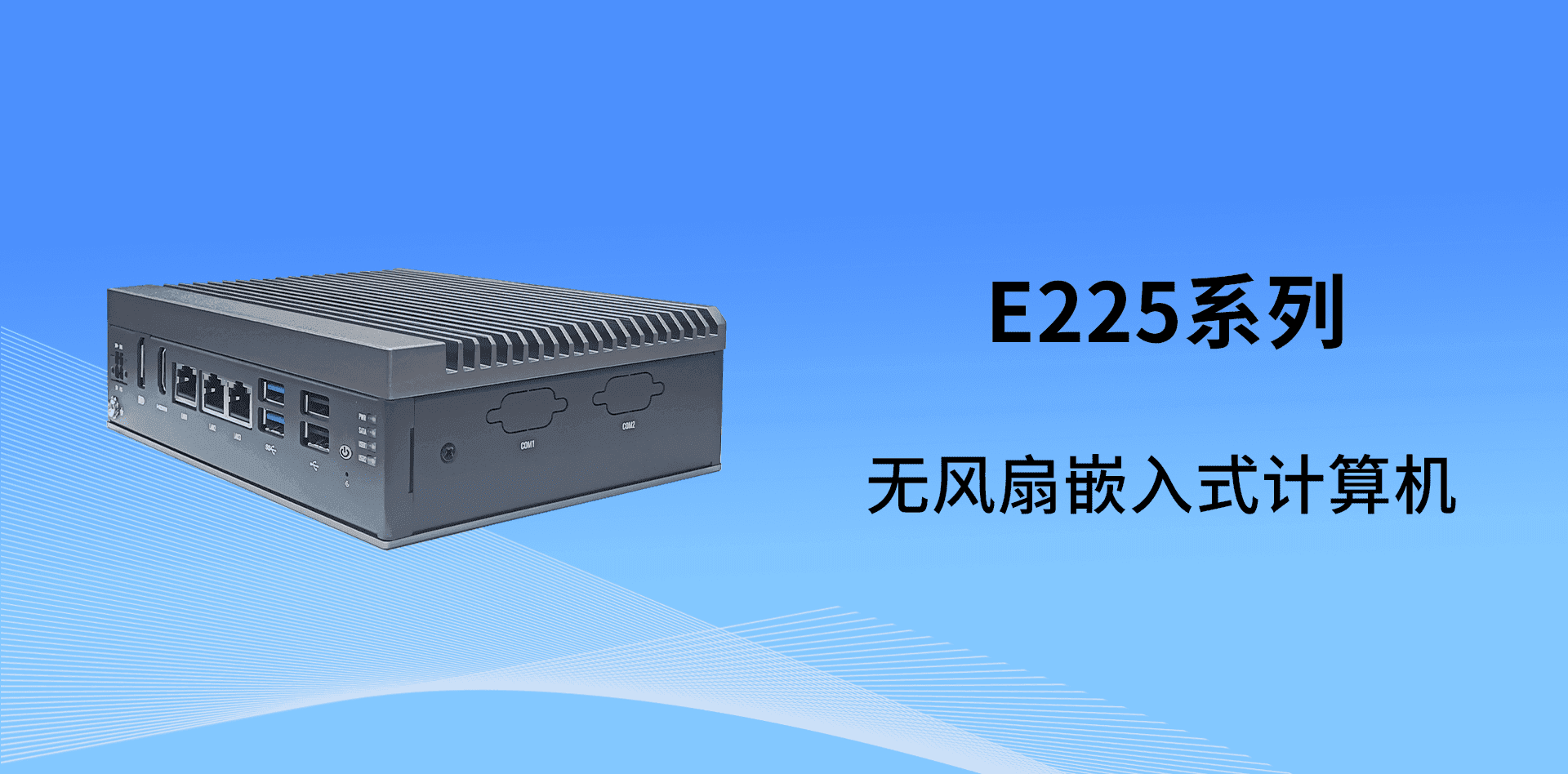

Model: YX-E225
| Specs | Item | E225 Series |
|---|---|---|
| Processor System | CPU | Intel® Alder Lake-N platform N50/ N97/ N200/ i3-N305 |
| TDP | 15W MAX | |
| BIOS | AMI 128Mbit SPI Flash | |
| Memory | Technology | Single channel DDR5 4800MT/s SO-DIMM |
| Max. Capacity | 16 GB | |
| Display | Controller | Intel Gen12 UHD Graphics Engines (SoC integrated) |
| Graphic Features | DX12, Open GL 4.6, Vulkan 1.2 | |

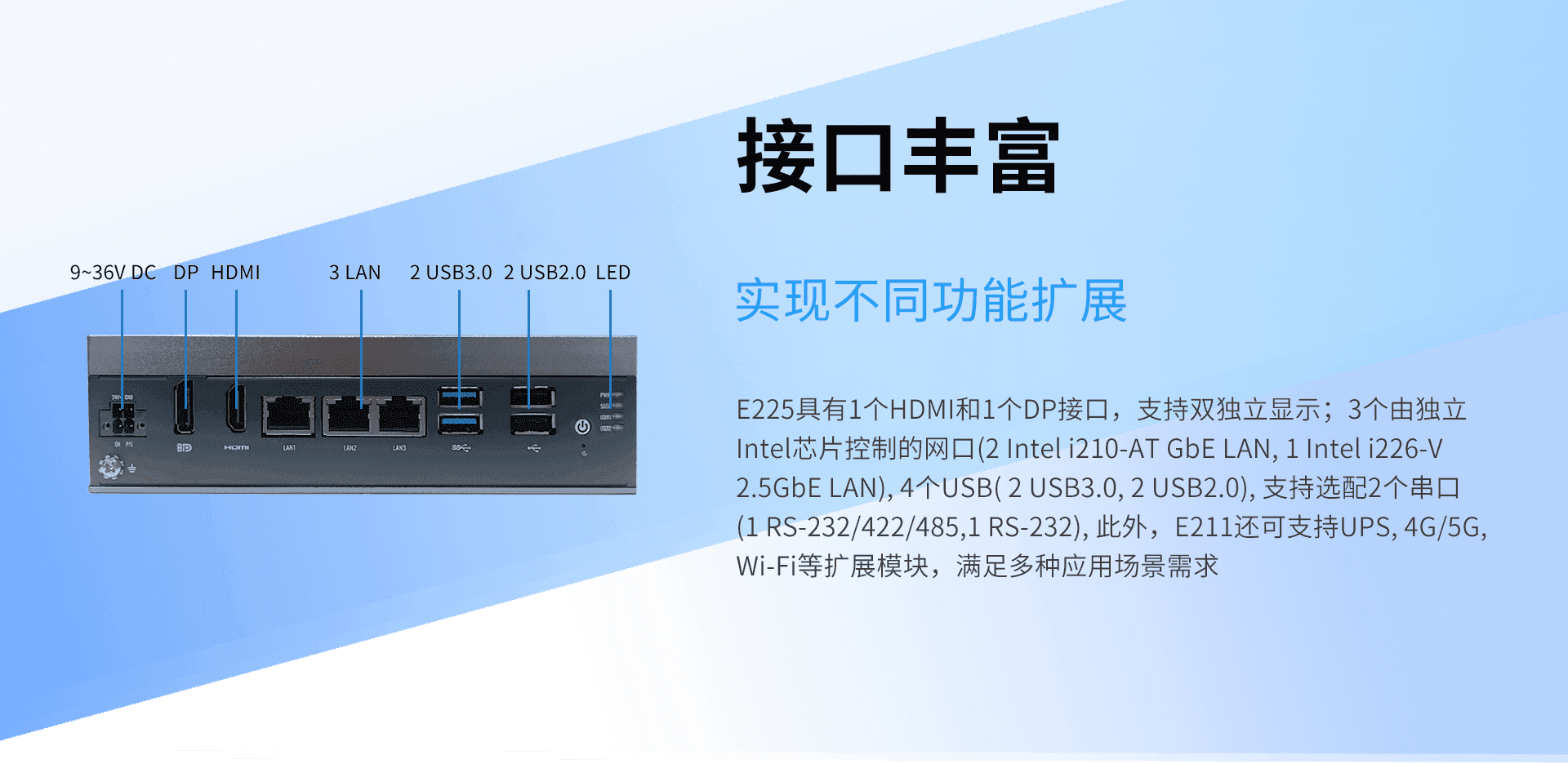

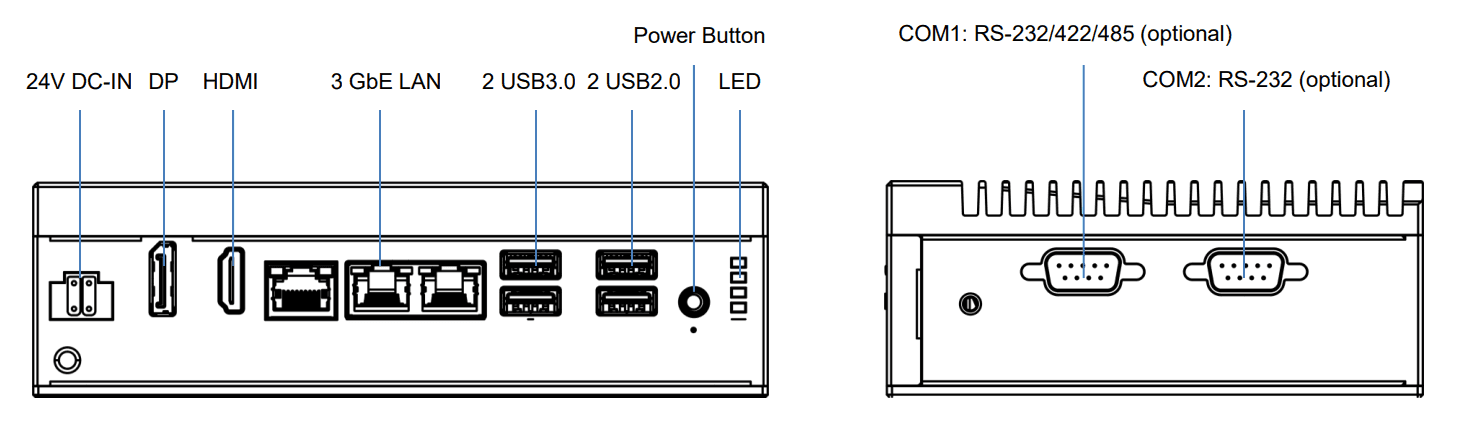

| I/O Interface | DP | 1 x DP 1.4 up to 4096 x 2304 @ 60Hz |
| HDMI | 1 x HDMI 2.0b up to 4K x 2K @60Hz | |
| Ethernet | 2 x Intel i210 GbE LAN, 1 x Realtek RTL8111H GbE LAN | |
| USB | 2 x USB3.0, 2 x USB2.0 | |
| COM | COM1: RS-232/422/485, COM2: RS-232 | |
| Power Input Connector | Phoenix 4pin | |
| Expansion | M.2 E-Key | 1 x M.2 2230 Support Wi-Fi (Support both CNVI and PCIe) |
| M.2 B-Key | 1 x M.2 3052 Support 4G/5G | |
| M.2 M-Key | 1 x M.2 2280 SATA3.0 | |
| Internal USB2.0 | 1 x Internal USB2.0 (PIN-Out) | |
| SIM | 1 x Nano SIM | |
| LED & Switch | LED Lights | Power status, HDD R/W,USER1,USER2 |
| Power Button | 1 x Power Button | |
| Reset | 1 x Reset | |
| Power | Supply Voltage | DC 9~36V±10% |
| Max. Consumption | 60W | |
| Power Management | AT/ATX | |
| Others | Watchdog | Timer Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds |
| TPM | TPM 2.0 (optional) | |
| Environment | Operating Temperature | 0 ~ 60 °C (32~140°F) |
| Storage Temperature | -40° C ~ 85° C (-40~185°F) | |
| Relative Humidity (Operating) | 95% @ 40°C ( Non-Condensing ) | |
| Relative Humidity (Storage) | 95% @ 60 °C (non-condensing) | |
| Certification | EMC | CE, FCC |

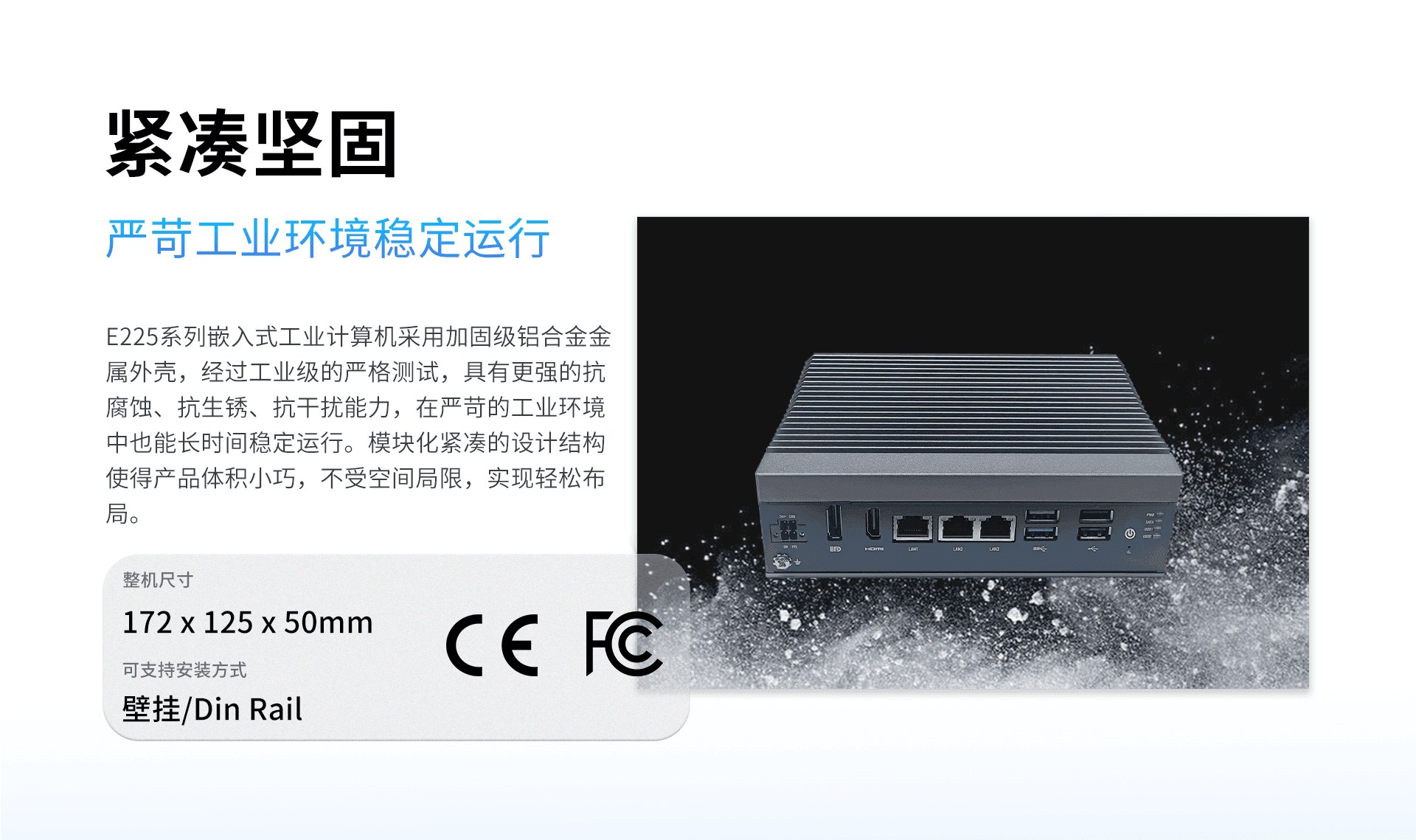

| Physical characteristic | Dimensions | 172 x 125 x 50mm(L x W x H) |
| Weight | 1.0 kg | |
| Installation | Wall-mounting/ Din rail | |
| Operation system | OS | Windows 10/11, centos 8, ubuntu 20.04/22.04 |
| Hardware & Core System | |
|---|---|
| Processor / CPU | Intel Alder Lake-N N50/ N97/ N200/ i3-N305 |
| System Memory | DDR5-4800, up to 16GB |
| Network / LAN | 3（2 x Intel i210,1 x Intel Realtek RTL8111H） |
| Display Output | 1 x HDMI, 1 x DP |
| I/O & Physical Construction | |
| Mechanical / Housing | Industrial Metal Chassis |
| Operating System | Windows 10/11, centos 8, ubuntu 20.04/22.04 |
Technical specifications, OS compatibility, and deployment details for this platform
YX-E225 supports Windows 10/11, centos 8, ubuntu 20.04/22.04. Yantronic provides board support packages (BSP), driver validation, and long-term OS maintenance for mission-critical automation and edge AI workloads.
Engineered with an industrial-grade passive heatsink and rugged chassis, YX-E225 operates reliably across -20°C to 60°C. The fanless, sealed design prevents dust ingress, withstands mechanical shock and vibration, and ensures continuous 24/7 operation.
YX-E225 is equipped with a wide-range 9–36V DC input featuring over-voltage, over-current, and reverse polarity protections, along with 3（2 x Intel i210,1 x Intel Realtek RTL8111H） and 1 x HDMI, 1 x DP for seamless integration into factory cabinets and automated machinery.
Yes. Yantronic offers full OEM/ODM customization services for YX-E225, including custom BIOS configurations, additional I/O expansion daughterboards, private-label branding, and enclosure modifications, backed by a guaranteed 5 to 7+ year product lifecycle commitment.
