YX-E215 series
Powered by Intel J6412 Processor, Equipped with Dual GbE LAN, HDMI DP & Industrial I/O, Supports 36V DC, 0°C to 60°C Wide Operation
Model: YX-E215
System Core Specifications

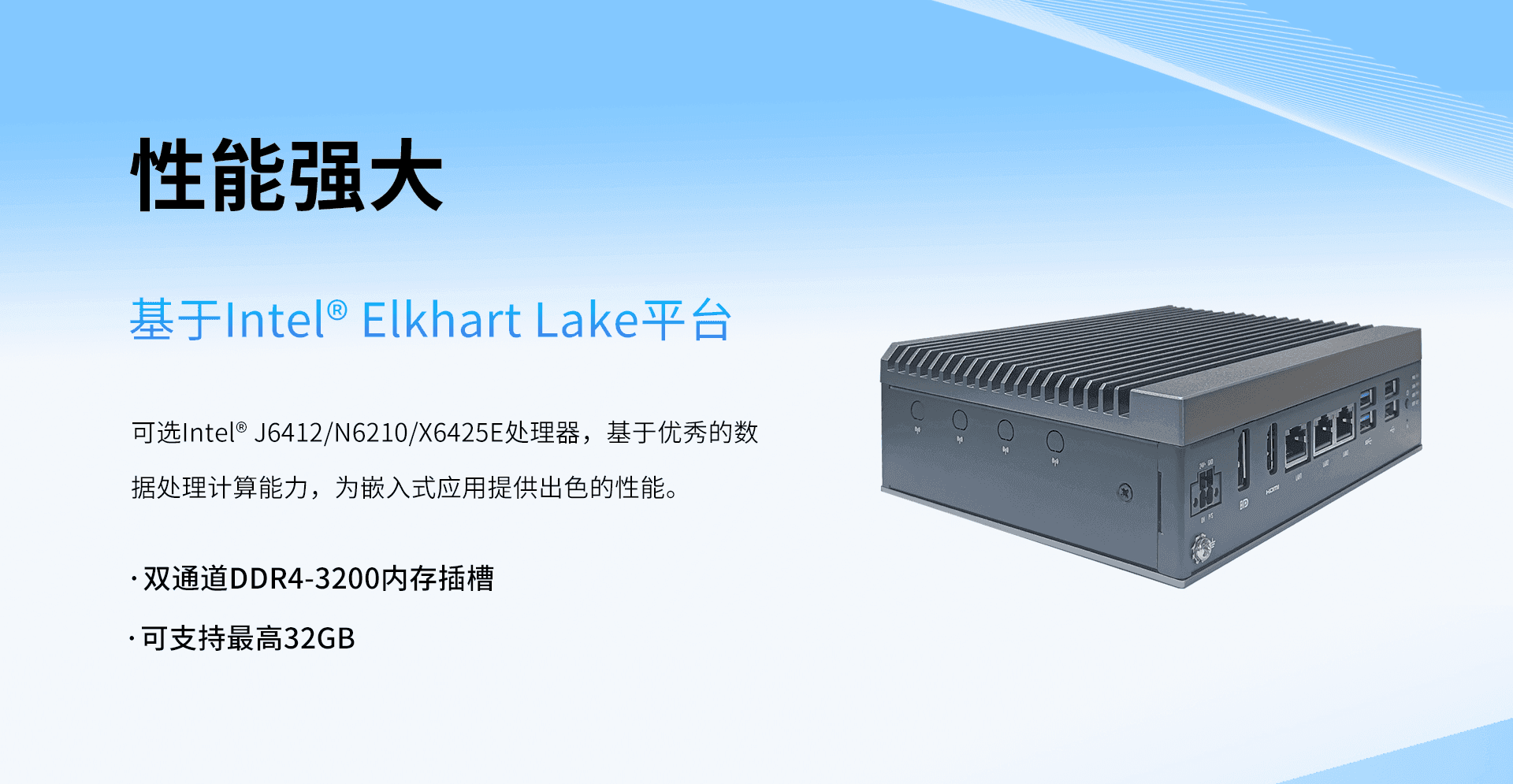

- CPU: Intel Elkhart Lake J6412, N6210, X6425E
- Memory: 2 x DDR4-3200 up to 32GB
- Networking: 3（2 x Intel i210-AT,1 x Intel i226-V）
- Display: 1 x HDMI, 1 x DP
- Power: 9–36V DC
- Operating System: Windows 10/11, centos 8, ubuntu 20.04/22.04
- Operating Temp: 0–60°C
Product overview
Technical specifications
Specifications_1
| Specs | Item | E215 Series |
|---|---|---|
| Processor System | CPU | Intel® Elkhart Lake platform J6412/N6210/X6425E CPU |
| TDP | 12W MAX | |
| BIOS | AMI 128Mbit SPI Flash | |
| Memory | Technology | 2 x DDR4 3200MT/s SO-DIMM |
| Max.Capacity | 32 GB | |
| Display | Controller | Intel Gen11 Graphics Engines (SoC integrated) |
| Graphic Features | DX12, OGL4.5, OCL1.2, Vulkan 1.1, MPEG2, H.264, JPEG/MJPEG, H.265 (HEVC) | |

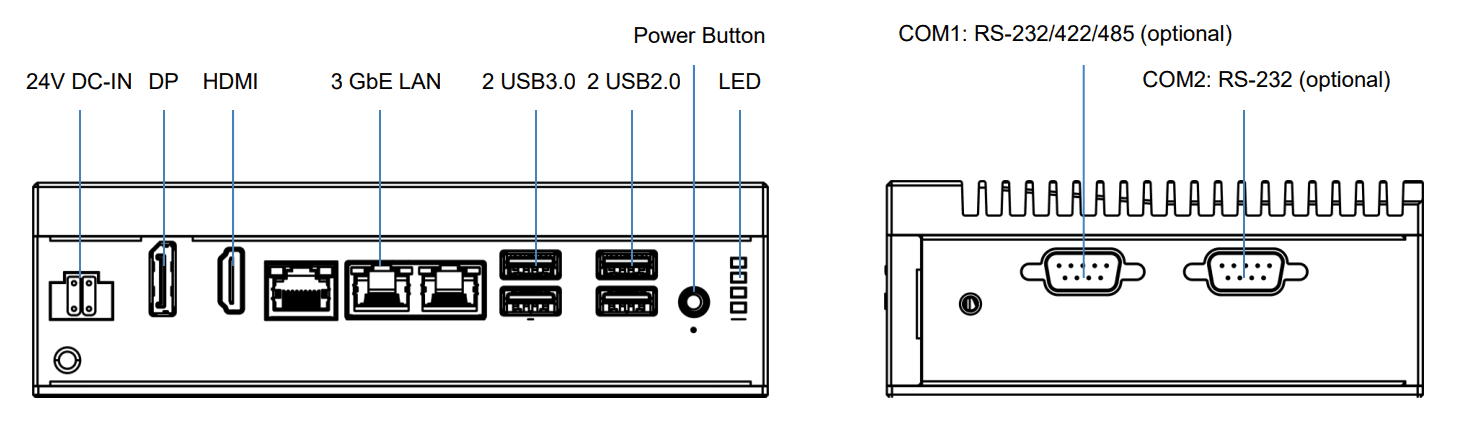

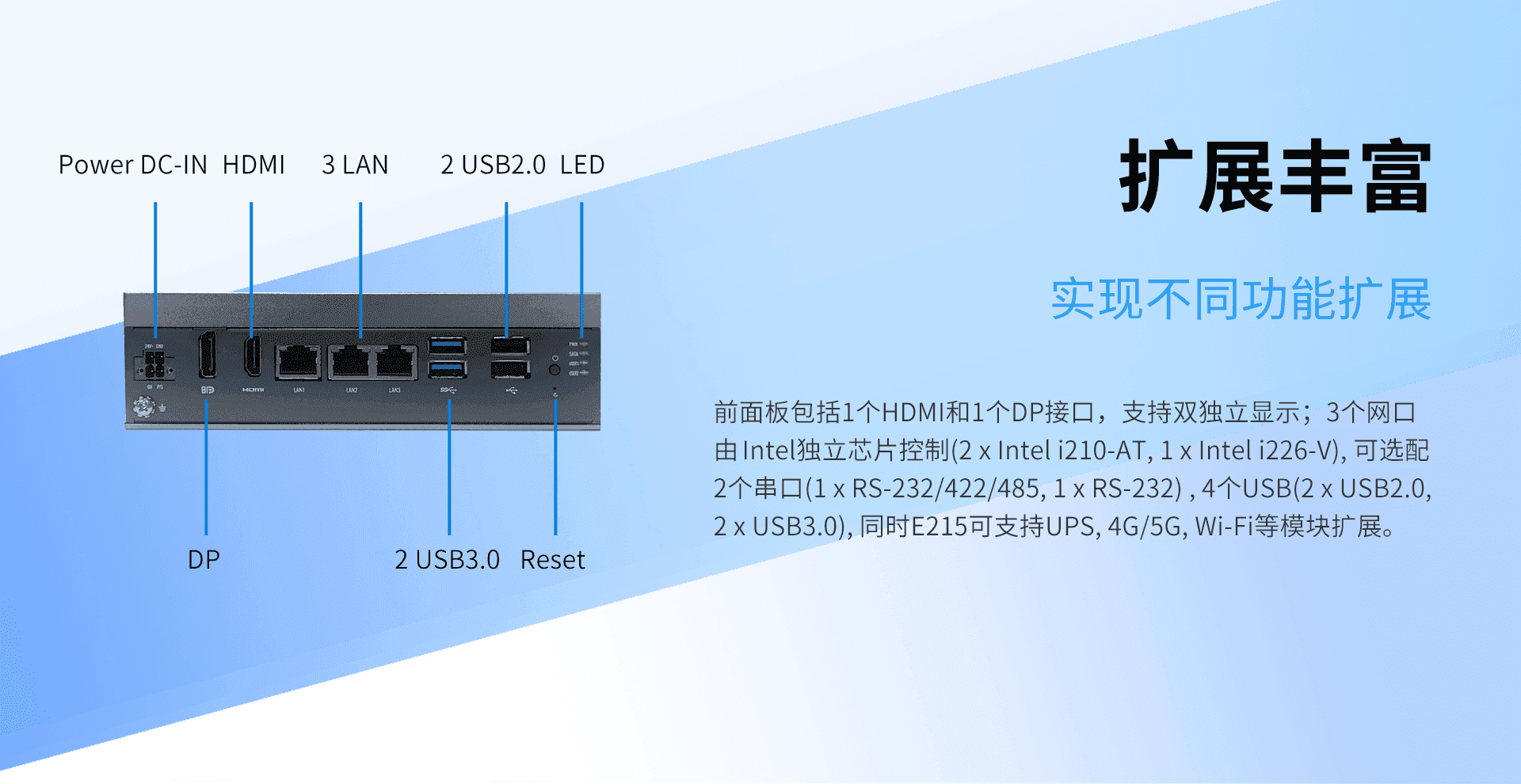

| I/O Interface | DP | 1 x DP 1.4 up to 4096 x 2160 @ 60Hz |
| HDMI | 1 x HDMI 2.0b up to 4096 x 2160@60Hz | |
| Ethernet | 2 x Intel i210-AT GbE LAN, 1 x Intel i226-V 2.5GbE LAN | |
| COM | COM1: RS-232/422/485 COM2: RS-232 | |
| USB | 2 x USB3.0, 2 x USB2.0 | |
| Power DC Jack | Phoenix 4pin | |
| Expansion | M.2 E-Key | 1 x M.2 2230 Support Wi-Fi |
| M.2 B-Key | 1 x M.2 3052 Support 4G/5G | |
| M.2 M-Key | 1 x M.2 2280 SATA3.0 | |
| SATA | 1 x SATA3.0 | |
| Internal USB2.0 | 3 x Internal USB2.0 (Pin out) | |
| SIM | 1 x Nano SIM | |
| LED | LED Lights | Power status, HDD R/W,USER1,USER2 |
| Power | Supply Voltage | DC 9~36V±10% |
| Max. Consumption | 30W | |
| Power Management | AT/ATX | |
| Others | Watchdog | Timer Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds |
| TPM | TPM 2.0 (optional) | |
| Environment | Operating Temperature | 0 ~ 60 °C (32~140°F) |
| Storage Temperature | -40° C ~ 85° C (-40~185°F) | |
| Relative Humidity (Operating) | 95% @ 40°C ( Non-Condensing ) | |
| Relative Humidity (Storage) | 95% @ 60 °C (non-condensing) | |
| Certification | EMC | CE, FCC |

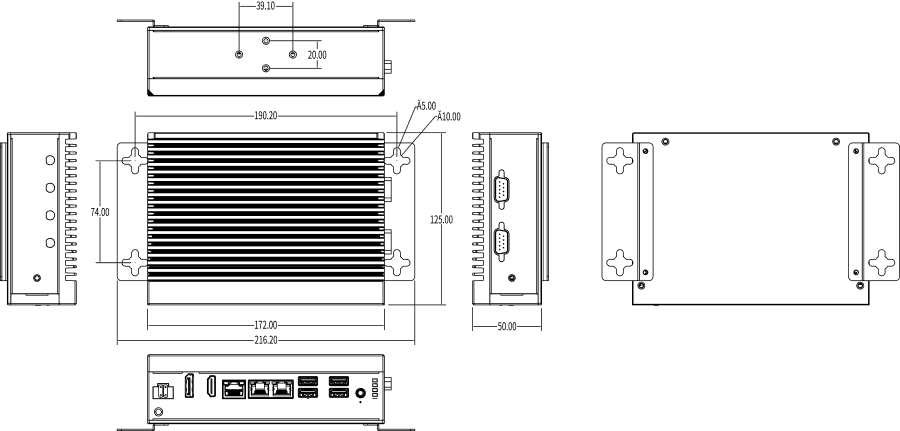

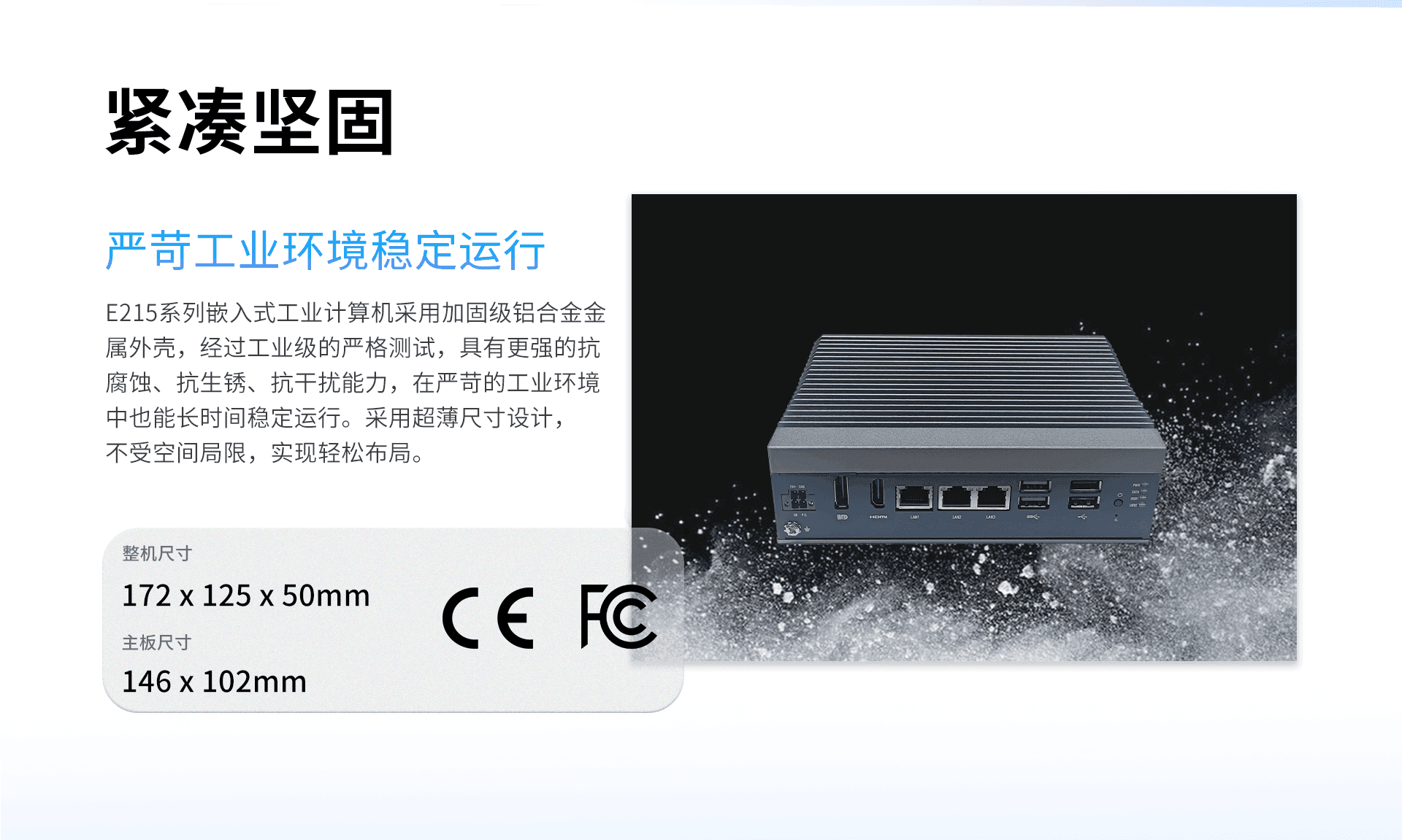

| Physical characteristic | Dimensions | 172 x 125 x 50mm(L x W x H) |
| Operation system | OS | Windows 10/11, centos 8, ubuntu 20.04/22.04 |
Downloads
No download files are attached to this product. You can request documents from our engineers.
Frequently Asked Questions
Technical specifications, OS compatibility, and deployment details for this platform
What processor and memory are listed for YX-E215?
Processor: Intel Elkhart Lake J6412, N6210, X6425E; Memory: 2 x DDR4-3200 up to 32GB
What interfaces are listed for YX-E215?
Network: 3（2 x Intel i210-AT,1 x Intel i226-V）; Display: 1 x HDMI, 1 x DP
What operating conditions and software are listed for YX-E215?
Power input: 9–36V DC; Operating temperature: 0–60°C; Operating system: Windows 10/11, centos 8, ubuntu 20.04/22.04
