YX-E500 series
Powered by Intel 9th Gen Core Processor, Equipped with Dual GbE LAN, VGA & Industrial I/O, Supports 24V DC, -20°C to 50°C Wide Operation
Model: YX-E500
System Core Specifications
- CPU: Intel 6th to 9th generation platform Core processors
- Memory: 2 x DDR4 SO-DIMM（Max.64GB）
- Networking: 3 (2 x Intel i210, 1 x Intel i219)
- Display: 2 DP, 1 VGA, supports DP+DP/DP+VGA dual independent display
- Power: 24V DC; 9–36V DC optional
- Operating System: Windows 7 (only supported by the sixth generation), Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04
- Operating Temp: -20–50°C with airflow 0.7 m/s
Product overview
Technical specifications
YX-E500 Specifications
| Specs | Item | E500 |
|---|---|---|
| Processor System | CPU | Intel® 6th/7th/8th/9th Gen Processors with LGA1151 |
| Chipset | H110 | |
| BIOS | AMI 8MB UEFI | |
| Memory | Sockets | 2 x DDR4 SO-DIMM |
| Capacity | Max. 64GB | |
| Display | DP | 2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz |
| VGA | 1 x VGA, Max. 1920 x 1080@60Hz | |
| Dual Display | Yes, DP + DP or DP + VGA | |
| Audio | I/O | 1xMic-in, 1xLine-out |
| Ethernet | LAN | 2 x Intel i210 GbE LAN |
| LAN | 1 x Intel i219 GbE LAN | |

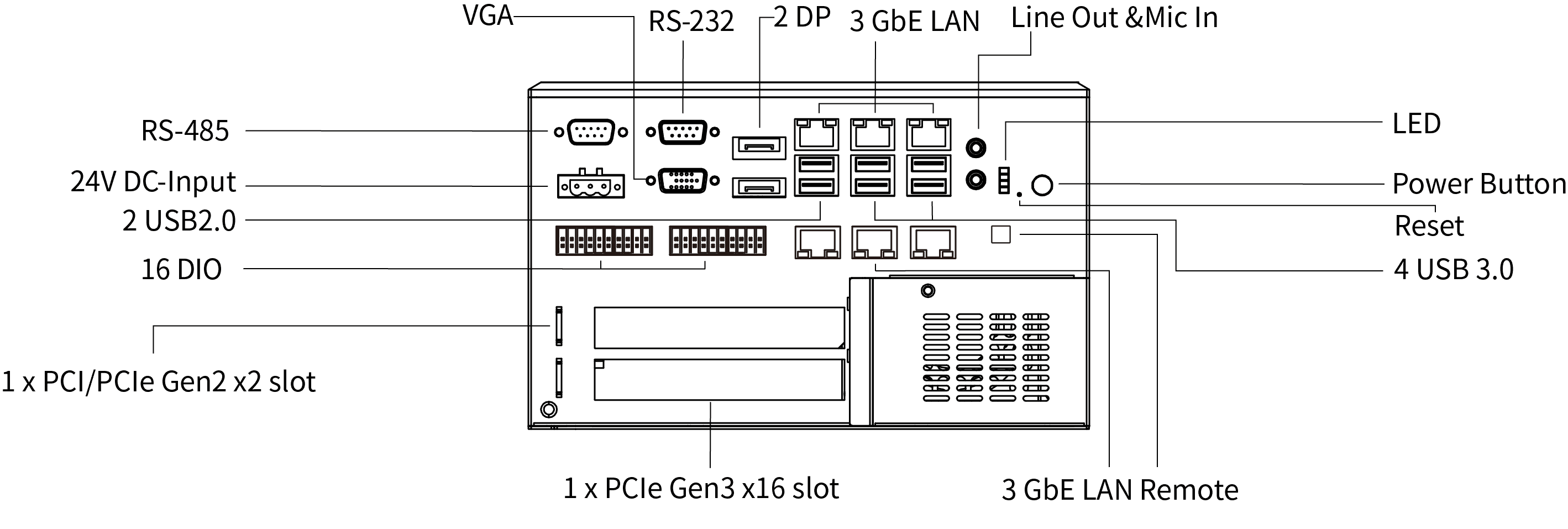

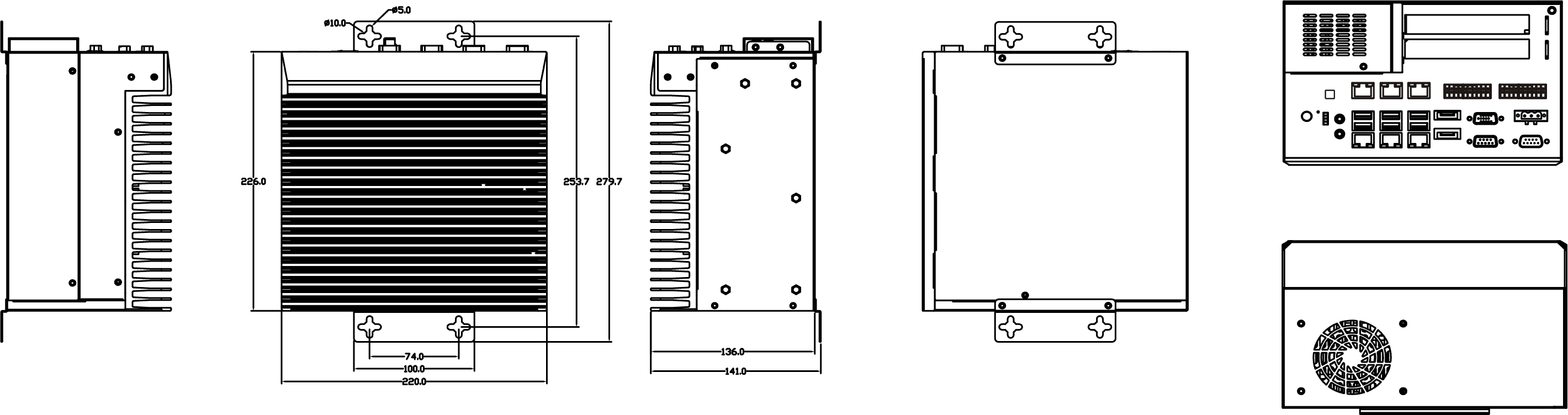

| I/O Interface | USB | 2 x USB2.0, 4 x USB3.0 |
| COM | 1 x RS-232/ 422/ 485, 1 x RS-232 | |
| Power Connector | 1 x 4-Pin Power Connector | |
| Expansion | Mini-PCIe | 1 x full-size mini-PCIe, Support WLAN/WWAN module |
| USIM | 1 x USIM, Support 3G/4G LTE | |
| Storage | M.2 | 1 x M.2 |
| SATA3.0 | 1 x SATA3.0, For 2.5" SATA storage device | |
| Watchdog | Output/Interval | Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec |
| Power Supply | DC input | 24V DC; 9–36V DC optional |
| OS | MicrosoftWindows | Windows 7(Intel® 6th Gen CPU only), Windows 10 |
| Linux | Centos 7/8, ubuntu 18.04/ 20.04/ 22.04 | |
| Physical Characteristics | Construction | Aluminium Alloy |
| Mounting | Wall Mounting | |
| Dimensions | 220 x 226 x 68 mm (L x W x H) | |
| Weight | 3.0 Kg | |
| Environment | Operating Temperature | -20–50°C with airflow 0.7 m/s |
| Storage Temperature | −40–85°C (−40–185°F) | |
| Relative Humidity | 95%@40°C(Non-Condensing) | |
| Vibration During Operation | With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis | |
| Shock During Operation | With SSD:30 G, IEC 60068-2-27, half sine, 11m duration | |
| ESD | Contact +/-4 KV, Air +/-8 KV | |
| EMC | CE/FCCClassB |
Downloads
No download files are attached to this product. You can request documents from our engineers.
Frequently Asked Questions
Technical specifications, OS compatibility, and deployment details for this platform
What processor and memory are listed for YX-E500?
Processor: Intel 6th to 9th generation platform Core processors; Memory: 2 x DDR4 SO-DIMM（Max.64GB）
What interfaces are listed for YX-E500?
Network: 3 (2 x Intel i210, 1 x Intel i219); Display: 2 DP, 1 VGA, supports DP+DP/DP+VGA dual independent display
What operating conditions and software are listed for YX-E500?
Power input: 24V DC; 9–36V DC optional; Operating temperature: -20–50°C with airflow 0.7 m/s; Operating system: Windows 7 (only supported by the sixth generation), Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04
