YX-E510 series

Name: YX-E510 series
Brand: Yantronic

Powered by Intel LGA1151 Processor, Equipped with 6x GbE LAN, VGA & Industrial I/O, Supports 24V DC, 0°C to 50°C Wide Operation

Model: YX-E510

Image 1 of 5

System Core Specifications

CPU: Intel sixth to ninth generation desktop processors (LGA1151)
Memory: 2 x DDR4 SO-DIMM（Max.64GB）
Networking: 6 × GbE LAN (5 × Intel i210 + 1 × Intel i219)
Display: 2 DP, 1 VGA, supports DP+DP/DP+VGA dual independent display
Power: 24V DC; 9–36V DC optional
Operating System: Windows 7 (only supported by the sixth generation), Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04
Operating Temp: 0–50°C with airflow 0.7 m/s

Product overview

Technical specifications

Open Resource Center

YX-510 Specifications

Specs	Item	E510
Processor System	CPU	Intel® 6th/7th/8th/9th Gen Processors with LGA1151
	Chipset	H110
	BIOS	AMI 8MB UEFI
Memory	Sockets	2 x DDR4 SO-DIMM
Memory	Capacity	Max. 64GB
Display	DP	2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz
	VGA	1 x VGA, Max. 1920 x 1080@60Hz
	Dual Display	Yes, DP + DP or DP + VGA
Audio	I/O	1xMic-in, 1xLine-out
Ethernet	LAN	5 x Intel i210 GbE LAN
Ethernet	LAN	1 x Intel i219 GbE LAN

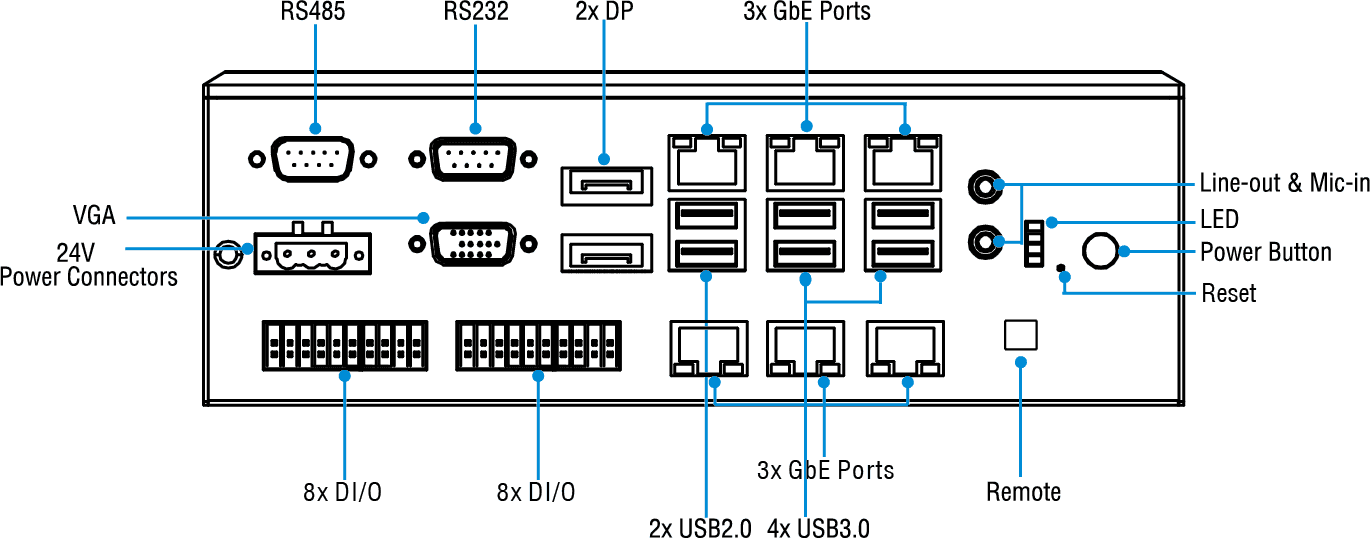

I/O Interface	USB	4 x USB 3.0, 2 x USB 2.0
	COM	1 x RS-232/422/485, 1 x RS-232
	DIO	16 DI, 16 DO
	Power Connector	1 × 3-pin Phoenix terminal
	Remote	1 x 2 PIN Remote switch
Expansion	Mini-PCIe	1 x full-size mini-PCIe, Support WLAN/WWAN module
Expansion	USIM	1xUSIM, Support 3G/4G LTE
Storage	M.2	1 x M.2
Storage	SATA3.0	1 x SATA3.0, For 2.5" SATA storage device
Watchdog	Output/Interval	Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec
Power Supply	DC input	24V DC; 9–36V DC optional
OS	MicrosoftWindows	Windows 7(Intel® 6th Gen CPU only), Windows 10 64Bit
OS	Linux	centos 7/8, ubuntu 18.04/20.04/22.04
Physical Characteristics	Construction	Aluminium Alloy
	Mounting	Wall Mounting

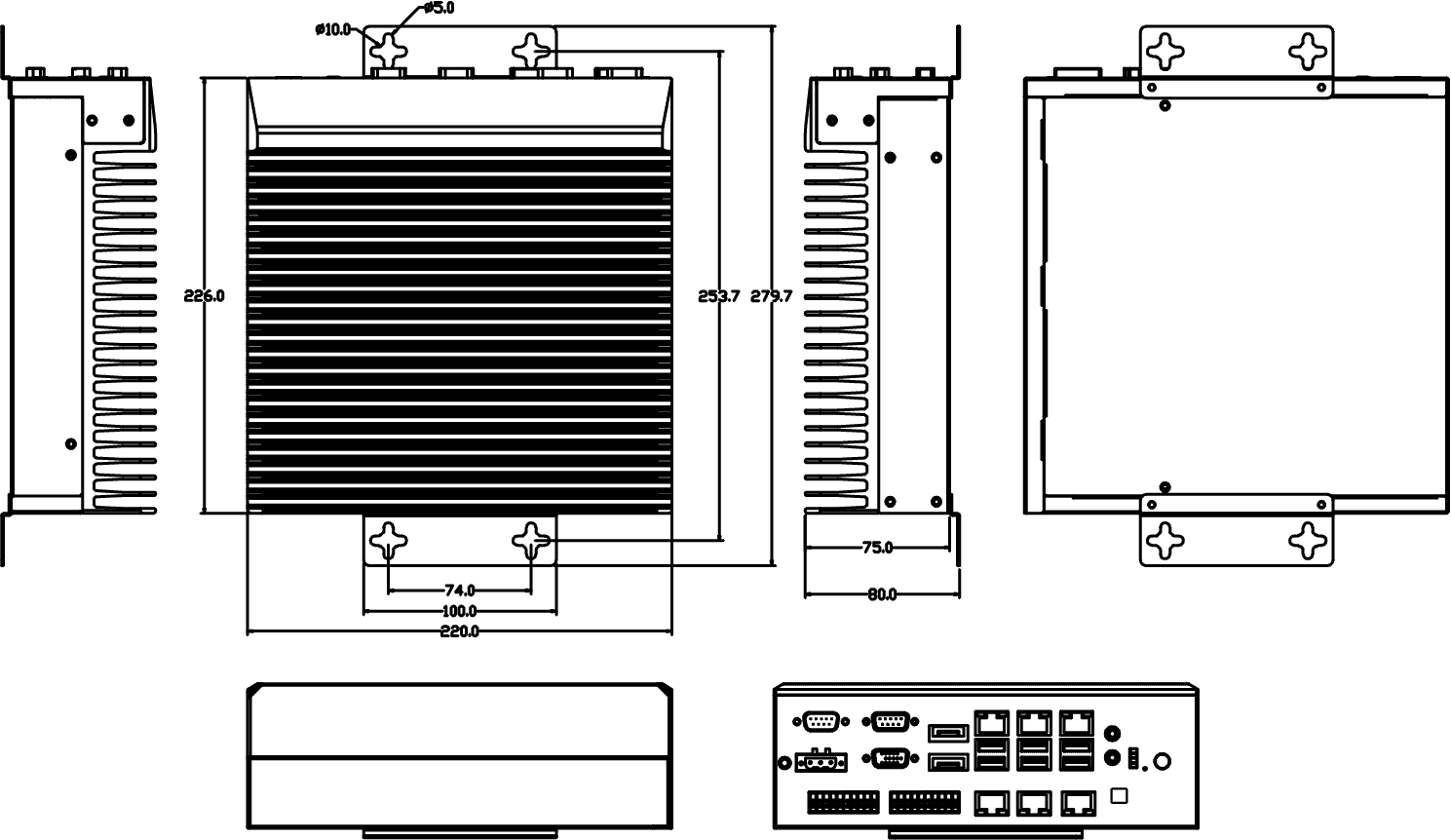

	Dimensions	220 x 226 x 75mm (L x W x H)
	Weight	3.3 kg
Environment	Operating Temperature	0°C~50°C, Airflow 0.7m / s
	Storage Temperature	−40–85°C (−40–185°F)
	Relative Humidity	95%@40°C(Non-Condensing)
	Vibration During Operation	With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis
	Shock During Operation	With SSD:30 G, IEC 60068-2-27, half sine, 11m duration
	ESD	Contact +/-4 KV, Air +/-8 KV
	EMC	CE/FCCClassB

Downloads

Open Resource Center

No download files are attached to this product. You can request documents from our engineers.

Frequently Asked Questions

Technical specifications, OS compatibility, and deployment details for this platform

What processor and memory are listed for YX-E510?

Processor: Intel sixth to ninth generation desktop processors (LGA1151); Memory: 2 x DDR4 SO-DIMM（Max.64GB）

What interfaces are listed for YX-E510?

Network: 6 × GbE LAN (5 × Intel i210 + 1 × Intel i219); Display: 2 DP, 1 VGA, supports DP+DP/DP+VGA dual independent display

What operating conditions and software are listed for YX-E510?

Power input: 24V DC; 9–36V DC optional; Operating temperature: 0–50°C with airflow 0.7 m/s; Operating system: Windows 7 (only supported by the sixth generation), Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04
