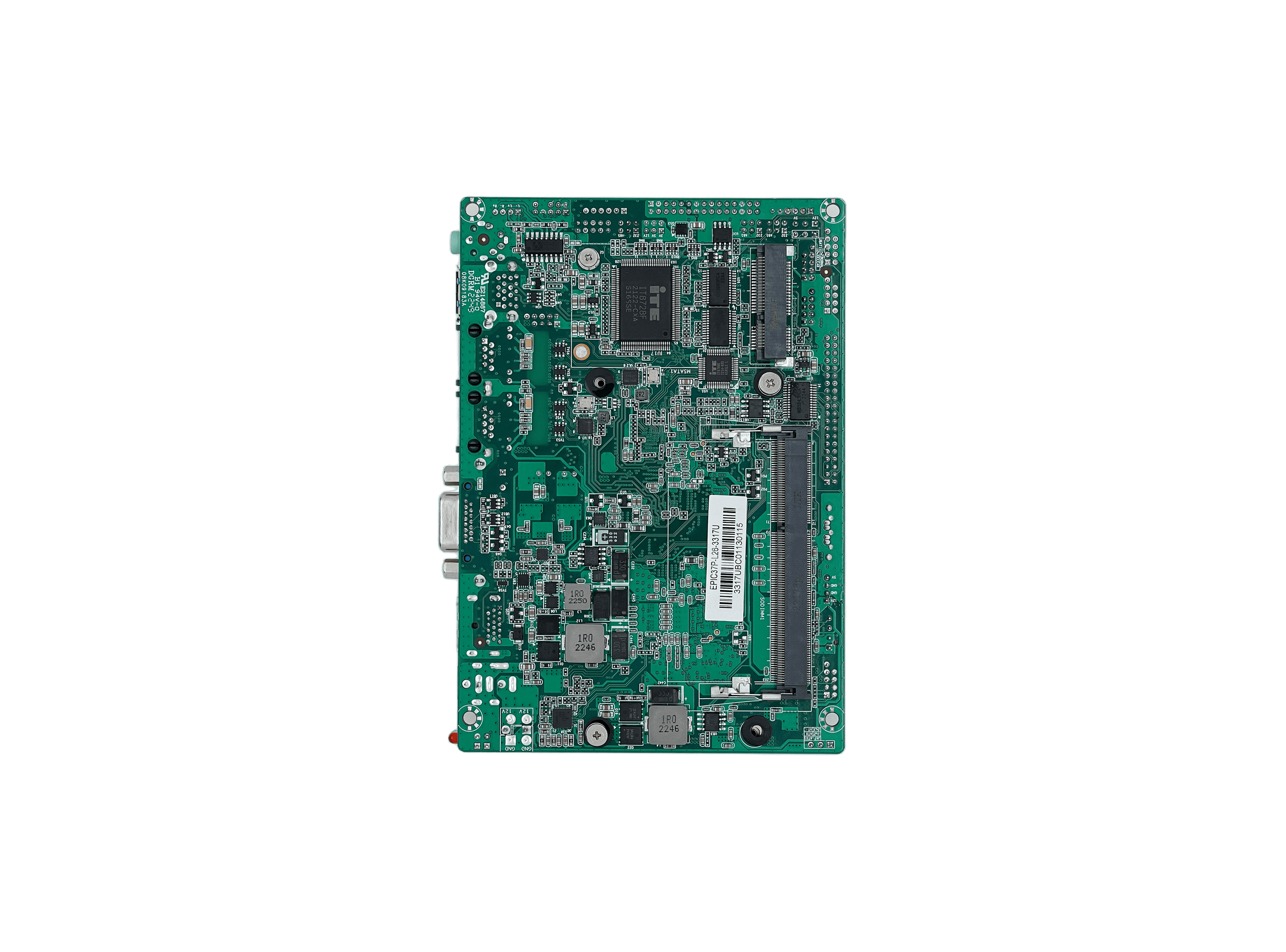

型号: MB35-300U
| Category | Parameter | Specification |
|---|---|---|
| Model | Product Model | ME35-300U VER1.0 |
| OS | Supported OS | Windows 7/Windows 10/Linux |
| Processor | CPU Model | Integrated Intel® Celeron J1900/2.0G Quad-core Processor |
| Compatibility | Compatible with Intel® Baytrail-I/M/D Series CPU | |
| Memory | Slot Quantity | 1*SO-DIMM memory slot, supports single channel |
| Spec & Capacity | 1600/1333MHz DDR3L/1.35V memory, up to 8GB Integrated Intel® HD Graphics | |
| Display | Interface | 1* VGA Port, 1*HDMI1.2 Port, 1*LVDS Port |
| Features | Supports VGA, HDMI, LVDS synchronous/asynchronous dual display Default LVDS, optional eDP interface, please confirm before ordering | |
| Network | LAN | 2* intel i211/i210 Gigabit Ethernet, supports Wake-on-LAN/PXE |
| Wireless | 1* Mini-PCIe slot (supports half/full size cards), supports WIFI/4G modules | |
| Storage | SATA | 1* SATA2.0 Interface |
| mSATA | 1* mSATA2.0 Slot | |
| Audio | Controller | Onboard ALC662/ALC897/ALC262 6-channel HD Audio Controller |
| Features | Supports MIC/Line-out, power consumption 3W | |
| HDMI Audio | 1* HDMI Display Interface | |
| VGA Audio | 1* VGA Display Interface | |
| USB | Rear USB | 1* USB3.0 Port, 1* USB 2.0 Port |
| Internal USB | 4* USB 2.0 Header 2*5Pin | |
| Rear I/O | Network | 2* RJ-45 Gigabit Ethernet Ports |
| Audio | 1* Line out Port (Green) | |
| Indicator | 1* Keyboard/Power LED | |
| Power | 1* 12V DC Power Input Port | |
| Internal I/O | LVDS | 1* LVDS Header 2*16pin, supports dual channel 24bit Default LVDS, optional eDP interface, please confirm before ordering |
| Backlight | 1* Screen Backlight Power Header 1*6pin | |
| Front Audio | 1* Front Audio Header 2*5pin | |
| Amplifier | 1* Amplifier Header 1*4pin | |
| SIM | 1* SIM Slot 2*3Pin | |
| Serial | 6* COM Ports (COM2/COM3 optionally supports RS485) | |
| PS2 | 1* PS2 Header 1*6Pin | |
| KB Power | 1* Keyboard Power Header 1*4Pin | |
| Front Panel | 1* Front Panel Switch Button and LED Header 2*5Pin | |
| Internal Power | 1* 2pin DC 12V Power Connector | |
| Fan | Cooling | Fanless cooling design, 1*4pin CPU Fan Header |
| GPIO | Digital I/O | Supports 4-way Input/Output GPIO |
| BIOS | Storage | 64Mb Flash ROM |
| Watchdog | Reset | Supports hardware reset function (256 levels, 0～255 seconds) |
| Power Type | Supply Mode | DC 12V Power Supply |
| Environment | Storage Temp | -20℃～70℃ |
| Humidity | 5%-95% relative humidity, non-condensing | |
| Operating Temp | 60℃～-20℃ | |
| Dimensions | Size | 146mm x 102mm |
| 硬件及核心系统 | |
|---|---|
| 处理器/CPU | Intel i3-3217U/i5-3317U |
| 系统内存 | LPDDR3L（Max.8GB） |
| 网络/局域网 | 2 Intel i226 2.5GbE LAN |
| 显示输出 | 1*HDMI/1*VGA |
| I/O 和物理结构 | |
| 机械/外壳 | 工业金属机箱 |
| 电源要求 | 12V电源 |
| 操作系统 | Win 10/11 和 Linux 多版本系统 |
| 工作环境温度 | 0-68摄氏度 |
针对该型号的硬件规格、系统兼容性与部署支持
MB35-300U 兼容 Win 10/11 和 Linux 多版本系统 等工业操作系统。研响科技提供完善的底层 BSP 驱动包与长期系统镜像定制服务，满足工业自动化控制与边缘 AI 部署需求。
MB35-300U 采用工业级加固结构与高效无风扇被动散热架构，支持 0-68摄氏度 宽温范围稳定运行。密闭金属机箱有效隔离工业粉尘与油污，通过抗振动与抗冲击测试，确保工厂现场 7x24 小时连续无故障运转。
MB35-300U 支持 12V电源，具备内置过压、过流及电源防反接保护，配备 2 Intel i226 2.5GbE LAN，支持 1 HDMI/1 VGA，可灵活接入工厂配电柜、自动化机台与智能车载电气系统。
支持。研响科技提供涵盖主板 BIOS/UEFI 深度配置、专用 I/O 接口板扩展、专属机箱外观定制与品牌私有包装的全流程 OEM/ODM 服务，并为工业项目提供 5 至 7 年以上的稳定产品生命周期支持。
