YX-C200
Powered by Intel Embedded CPU Processor, Engineered for Industrial Automation & Embedded Systems
Model: YX-C200
System Core Specifications
- CPU: PCI Express Gen2/Gen3 interface
- Memory: 4-port USB3.1 provided by 2 independent controllers
- Networking: Onboard 5V DC regulated power supply, no additional power supply required
- Display: 1500mA current limit
- Power: Compatible with USB 3.1 Rev. 1.0, Intel xHCI Rev. 1.0 standards
- Operating System: Windows 7/8/10, Linux
- Operating Temp: 4 x USB 3.1
Product overview
Technical specifications
| C200-100 | C200-200 | |
|---|---|---|
| bus interface | 4-lanes, PCI Express Gen2 interface 2.5 GB/s total bandwidth, each port provides up to 600MB/s | 4-lanes, PCI Express Gen3 interface 4GB/s total bandwidth, each port provides up to 900MB/s |

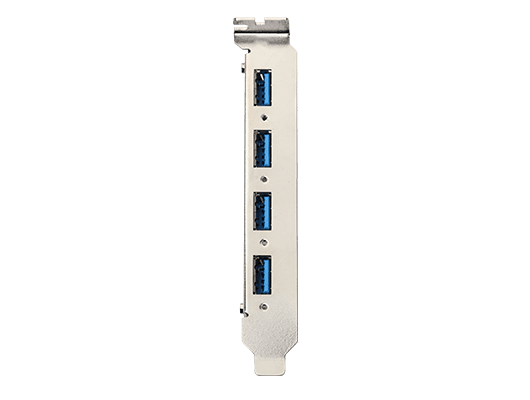

| USB interface | 4 USB3.1 interfaces, compatible with USB3.0/USB2.0/1.1/1.0 4 USB 3.0 Type-A standard parts on the front panel (A2 color blue) | |
| USB controller | 2 ASM3142 main controllers Complies with Universal Serial Bus 3.1 specification revision 1.0 specification Compliant with Intel xHCI specification revision 1.0 | |
| USB per port current limit control | User selectable 1500mA per port current limit control | |
| Power requirements | Draw power from PCI Express bus: maximum 2.0A @ 3.3V Drawing power from PCI Express bus: maximum 7.8A @ 12V, used to power external devices | |
| Operating environment | 0°C - 60°C with draft Humidity: 5%~90% relative humidity, non-condensing | |
| System support | Windows 7/8/10, Linux | |

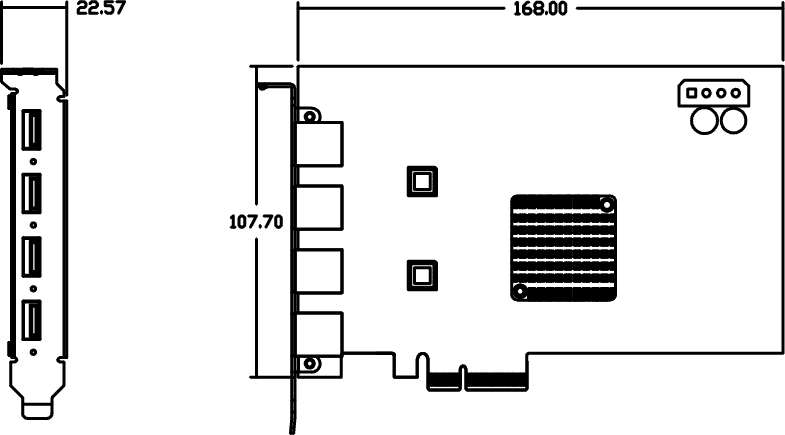

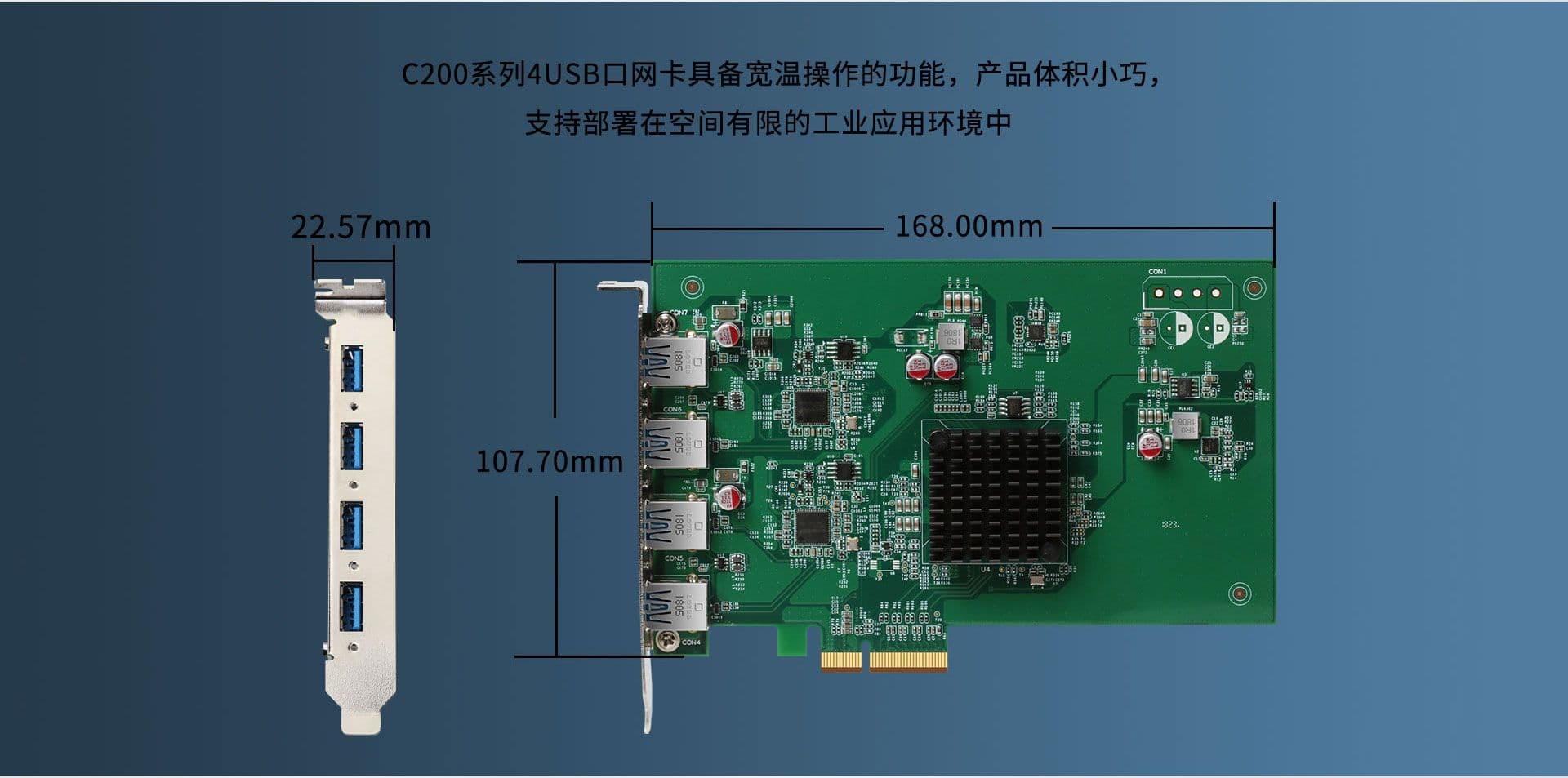

| Product size | 168 mm x 112 mm (width x height) | |
Downloads
No download files are attached to this product. You can request documents from our engineers.
Frequently Asked Questions
Technical specifications, OS compatibility, and deployment details for this platform
What processor and memory are listed for YX-C200?
Processor: PCI Express Gen2/Gen3 interface; Memory: 4-port USB3.1 provided by 2 independent controllers
What interfaces are listed for YX-C200?
Network: Onboard 5V DC regulated power supply, no additional power supply required; Display: 1500mA current limit
What operating conditions and software are listed for YX-C200?
Power input: Compatible with USB 3.1 Rev. 1.0, Intel xHCI Rev. 1.0 standards; Operating temperature: 4 x USB 3.1; Operating system: Windows 7/8/10, Linux
