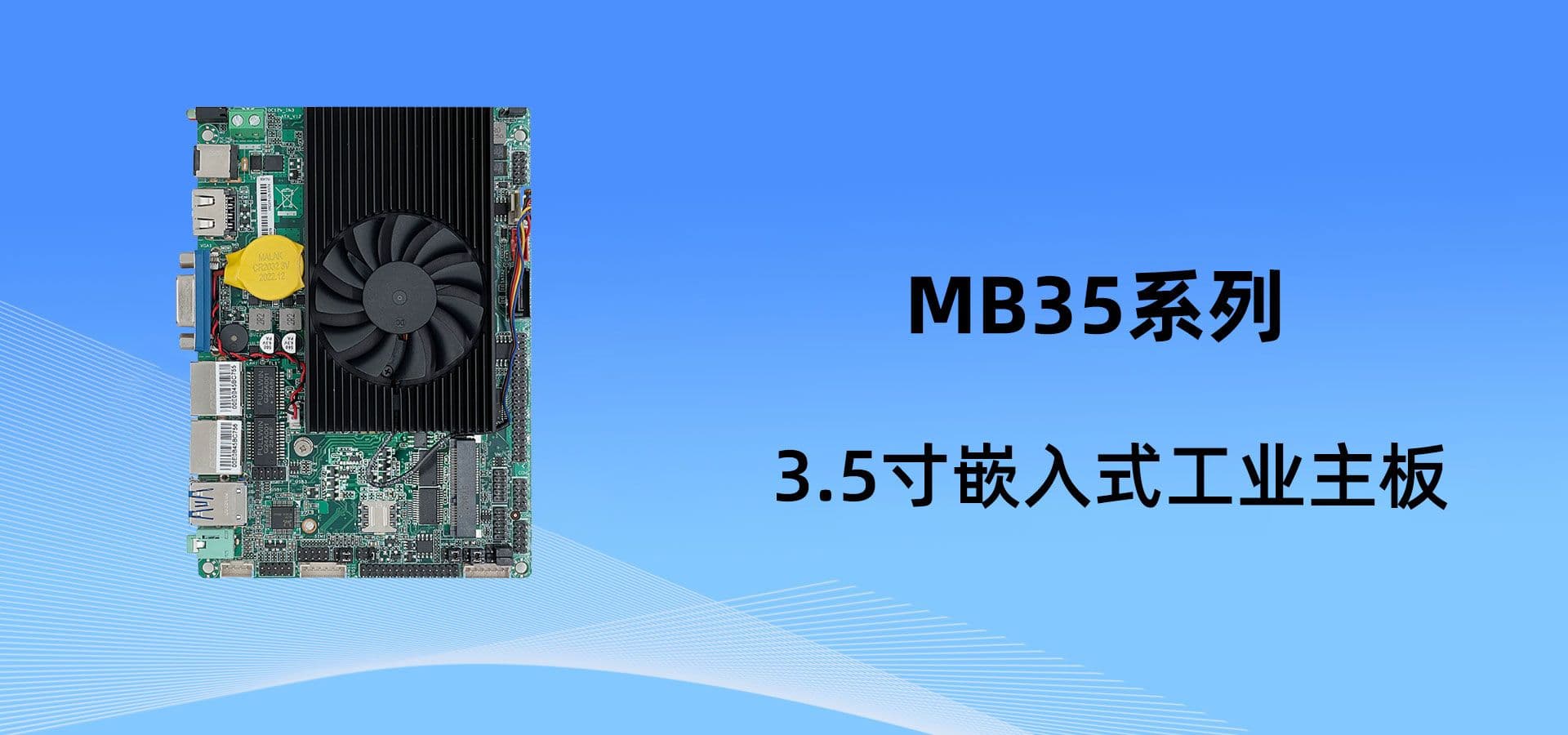

MB35-300U
Powered by Intel Core i3-3217U Processor, Equipped with 2.5GbE LAN, HDMI VGA & Industrial I/O, Supports 12V DC Wide Operation
Model: MB35-300U
System Core Specifications
- CPU: Intel i3-3217U/i5-3317U
- Memory: LPDDR3L（Max.8GB）
- Networking: 2 Intel i226 2.5GbE LAN
- Display: 1*HDMI/1*VGA
- Power: 12V power supply
- Operating System: Win 10/11 and Linux multi-version systems
- Operating Temp: 0-68 degrees Celsius

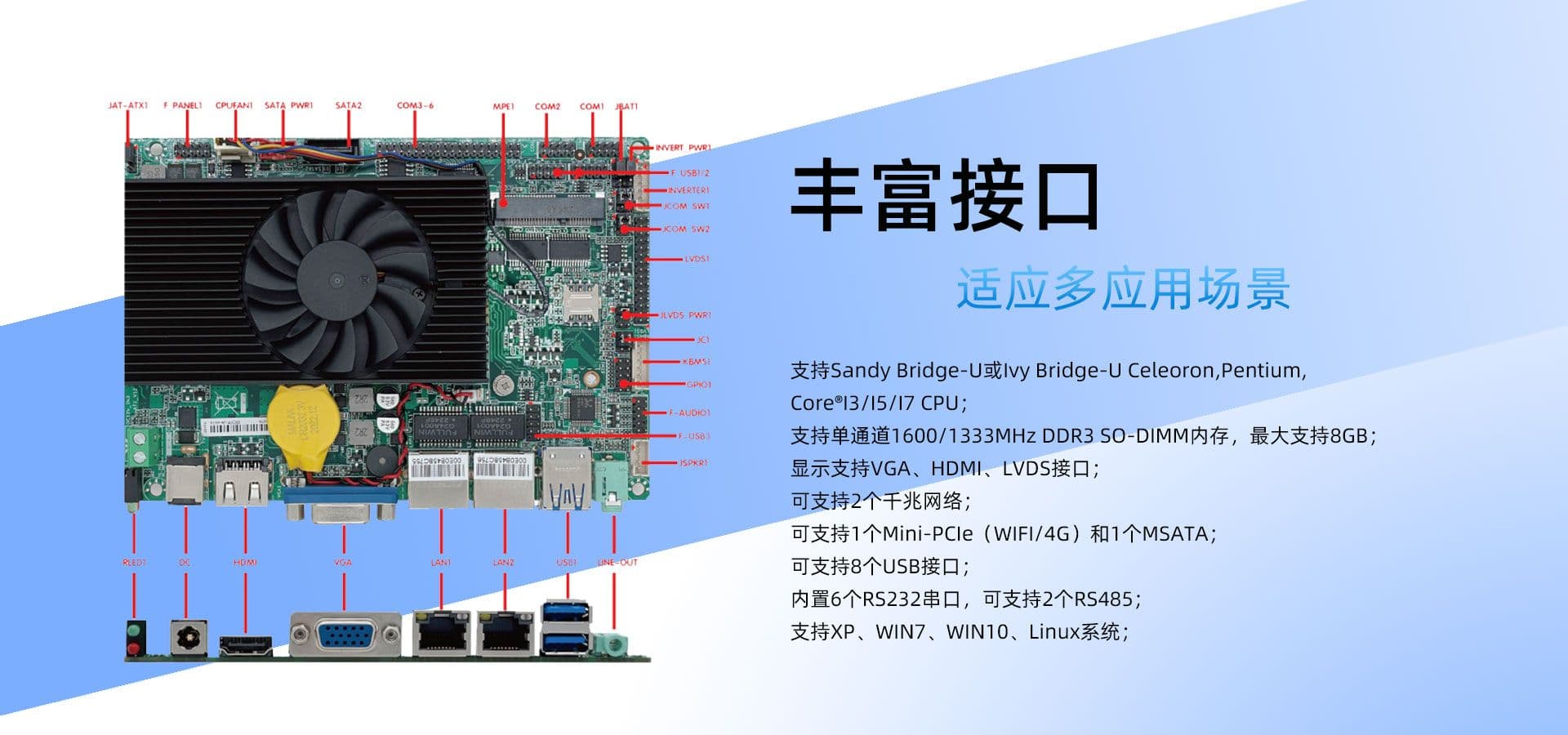

Product overview
Technical specifications
ME35-300U VER1.0 Product Specifications
| Category | Parameter | Specification |
|---|---|---|
| Model | Product Model | ME35-300U VER1.0 |
| OS | Supported OS | Windows 7/Windows 10/Linux |
| Processor | CPU Model | Integrated Intel® Celeron J1900/2.0G Quad-core Processor |
| Compatibility | Compatible with Intel® Baytrail-I/M/D Series CPU | |
| Memory | Slot Quantity | 1*SO-DIMM memory slot, supports single channel |
| Spec & Capacity | 1600/1333MHz DDR3L/1.35V memory, up to 8GB Integrated Intel® HD Graphics | |
| Display | Interface | 1* VGA Port, 1*HDMI1.2 Port, 1*LVDS Port |
| Features | Supports VGA, HDMI, LVDS synchronous/asynchronous dual display Default LVDS, optional eDP interface, please confirm before ordering | |
| Network | LAN | 2* intel i211/i210 Gigabit Ethernet, supports Wake-on-LAN/PXE |
| Wireless | 1* Mini-PCIe slot (supports half/full size cards), supports WIFI/4G modules | |
| Storage | SATA | 1* SATA2.0 Interface |
| mSATA | 1* mSATA2.0 Slot | |
| Audio | Controller | Onboard ALC662/ALC897/ALC262 6-channel HD Audio Controller |
| Features | Supports MIC/Line-out, power consumption 3W | |
| HDMI Audio | 1* HDMI Display Interface | |
| VGA Audio | 1* VGA Display Interface | |
| USB | Rear USB | 1* USB3.0 Port, 1* USB 2.0 Port |
| Internal USB | 4* USB 2.0 Header 2*5Pin | |
| Rear I/O | Network | 2* RJ-45 Gigabit Ethernet Ports |
| Audio | 1* Line out Port (Green) | |
| Indicator | 1* Keyboard/Power LED | |
| Power | 1* 12V DC Power Input Port | |
| Internal I/O | LVDS | 1* LVDS Header 2*16pin, supports dual channel 24bit Default LVDS, optional eDP interface, please confirm before ordering |
| Backlight | 1* Screen Backlight Power Header 1*6pin | |
| Front Audio | 1* Front Audio Header 2*5pin | |
| Amplifier | 1* Amplifier Header 1*4pin | |
| SIM | 1* SIM Slot 2*3Pin | |
| Serial | 6* COM Ports (COM2/COM3 optionally supports RS485) | |
| PS2 | 1* PS2 Header 1*6Pin | |
| KB Power | 1* Keyboard Power Header 1*4Pin | |
| Front Panel | 1* Front Panel Switch Button and LED Header 2*5Pin | |
| Internal Power | 1* 2pin DC 12V Power Connector | |
| Fan | Cooling | Fanless cooling design, 1*4pin CPU Fan Header |
| GPIO | Digital I/O | Supports 4-way Input/Output GPIO |
| BIOS | Storage | 64Mb Flash ROM |
| Watchdog | Reset | Supports hardware reset function (256 levels, 0～255 seconds) |
| Power Type | Supply Mode | DC 12V Power Supply |
| Environment | Storage Temp | -20℃～70℃ |
| Humidity | 5%-95% relative humidity, non-condensing | |
| Operating Temp | 60℃～-20℃ | |

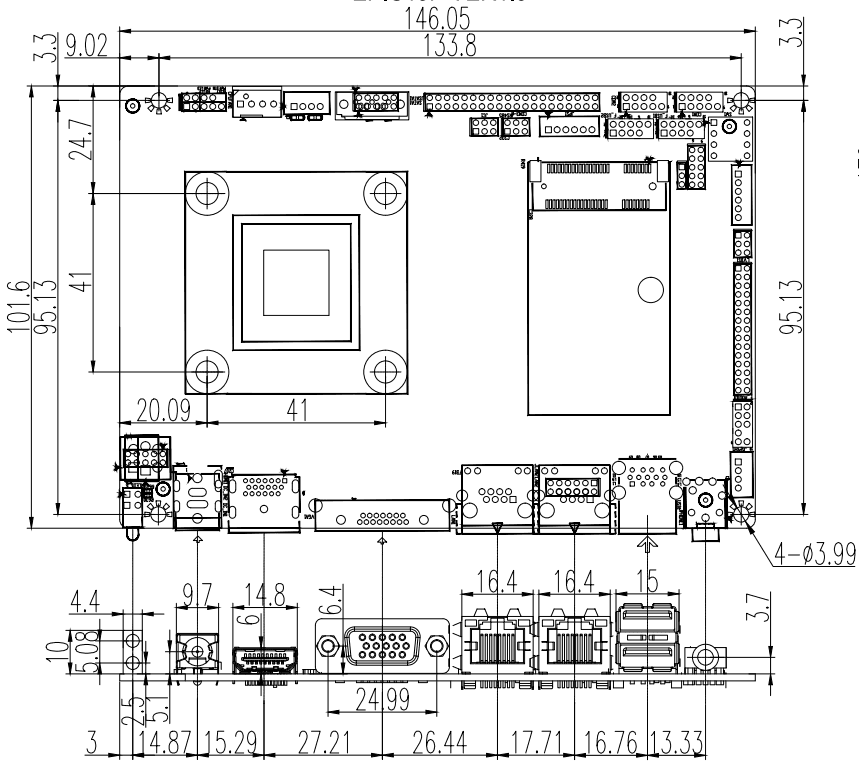

| Dimensions | Size | 146mm x 102mm |
Downloads
No download files are attached to this product. You can request documents from our engineers.
Frequently Asked Questions
Technical specifications, OS compatibility, and deployment details for this platform
What processor and memory are listed for MB35-300U?
Processor: Intel i3-3217U/i5-3317U; Memory: LPDDR3L（Max.8GB）
What interfaces are listed for MB35-300U?
Network: 2 Intel i226 2.5GbE LAN; Display: 1*HDMI/1*VGA
What operating conditions and software are listed for MB35-300U?
Power input: 12V power supply; Operating temperature: 0-68 degrees Celsius; Operating system: Win 10/11 and Linux multi-version systems
