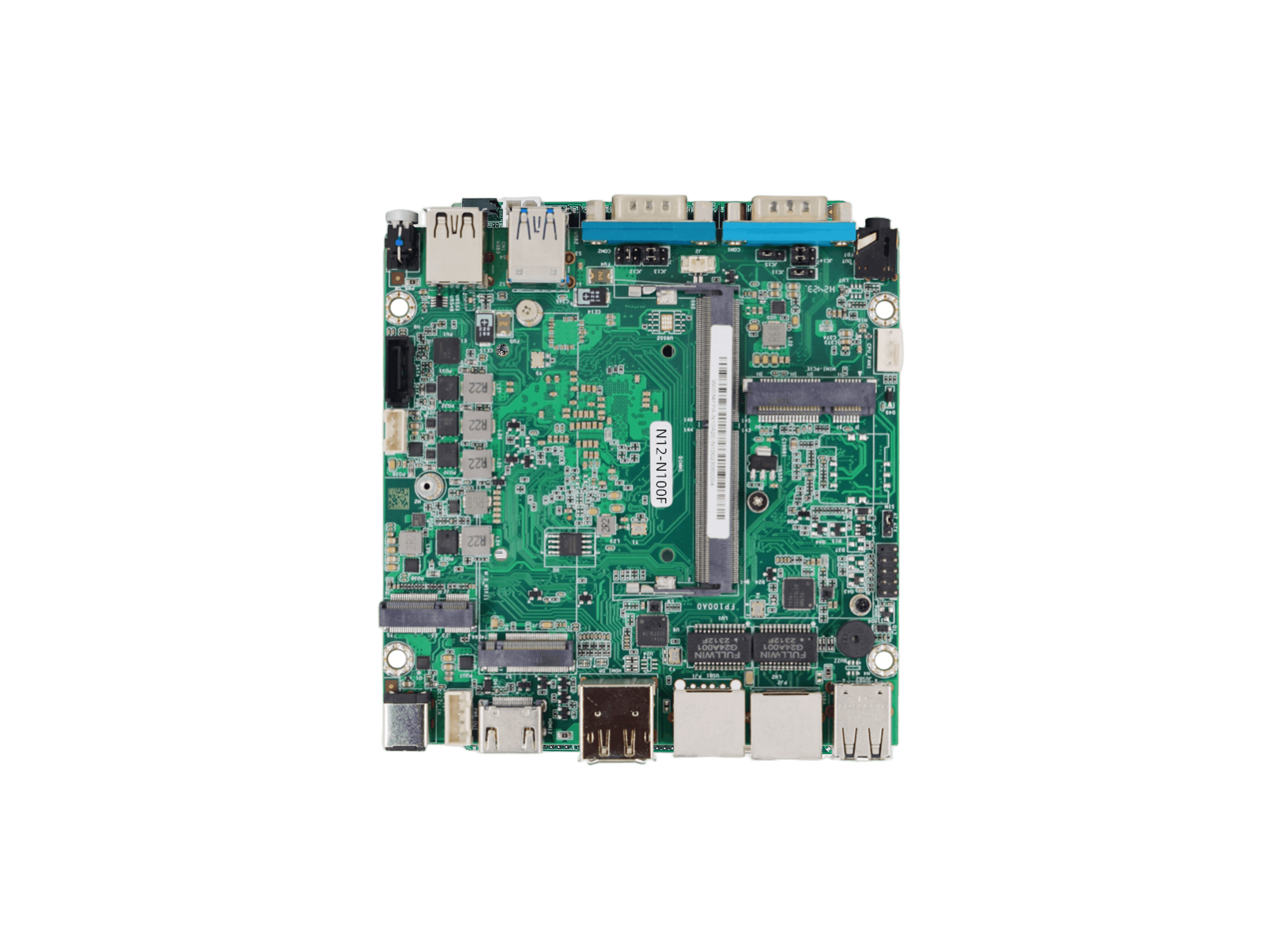

N12-N100F
Powered by Intel N97 Processor, Equipped with 2.5GbE LAN, HDMI DP & Industrial I/O, Supports 12V DC, 0°C to 68°C Wide Operation
Model: N12-N100F

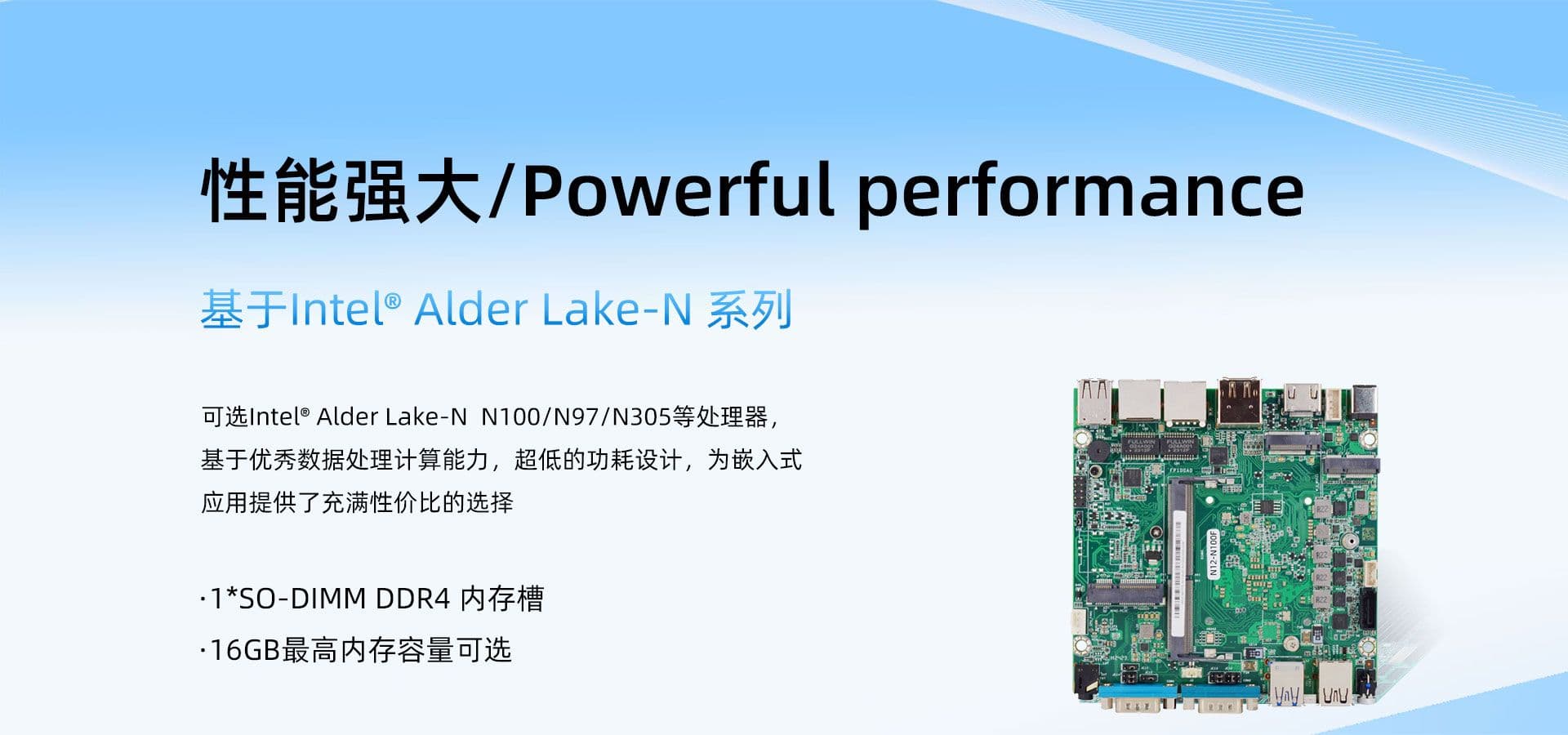

System Core Specifications
- CPU: Intel N97/N100/N150/N305
- Memory: LPDDR4L（Max.16GB）
- Networking: 2 Intel i226 2.5GbE LAN
- Display: 2 HDMI/1*DP
- Power: 12V power supply
- Operating System: Win 10/11 and Linux multi-version systems
- Operating Temp: 0-68°C

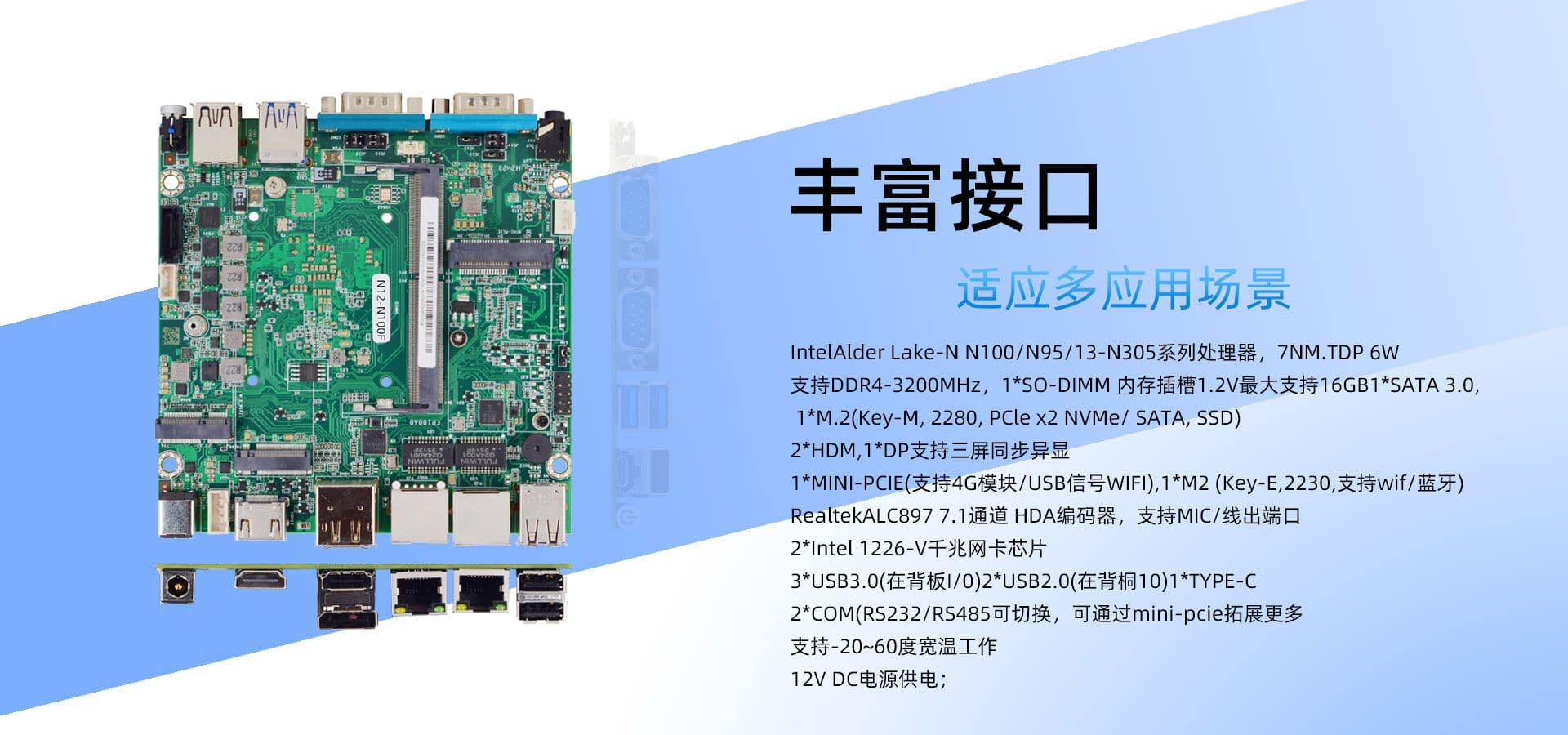

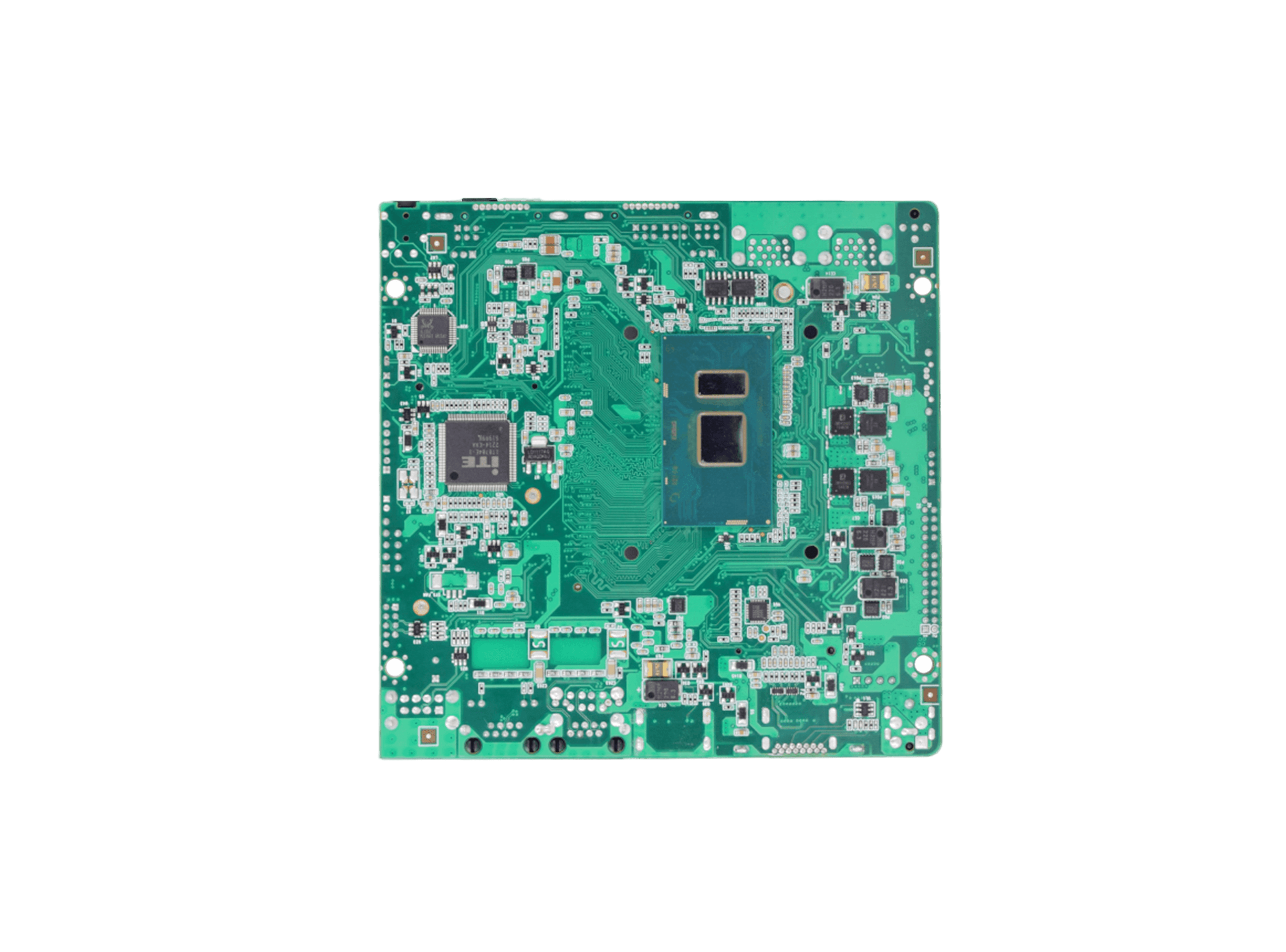

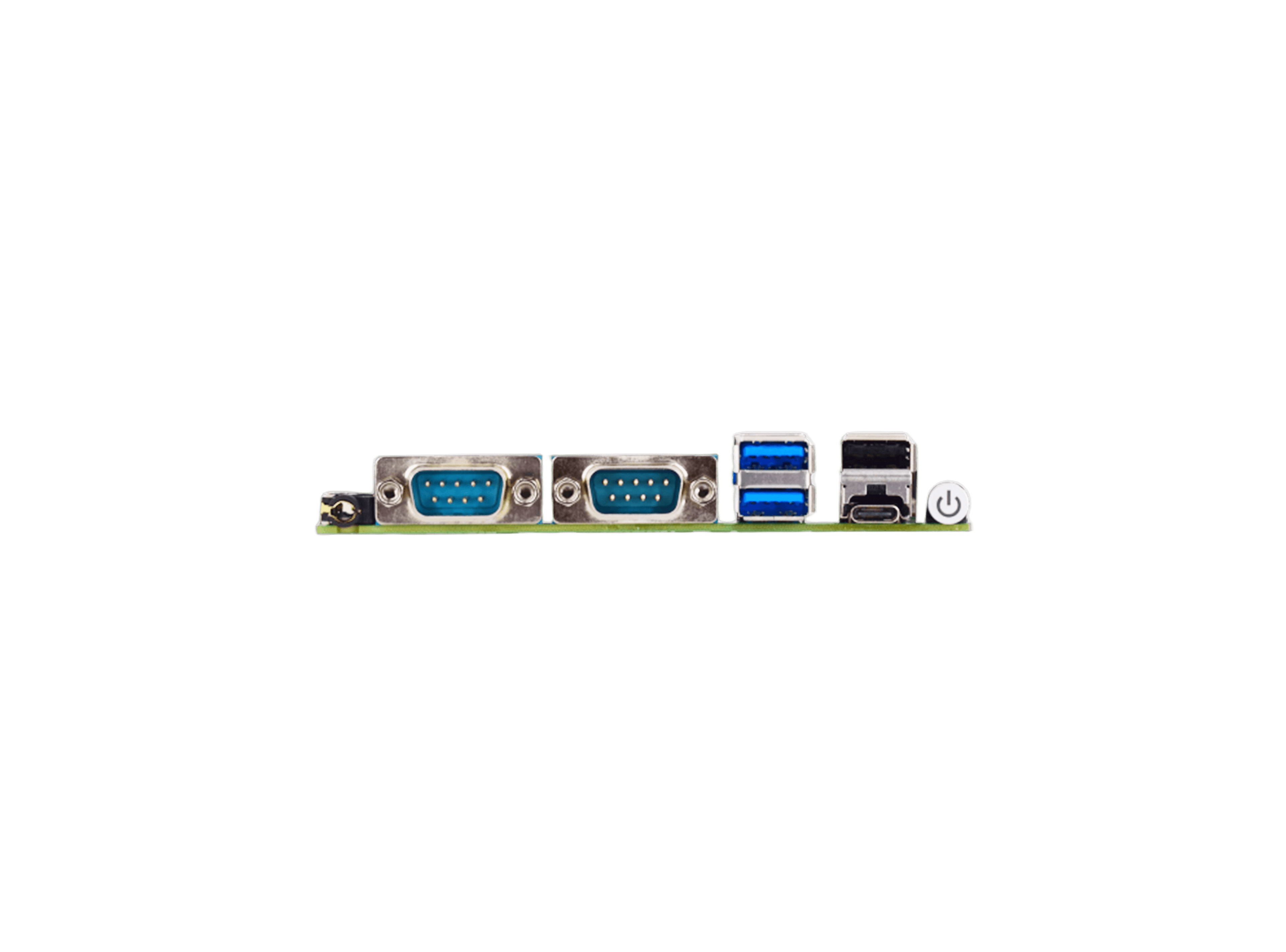

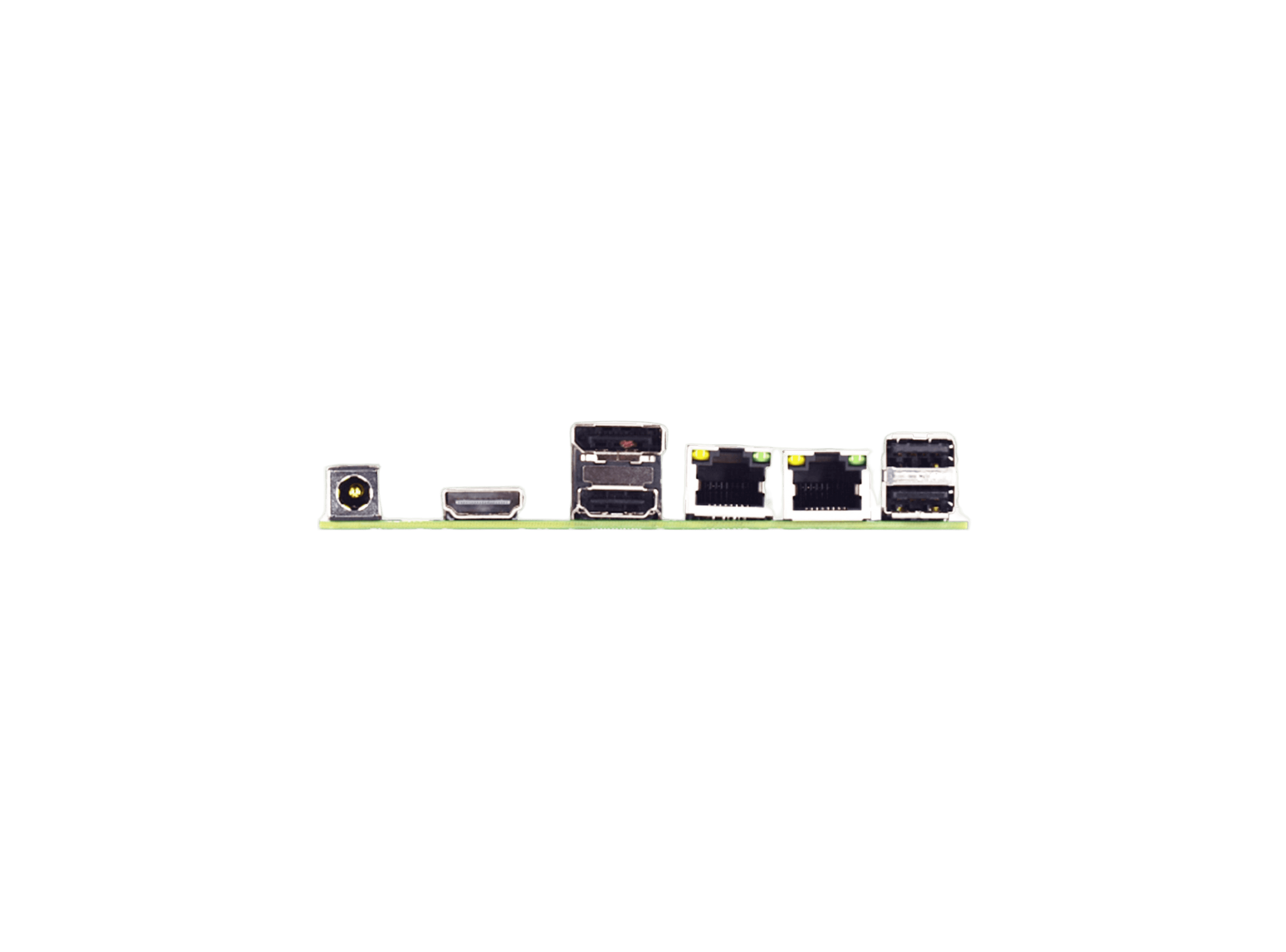

Product overview
Technical specifications
N12-N100F VER1.0 product specifications
| category | parameter | Specifications |
|---|---|---|
| model | Product model | N12-N100F VER1.0 |
| operating system | Support system | Windows 7/Windows 10/Linux |
| processor | CPU model | Integrated Intel® N97/N100/N150/N305/2.0G quad-core processor |
| compatibility | Compatible with Intel® Baytrail-I/M/D series CPUs | |
| Memory | Number of slots | 1*SO-DIMM memory slot, supports single channel |
| Specification capacity | 2666/3200MHz DDR4L/1.35V memory, maximum support 16GB Integrated Intel® HD Graphics core graphics card | |
| show | display interface | 1*DP interface, 2*HDMI1.2 interface |
| Display function | Support DP, HDMI synchronous/asynchronous dual display Default LVDS, optional eDP interface, please confirm in advance when placing an order | |
| network | wired network | 2* intel i211/i210 Gigabit network card, support wake-on-LAN/PXE |
| wireless extension | 1* Mini-PCIe slot (supports both half card and long card), supports WIFI/4G module | |
| storage | SATA interface | 1* SATA2.0 interface |
| mSATA interface | 1* mSATA2.0 slot | |
| Audio | audio controller | Onboard ALC662/ALC897/ALC262 6-channel high-fidelity audio controller |
| audio function | Support MIC/Line-out, power consumption 3W | |
| HDMI audio | 1* HDMI display interface | |
| VGA audio | 1* VGA display interface | |
| USB interface | Backplane USB | 1* USB3.0 interface, 1* USB 2.0 interface |
| Built-in USB | 4* USB 2.0 interface 2*5Pin | |
| Backplane I/O | network interface | 2* RJ-45 Gigabit network interface |
| audio interface | 1* Line out interface (green) | |
| indicator light | 1* Keyboard/power indicator light | |
| Power interface | 1* 12V DC power input interface | |
| Built-in I/O | LVDS interface | 1* LVDS interface 2*16pin, supports dual channel 24bit Default LVDS, optional eDP interface, please confirm in advance when placing an order |
| Screen backlight interface | 1* Screen backlight power supply interface 1*6pin | |
| Front audio | 1* Front audio interface 2*5pin | |
| Power amplifier interface | 1* Power amplifier interface 1*4pin | |
| SIM interface | 1* SIM interface 2*3Pin | |
| serial port | 6* COM interface (COM2/COM3 optionally supports RS485) | |
| PS2 interface | 1* PS2 interface 1*6Pin | |
| Keyboard powered | 1* Keyboard power supply interface 1*4Pin | |
| Front panel controls | 1* Front panel switch button and indicator light interface 2*5Pin | |
| Built-in power supply | 1* 2pin DC 12V power interface | |
| Fan interface | Thermal design | Fanless cooling design, 1*4pin CPU fan interface |
| GPIO | Digital I/O | Supports 4 input and output GPIOs |
| BIOS | Firmware storage | 64Mb Flash ROM |
| watchdog | hardware reset | Support hardware reset function (level 256, 0~255 seconds) |
| Power supply type | Power supply method | Powered by DC 12V motherboard hard source |
| environment | Storage temperature | -20℃～70℃ |
| Working humidity | 5%-95% relative humidity, no condensation | |
| working temperature | 60℃～-20℃ | |
| size | size | 120mm x 120mm |
Downloads
No download files are attached to this product. You can request documents from our engineers.
Frequently Asked Questions
Technical specifications, OS compatibility, and deployment details for this platform
What processor and memory are listed for N12-N100F?
Processor: Intel N97/N100/N150/N305; Memory: LPDDR4L（Max.16GB）
What interfaces are listed for N12-N100F?
Network: 2 Intel i226 2.5GbE LAN; Display: 2 HDMI/1*DP
What operating conditions and software are listed for N12-N100F?
Power input: 12V power supply; Operating temperature: 0-68°C; Operating system: Win 10/11 and Linux multi-version systems
