Quick answer
An integrated neural processing unit (NPU) can replace a discrete GPU for some industrial inference workloads, but only after the complete application passes compatibility, accuracy, latency and thermal tests. The model name, file size or advertised TOPS figure cannot make that decision alone.
New Core Ultra platforms make integrated acceleration worth evaluating for compact edge equipment. They do not establish that a particular industrial computer is available, fanless, compatible with an existing model or faster than its current GPU configuration. This article presents an engineering decision method, not Yantronic product benchmarks or a new-product announcement.
Why the new edge platforms deserve a closer look
Intel's May 20, 2026 edge robotics announcement positions Core Ultra Series 3 for edge AI workloads. A platform announcement is a reason to evaluate a candidate, not permission to remove the GPU from an approved industrial BOM.
Begin with the actual processor SKU, board design, operating system, NPU driver and runtime release. Confirm their supported combination before purchasing sample hardware. Embedded availability, environmental limits and service commitments must be verified for the selected components and complete system.

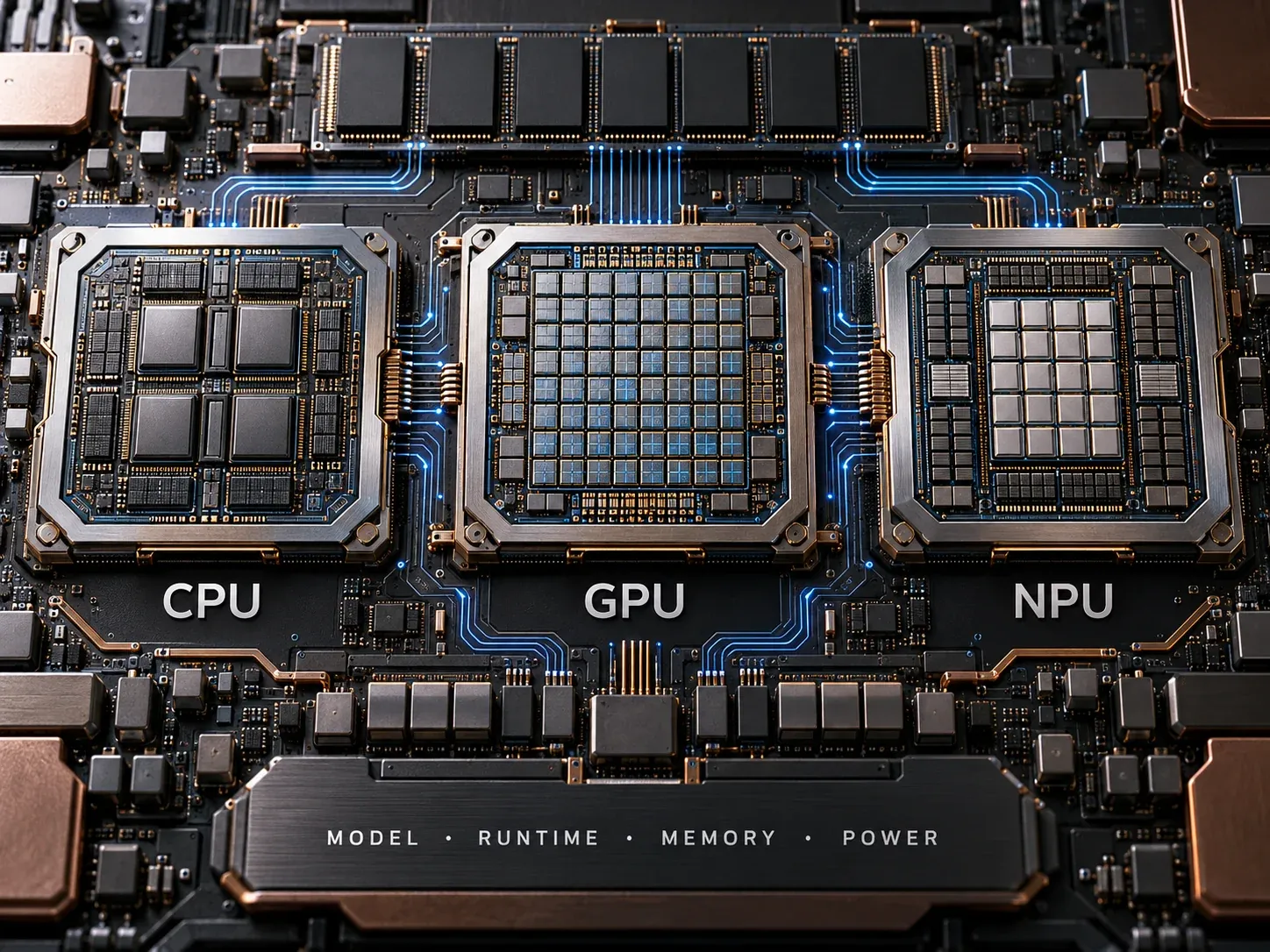

Figure 1. Questions for assigning work, not fixed performance rankings. Select the image to enlarge.
The CPU still handles control logic and many surrounding tasks. A GPU can provide flexible parallel processing and an established software ecosystem. An NPU targets supported neural-network execution. A useful system may use more than one engine rather than choosing a single winner.
Compare useful performance, not headline TOPS
A TOPS comparison needs matching precision, sparsity assumptions, operating conditions and workload. INT8, INT4, FP16 and FP32 are not interchangeable measures of application quality. Neither a high NPU rating nor the presence of GPU tensor hardware proves that a specific model meets an inspection requirement.
Measure the exported model with the intended input size and batch behavior. If quantization is used, compare the resulting decisions against a representative, separately held-out defect dataset. Examine false rejects and missed defects, not just a generic accuracy percentage. Keep the current configuration until the candidate meets the agreed quality limits.
Memory is another shared constraint. Integrated accelerators commonly share system memory with CPU and graphics, while many discrete GPUs have dedicated local memory. Compare the actual architecture rather than applying a universal bandwidth range to either category.
For illustration, two 64-bit memory channels at 5600 MT/s have a theoretical data rate of 2 × 8 × 5.6 = 89.6 GB/s. This is a bus calculation, not available NPU throughput: controller efficiency, contention and the platform design reduce usable headroom. Check channel definitions carefully rather than counting DDR5 subchannels twice.
Camera ingestion, decoding, image resizing, display and logging may compete with model weights and activations. Dedicated GPU memory can help some workloads, but transfers into it also have a cost. Identify the measured bottleneck before assigning the workload to an accelerator.
Confirm model and runtime compatibility
The OpenVINO NPU device documentation describes a versioned device plugin. Validate supported operators, shapes, precision and driver requirements for the chosen release; do not assume an ONNX file can run unchanged.
Unsupported operations may prevent compilation or require a different execution strategy. They do not universally cause automatic per-layer CPU fallback. OpenVINO AUTO behavior depends on its device selection and fallback configuration. Whole-model fallback and partitioning a graph across engines are different mechanisms.
Record compilation results and the devices actually executing inference. If the solution deliberately combines CPU, GPU and NPU, profile synchronization, conversions and intermediate buffers. Measure the real pipeline rather than assuming a fixed slowdown multiplier.
Budget the migration work
A CUDA- or TensorRT-based application may depend on custom kernels, preprocessing, plugins or memory-management behavior. Exporting model weights is only part of the work. Assess conversion, replacement code, calibration data, test coverage and future maintenance.
For this decision, the relevant question is narrower: what does this application depend on, and what would moving it cost? Include engineering effort and operational risk alongside hardware cost when comparing candidates.
A practical decision matrix
| Dimension | Evaluate an integrated NPU when… | Retain or evaluate a discrete GPU when… |
|---|---|---|
| Model support | The exact graph, shapes and precision work on the target runtime. | Required operators or custom code depend on the GPU stack. |
| Memory and concurrency | Shared memory leaves measured capacity for the complete workload. | Model state and concurrent workloads benefit from the selected GPU's resources. |
| Power and enclosure | The complete candidate meets input-power and cooling limits. | Required performance fits a separately qualified GPU system. |
| Engineering effort | Migration and maintenance costs are acceptable. | Keeping validated GPU software avoids disproportionate redevelopment. |
Single-camera classification and compact detection are reasonable candidates for evaluation, not guaranteed NPU wins. Likewise, segmentation, multiple cameras or a short cycle time do not prove a GPU is universally mandatory. Compare implementations against the same inputs, quality targets and deadlines.
A GPU is not inherently a hard real-time controller. If a decision has a strict deadline, the entire acquisition, scheduling, inference and output path needs an appropriate system design. Use tail-latency measurements to understand behavior without treating a percentile as a guarantee.
Four gates before changing the hardware BOM
Figure 2. A proposed migration review. Keep the accepted configuration until the candidate passes. Select the image to enlarge.
- Model correctness. Verify operators, input shapes, precision and output interpretation. Compare results on representative and difficult samples. Save the model hash and evaluation dataset version.
- A reproducible software stack. Record processor SKU, firmware, OS, driver, runtime and conversion tools. Test a clean installation and recovery procedure rather than relying only on one developer's machine.
- The full production workload. Run camera capture, preprocessing, inference, operator display, logging and industrial communication together. Measure trigger-to-decision latency, throughput, missed deadlines and actual execution devices.
- System acceptance. Test input power, sustained temperatures, throttling and recovery in the intended enclosure, within its declared operating limits. Agree on test duration and environmental conditions; a fixed chamber temperature or burn-in period is not suitable for every system.
Removing a graphics card may simplify cooling or packaging, but it does not automatically produce a sealed fanless computer, a fixed volume reduction or a guaranteed power saving. Measure the complete system, including memory, storage, converters and peripherals. For cooling considerations, see the fanless thermal design guide.
Edge AI qualification checklist
- Identify the exact processor, runtime, driver and supported model configuration.
- Verify quality after export or quantization using representative defect data.
- Profile shared memory, copies, preprocessing and actual execution devices.
- Measure complete-workload latency and throughput against agreed limits.
- Validate enclosure cooling, input power, recovery and maintainability.
- Obtain written lifecycle and supply information for the selected SKU and system.
The GPU vs CPU edge AI guide covers the broader compute architecture question. An NPU evaluation should extend that comparison rather than replace it with a TOPS ranking.
FAQ
Can an NPU's TOPS figure predict inspection frames per second?
No. Runtime support, input shape, precision, memory movement and surrounding tasks all affect throughput. Compare measured application behavior on a consistent dataset.
Does an NPU guarantee a fanless or low-power industrial computer?
No. Cooling and input power depend on the entire board, enclosure and workload. Confirm them for the exact system instead of extrapolating from one processing block.
When is keeping the existing GPU a sensible decision?
When the application depends on its software stack, the candidate fails quality or performance requirements, or migration costs outweigh a demonstrated benefit. Keeping a validated design can be an engineering choice rather than resistance to new technology.
Bring a workload, not just a TOPS target
Document the model, camera inputs, cycle time, enclosure and software dependencies before comparing industrial computing platforms. For board-level integration or migration planning, discuss custom development or contact the engineering team.
